A Contactor is an electrically controlled switch that is used to control a larger power load.

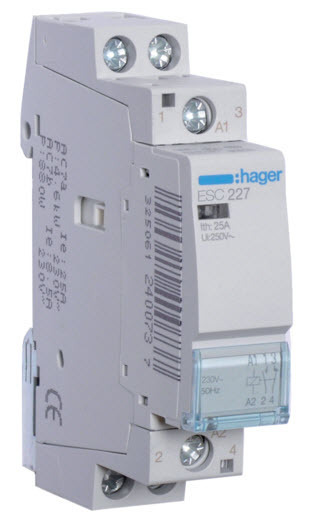

The Hager ESC227 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

The ESC227 is a 25 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

Features:

• Contactor
• 240V
• 2 Pole
• 25 Amp
• 1 Normally Open
• 1 x Normally Closed

• Depth of installed product: 60 mm
• Height of installed product: 83 mm
• Width of installed product: 17,85 mm

• Max. load fluorescent lamp: 950 VA
• Max. power with fluorescent parallel lamps: 810 VA
• Fluorescent lamps in duo circuit: 1990 VA

• Max. power with incandescent lamps: 1900 W
