Description:

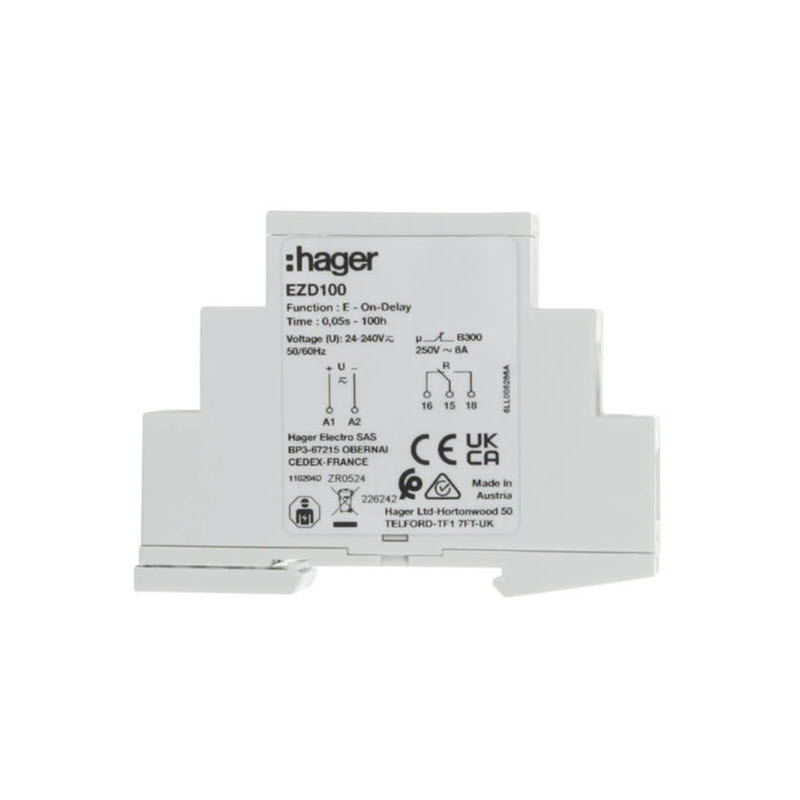

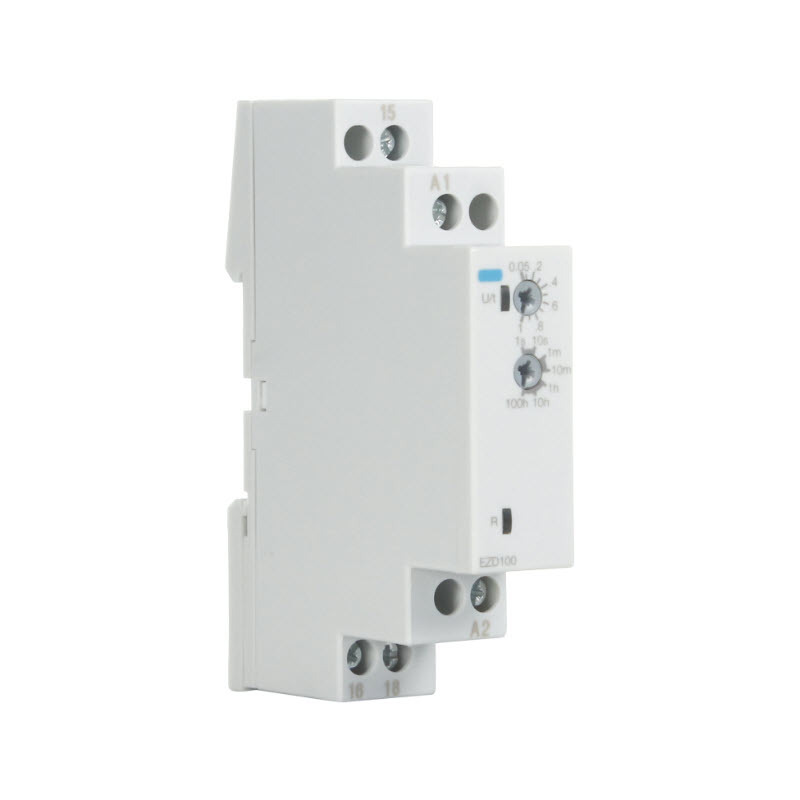

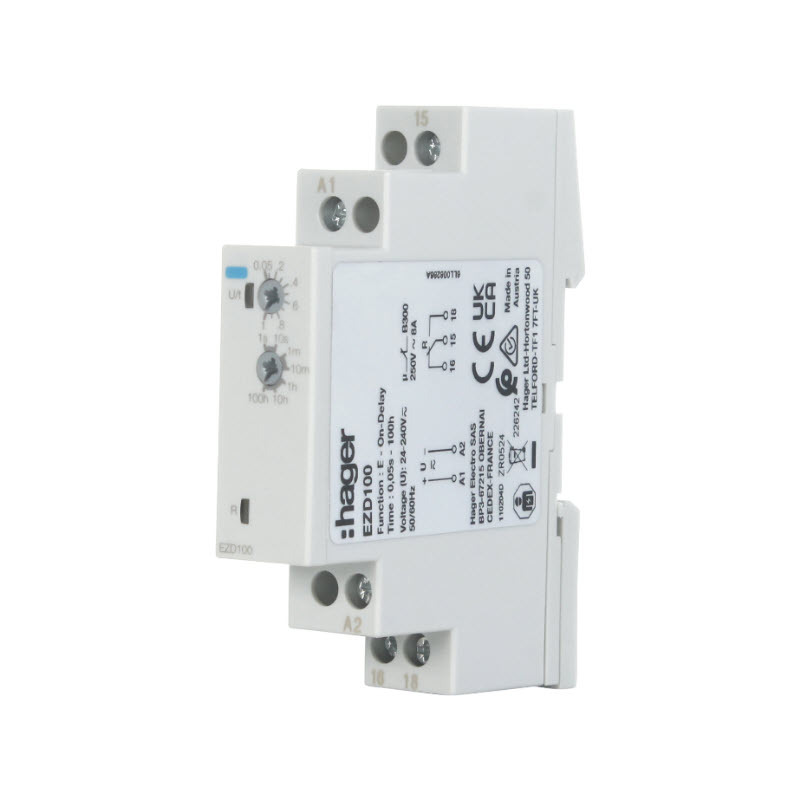

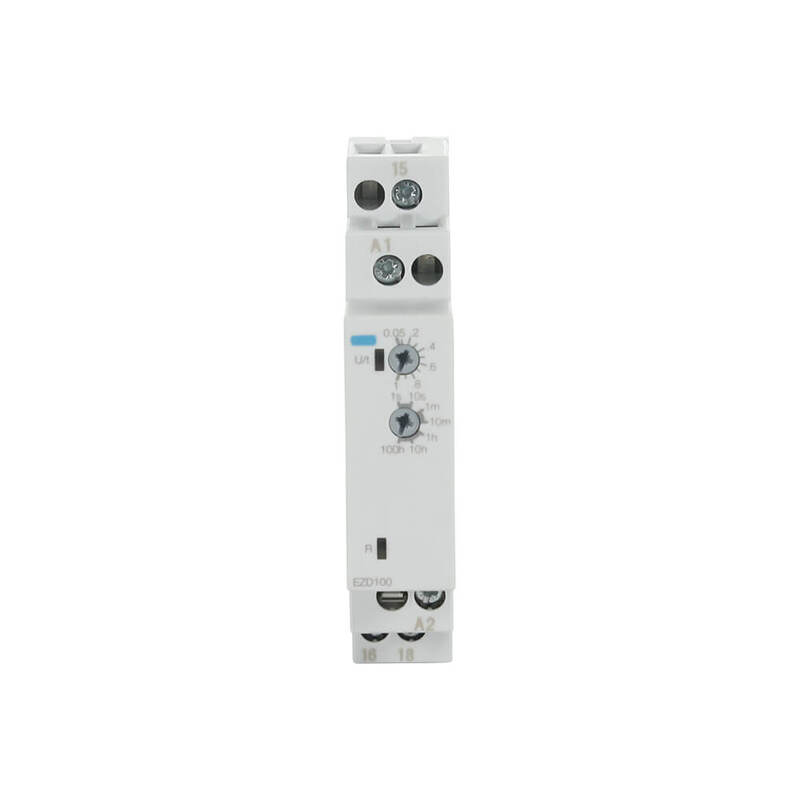

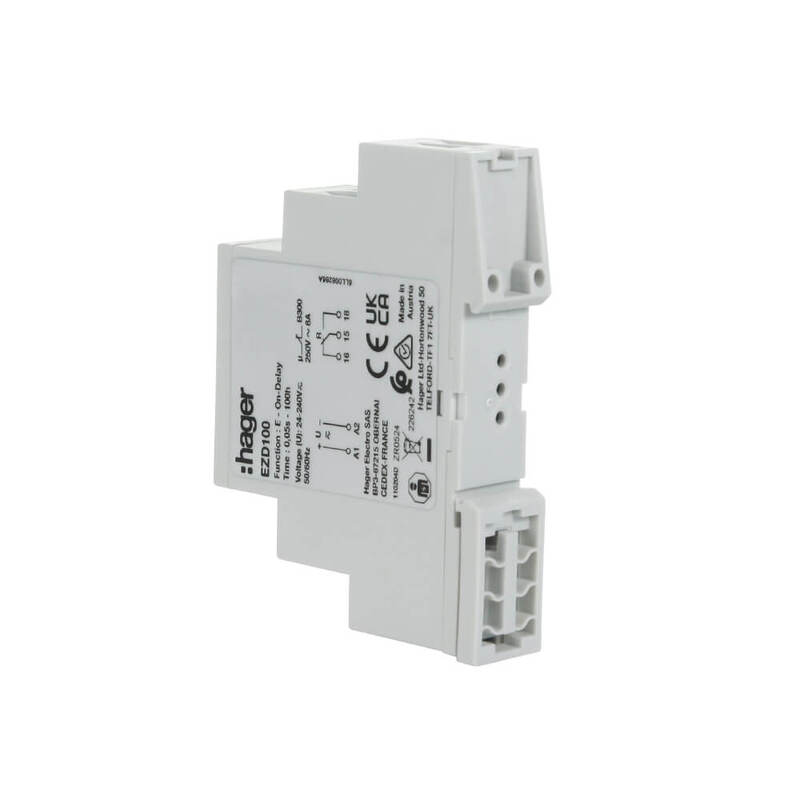

The Hager EZD100 is a Delay On Time Relay designed for electricians needing to manage circuit activation with precision. This device provides a controlled delay to the initiation of current, starting when voltage is applied, and is adjustable from 50 milliseconds to 100 hours to suit various requirements. The relay operation is indicated through green and yellow LED signals, offering clear status updates. It's built to cater to a wide range of power inputs and comes with specifications aimed at ensuring dependable performance over many uses.

Features:

• Time Delay Control: Adjustable from 50 milliseconds to 100 hours.
• LED Indicators: Visual confirmation of delay timing and relay status.
• Wide Voltage Range: 24 to 240 V AC/DC, accommodating various power supplies.
• High Capacity: Handles up to 2000 VA (8 A/250 V).
• Durability: Mechanical life of 20 million operations and electrical longevity with 200,000 operations at 1000 VA resistance load.
• Precision: Basic accuracy within ±1% and repeat accuracy less than 0.5% or ±5 ms.

FAQ:

Q: What is the maximum switching capacity of the Hager EZD100?
A: The maximum switching capacity is 2000 VA (8 A/250 V).

Q: How accurate is the delay timing on the Hager EZD100?
A: The basic accuracy is within ±1% of the maximum scale value, and the repeat accuracy is less than 0.5% or ±5 ms.

Q: Can the Hager EZD100 handle different power supply voltages?
A: Yes, it supports a supply voltage range of 24 to 240 V AC/DC, making it versatile for various installations.
