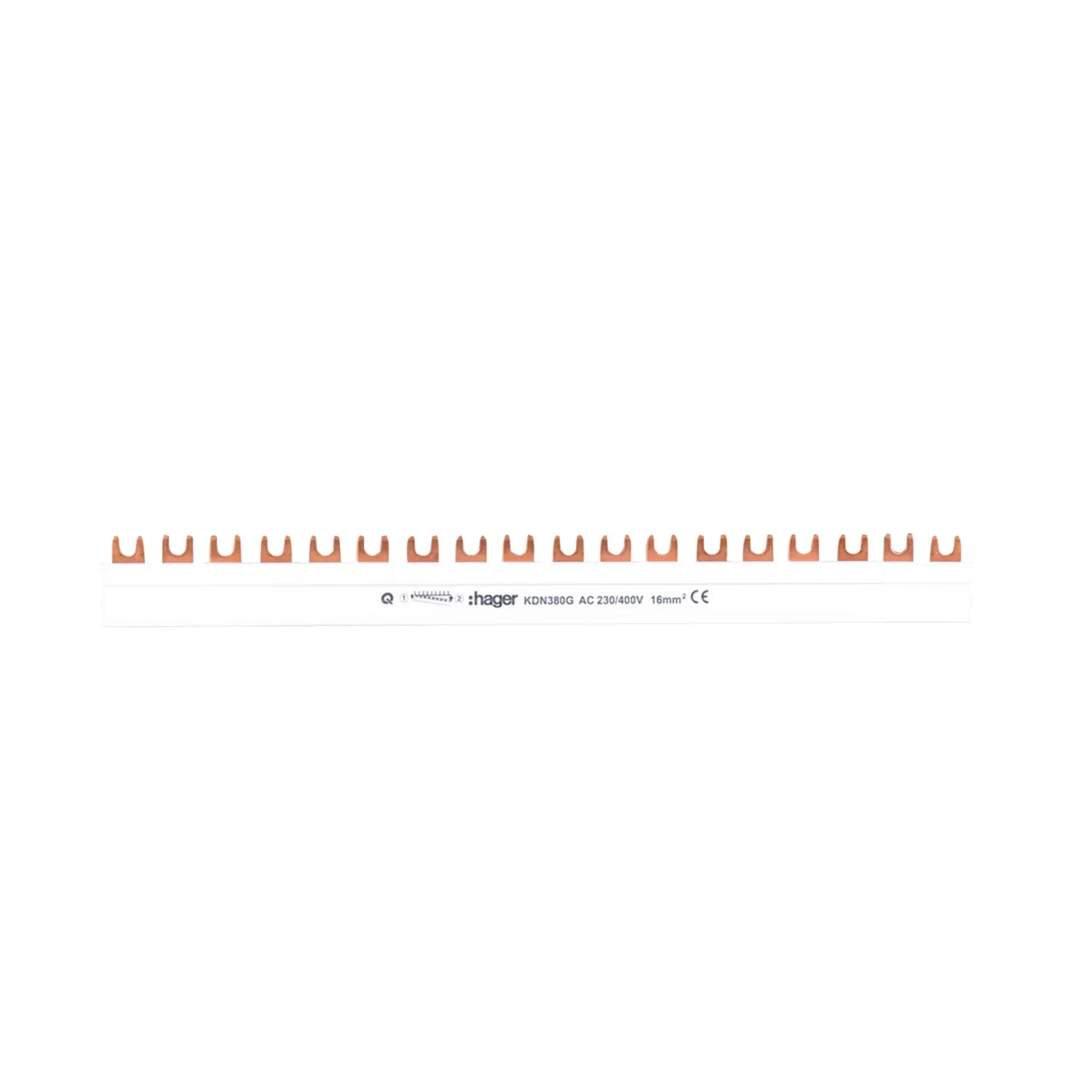

The Hager KDN380G is a 3 pole insulated busbar built for reliable phase distribution across modular switchboards and electrical panels. Measuring 210mm, it supports up to 18 modules and connects quickly using 16mm² fork-type terminals.

With a 415V operational rating and 4000V impulse withstand, this busbar delivers safe, high-performance current distribution in residential or commercial settings. Its 80A current rating makes it suitable for most general power distribution loads.

KDN380G Features

• 3 Pole Design: Provides phase distribution for 18 modules
• 80A Rated Current: Handles standard residential and commercial loads
• 210mm Length: Sized to support 18 DIN modules
• 16mm² Conductor Capacity: Fork-type terminals for quick, secure install
• Voltage Ratings: Ue: 415V | Uimp: 4000V

KDN380G FAQ

Q: How many modules does this support?
A: It supports 18 modules with 3 poles each (total 54 pole connections).

Q: What conductors is it compatible with?
A: It accepts rigid copper conductors up to 16mm² using fork terminals.

Q: Is this suited for standard switchboards?
A: Yes, it's compatible with modular boards sized for 18 modules.
