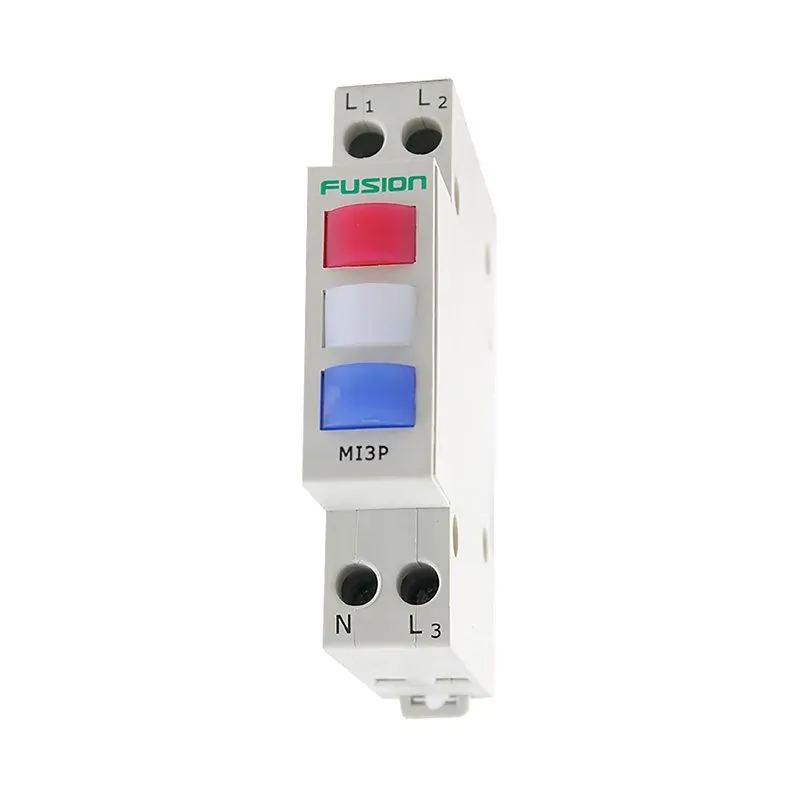

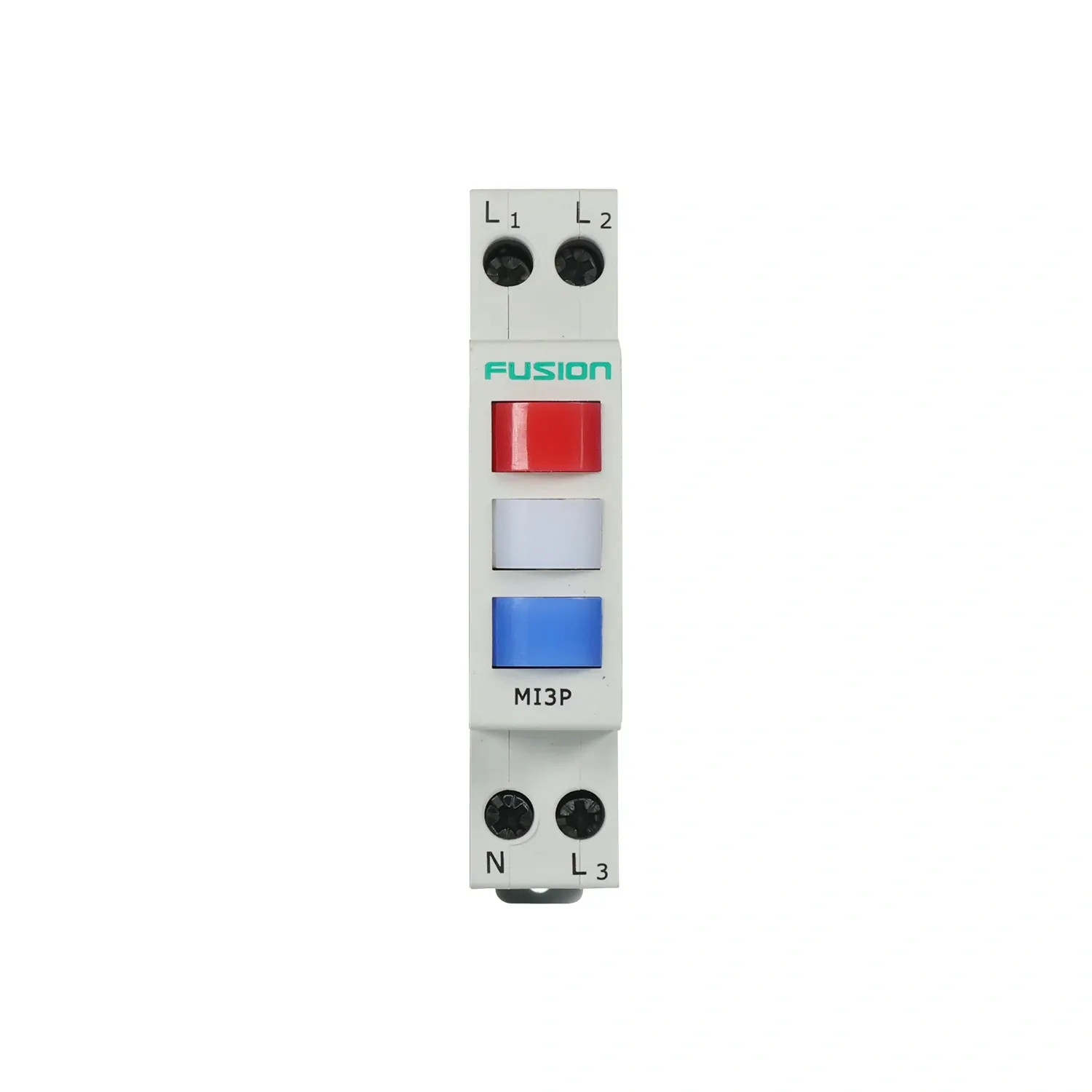

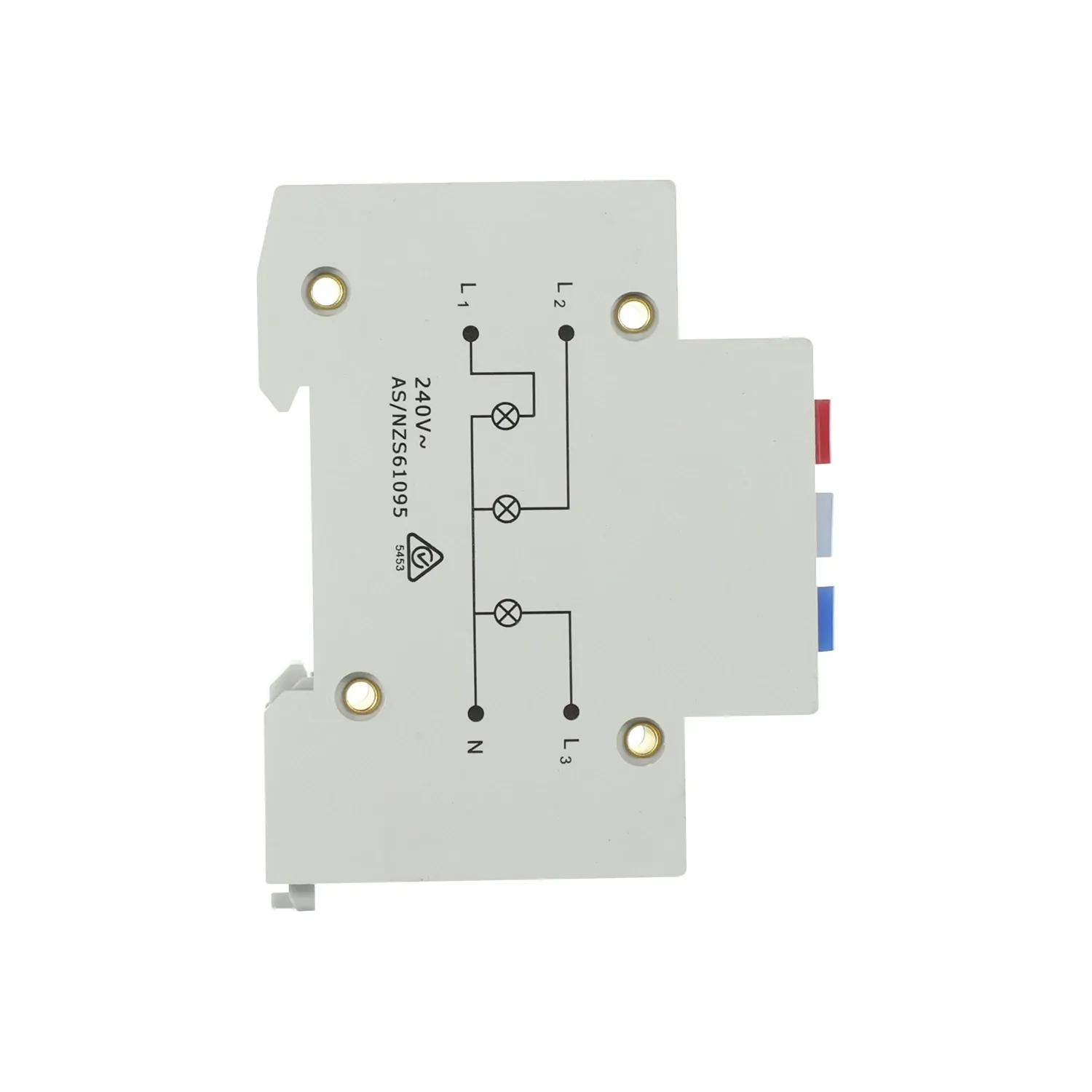

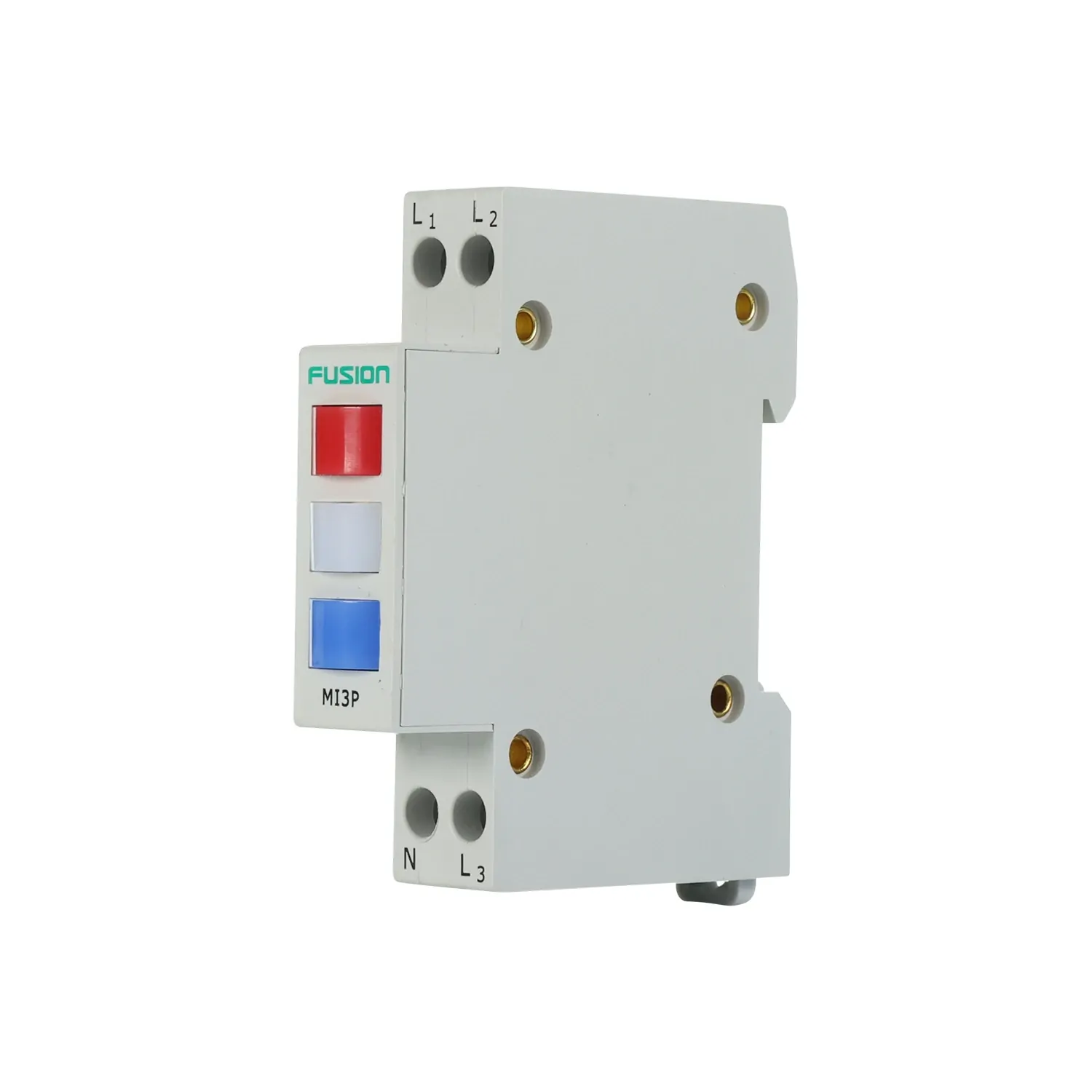

The Connected Switch Gear MI3P is a 240V AC 3-phase power indicator, designed for DIN rail installation in switchboards and control panels. It provides a clear, immediate visual reference of L1, L2, and L3 status using red, white, and blue LEDs, aligned to IEC standard phase colours—ideal for electricians needing fast fault detection and confirmation of power supply.

At just 18mm wide, this compact module fits standard 35mm DIN rails, making it suitable for space-limited installations. It operates on 50–60Hz systems, supports 6mm² cables, and features 1.2Nm screw-type terminals for secure, reliable connections. Built to last, the MI3P is backed by a 5-year in-house warranty and complies with IEC 60947-5-1 standards for control circuit devices.

MI3P Features

• 240V AC 3-phase status indicator: Shows power on L1, L2, L3 at a glance.
• Red / white / blue LED colours: Phase ID complies with IEC standards.
• DIN rail mountable (18mm width): Installs easily on 35mm DIN rail systems.
• 6mm² terminal capacity: Clear terminal layout with 1.2Nm screw torque.
• Rated for 50–60Hz systems
• Complies with IEC 60947-5-1
• 5-year in-house warranty

MI3P FAQ

Q: How is the MI3P mounted?
A: It mounts onto a 35mm DIN rail—standard for most switchboards.

Q: What do the LED colours represent?
A: L1 = red, L2 = white, L3 = blue, as per IEC phase colour coding.

Q: What wiring specs does it support?
A: The terminals accept up to 6mm² cable and are tightened to 1.2Nm.
