Handheld PON Power Meter Optical Fiber Tester Network Engineering Ten Data Storage 1310nm 1490nm 1550nm

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Limited Stock
$134.98

Collect 134 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Emutree Group Pty Ltd
Secure ways to pay at checkout

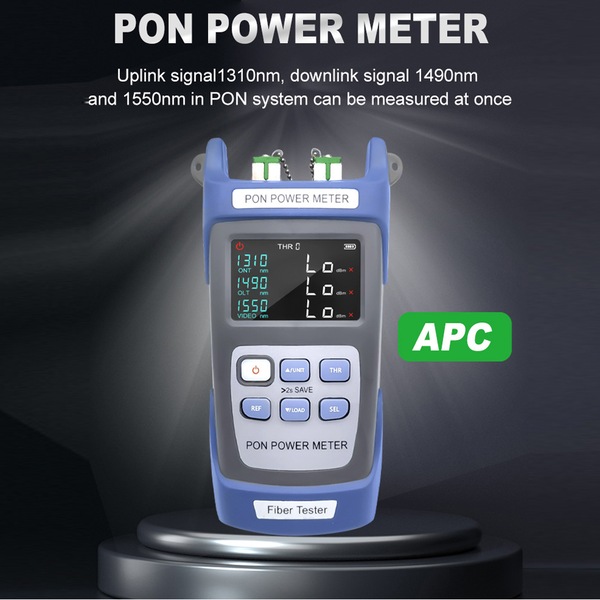

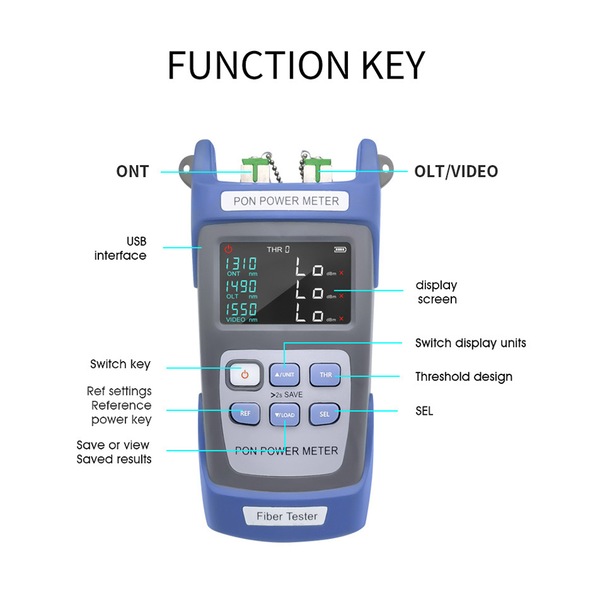

This PON optical power meter is designed for the installation, operation and maintenance of fiber optic networks.? Color LCD screen design, support measure and display of voice, data and video signals on the PON hitecture at the same time, while testing the 1310nm uplink signal 1490nm and 1550nm downlink signal in the PON system. Support ten data storage, in the test interface, long press V/LOAD to save the t power value, short press V/LOAD to enter the saved value view mode.

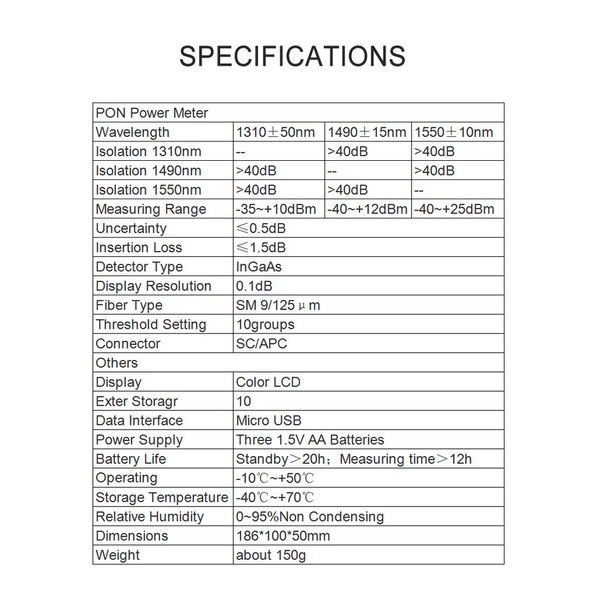

Specifications:

Name: PON Power Meter

Material: plastics

Optical interface: AngledPhysical s, UPC (optional)

Test wavelength: 1310��50nm / 1490��15nm / 1550��10nm

Isolation 1310nm: -- / >40dB / >40dB

Isolation 1490nm: >40dB / -- / >40dB

Isolation 1550nm: >40dB / >40dB / --

Measurement ranges: -35 to +10dBm / -40 to +12dBm / -40 to +25dBm

Measurement uncertainty: ��0.5dB

Insertion loss: ��1.5dB

Detector Type: InGaAs

Display resolution: 0.1dB

Fiber Type: SM 9/125��m

Reading value setting: 10 groups

Optical Connector: SCIAPC

Display: color LCD screen

Data storage: 10

Data interface: Micro USB

Power supplys: 3 * 1.5V AA batteries (included)

Battery Lifespan: Standby > 20 hours; Measurement > 12 hours

Operating temperature: -10�� to +50��

Storage temperature: -40�� to +70��

Relative humidity: 0-90% without condensation

Item size: 180 * 100 * 50mm / 7.09 * 3.94 * 1.97in

Item weight: 150g / 5.29ounce

Package size: 210 * 122 * 70mm / 8.27 * 4.80 * 2.76in

Package weight: 581g / 20.49ounce

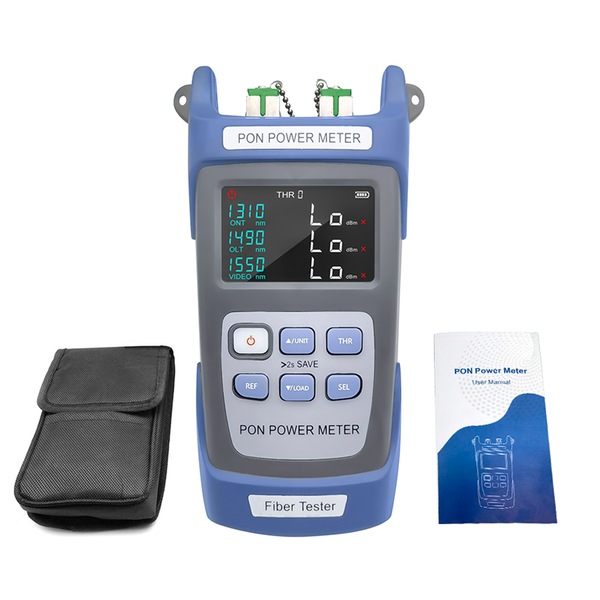

Packing List:

1 * PON Power Meter?

1 * Storage Bag

1 * Guideline
