Specification:

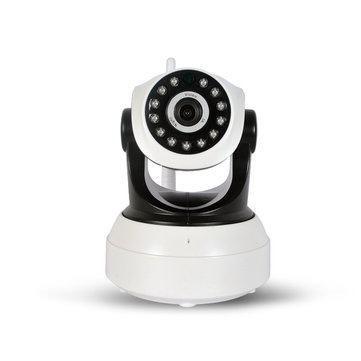

Product name: P2P network HD video camera

Processor: AK3918E+SC1245

Platform: av380.cn

Operating system: Embedded LNUX operating system

Image sensor: 1/4" HD CMOS 200W pixels CMOS sensor

Video standard: NTSC PAL

Video format: HD (1920*1080P) VGA (1280*720P)

Video encoding: H.264

Video frame rate: 1-30 fps

Video mode: Manual recording, timing recording, alarming recording

Video playback mode: Mobile APP + PC client

Audio input and output: Input: built-in 38DB microphone; output: built-in 8Ω 2W speaker

Built in lens: 3.6MM (standard), optional

IR night vision effect: Photoresistance sensor switch, IR LEDs, IR distance 10m, (IR-CUT auto switch)

Focusing method: Manual

Minimum illumination: 0.1Lux/F1.2

PTZ control: Horizontal rotation 355 °, vertical rotation 100 °

Local storage: Support inserted 64GB MicroSD card, support 24 hours of recording or alarming recording

Support multiple protocols: TCP/UDP , IP , HTTP , SMTP , DHCP , DDNS , UPNP , NTP , ONVIF , RTSP

Wifi: Support IEEE 802.11b/g/n

Image rotation: Mirror / Inversion

Video control: Support

Motion Detect: Support

Alarm action: The alarm bell / mobile APP push

Firmware upgrade: Upgrade remotely via network

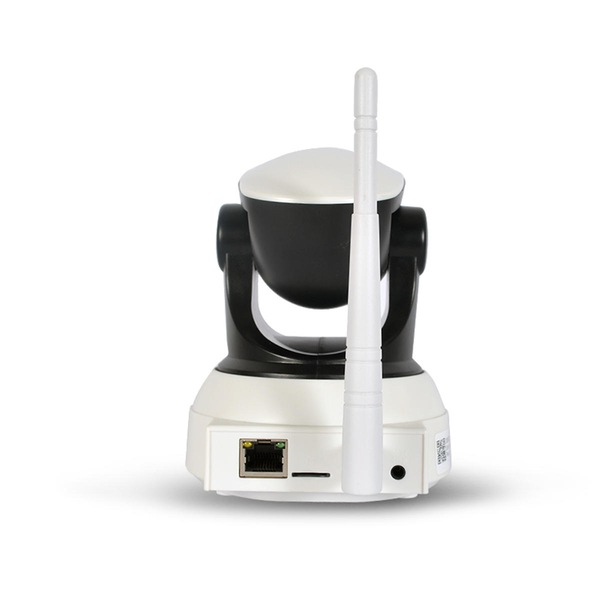

System interface: 1 RJ45 interface (10/100M adaptive), 1 TF interface

Supply voltage: DC 5V 2A

Working temperature: 0��C-55��C

Working environment: indoor

WIFI antenna: 12.9cm

Single size: 10.2*13.3*14.3cm

Package included:

1 x Camera

1 x Power Adapter

1 x Apple Pin

1 x Screw

1 x Manual

1 x Color Box
