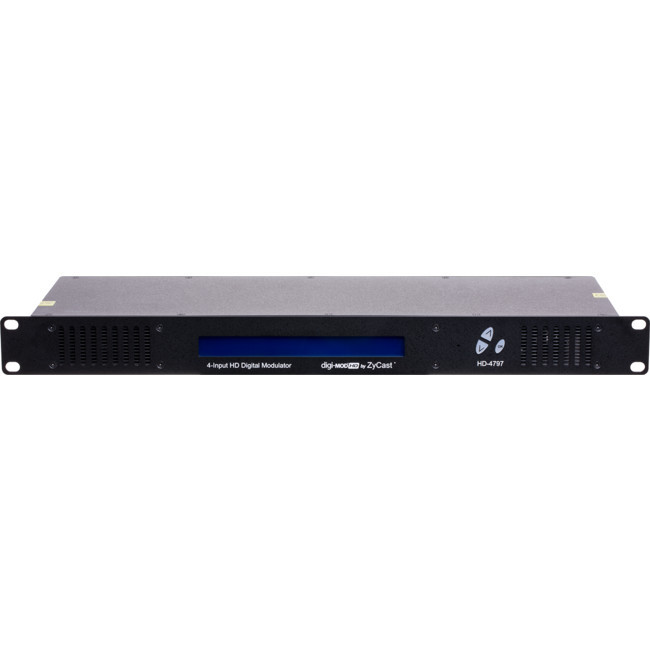

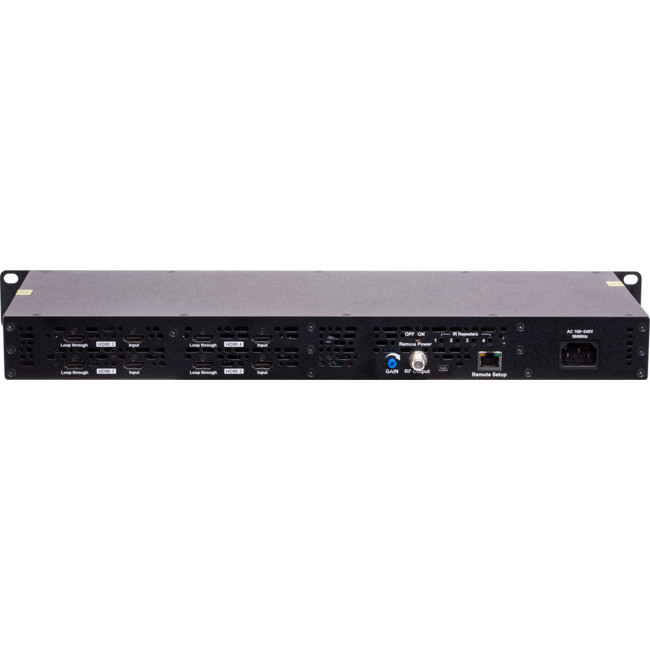

HD4797 DVB-T QUAD INPUT MODULATOR MPEG-4 ENCODING HDMI LOOP OUT
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 3499 Everyday Rewards points
Collect 3499 Everyday Rewards points
FEATURES
HD-4797 is a new HD 4-input MPEG-4 only DVB-T modulator. It's ideal for any commercial RF network. The high quality HD design allows for watching action packed movies and sports channels on any HDTV. The space saving design delivers up to 4 high quality HD channels in a single 1RU space and features passive cooling - no fans!
This is ideal in multi-video distribution solutions for both residential and commercial applications for new TVs.
SPECIFICATIONS
Input | |
Video Input | HDMI |
Video Input Level | 0.7-1.4V(peak to peak) |
Video Mode | PAL/NTSC |
Audio Input | Stereo |
Audio Input Level | 0.4-4.8V(p-to-p) |
Output | |
Frequency Range | Local Country Available |
Output Level | 85 dBuV |
MER | >36 dB typ. |
Modulation | |
Video Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Video Compression | H.264AVC (MPEG-4) |
Audio Compression | MPEG1 Layer II/ AAC |
LCN | Yes |
Carrier (OFDM Mode) | 2K/ 8K |
Guard Intercals | 1/32 |
Code Rate(FEC) | 7/8 |
Constellations | 64-QAM |
General | |
Power Supply | 12 VDC 4 Amp |
Consumption | 1650 mA |
Operating Temperature | 0oC-45oC |
Storage Temperature | -10oC- 60oC |
Language | English |
Dimension | 482.7mm x 187mm x 44.4mm |
Weight | 2.76 Kg |
GTIN: 9328202020116
