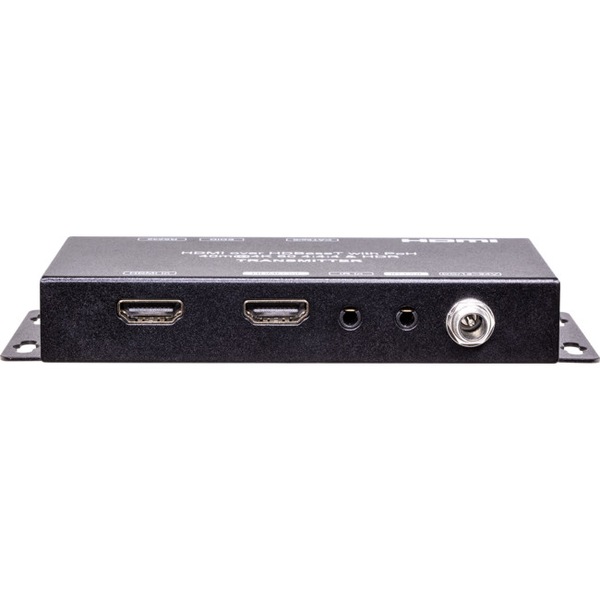

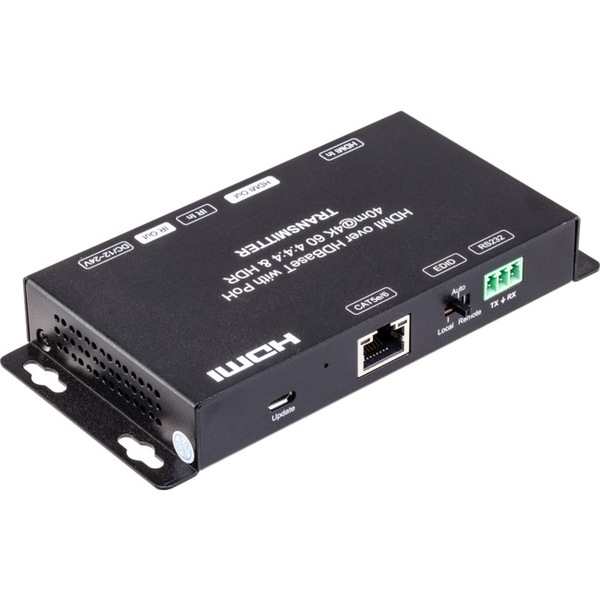

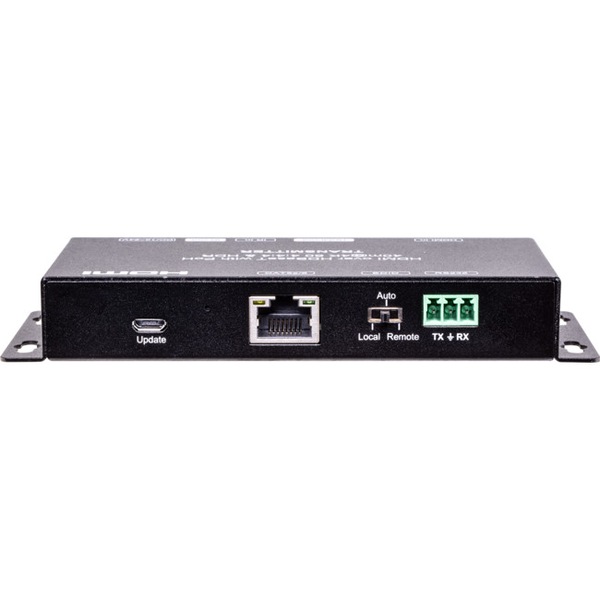

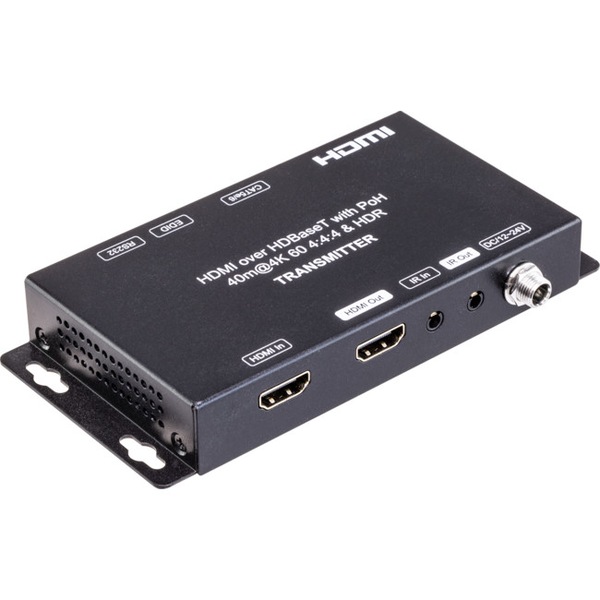

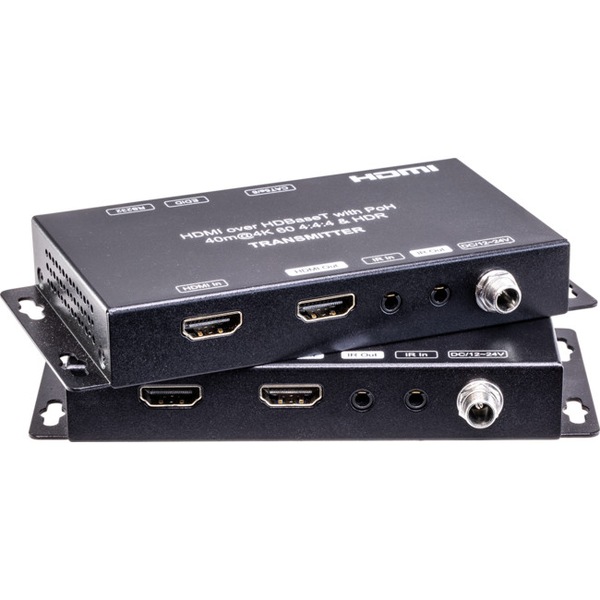

PRO2 HDBT70M Hdbaset HDMI Extender 70M 4K@60Hz 4:4:4 40M 1080P 70M

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 9 items left!
$406

Collect 406 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

HDBaseT is the only technology with the ability to distribute truly uncompressed ultra-high-definition A/V for distances of up to 100m/328ft., either point-to-point or daisy-chained, and with zero latency.? The HDBT70M can transmit the distance up to 70M for 1080P and 40M for 4K@60Hz 4:4:4 signal._


Features
  • HDBaseT Technology
  • Extend HDMI & IR via a signal Cat5E/6 cable_
  • Transmission distance up to 70M for 1080P and 40M for 4K@ 60Hz 4:4:4
  • Bandwidth up to 18Gbps
  • HDR10, 3D supported
  • Dual POC ( Power over the cable), unit can be powered by either side, the transmitter or the receiver via the Cat5e/6 cable
  • Local HDMI loopout on the transmitter
  • 2x HDMI outputs on the receiver, can be used as a HDMI splitter
  • HDCP2.2/1.4 compliant
  • Mounting ears attached
  • Bidirectional Infrared Remote supported
  • Phoenix RS232 signal passthrough
  • Firmware upgradable
  • EDID dip switch
Specifications
  • Operating Temperature Range: -10 to +55°C (14 to +131 °F)
  • Operating Humidity Range:_5 to 90 % RH (no condensation)
  • Input Video Signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Video Format Supported:___DTV/HDTV;_4K/1080P/1080i/720P/576P/480P/576i/480i
  • Output Video: HDMI 2.0+HDCP1.4/2.2
  • Output Audio: Support DTS-HD, Dolby-HD
  • Maximum Transmission Distance: 70 meters for 1080P, 40 meters for 4K @60Hz 4:4:4
  • Power Supply: 24V1A_with lock ring_
  • Poc: Power from TX to RX or from RX to TX over Cat5/6 cable
  • Power Consumption: 12W
  • Dimensions:_139.4 mm H×66.8mm W×20mm D
  • Weight (Main unit) : 0.54Kg / 1.19lb (Pairs)_

What is in the box?_
  • Transmitter with the mounting ear x 1pc
  • Receiver with the mounting ear x 1pc
  • IR emitter x 1pc
  • IR receiver x 1pc
  • 24V 1A Power supply x 1pc
  • Phoenix plug for RS232 x 2pcs
  • User manual x 1pc
