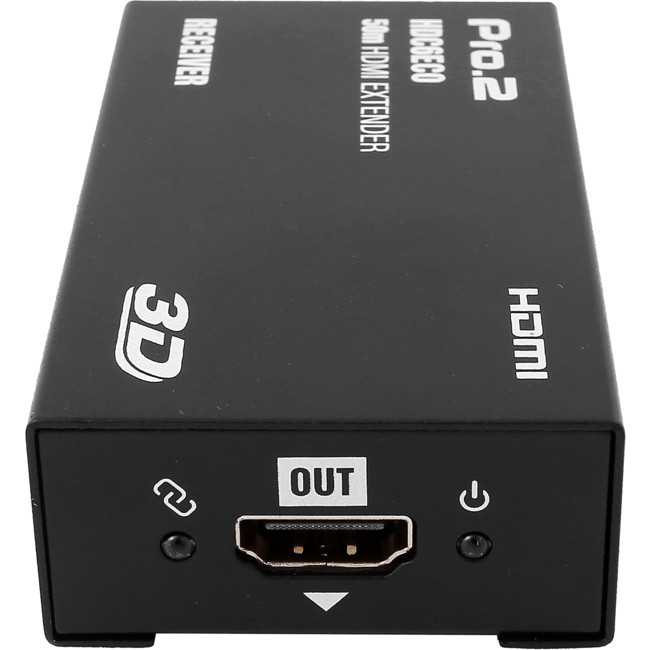

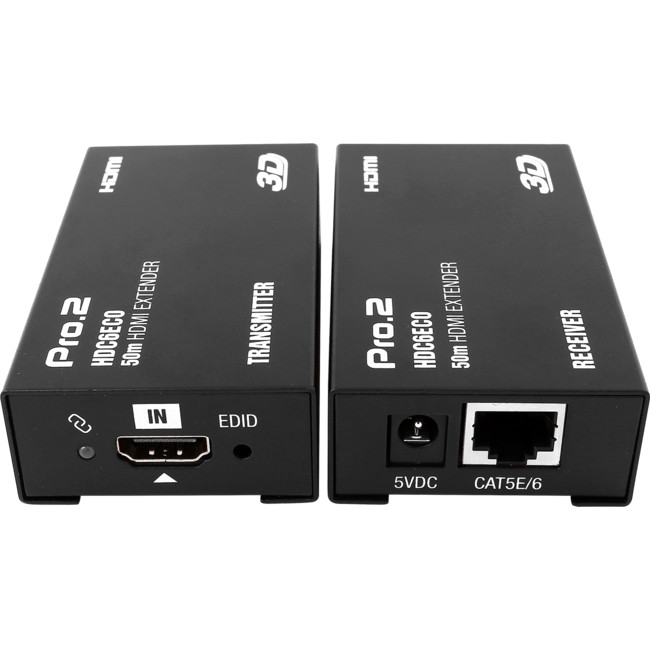

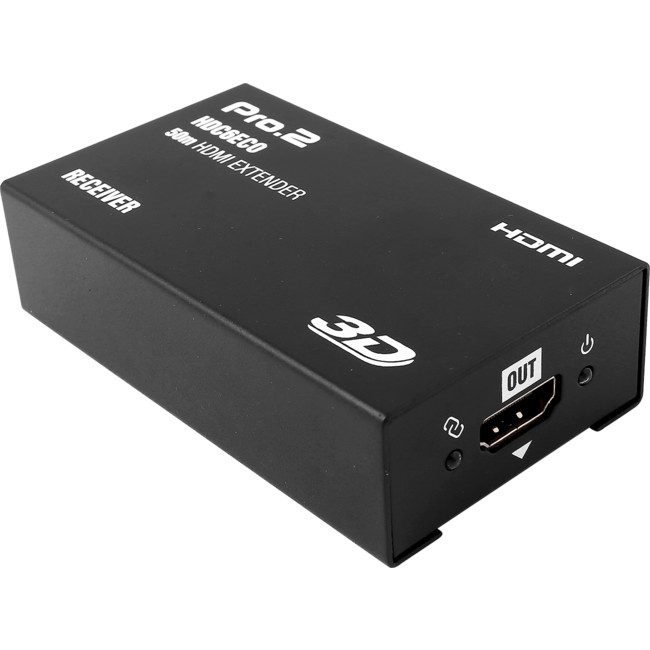

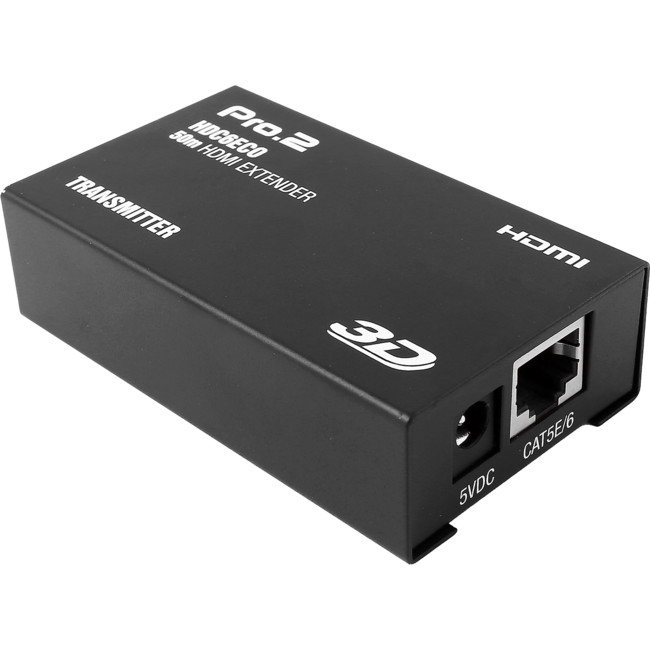

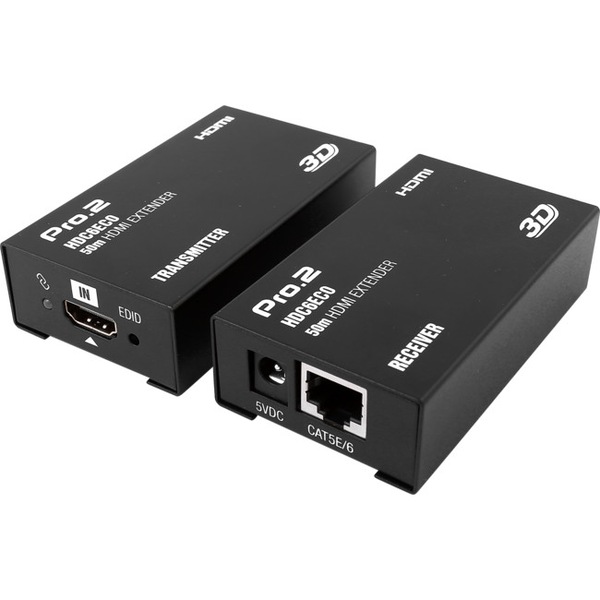

PRO2 HDC6ECO HDMI Over Single Cat6 Extender Ftp Cat5e/6 Upto 50M With Edid 3D Compatible HDMI OVER

Image 1
Image 2
Image 3
Image 4
Image 5
$76

Collect 76 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Solid/FTP CAT5/6 cable required for best results

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid CAT6 cable.

Most of the pre-made CAT5/6 leads on the market are stranded cable not solid.


HDC6ECO PRO2 HDMI OVER SINGLE CAT6 EXTENDER

Transmit Full-HD 1080p HDMI signal up to 50 metres via a single CAT5e/6 cable without signal loss!

  • Advanced Copy-EDID
    Emulates the EDID of your display, ensuring optimal communication and signal compatibility.
  • Dolby True-HD, DTS-HD Master audio
  • Premium chipset
  • Distance: 50m
  • Each set includes one transmitter and one receiver
  • Easy plug and pla installation
  • The CAT5e/6 follows standard of IEEE-568B
  • Support high definition resolution up to Full HD 1080p
  • Bandwidth: 6.75 Gbps
  • Deep colour: 24-bit
  • 3D compatible
  • 2 × 5V DC 1A power supply (included)
  • 4K/2K incompatible

Got the right cable?

Please note: IEEE-568B standard cables are recommended for this kit.


Wiring diagram

Specifications

Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0V P-P
Input DDC Signal 5V p-p (TTL)
Support Video Format DTV/HDTV
  • 480i/576i/480p/576p/720p/1080i/1080p
  • 3D video
Video Output HDMI, HDCP
Support Audio Format DTS-HD Master Audio Dolby True-HD etc.
Transmission Distance 1080p 8-bit 50m (Maximum) over single CAT5e/6 / 24AWG / Solid
Power Consumption 5W (Maximum)
Dimension (L×W×H) 83mm × 48mm × 25mm
Net Weight 250g (Pair)

Weight: 0.568

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9328202018540

Estimated Delivery Time Frame:4-8 business days
