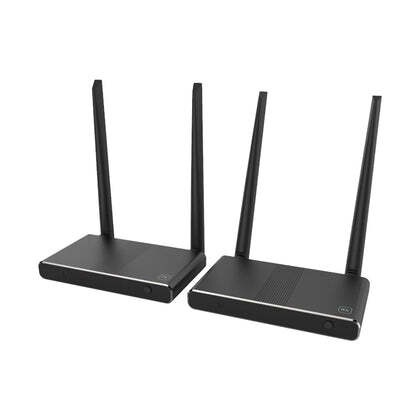

HDMI 1080p Wireless AV Sender with USB & Infra-red Control
Transmit HD video with USB and IR extender control
This full features HDMI Wireless Audio and Video sender will transmit AV signals up to 30m in range direct lline of sight.The Transmitter unit has a HDMI pass through, that means that you do not need a HDMI splitter from the source end to be able to use your main display and the transmitter together. It also have 2 x USB A ports for keyboard and mouse connectivity.
This wireless system sends full 1080p AV with low latency (below 50msec) to provide crystal clear HD videos. It also incorporates a wide-band infra-red controller (20khz - 60khz) to suit a wide variety of devices. This allows control of the source from the receiver end.
Features:
• Digital 2.4G & 5GHz dual frequency wireless A/V transmission
• HDMI 1.4b (6.75Gbps), HDCP 1.4 and DVI compliant
• Full HD 1080p transmits up to 30 meters wirelessly in open space
• Extends infrared remote to control source device from display side
• USB HID transmission from display to source
• Simple Plug and Play, no software installation required
Specifications:
HDMI Compliance HDMI 1.4b
HDCP Compliance HDCP 1.4
Video Bandwidth 6.75 Gbps
Video Resolutions up to 1080P@50/60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 8-bit
HDMI Audio Formats LPCM 2CH
Wireless Standard 802.11a/b/g/n
Modulation Method BPSK/QPSK/16-QAM/64-QAM
Wireless Band 2.4GHz, 5GHz ISM Band
Operation Range Up to 100 meters in open space
IR Frequency 20KHz - 60KHz
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

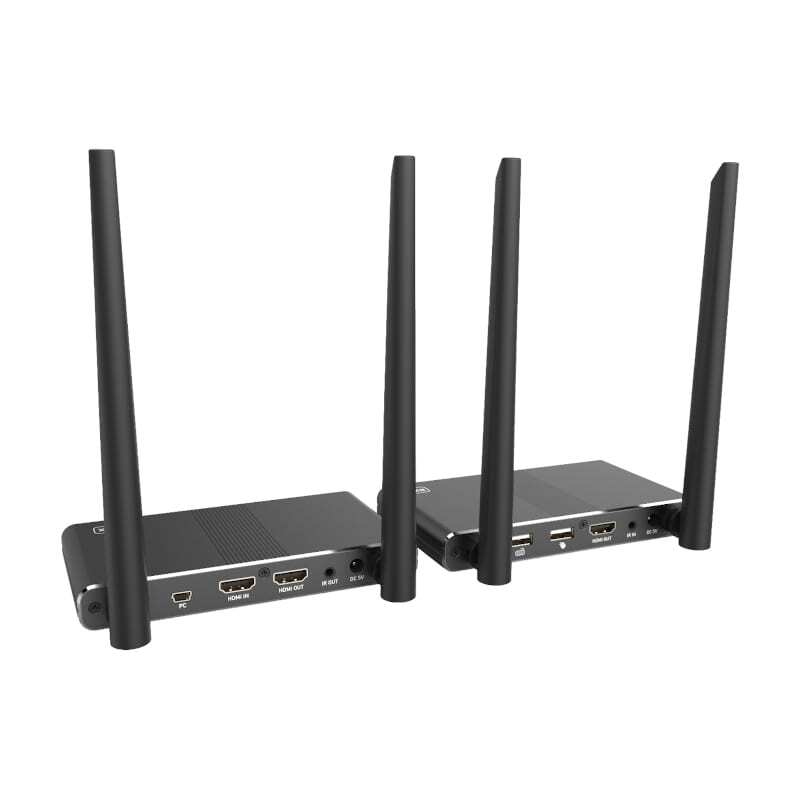

Connections
Transmitter Inputs: 1x HDMI Type A [19-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x USB [ Mini USB Type ]
1x IR Out [3.5mm Stereo Mini-jack]
Receiver Inputs: 2x USB [USB Type A]
1x IR In [3.5mm Stereo Mini-jack]
Outputs: 1x HDMI Type A [19-pin female]
Mechanical
Housing Aluminum Enclosure
Color Black
Dimensions 142mm [W] x 80mm [D] x 19mm [H]
Weight TX: 270g RX: 260g
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 3W (Max)
Operation Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C'
Relative Humidity 20 - 90% RH (no condensation)
