PRO2 HDMI4S18G 4-Way 18Gbps HDMI Switcher Audio Extraction Hdmi2.0 Hdr HDMI 2.0 Version (Support

PRO2 HDMI4S18G 4-Way 18Gbps HDMI Switcher Audio Extraction Hdmi2.0 Hdr HDMI 2.0 Version (Support

$156

Collect 156 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

Overview

Easily switch between four different HDMI sources with the push of a button or using the included remote. With the HDMI4S18G you are getting the latest and greatest in what HDMI has to offer: 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. To top it all off, the HDMI4S18G is also an excellent HDMI audio extractor, allowing you to output audio only in either two-channel stereo or 5.1ch surround sound. With ARC, you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs.

Features

Switch inputs via the front panel or remote control
Extract stereo audio via the front RCA outputs or 5.1ch via the front S/PDIF toslink port
Audio mixing support via 3.5mm auxiliary input and S/PDIF toslink input (bypass mode)
Upto 18GBPS bandwidth
HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
Simultaneous audio output: Stereo and toslink
12 bits per channel (36 bit all channels) deep colour
HDCP 2.2 (backwards compatible)
HDR10 support
Uncompressed LPCM 7.1 audio
DTS-HD Master and Dolby True HD
Audio Return Channel (ARC)

Connections

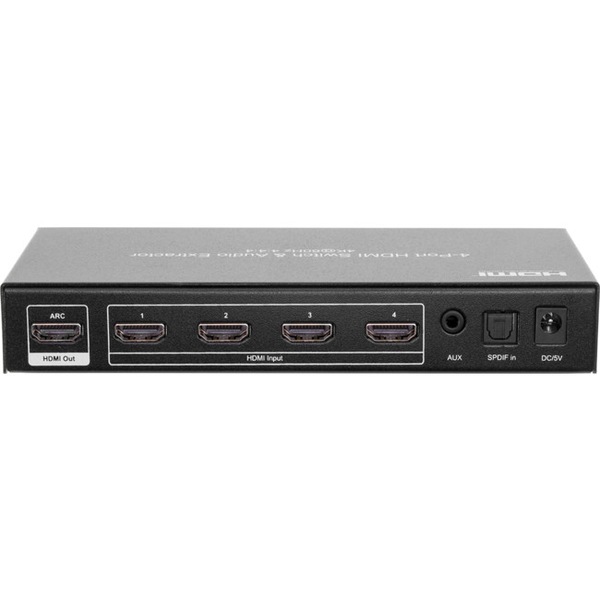

Back Panel
- 4x HDMI inputs
- 1x (ARC) HDMI output
- 3.5mm AUX input
- S/PDIF optical input

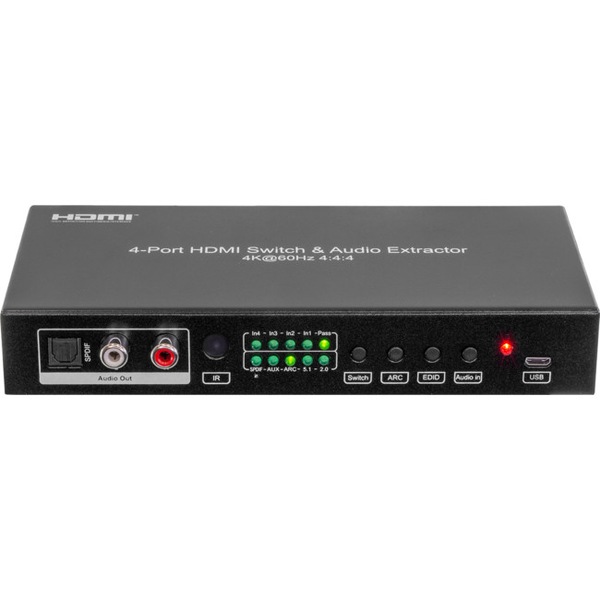

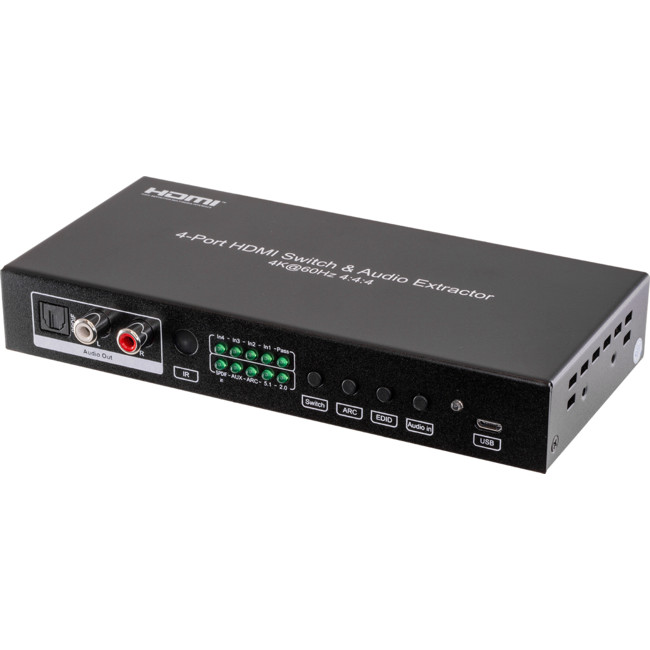

Front Panel
- S/PDIF optical output
- 2x stereo RCA output
- Micro USB input for firmware upgrades
- LED indicators for:
  Input, Pass-through, S/PDIF in, AUX, ARC, 5.1 audio, 2.0 audio
- Push-buttons for:
  Source switching (1-4), ARC, EDID (2ch-5.1ch audio), Audio input (Aux, S/PDIF) switching
- Power LED indicator
- IR window

In the box

HDMI4S18G Switcher

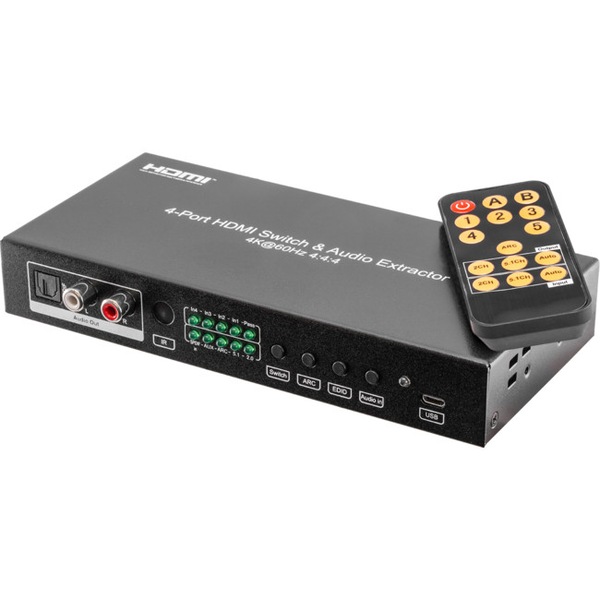

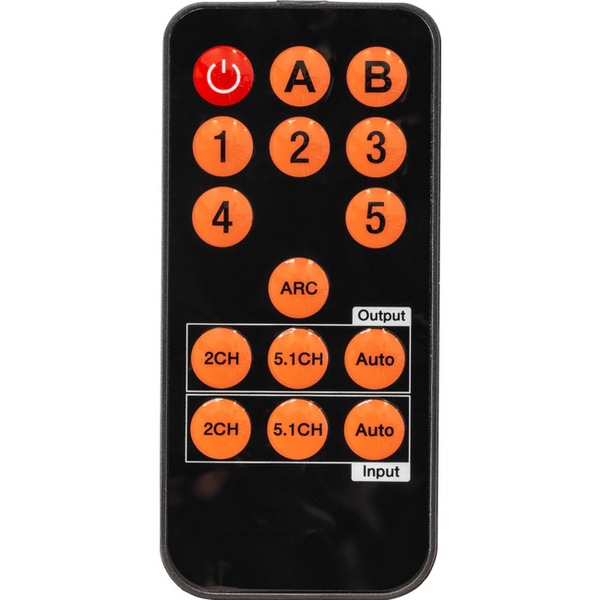

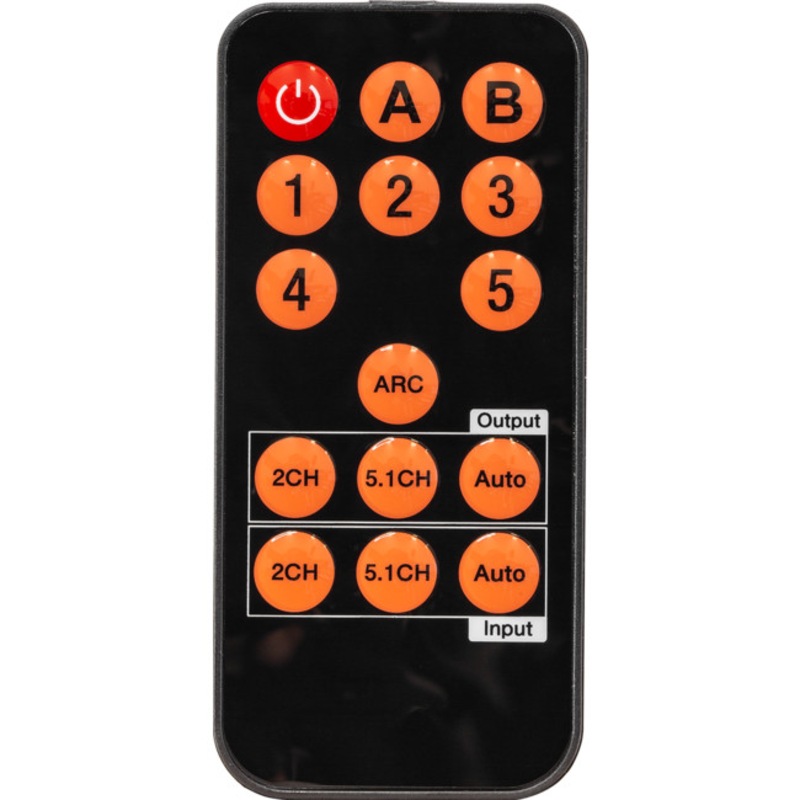

Remote control (Requires 2x AAA Batteries)
5V 1A power supply
User manual
Mounting ears (for rack mounting)

Specifications

Operating Temperature Range	-5 to 40°C
Operating Humidity Range	5 to 90% RH (No Condensation)
Power supply	5V
Minimum power (work under 480p60hz)	256mA
Maximum power (work under 4K2K/60hz)	383mA
Max resolution	4k@60hz YUV4:4:4
Function	ARC HDR10 and CEC(only input)
HDMI version	HDMI 2.0
HDCP version	HDCP2.2 HDCP1.4 (Auto choose depend TV version)
Control ways	Switch button and remoter control
Audio	Analogue audio 2.0, SPDIF 5.1, audio extraction
Distance	1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m
3D	No
Dimensions (LxWxH)	178 x 84.1 x 28.1mm
Audio format	Dolby True HD and DTS-HD master audio (HDMI out)

Weight: 0.689
