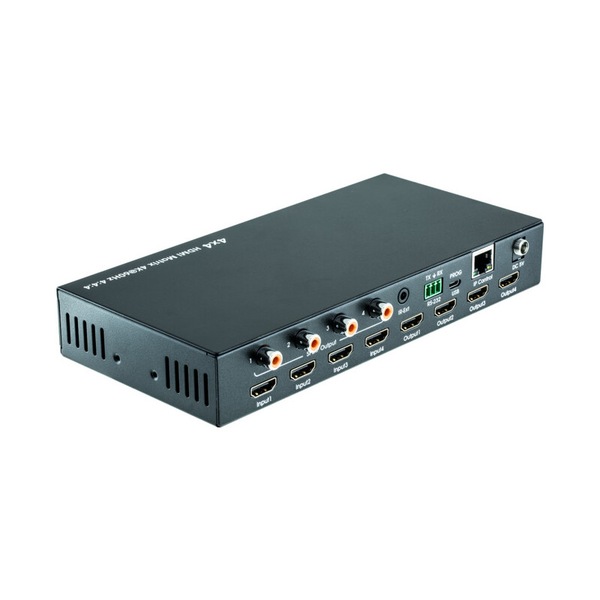

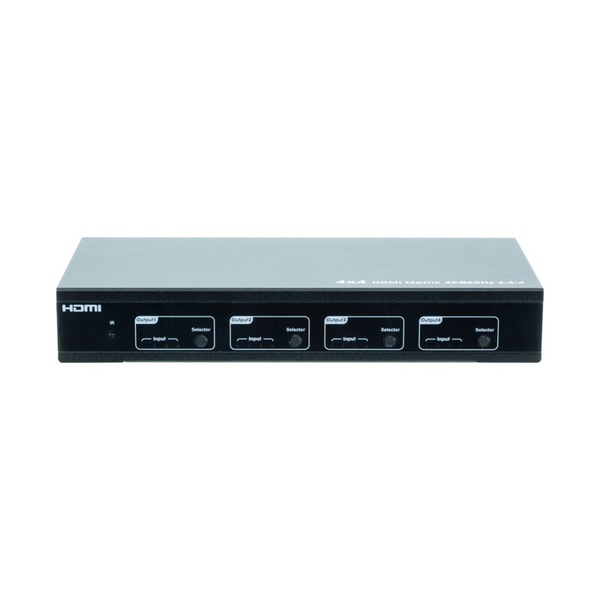

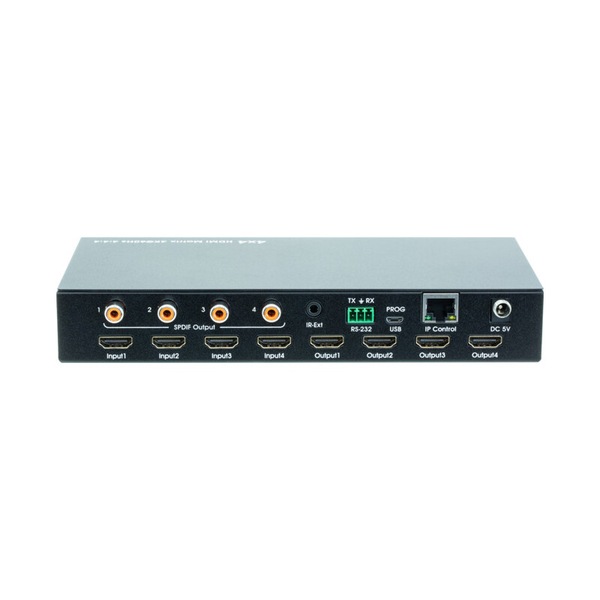

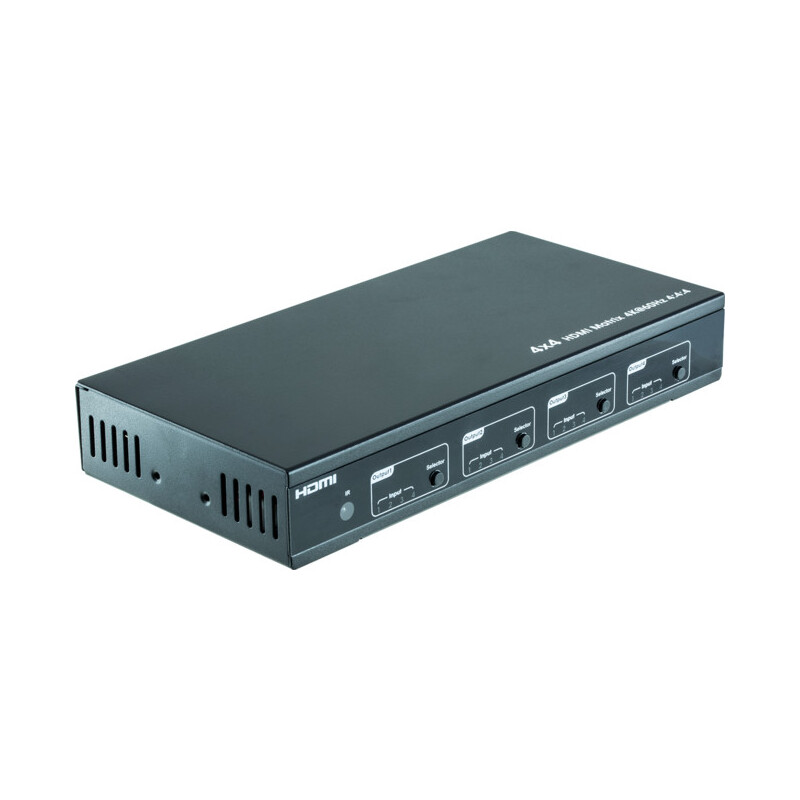

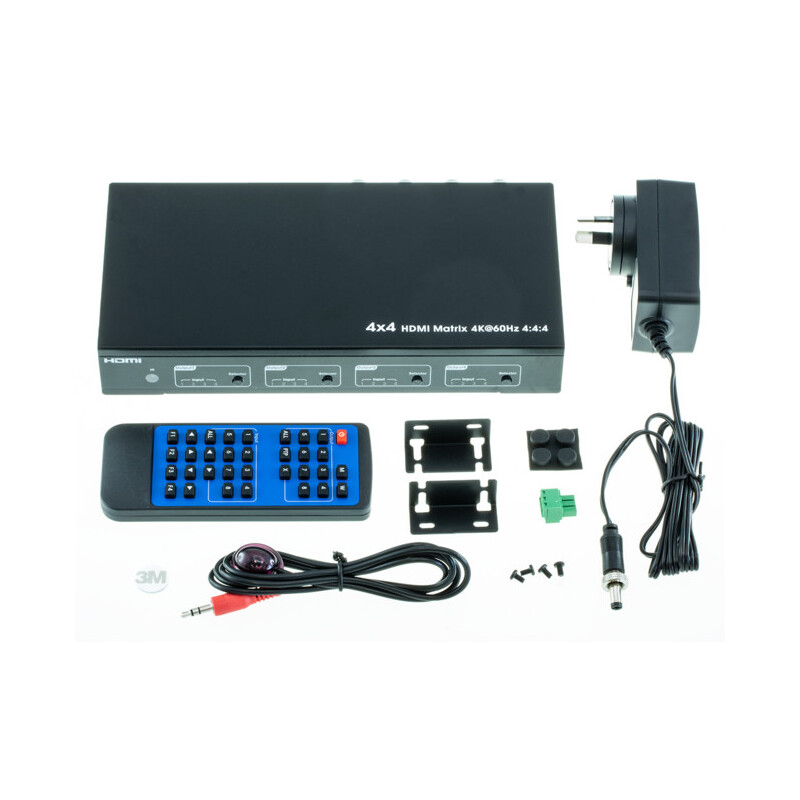

HDMIMX44V18G Pro2 HDMI 4X4 18G Matrix Hdcp2.2 Spdif Rs232 Hdr Supported HDMI 4X4 18G MATRIX

Image 1
Image 2
Image 3
Image 4
Image 5
Shop More Products

_

Features
  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Bandwidth upto 18Gbps
  • HDCP2.2 input ,HDCP2.2 output
  • HDCP1.4 input, HDCP1.4 output
  • Support HDR10
  • 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
  • Any one of the 4 Ultra HD sources to any one of the 4Ultra HD displays
  • Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
  • Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
  • Support firmware updating through USB port
  • Unit size: L216XW105XH34mm
Specifications
  • Operating Temperature: 23F to 113F (-5C to 45C)
  • Storage Temperature: -4F to 140F (-20C to 60C)
  • Resolution: 480p@60hz,576P@50hz,720P@60hz,1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
  • HDCP Compliant: HDCP2.2 and HDCP1.4
  • Output: Video HDMI2.0 and HDMI 1.4
  • Audio Format: Supported PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos
  • RS-232 serial port: 3PIN terminal block connectors
  • Ethernet port: (IP control) RJ45, female
  • IR Ext port: 1x3.5mm stereo jack
  • USB port: Micro 5P female
  • Bandwidth: 18 Gbps
  • Default IP: 192.168.1.168
  • Rack-Mountable Rack ears included
  • Dimensions(WxHxD): L216XW105XH34mm
  • Net Weight: 0.72kg
  • Power consumption:13W(Max)
