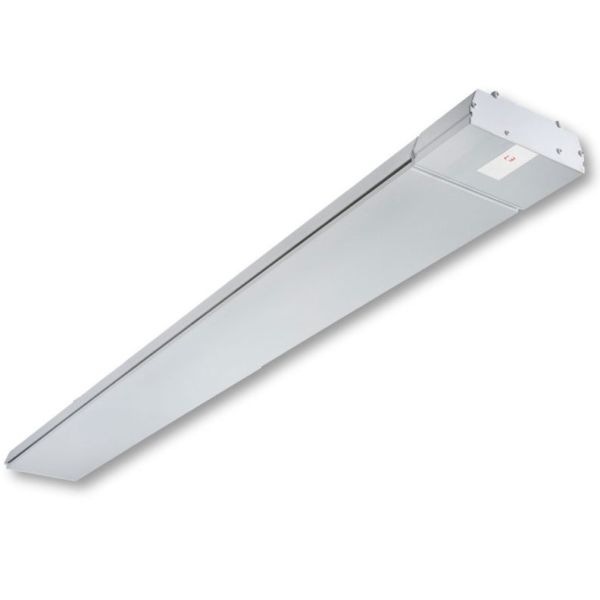

The Heatstrip 2200W electric heater is for protected undercover outdoor and indoor areas such as alfresco areas, verandas, patios, garages, bathrooms etc.

• 2200 Watts
• Gentle heat output, slimline design

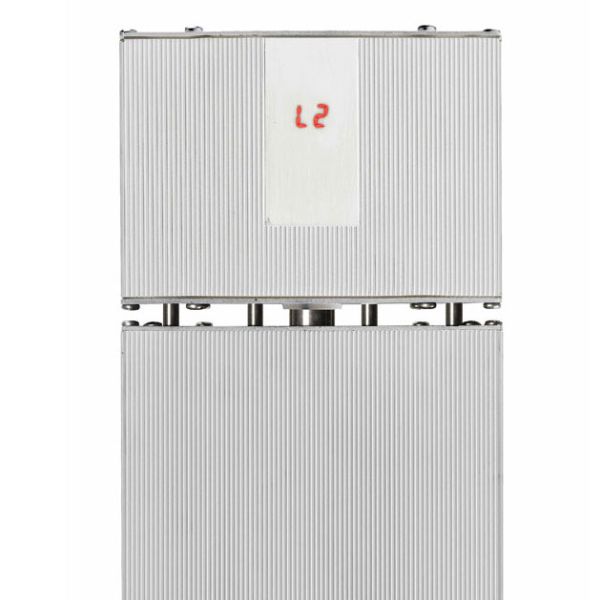

• LED control panel with easy On/Off functionality, 3 heat levels and adjustable 0-24 hour timer
• Suitable to heat a 3-4m2 area, when ceiling mounted
• Anodised alloy construction Profiled off-white heater. No glow
• Direct overhead ceiling mounting is the preferred mounting method
• Supplied with 1.5m lead, plug and mounting brackets for DIY installation
• Remote control included
• 12 month warranty

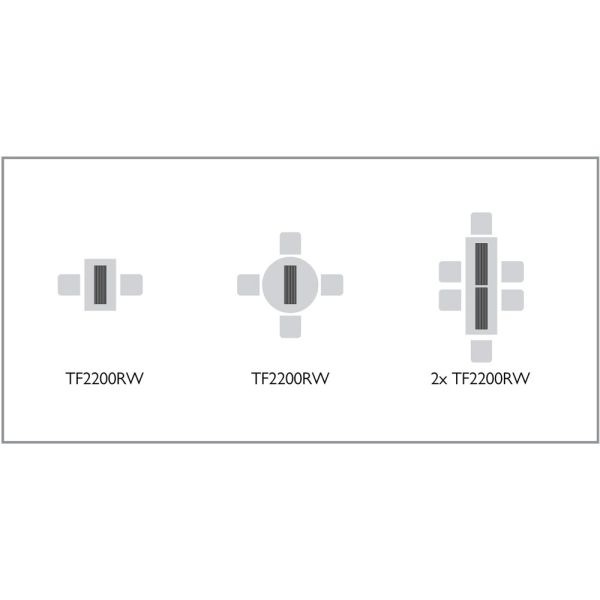

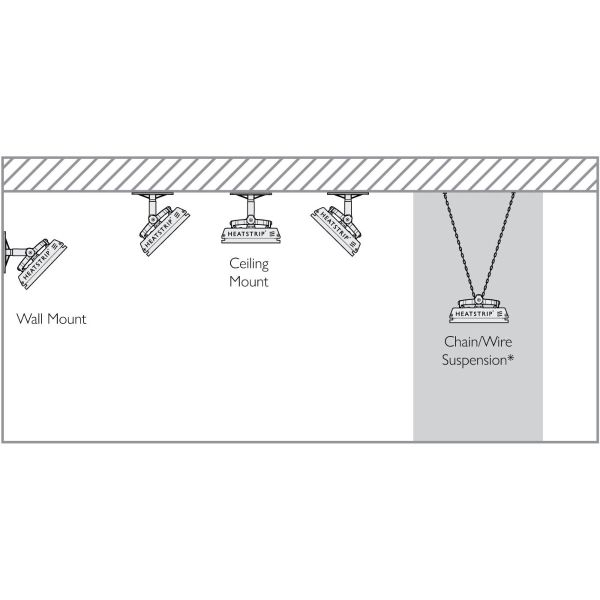

The installation of Heatstrip TF2200RW is simple and easy with the standard mounting brackets supplied. For other locations, there are a range of mounting options available � (refer to diagrams). The Heatstrip TF2200RW can be mounted directly to the ceiling; angled downwards on a wall; suspended on chain; attached to beams/poles/umbrella�s; mounted end-to-end, or 2 units together.
• Minimum mounting height (including flush mount) 2.1m
• Ideal mounting height (including flush mount) 2.2m � 2.4m
• Maximum mounting height (including flush mount) 2.5m

For higher ceiling heights, units can be lowered using the standard mounting brackets with chains or wires. he mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.

*Chain/wire not included

Heatstrip TF2200RW Specifications:
• Materials of construction: Anodised alloy construction. Profiled off-white front panel.
• IPX4 Rated
• Power: 2200W
• Current: 9.2 Amps
• Dimensions: 1144mm (L) x 162mm (W) x 50mm (D)
• Weight: 4.7kg
• Power lead length: 1500mm - with plug
• Heating area: 3-4m2 (for a protected outdoor site)
