Elinz Heavy Duty CCD IR 12V/24V Colour reversing camera BLACK

Elinz Heavy Duty CCD IR 12V/24V Colour reversing camera BLACK

2 Reviews 4.5 2 Reviews
Hurry! 18 items left!
Price
$44.95
Collect 44 Everyday Rewards points
Create a MyDeal Account or Login to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (18) has been reached.


SKU: RVS1



Key Features


  • 135 degree Wide angle viewing helps avoid accidents & injuries
  • Colour infrared night vision waterproof CCD reverse camera
  • Suitable for use with trucks/ caravans/ cars etc. Thanks to this heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night



Reverse Camera Specification:



  • Image Sensor: Colour CCD
  • TV system : PAL
  • Effective pixels: PAL: 628*586 pixels
  • Horizontal resolution : 480TVL
  • Sensing Area: 1/4: 3.6mm x 2.7mm
  • Shutter Speed: 1/50(PAL)
    1/10,000 seconds
  • Minimum illumination: 0.1 Lux/ F-1.2
    (0 Lux with IR on)
  • Video Output: RCA connector. 1.0v P-P, 75ohm
  • Power Consumption: 110mA
    max 300mA with IR on
  • Power Supply: 12v/ 24v
  • Operating Temperature: -20 degree celcius to 90 degree celcius
    RH 95% Max
  • Lens Angle: 90 degree/ 135 degree
  • Waterproof: IP67/ IP68
  • Video cable 6 meter (extra length video cable is available for purchase)
  • Dimension: 75(W)X45(D)X75(H)mm
  • Weight: 300g



*Please note that a 6 meter video cable is included in the sale extra length video cable is available for purchase please contact us for details.

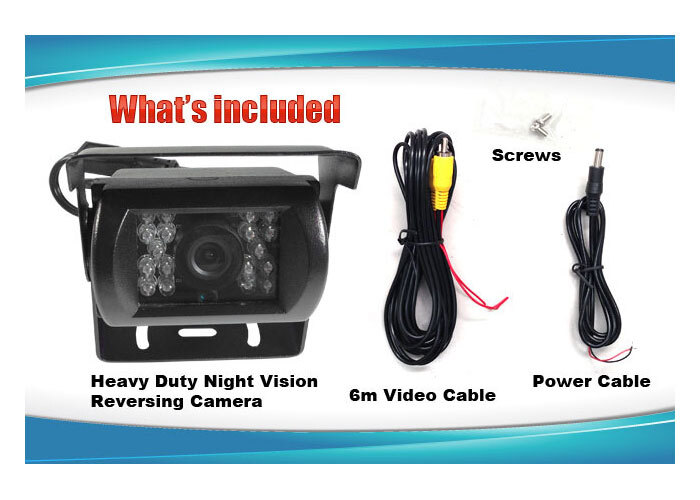

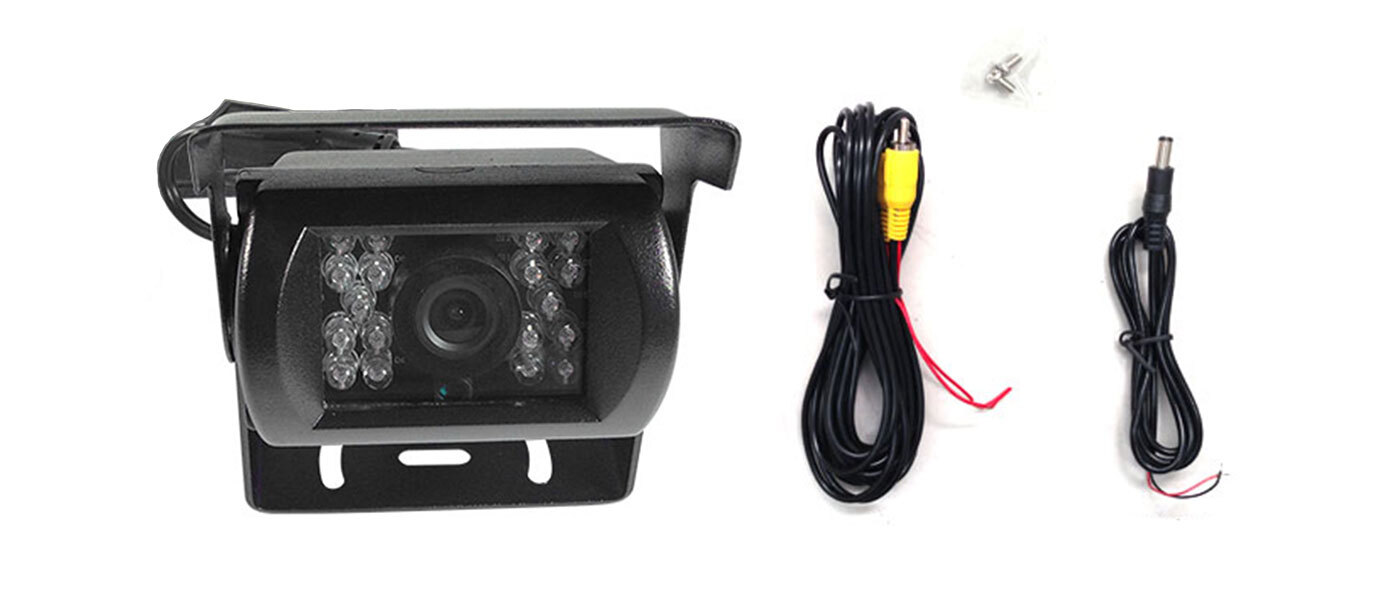

What's Included


  • 1x Heavy Duty Night Vision Reversing Camera
  • 1x 6M Video Cable
  • 1x Power Cable
  • Screws

Specifications:

Reverse Camera Specification:

  • Image Sensor
  • Colour CMOS CCD
  • TV system
  • PAL
  • Effective pixels
  • PAL: 628*586 pixels
  • Horizontal resolution
  • 480TVL
  • Sensing Area
  • 1/3: 4.9mm x 3.7mm
  • 1/4: 3.6mm x 2.7mm
  • Shutter Speed
  • 1/50(PAL)
  • 1/10 000 seconds
  • Minimum illumination
  • 0.1 Lux/ F-1.2
  • (0 Lux with IR on)
  • Video Output
  • RCA connector. 1.0v P-P 75ohm
  • Power Consumption
  • 110mA
  • max 300mA with IR on
  • Power Supply
  • 12v/ 24v
  • Operating Temperature
  • -20 degree celcius to 90 degree celcius
  • RH 95% Max
  • Lens Angle
  • 135 degree/ 170 degree
  • Waterproof
  • IP67/ IP68
  • Video cable
  • 10 meter (extra length video cable is available for purchase)
  • Dimension
  • 75(W)X45(D)X75(H)mm
  • Weight
  • 300g

NOTE: This reversing camera is compatible to PAL monitor only most monitors currently in the market will auto switch between PAL and NTSC mode please check to see whether your monitor can take PAL reversing camera.
