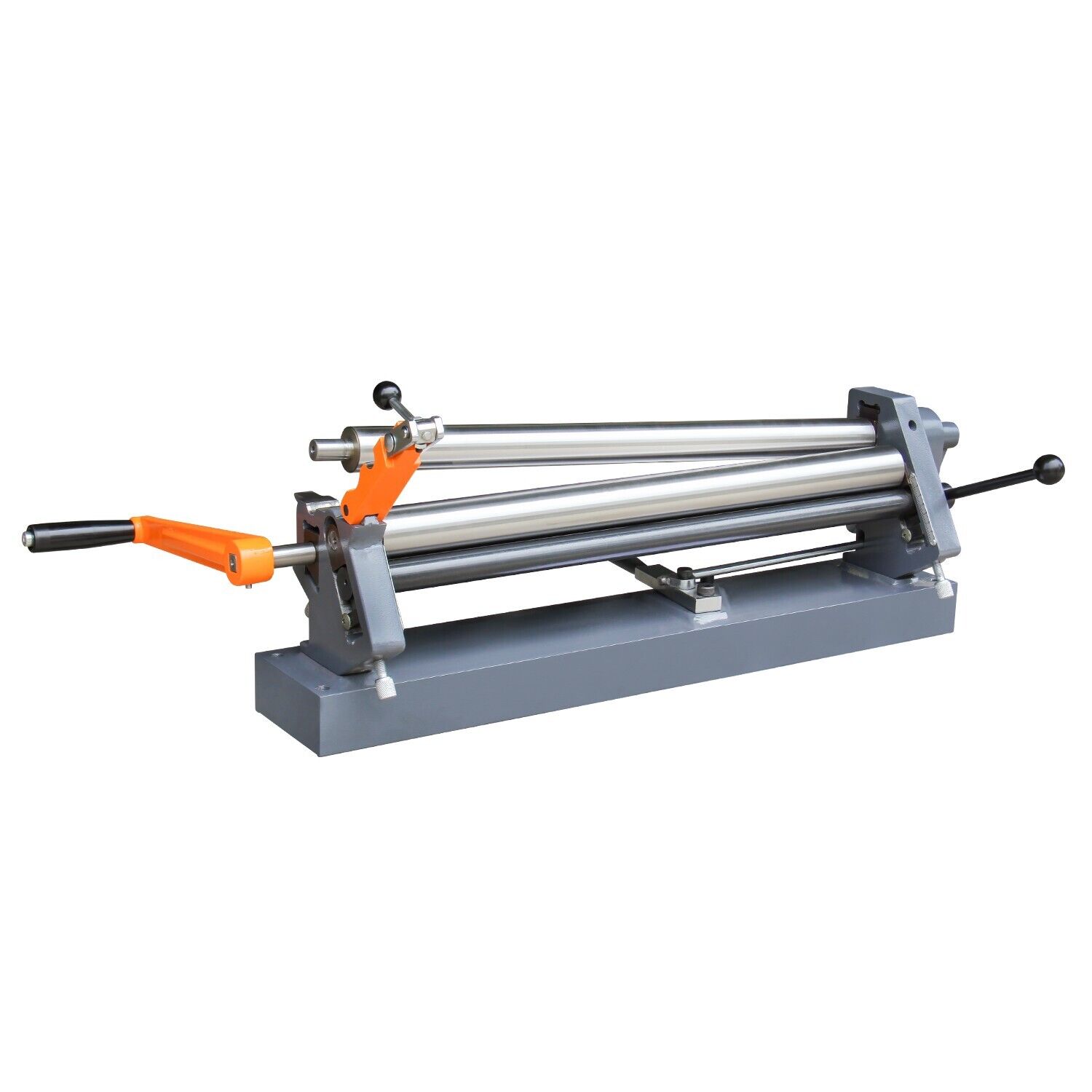

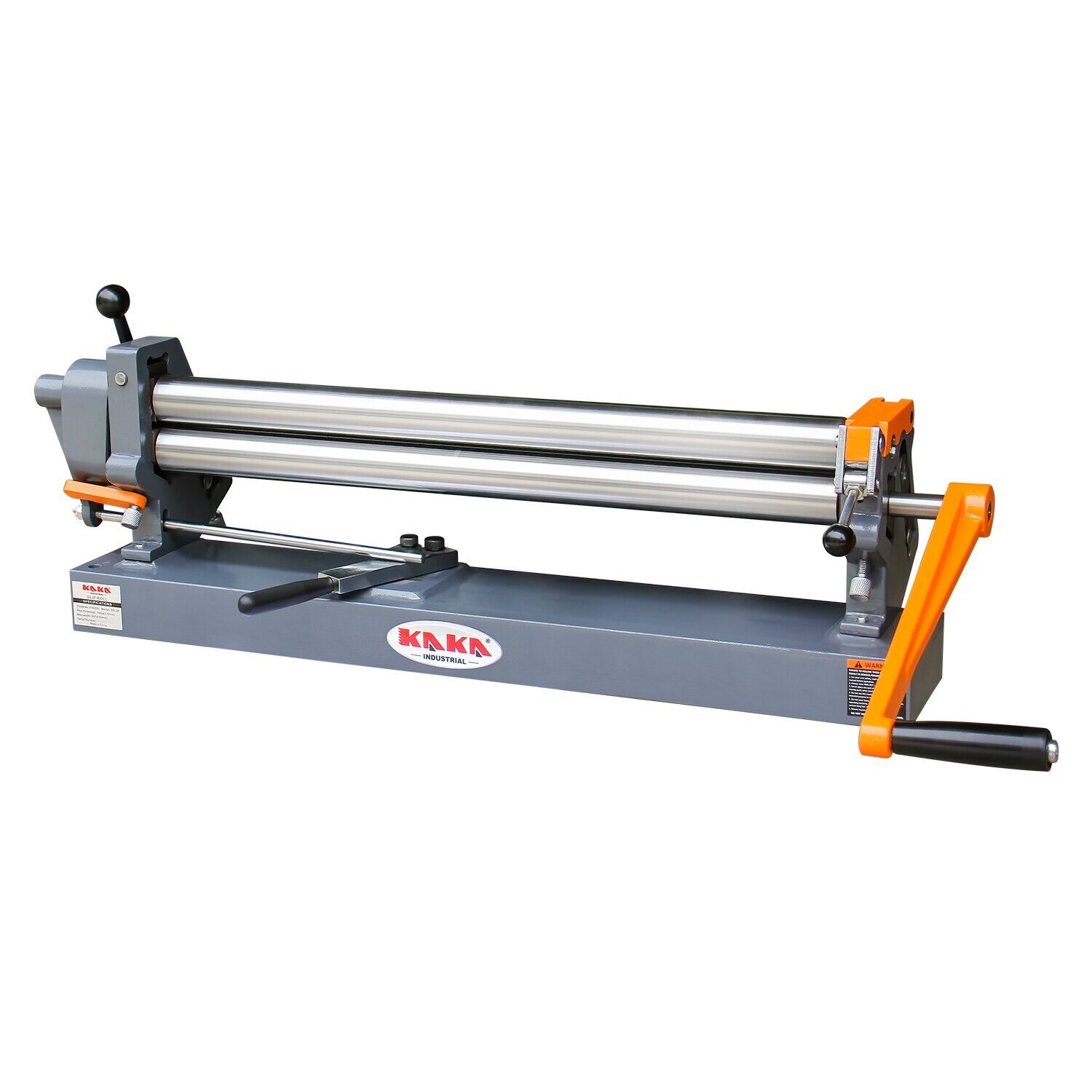

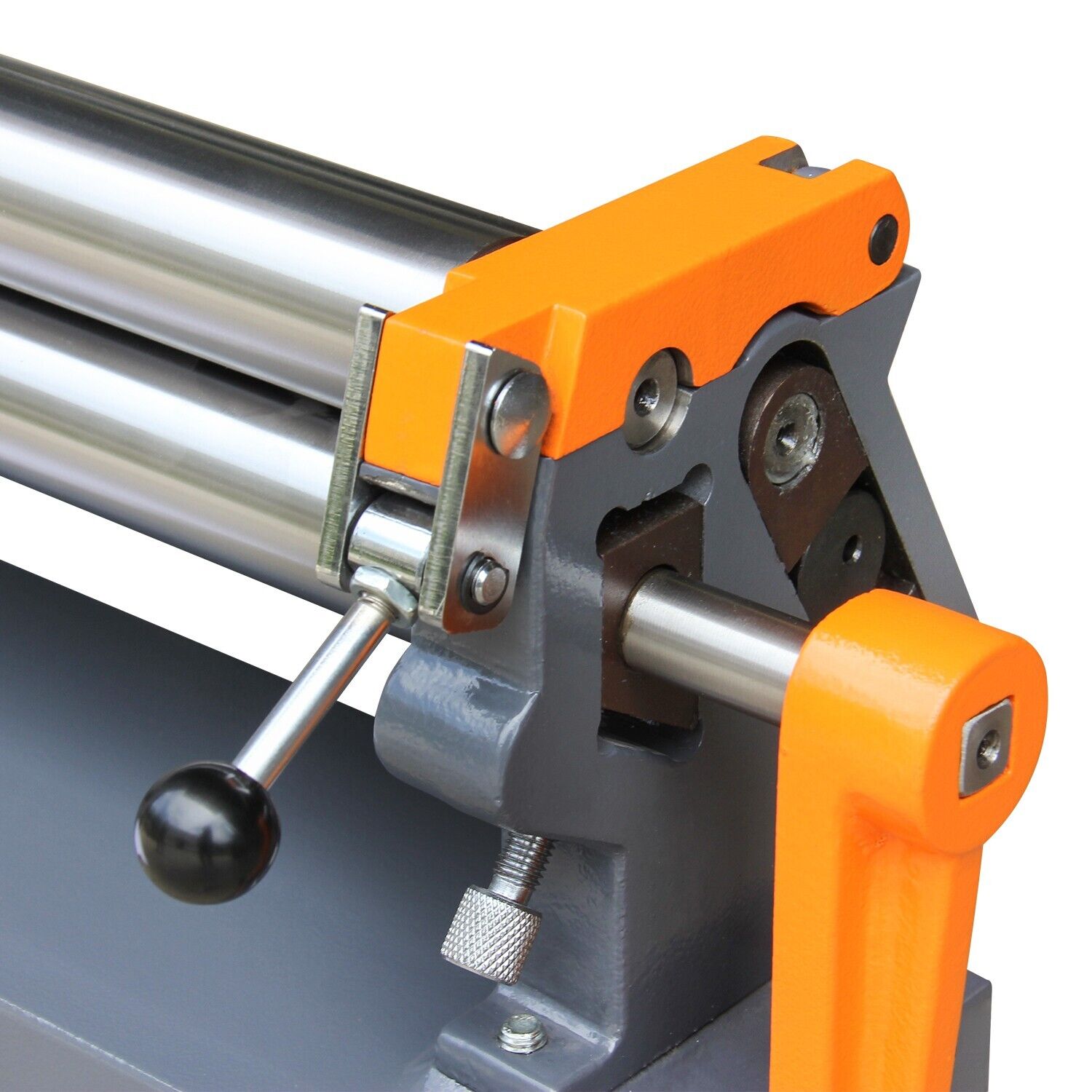

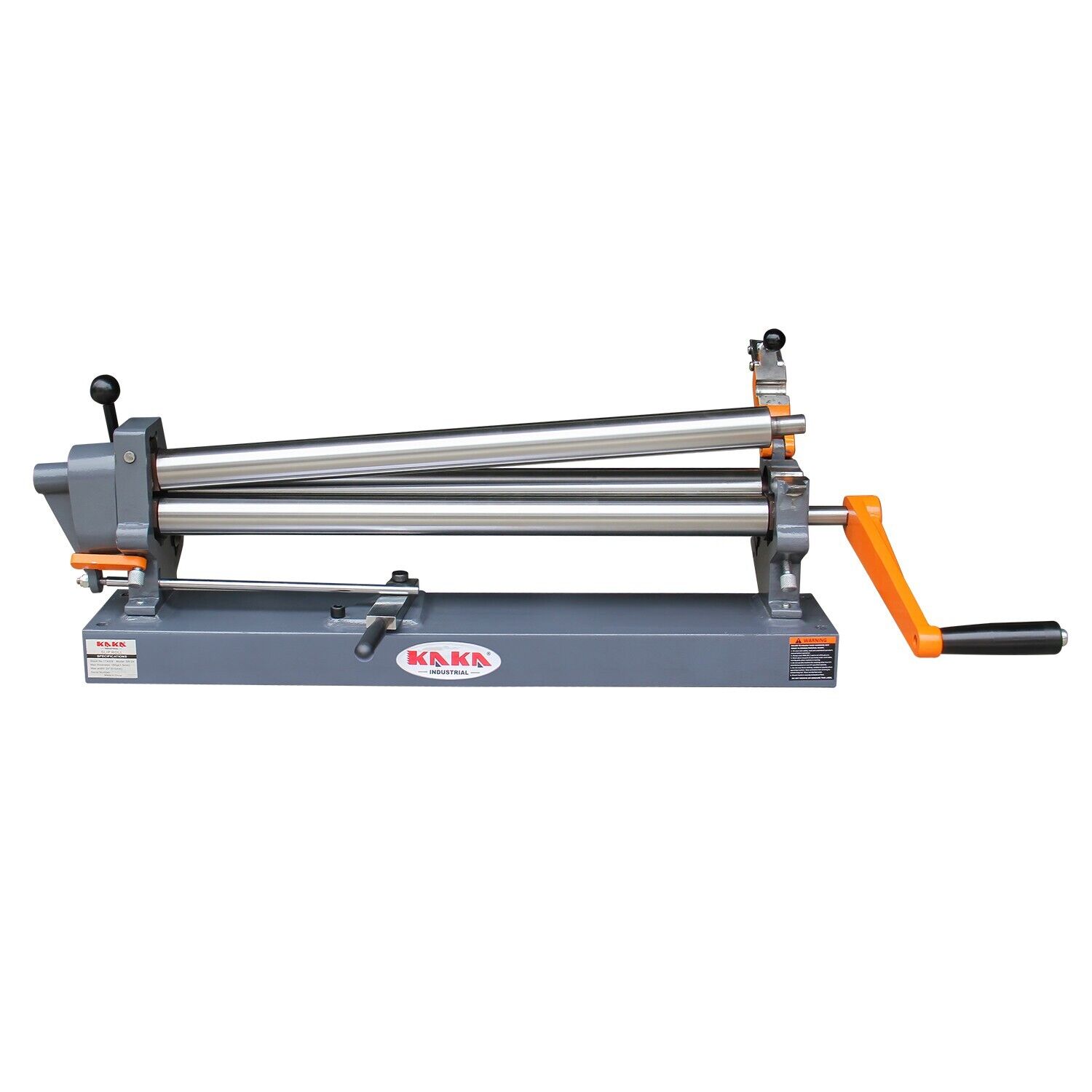

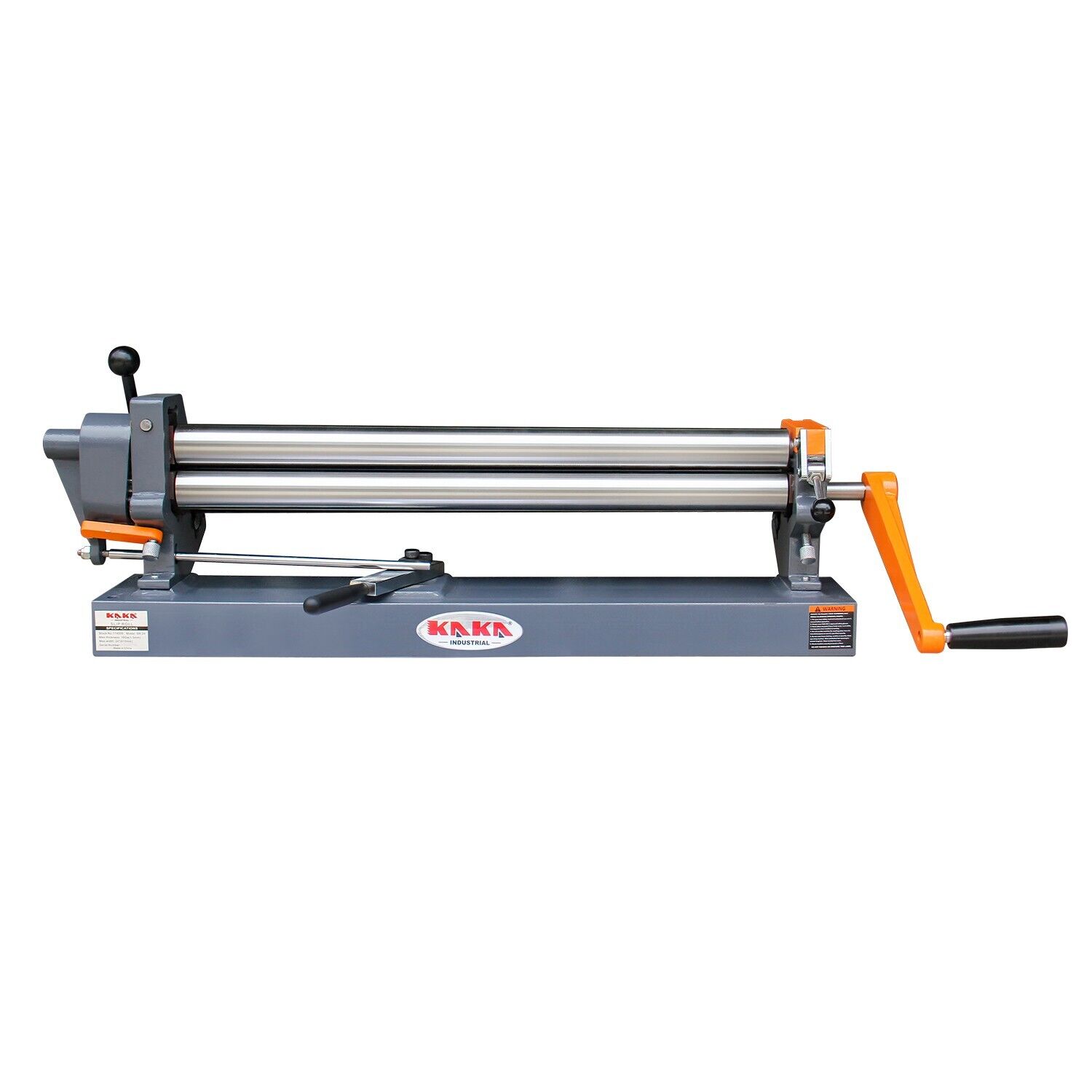

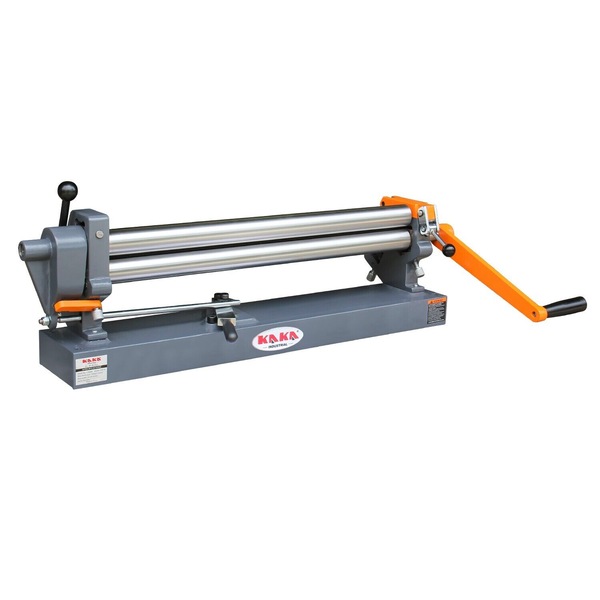

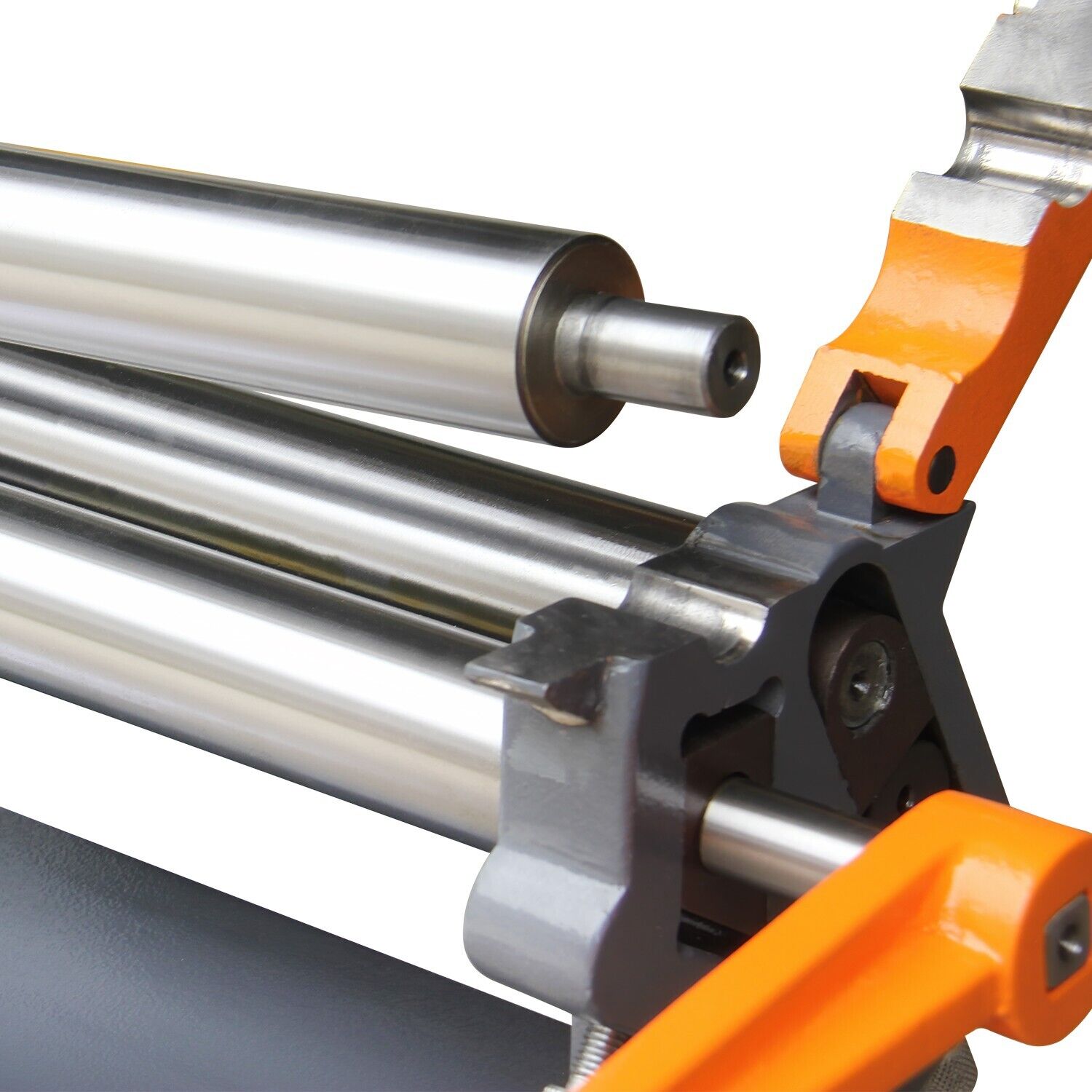

Industrial Heavy Duty Manual Slip Roll 1.5x610mm mild steel rolling capacity

• 610mm rolling width, can roll 1.5mm mild steel over the entire width
• 1:1 gear ratio for powerful rolling
• Form min. 50.8mm circle

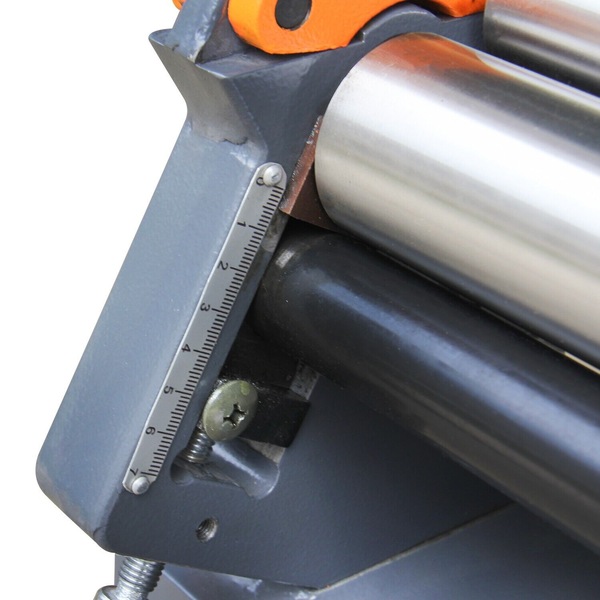

• The rear roll indicator enables the operator to adjust the idler roll to a previous setting
• Eccentric idler roll is designed to form circles without flat spots on the leading edge of the plate
• Solid roller, round, flat, and square grooves can be machined into rollers for various applications. This is an optional service at extra charge

• Model: SR-24
• SKU: 174009
• Max. capacity: 1.5mm (mild steel), 0.9mm (Stainless steel)
• Max. forming width: 610 mm
• Roll dia.: 42 mm
• Min. forming dia.: 50.8 mm
• Rear roll lift: 25.4 mm
• Packing size: 89x21x37cm
• N.W./G.W.: 46/55 kg
