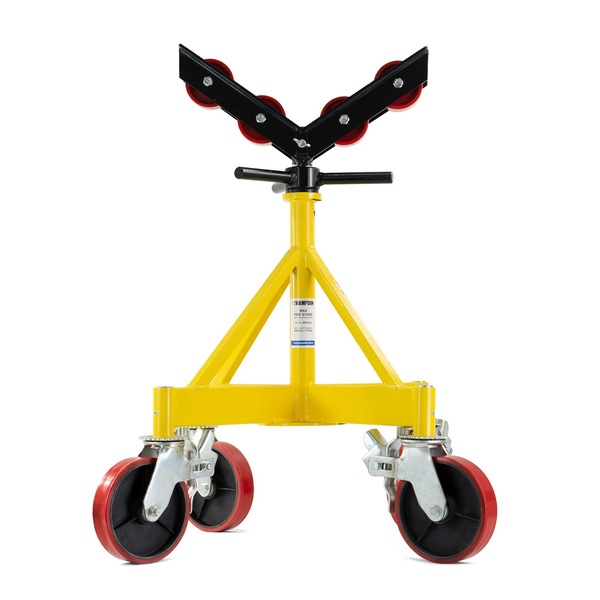

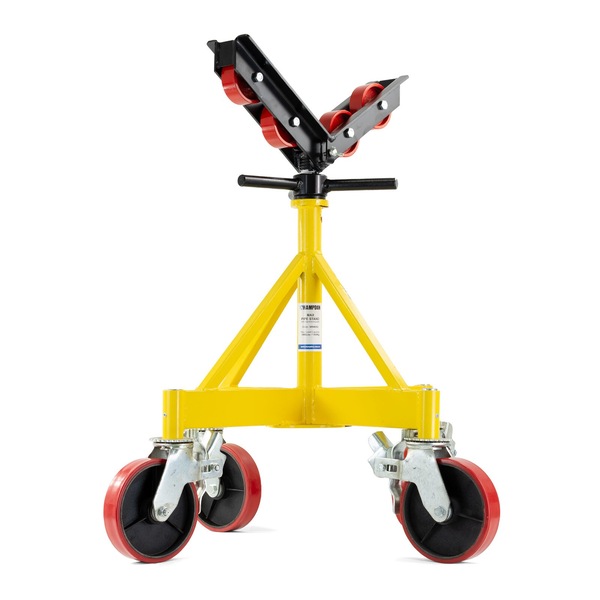

This complete set includes:

• 4 x PVC Coated Caster Wheels PSMXWLPVC
• 1 x Welding Pipe Stand SR90092
• 1 x V-head Steel Roller PSMXVHSTL

• Well made steel construction
• Built tough for larger pipes

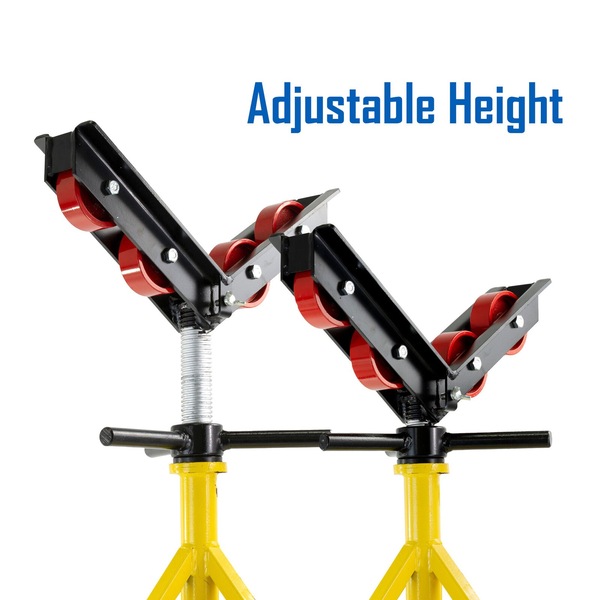

• Covenient with adjustable handle
• Heavy-duty casters can easily move the welding stand around the workspace
• Load test certificate can be supplied
• You can also purchase our Rubber Coated Wheels - PSMXWLRBR
• Equivalent to Sumner 781403 Max Jax Kit

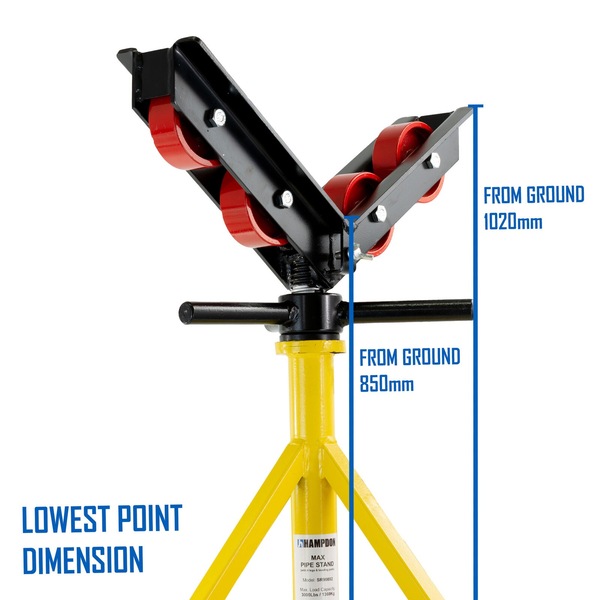

• While the pipe stand is wound down to its lowest point
• Distance from the ground to the top point of the V-head is 1020mm
• Distance from the ground to the bottom point of the V-head is 850mm

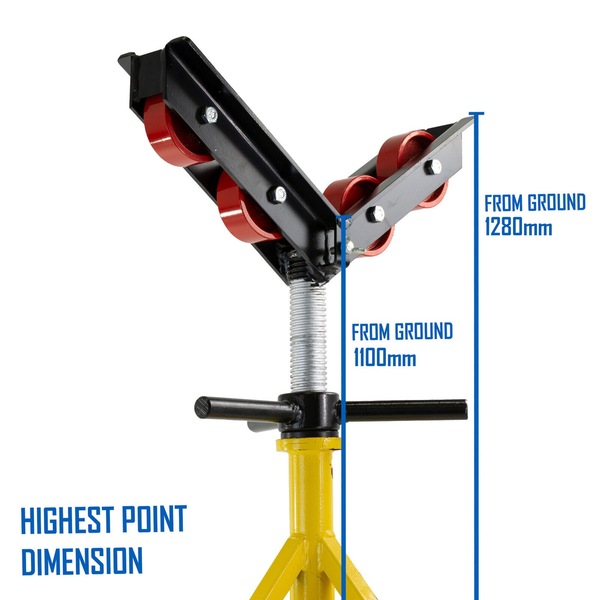

• While the pipe stand is wound up to its highest point
• Distance from the ground to the top point of the V-head is 1280mm
• Distance from the ground to the bottom point of the V-head is 1100mm
• Large V-Head Steel Roller 300mm
• V-head arm length 120mm
• V-head arm width 100x38mm
• wheel width 43mm shaft

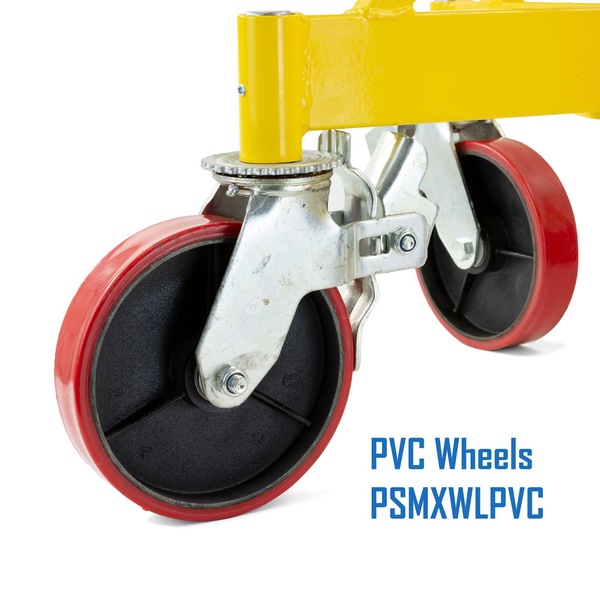

• PVC Caster Wheels 200mm (8") diameter
• 48.6mm (2") width
• Welding pipe stand without the wheels
• Fully extended height is 1115mm
• Lowered height is 810mm

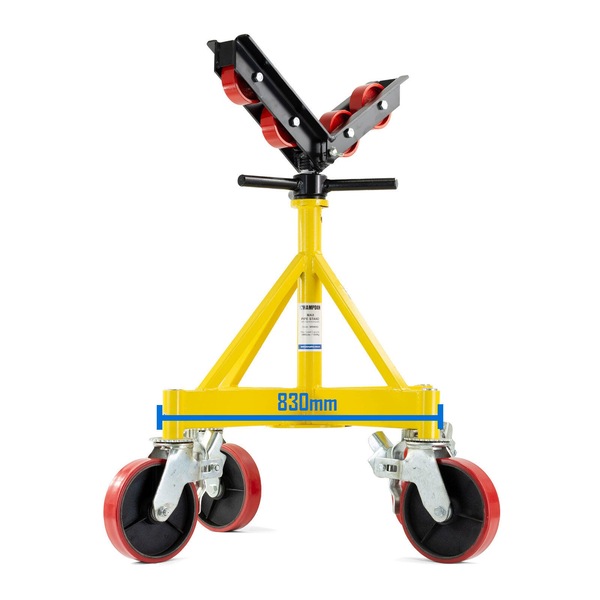

• Width is 830mm
• Welding pipe stand with the wheels
• Fully extended height is 1320mm
• Lowered height is 1015mm

• Welding Pipe Stand: 3,000 lbs (1,360kg) Load Rating
• V Head can be removed/replaced and is compatible with Sumner pipe stands
• Load test certificate can be supplied
• Fully extended height is 1000mm
• Total width is 830mm
• Extended height is 1000mm
• Lowered height is 820mm
• Gross Weight 11.4kg

• 900 lbs (410kg) Load Rating
• Safe to use
• Quick action braking system - simply step down to lock

• 8,580 lbs (3,900kg) Load Rating
• Consists of 4 100x38mm (1") thick rollers
• Well-made steel construction
• Heavy-duty roller head
• Easy to install
• Equivalent to Sumner 781406 Roller Head Kit and 780260 Big "V" Jack Stand

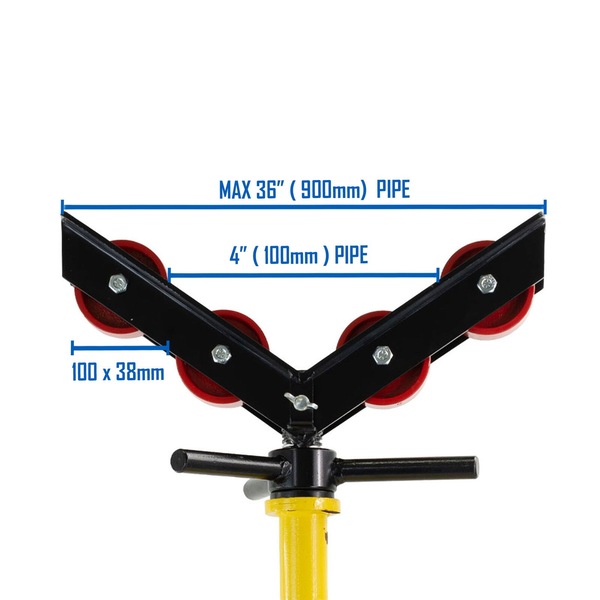

• Suits pipe sizes 4" to 40" (100mm to 1000mm)
