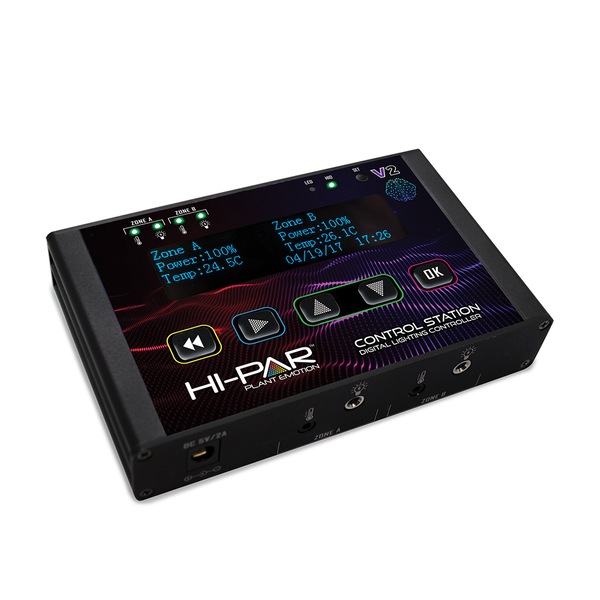

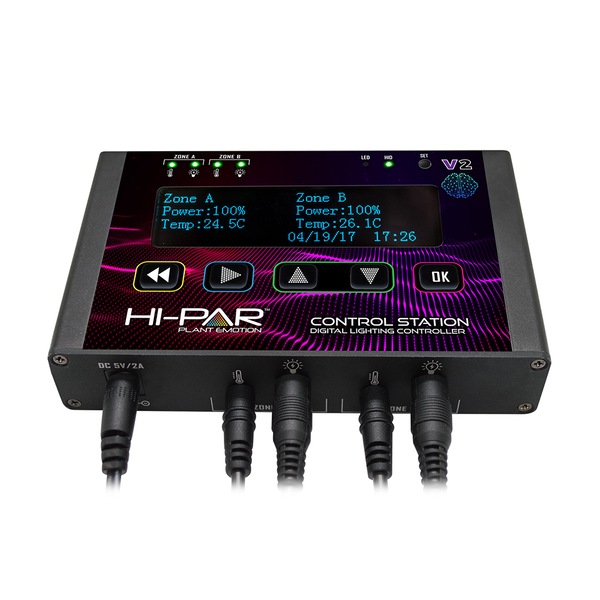

Hi-Par Digital Lighting Control Station V2 - LED / HID - Suitable for HI-PAR Control Ballasts

Version 2 of the HI-PAR Control Station is capable of operating LED fixtures and HID (HPS or CMH) fixtures simultaneously. The Control Station gives you unprecedented control over your horticultural lighting fixtures. Utilising next-generation programmable technology; the HI-PAR Control Station will precisely monitor and automate your cultivation lighting. The Intelligent Control Station is the ultimate agricultural illumination solution for hobby and commercial farmers!

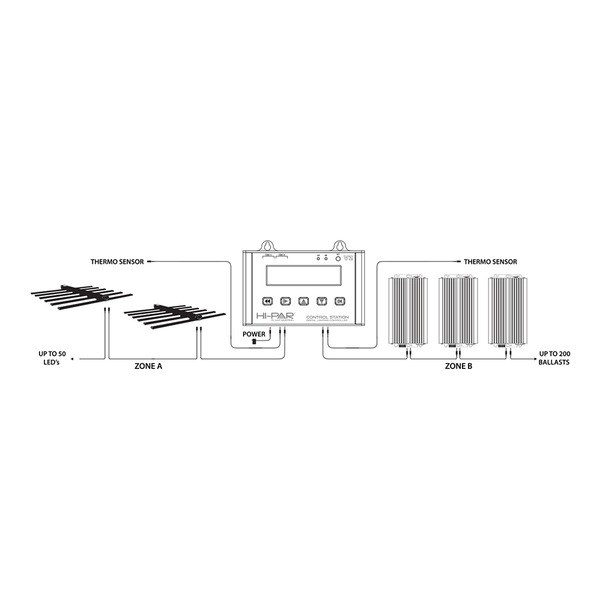

The unique smart-technology allows your HI-PAR Control Station to regulate the operation of HI-PAR Controllable ballasts. The Control Station cleverly monitors your room temperatures, light timing, automation, dimming and safety control. Plug and Play! Simply plug the Control Station into your HI-PAR Controllable Ballast for incredibly easy usability! Controllable Ballasts can be daisy-chained together using the TRS “Link” port, giving you control of up to 400 ballasts in two separate rooms!

​Smart Features

• Digital timing, automation and safety control
• Smart room temperature maintenance

Control Capabilities

• Suitable for HI-PAR Control Ballasts
• Operate up to 400 lights from 1 Control Station (2 Zones)

Precision Cultivation

• Automatic sunrise/sunset feature
• Digital dimming control (1% increments)

Specifications

• Control Station for up to 400 lighting kits
• 2-Channels (Zone A & Zone B)
• Thermo Sensor monitoring and control
• 24 hr Light timing
• Digital dimming control (1% increments)
• Specialised Control TRS link cables
• Customisable sunrise & sunset
• Safety and Thermostat control mechanisms
• Smart room maintenance
• Power = DC5V/2A
• Match Ballasts = 250w, 315w, 400w, 600w, 630w, 750w, 1000w
• Control Command Time Interval = 2S
• Power Dimming Scope = 60% – 110%
• Power Regulation Accuracy = 1%
• Temperature-controlled Adjustable Inspection Scope = 0ºC-40ºC
• Temperature-controlled Protection Inspection Scope = 10ºC-50ºC
• Sunrise and Sunset Duration = 0-30min

What's in the Box

• [1] x HI-PAR Control Station
• [1] x Power cable
• [2] x Thermo Sensor cable
• [2] x Control ‘Link’ cable
