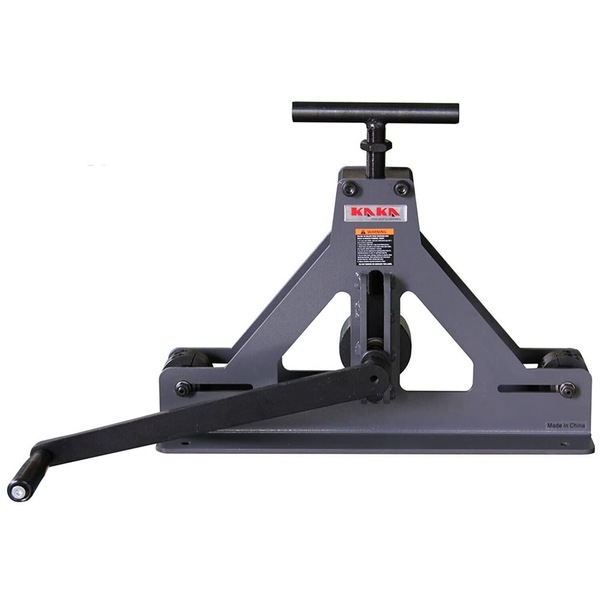

Industrial Square Tube Bender TR-40

Max. 40mm square tube roller

Features

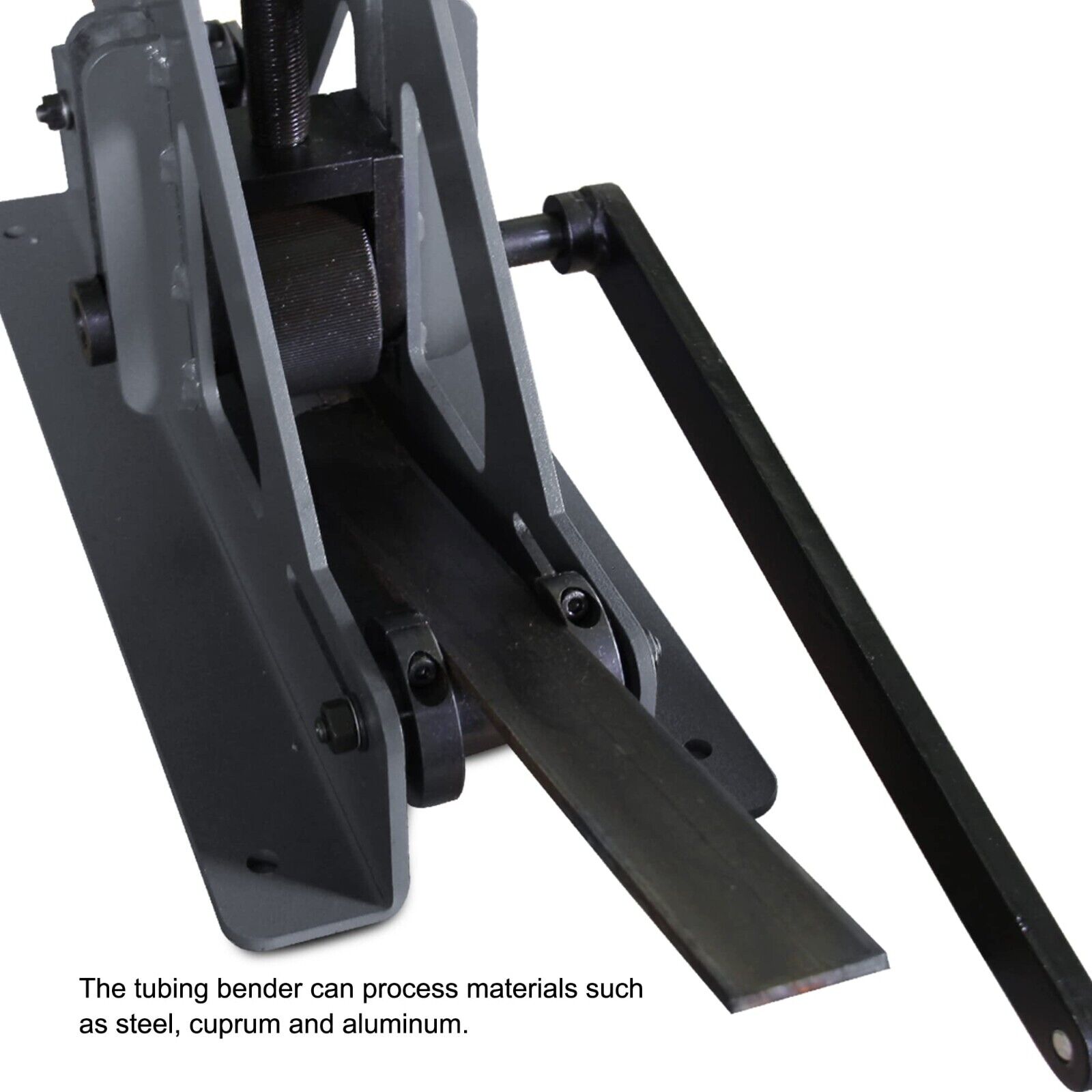

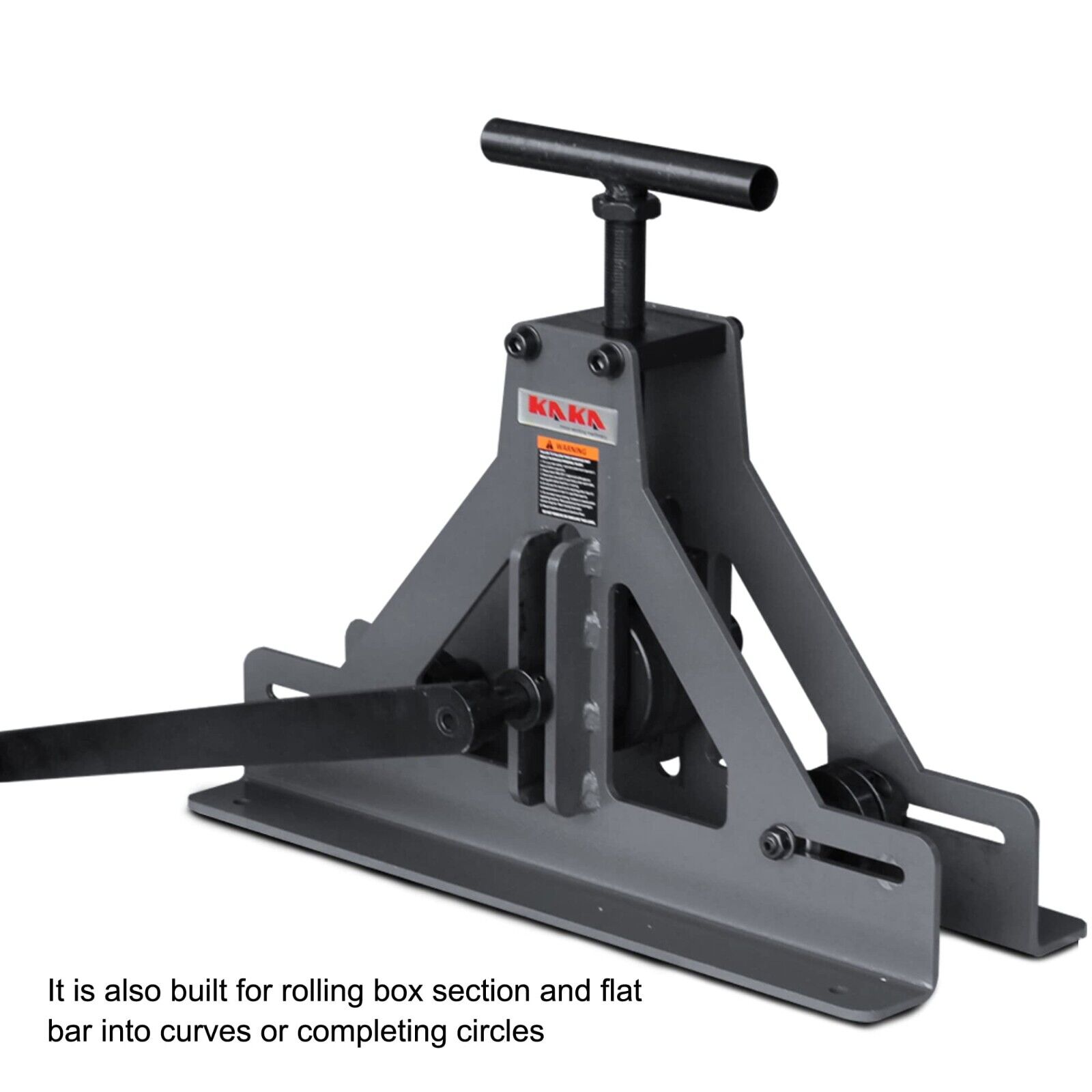

• Ideal for bending flat, square, or rectangular tubes of small or large diameter.

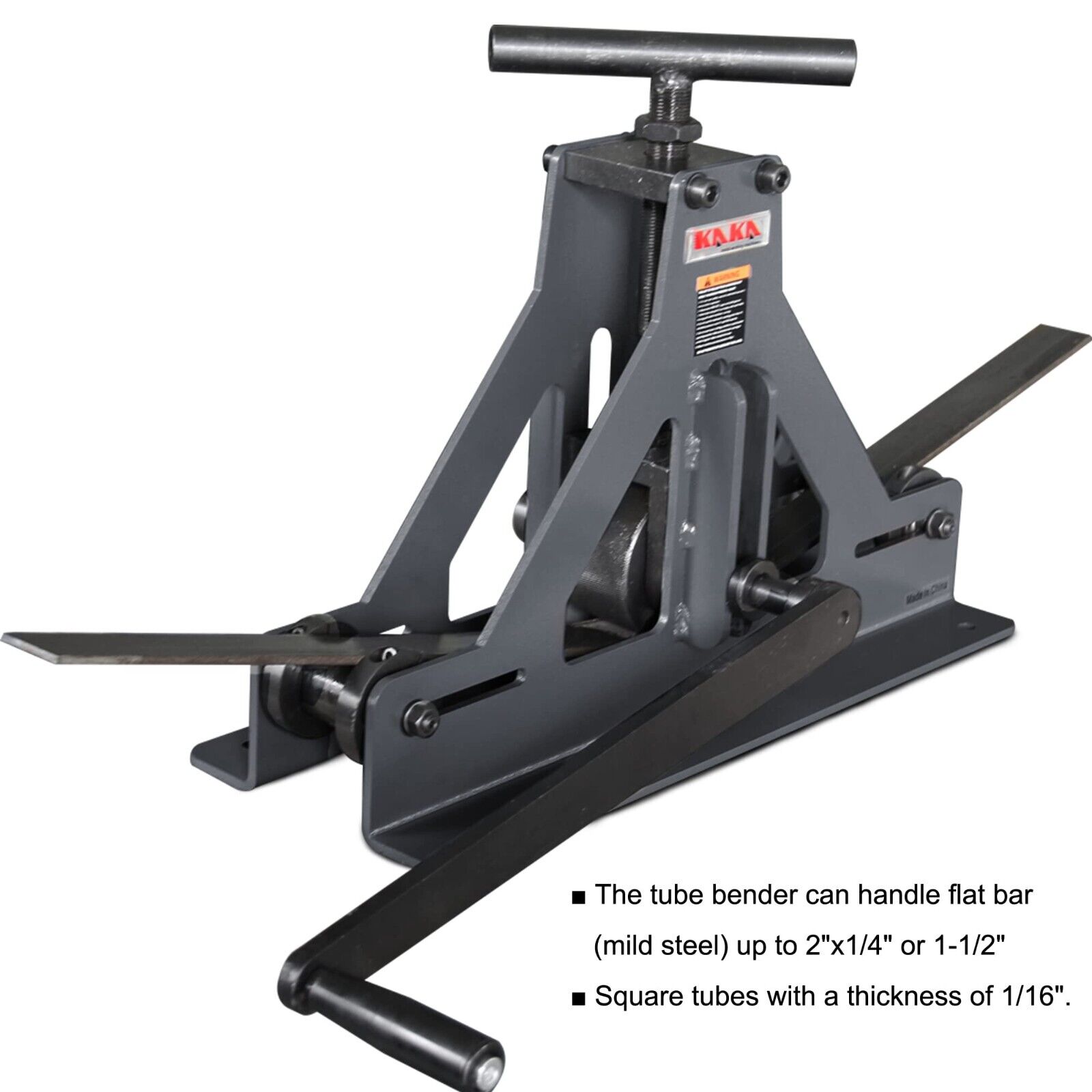

• Roll up to 6x 45 mm solids
• Roll up to 40x40x1.5 mm square tube

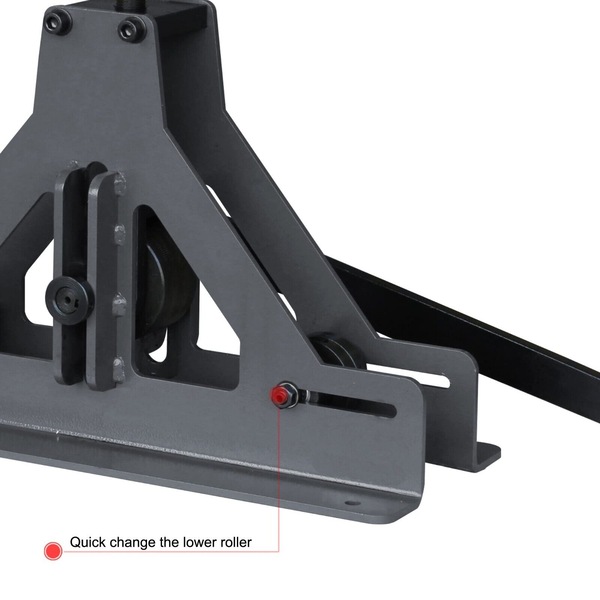

• Adjustable square tube dies, from 6mm to 40 mm

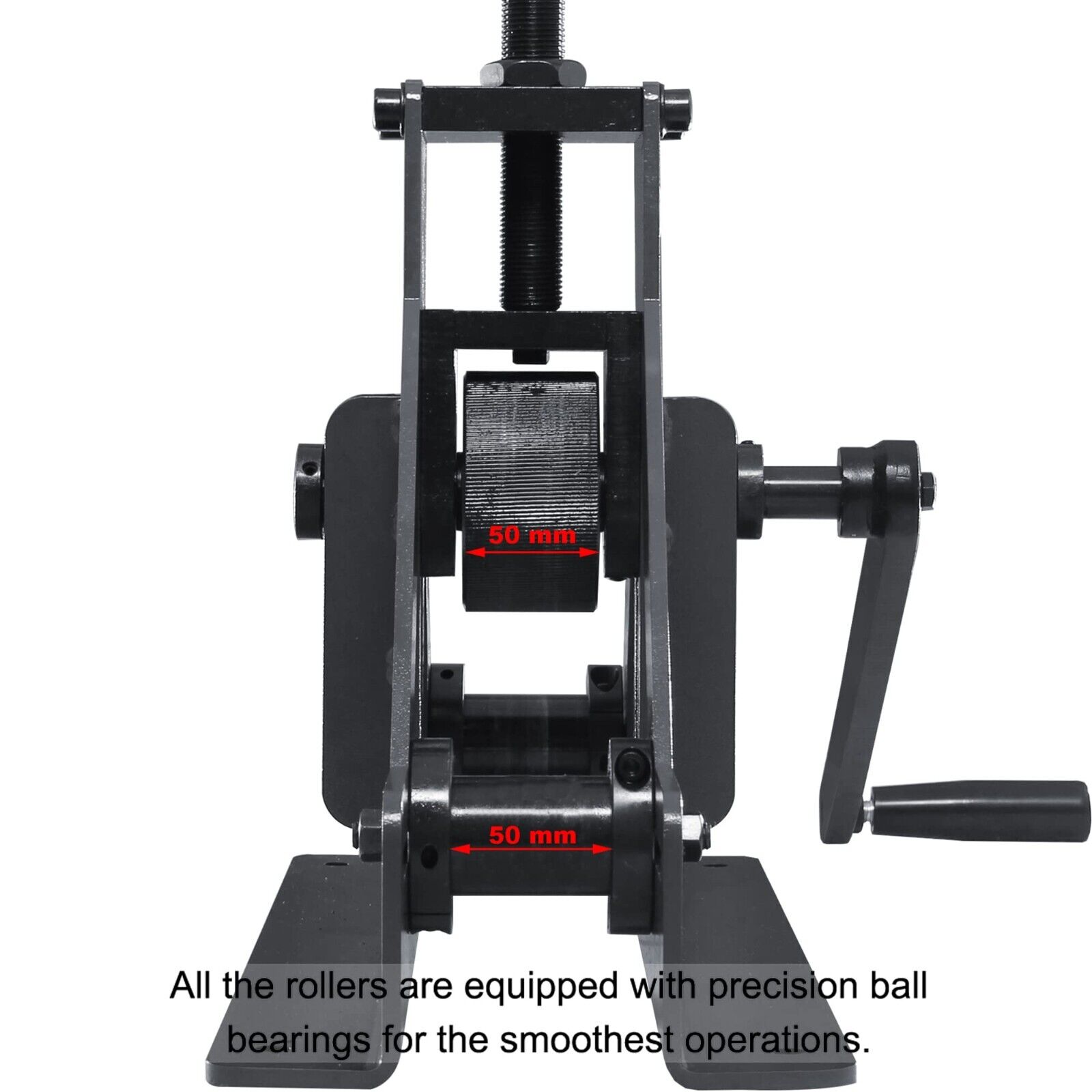

• Top die rotates 1:1 ratio with the crank handle
• Top dies with small grooves to increase the friction during the rolling

Working capacity

• Mild steel
• 20x20x1.2 mm
• 25x25x1.2 mm
• 30x30x1.5 mm
• 40x40x1.5 mm
• Copper
• 20x20x1.5 mm
• 25x25x1.5 mm
• 30x30x1.75 mm
• 40x40x1.75 mm
• Aluminum
• 20x20x1.75 mm
• 25x25x1.75 mm
• 30x30x2 mm
• 40x40x1.75 mm

Min. length

• 180 mm
• 170 mm
• 200 mm
• 220 mm

Min. Dia.

• 450 mm
• 500 mm
• 550 mm
• 600 mm

Specifications

• SKU191006
• ModelTR-40
• Packing size55x25x40 cm
• N.W./G.W.20/21 kg
