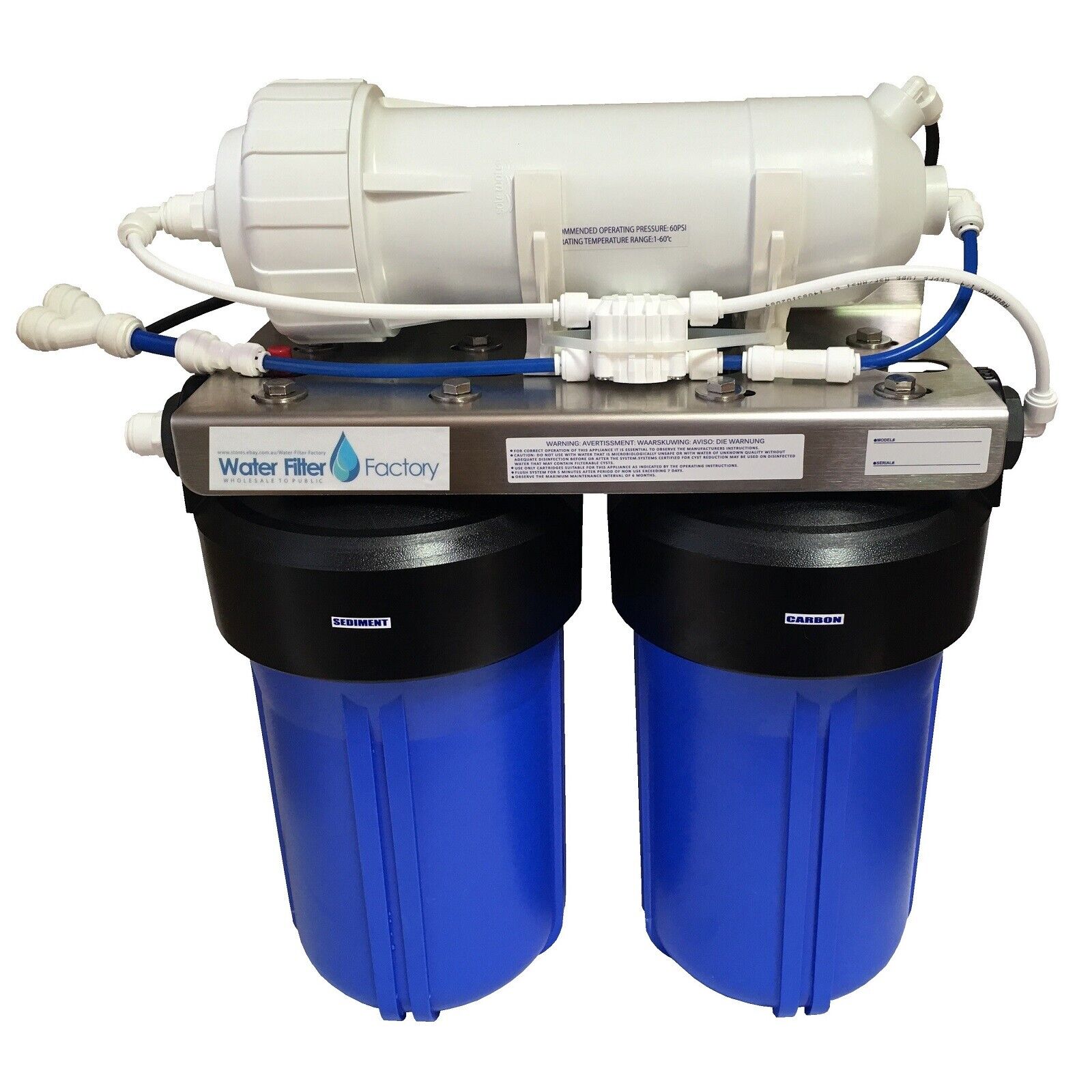

1,900LPD REVERSE OSMOSIS WATER PURIFIERPRODUCT CODE: CROBB10P-1500LWITH 316 STAINLESS STEEL BRACKET FRAME

This RO unit is assembled, leak tested and performance rated locally in Australia

The reverse osmosis process produces the purest possible water and results in the total dissolved solids (TDS) count dropping by between 85% and 95% depending on environmental factors and system design. This purification process is commonly considered to be the most effective method of purification available to the public, and will consistently produce water with the lowest level of contaminant. Where water of a higher standard (99-100% contaminant reduction) is required, mixed resin post filters may be fitted on request for an extra charge. This system will produce +/- 1,900 litres per day depending on the purity level required, note also that local water pressure and quality of the feed water can cause this estimate to vary.

This unit is tested on a town water supply, if you plan to use this unit on any other kind of supply (bore, creek, tank etc.) we strongly recommend performing basic water tests (TDS, Salinity, Hardness/Calcium and Iron) to determine whether the water is within the systems operating parameters.

Note: This is a passive RO system so doesn't not have a pressure booster ump of it's own and will need feed water supplied by mains / local pump in excess of 55psi / 380kpa and optimal product is achieved at 70psi / 485kpa [maximum recommended operating pressure for this unit is 70psi / 485kpa so if your local pressure is higher it's recommended to install a pressure regulator to cap the maximum pressure as advised].

Reverse osmosis will reduce all contaminant found in the feed water. Different types of contaminant have different reduction rates, see the below table for the effective reduction rates of common contaminants. Note that reduction rates may vary for alternative compounds of the chemicals listed below and different environmental factors.

ELEMENT/COMPOUNDREDUCTIONELEMENT/COMPOUNDREDUCTION

Barium97%Potassium100%

Bicarbonate100%Radium97%

Cadmium97%Selenium97%

Calcium (Hardness)99.90%Silicate99.00%

Chromate95%Silver99%

Copper97%Sodium98%

Detergents97%Strontium97%

Fluoride100%Sulphate100%

Lead97%PCB’s97%

Magnesium100%Insecticides97%

Nickel97%Herbicides97%

All water contact parts in our systems are manufactured from high quality food grade plastics and have the relevant quality standard approvals.

SYSTEM INCLUDES:

• 316 stainless steel mounting bracket

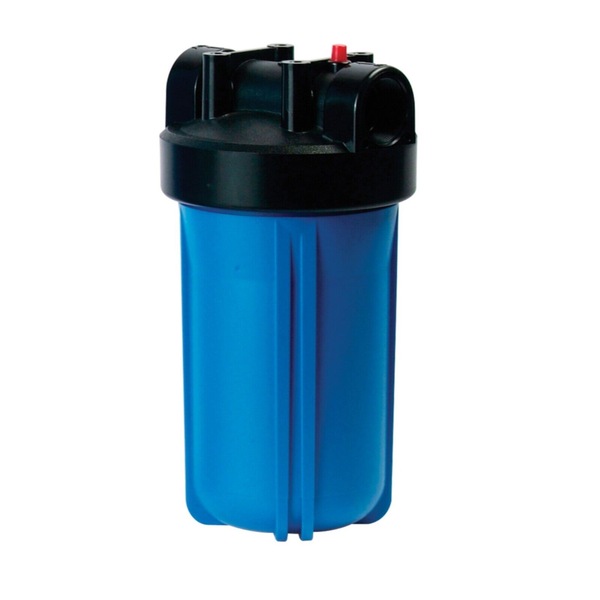

• Two 10"x4.5" big blue pre-filter housings*
• One 10x4.5 1uM poly spun sediment filters (we may advise that you change this combination depending on your source water)
• One 10x4.5 0.5uM high volume carbon filter** (we may advise that you change this combination depending on your source water)

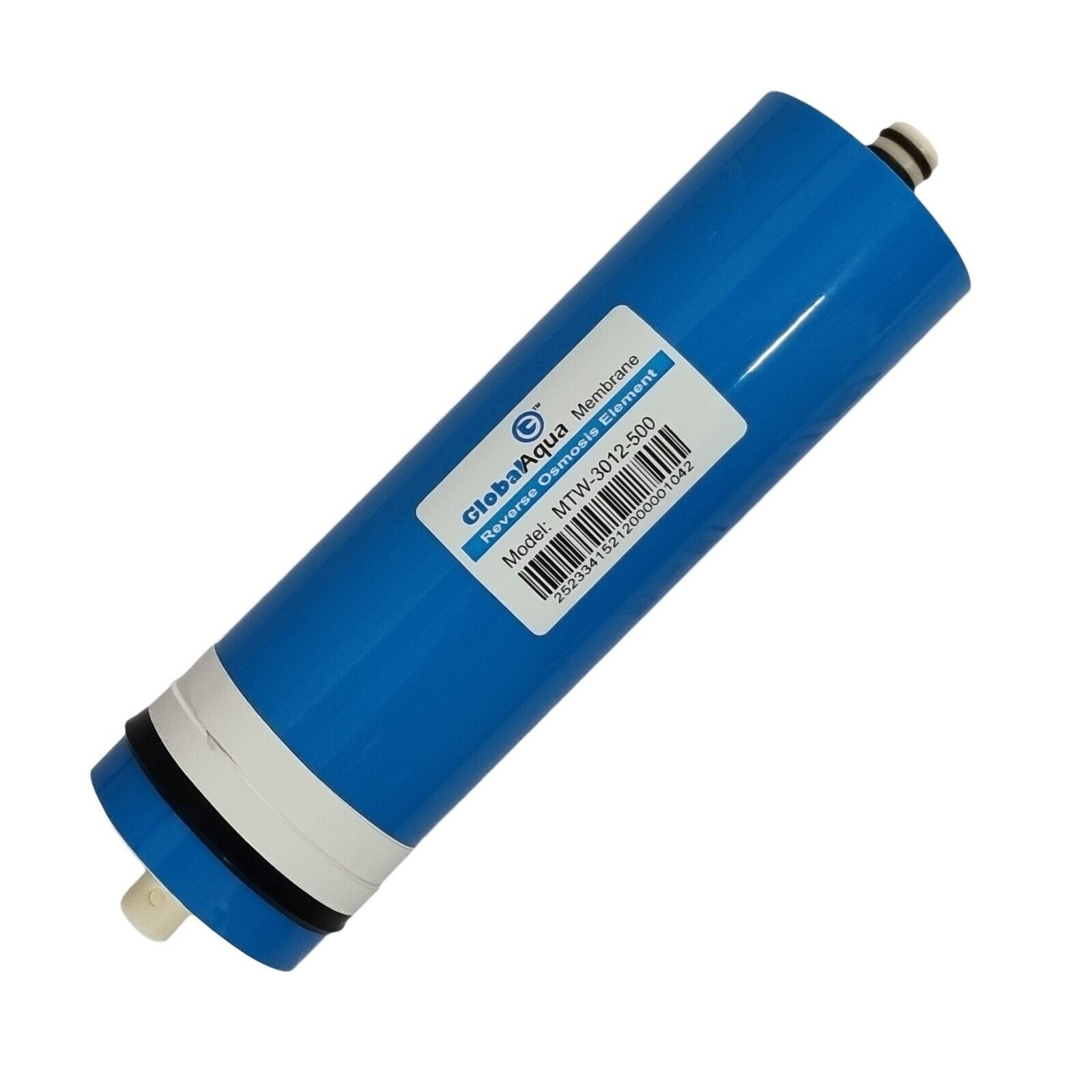

• 1x 400GPD / 1,500LPD Dow Taptec 3012 reverse osmosis membrane
• Appropriate ring spanner to loosen and tighten the pre-filter housings

* If you require Watermark certified housing we can supply them with brass ports for $ 100 extra

** high volume carbon block can filter +/- 140,000 litres of water based on average town water chlorine levels [includes product & waste water]

The system is supplied as a complete unit, all you will need to do is connect the feed water inlet, product water and waste water outlets and power to operate the unit and where feed water is particularly bad extra pre-filtration may be required, please inquire to see if this may apply to you.

This RO unit carries a 24 month warranty on all parts supplied in the original order, this is subject to our standard terms and conditions listed in our operating manual
