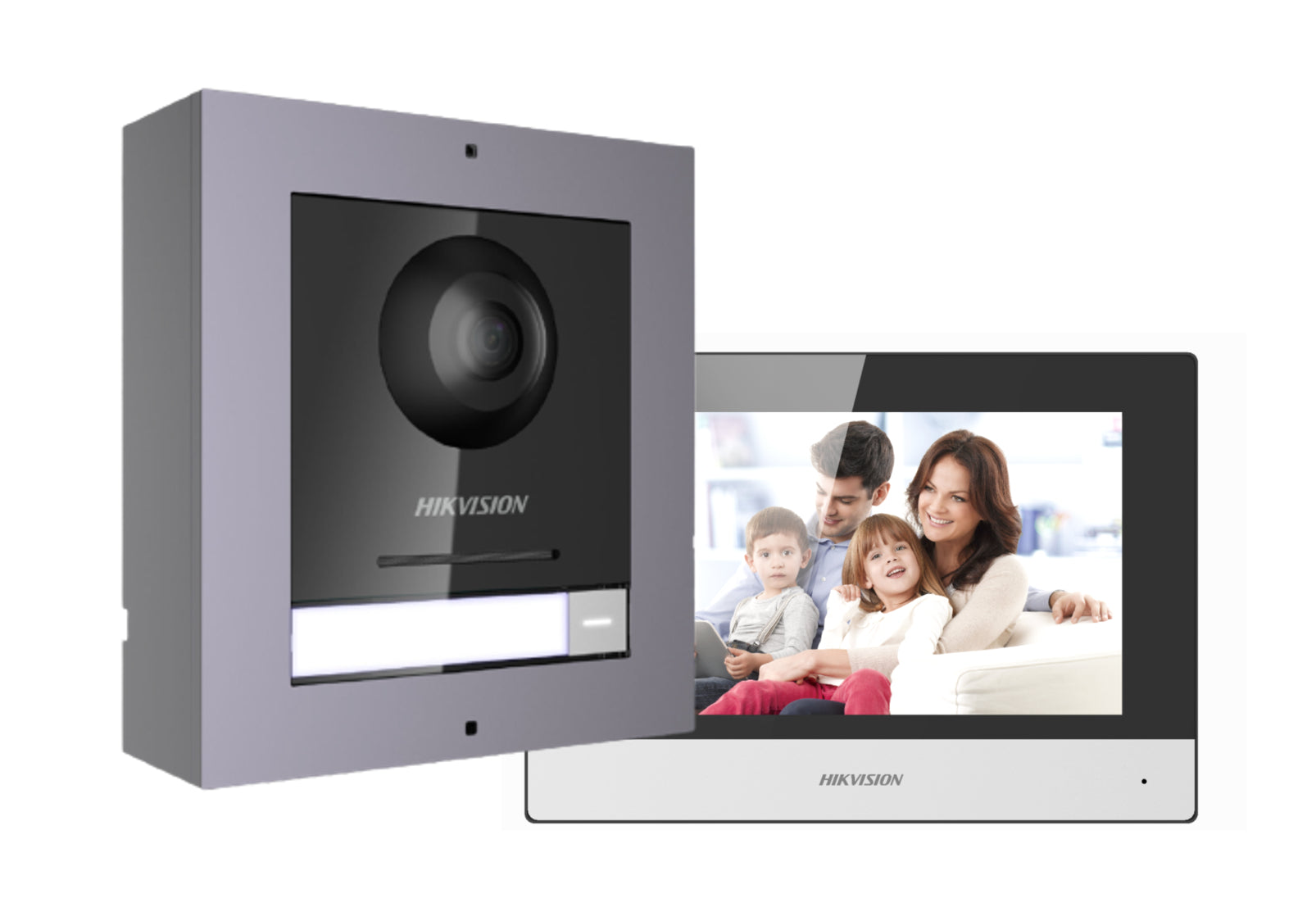

Hikvision Video Intercom KIT

The Hikvision Video Intercom KIT includes the following:

• IP video intercom kit for villa or house, only one call button

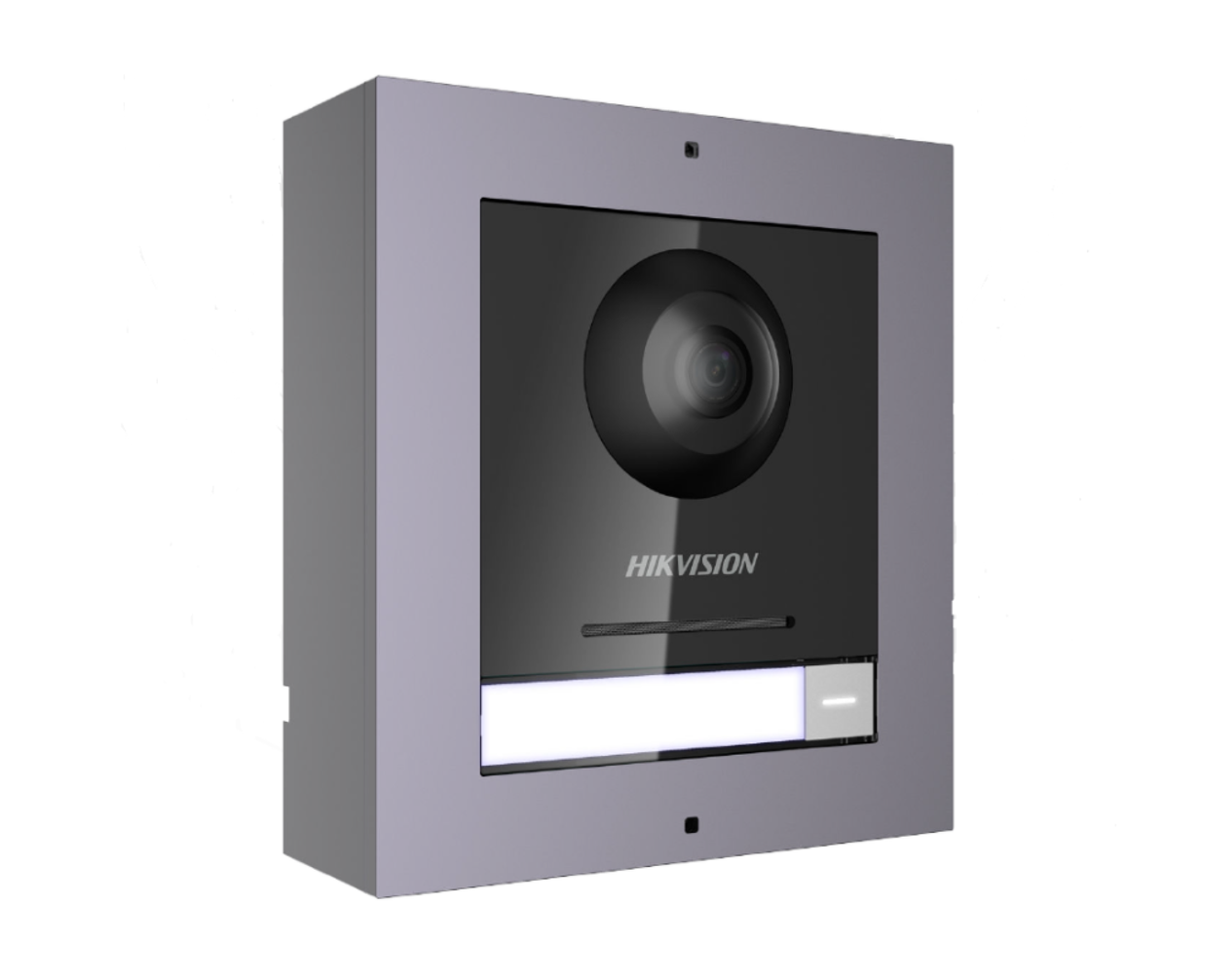

• DS-KD8003-IME1/Surface x1

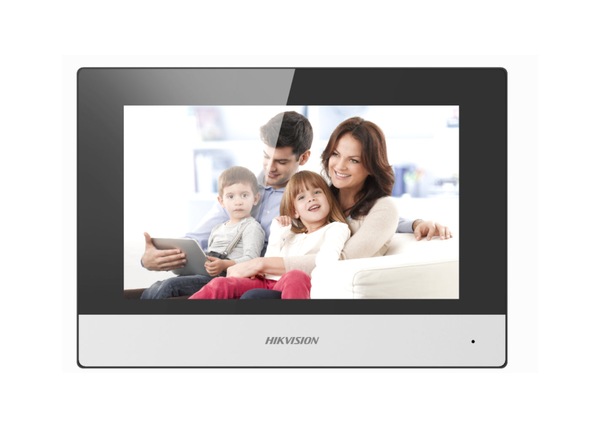

• DS-KH6320-WTE1 x1



• 4 port standard PoE switch x1



• 16GB TF card x1

Specifications:

•
  Power Supply: 12 VDC/PoE ( IEEE 802.3af)




•
  Power Consumption: 10 W




•
  Working Temperature: -40o C to +60o C (-40o F to 140o F)




•
  Working Humidity: 10% to 95%




•
  Dimension: (L X W X D)200 mm x 140 mm x 15.1 mm (7.9" x 5.5" x 0.6")
  683 g (with packaging)
  355 g (without packaging)



•
  IP Protection Level: IP65




•
  Memory: 128 MB




•
  Dimensions: (L x W x H)98 mm x 99.8 mm x 43.9 mm (3.86" x 3.93" x 1.73"


•
  Audio Compression Rate: 64 Kbps




•
  Audio Compression Standard: G.711 U




•
  Audio Input: Built-in omnidirectional microphone




•
  Audio Output: Built-in loudspeaker




•
  Audio Quality: Noise suppression and echo cancellation


•
  Ethernet: 10/100 Mbps Self-Adaptive Ethernet




•
  Network Protoco: lTCP/IP, RTSP
