Looking for an enclosure for your NBN Fibre, Data, AV, Security or TV applications? Look no further. The new updated and redesigned range of Hills Home Hubs are here!

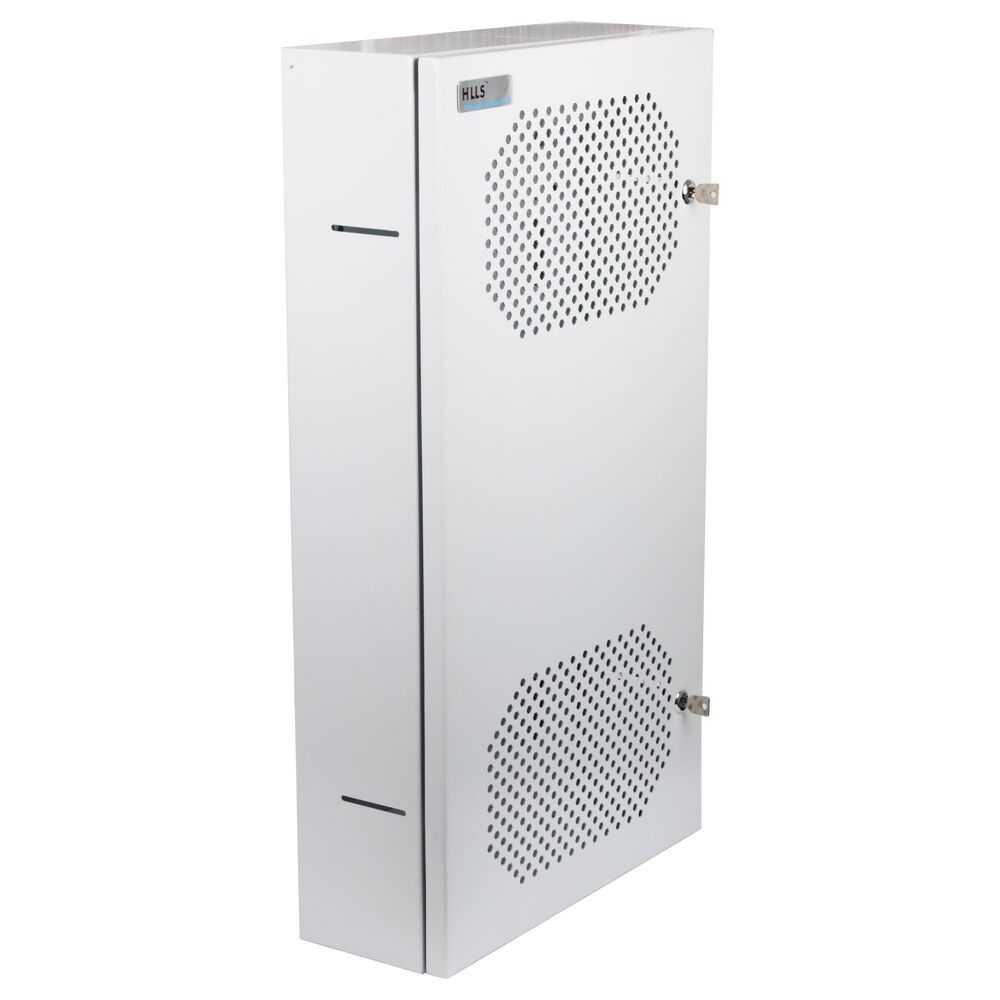

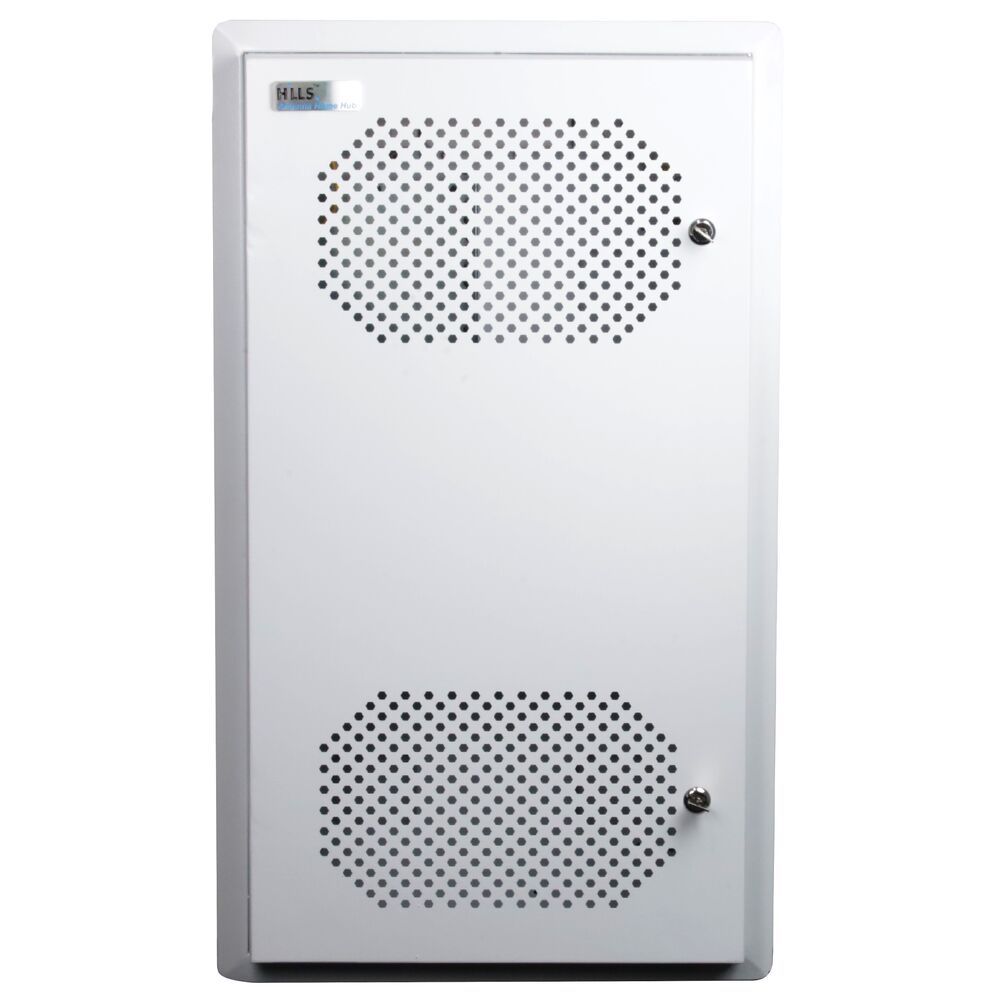

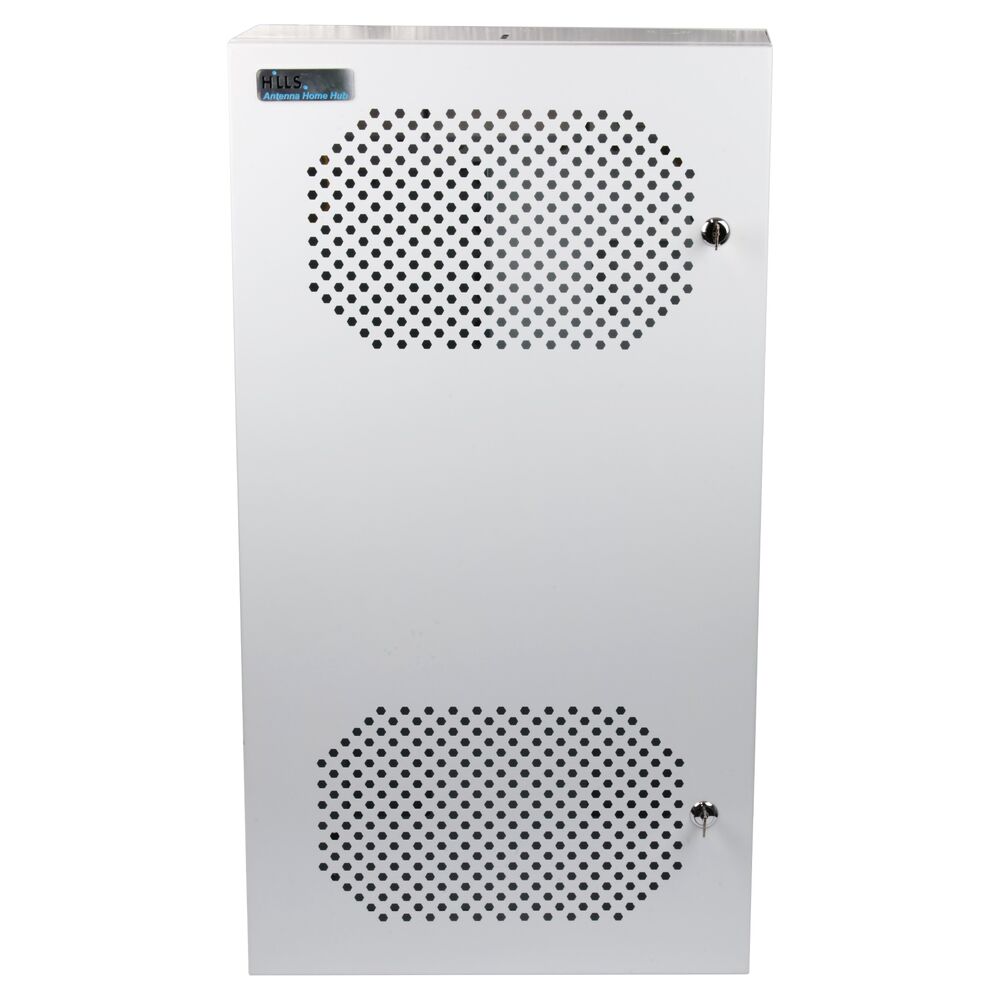

The Hills Antenna Home Hub Enclosure is the most flexible product on the market and a notch above the rest when it comes to features, quality and serviceability. Exceeding NBN-DES-STD-0011 requirements, these three models are feature packed to suit the many tech demands of today’s household, whilst remaining aesthetically pleasing with a neutral white, powdercoated finish, surface or flush mounted to seamlessly blend with their surroundings

Features

• 725mm L x 400mm W x 150mm D in size.

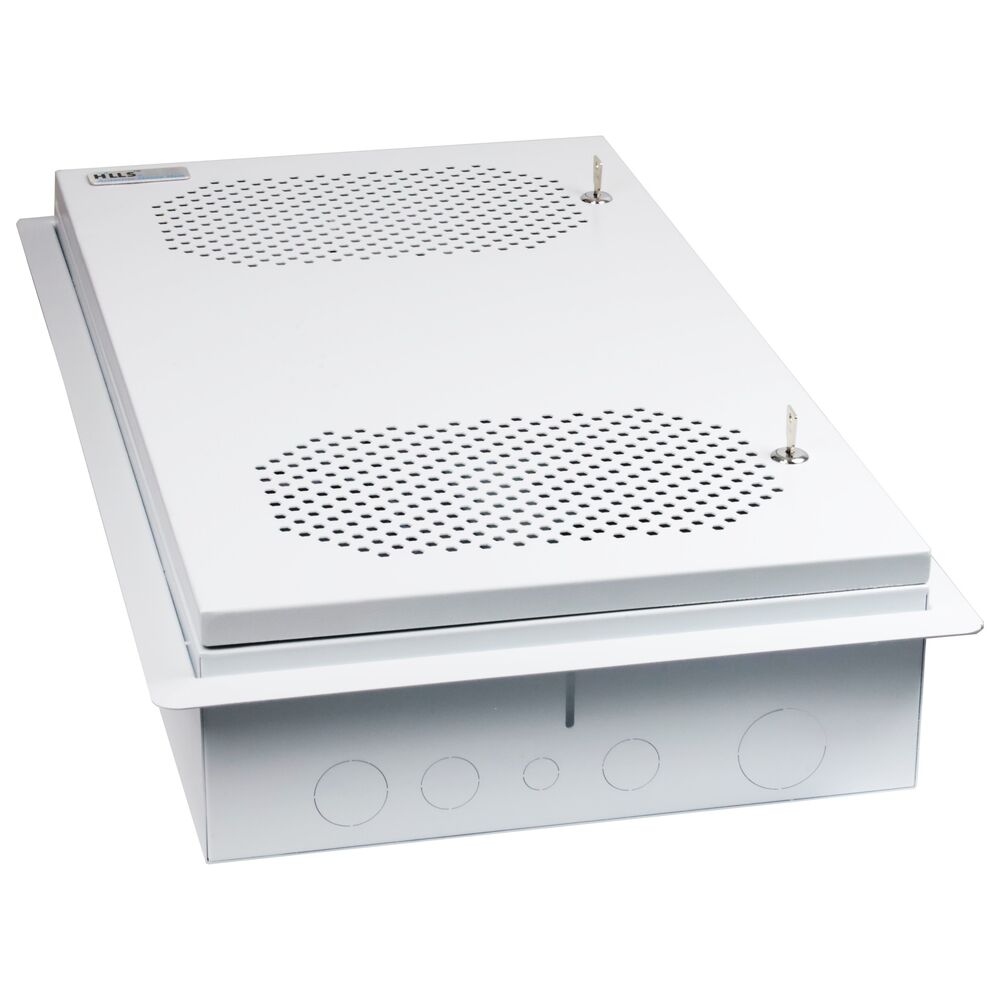

• Top and bottom knock-outs for internal wiring
• Removable hinged door (left or right placement)
• Locks with keys (spares available)

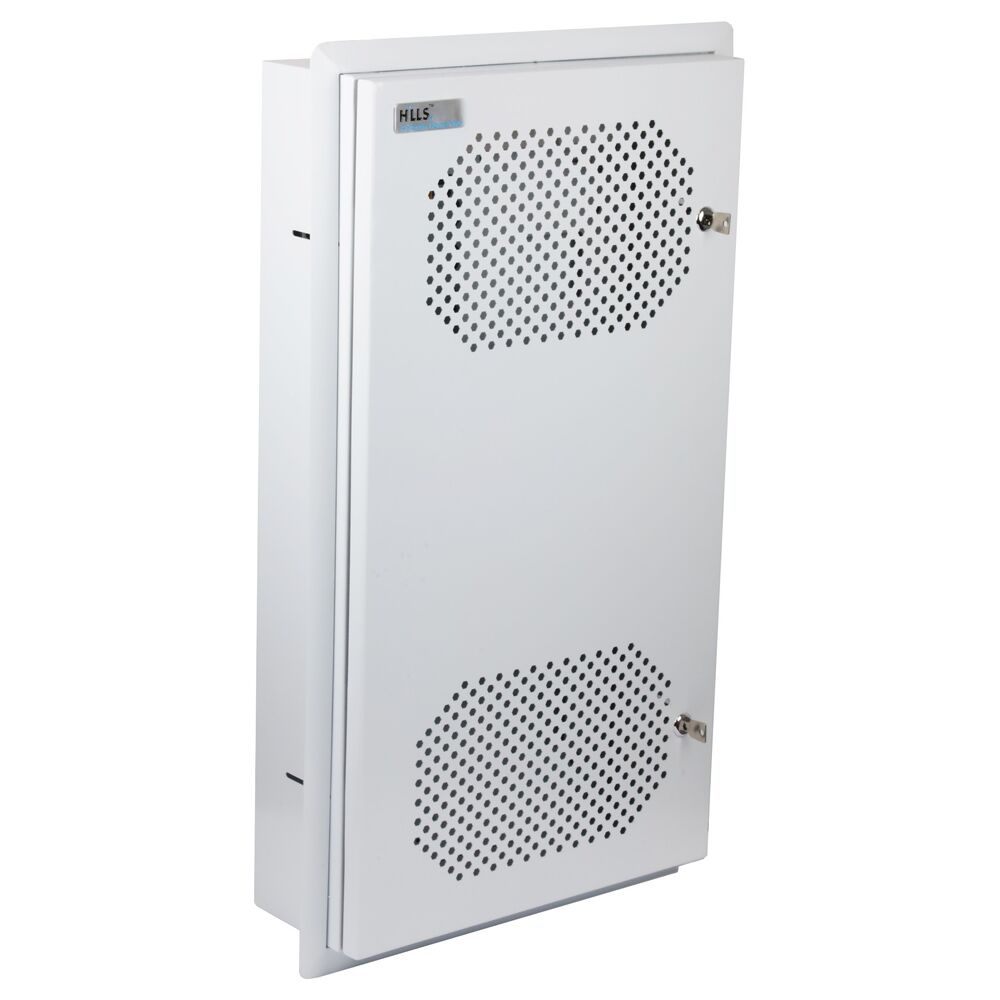

• Surface or flush mountable with adjustable depth escutcheon
• Name badge (which can be placed on the left or right on the door)

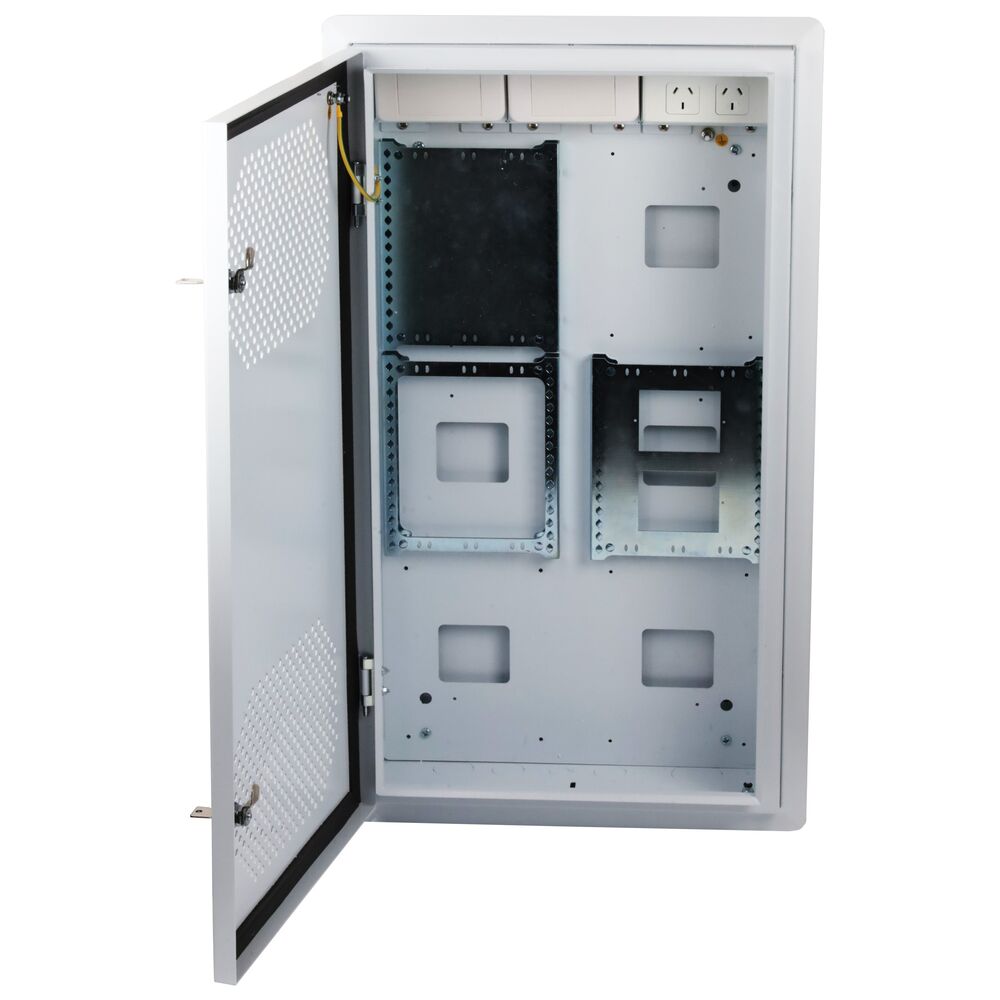

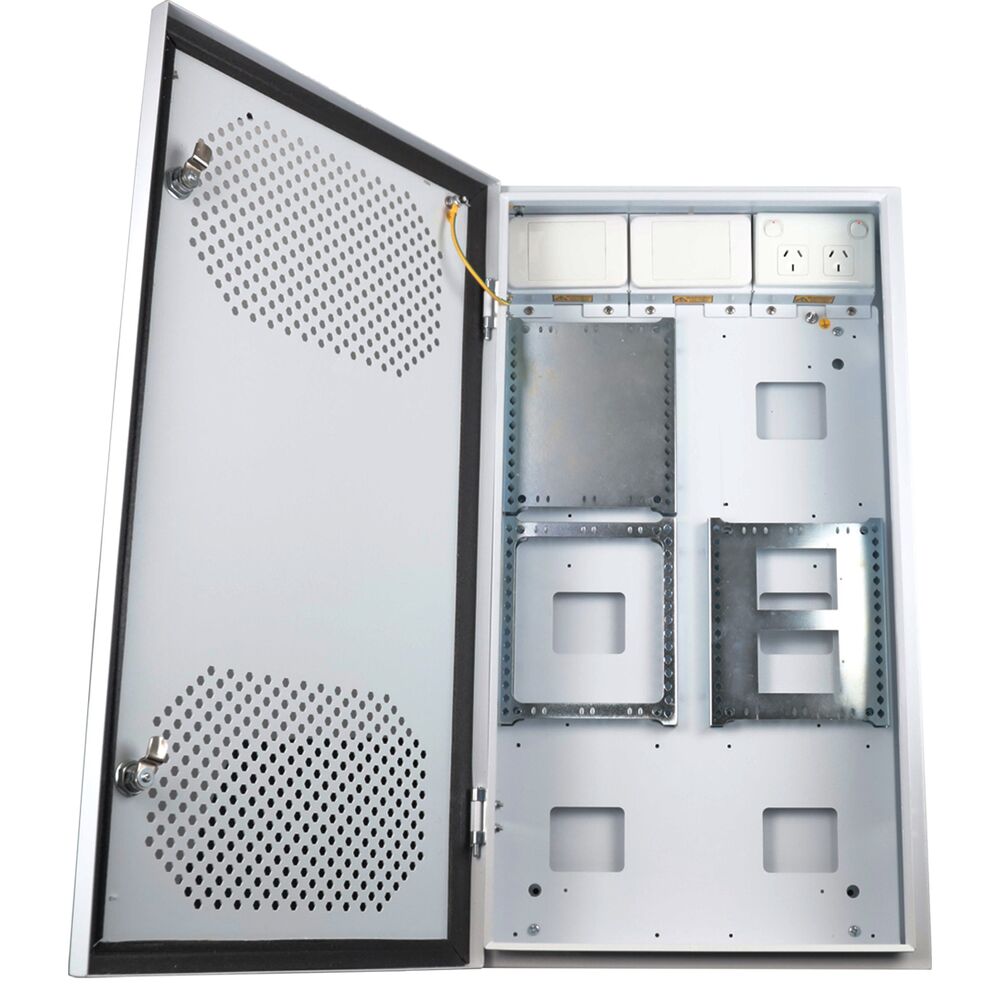

• Solid Accessory frame for mounting of your own equipment
• 2-Hole accessory frame for additional outlet plates
• Open accessory frame for S2119V2 / S2707 modules and cable access
• Mounting blocks for GPO’s and additional outlets
• Built-in, internal GPO to power equipment inside the enclosure (must be connected by a licenced electrician)
• Blank wall plates to cover unused mounting blocks
• S2119V2 CAT6 data module for up to 8 data cabling connections
• Earth wire links for earthing of all enclosure components with additional eyelets included for extra earth links

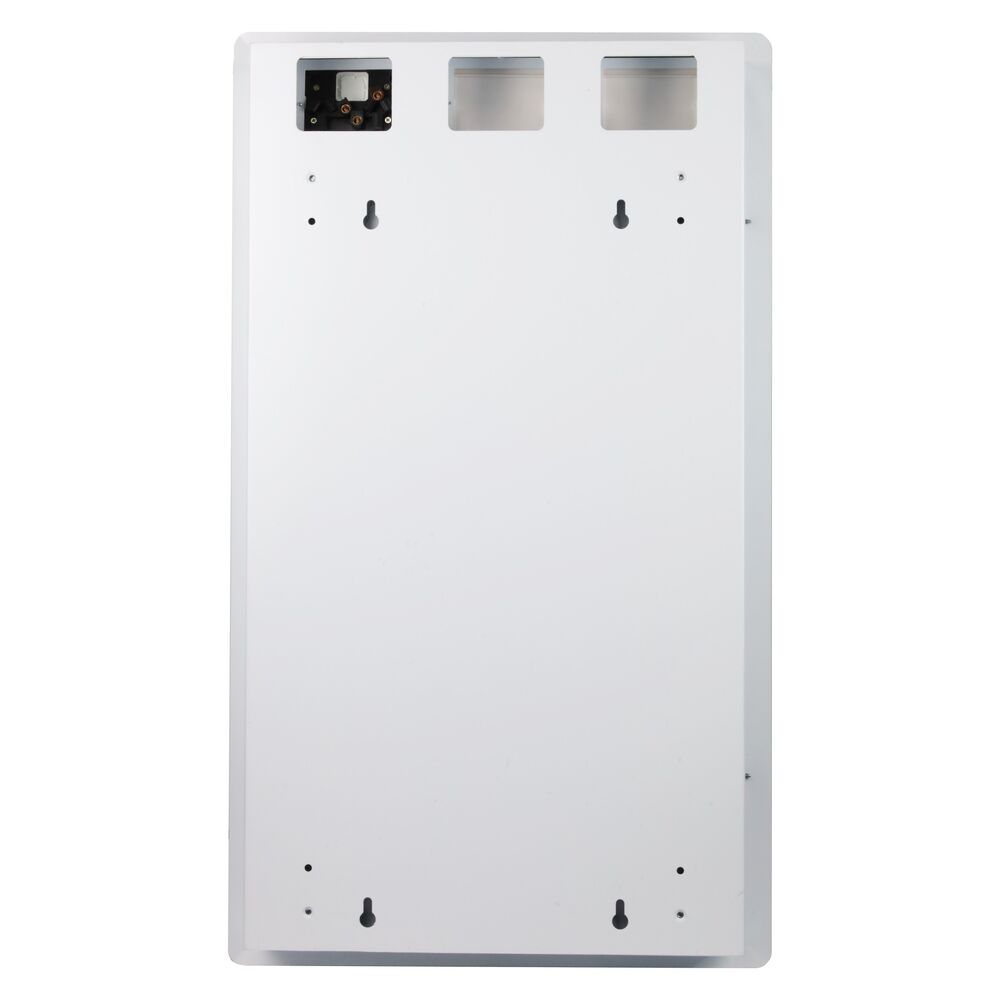

• Enclosure template cut-out and mounting hole positions
• Removable gear tray for easy access to internal cabling
• Scuff-resistant, hammertone white powder-coated finish

Included in this Package

• 1x Enclosure
• 1x Door (Left/Right Opening)
• 2x Door Locks
• 2x Keys (Part # 24HHSPK)
• 1x Escutcheon (Flush Mount Option)
• 1x Name Badge
• 1x Mounting Bracket - Full Plate (Part # 24HHSF)
• 1x Mounting Bracket - Dual Wall Plate (Part # 24HH2HF)
• 1x Mounting Bracket - Open Frame (Part # 24HHOF)
• 3x Mounting Blocks
• 1x Double GPO (2x Double GPO for 24HH1000)
• 2x Blank Wall Plates (Part # 05DWP00)
• 1x 8-Port CAT6 Data Module (Part # S2119V2)
• 4x Earth Wire Links
• 2x Eyelets
• 1x Cut-Out Template
• 1x Removable Gear Tray
