HILLS Antenna Black Pointer LPDA 4G-5G Antenna 700Mhz - 3800MHz

Image 1
Image 2
Image 3
Image 4
Hurry! 13 items left!
$299

Collect 299 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

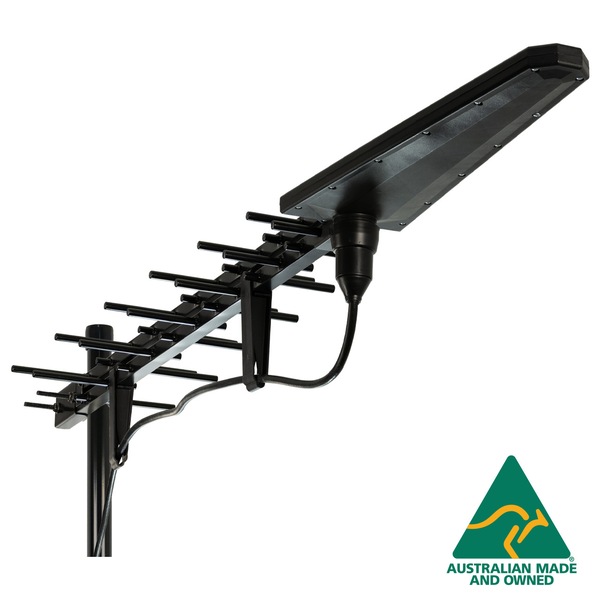

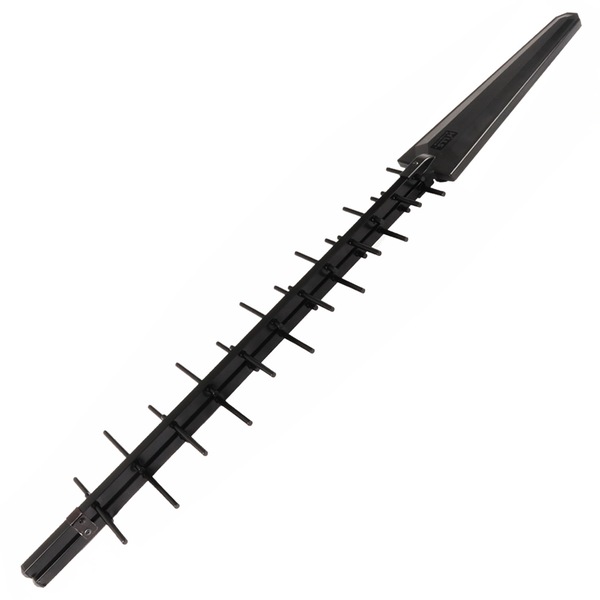

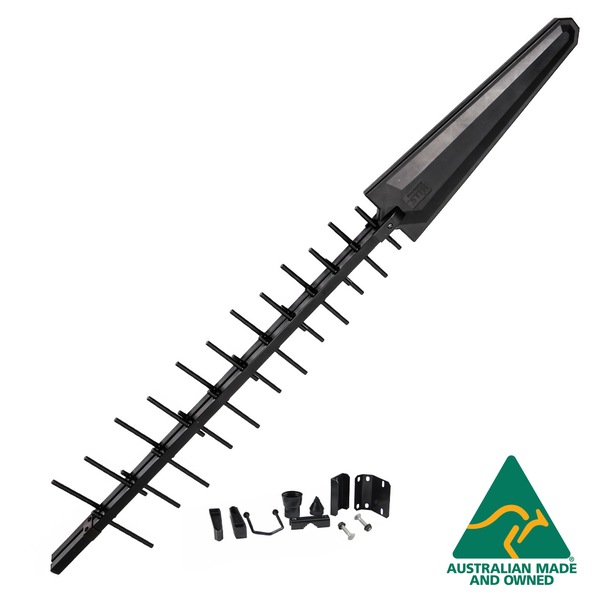

Hills Antenna Black Pointer LPDA 4G-5G Antenna 700Mhz - 3800MHz


Built strong using our patented Boom lock(TM) technology and high frequency PCB antenna. The Black Pointer antenn covers three different frequency bands, the unique log periodic design seamlessly links them altogether.


Features:



  • Frequency bands covered:


    • 698 - 960MHz

    • 1710 - 2700 MHz

    • 3400 - 3800 MHz


  • 10dBi - 11 dBi ~ 1710 - 2700MHz

  • 6dBi - 9dBi ~ 3400 - 3800MHz

  • Unique LPDA design made with patented BoomLock(TM) technology

  • Sensational black finish for appearance and corrosion protection

  • Class 3, Plated Steel mounting clamp hardware & fasteners

  • 0o, 90o, -45o, +45o, polarisation mounting clamp

  • Matched diplexer PCB balun, ultrasonically sealed

  • N-Type Tri-Metal Albaloy connector output with cable sealing boot & amalgamation tape

  • Size 195/240/400 coaxial cable hangers

  • Australian Designed, Made and Owned

  • Designed for high-speed 3G and 4G LTE & 5G applications for all providers



























Mechanical Specification
Input Connector N Female (Tri-Metal Albaloy)
Construction Material Aluminium, black powder coating
Mounting Class 3, Dacromet plated steel
Dimensions 1170x250x80 mm
Weight 1.9 Kg






























Electrical Specification
Frequency Range (MHz) 698 - 960 / 1710 - 2700 / 3400 - 3800
Input Impedance 50Ohm
Max Gain 11dBi
VSWR 1.1 - 2.0
Polarization Vertical, Horizontal
Maximum Input Power 10W

MPN: 01GLPDA-5G
