Description :

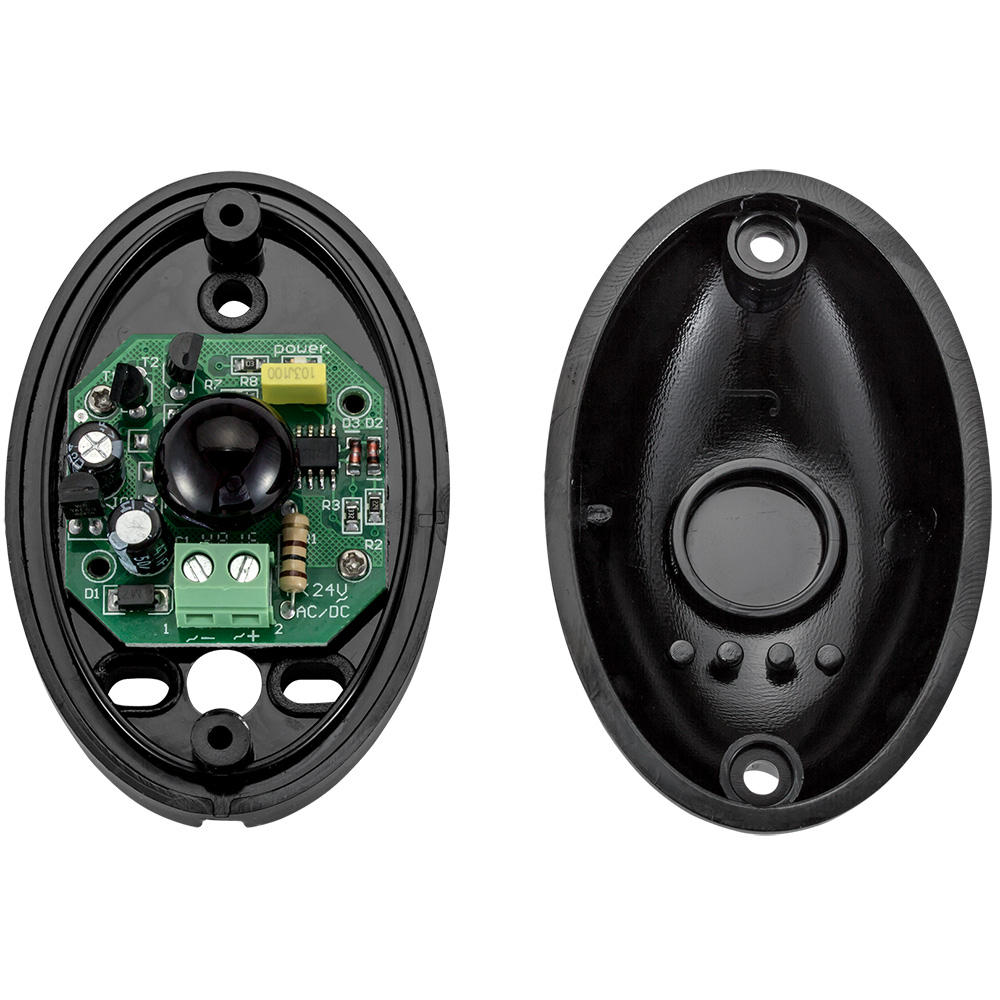

This is upgrade version of single beam sensor with latest LED light and more smt components compare with the old 3 lights handmade model, it's more stable and reliable.

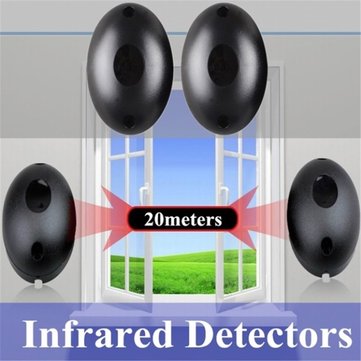

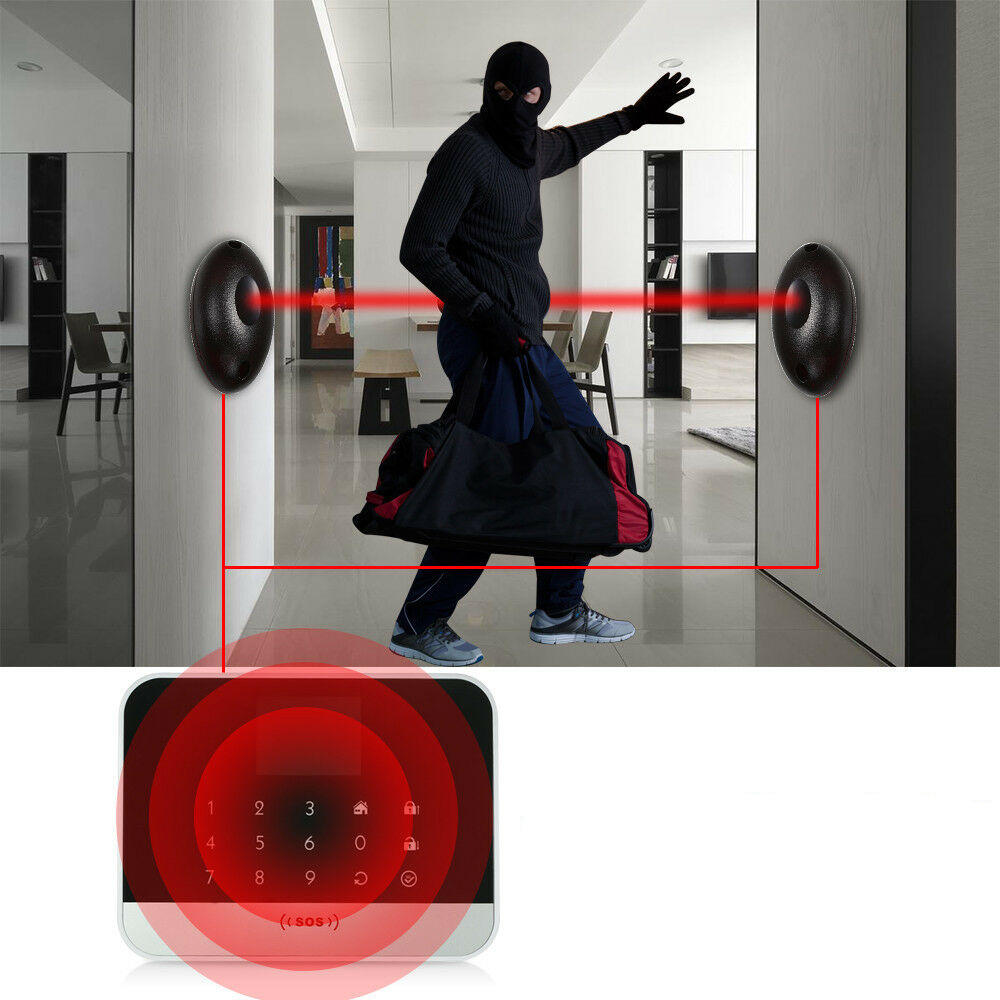

When interrupt the infrared, the relay will output switch signal, it can work for parking barrier, walking gate, vehicle gate as body induction. It also can work as window, door and passageway anti-burglar detection.

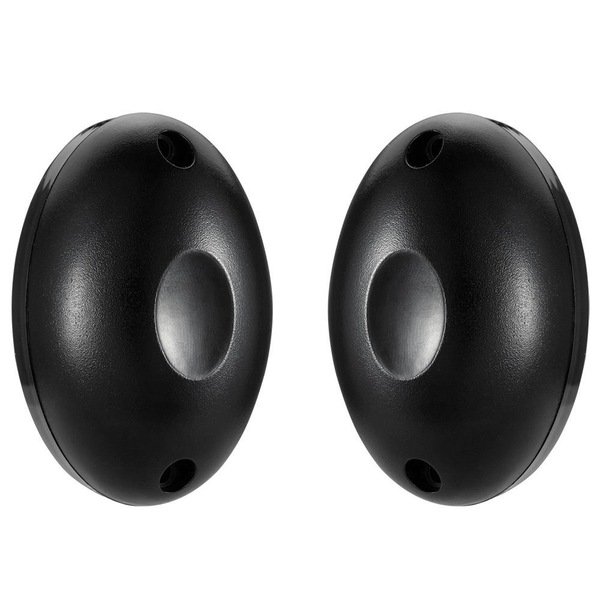

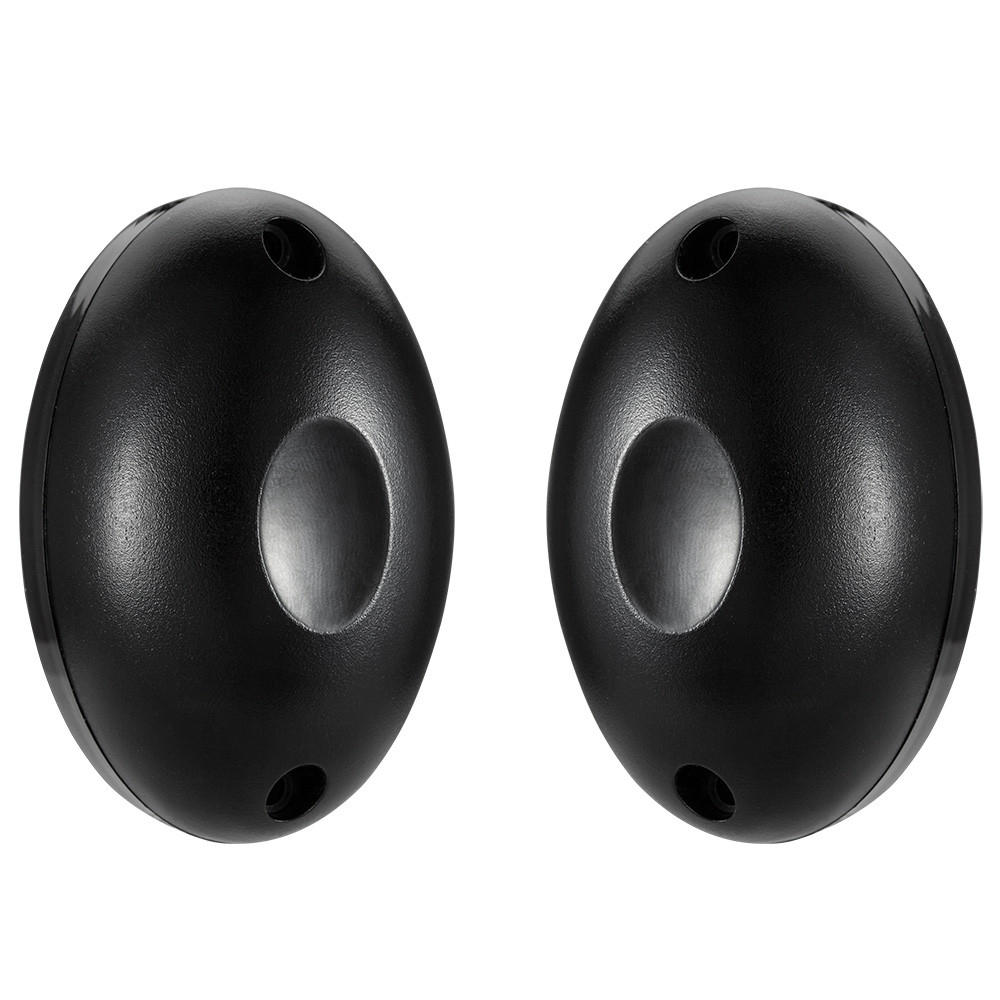

1. Single Beam Infrared Sensor
2. Anti-glare up to 50, 000 LUX, to avoid the impact of glare or car lights
3. Sealed design to anti-rain (fog), dust (worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit)
4. With high levels of anti-RFI / EMI capability
5. High-power transmitter, sensitivity surplus degree up to 90%
6. High-power infrared receiver tube, low-power process technology
7. Adjustable of beam interdiction period, to make it more flexible and adaptable
8. Professional anti-jamming optical housing
Specification :
Material??PC
Color??Black
Weight??160g
Size??7.6x4.8x3.6 cm
Installation??Wiring Mount
Trigger Time??50ms
Outdoor Waming Distance:10m
Indoor Warning Distance ??20m
Alarm Linkage??Yes
Communication??Wired Connection
Working Voltage??DC12-24V
Conditions??Fog, Rain, Dust, Etc.
Package Includes :
1 xTransmitter
1 x Receiver
4xScrews
