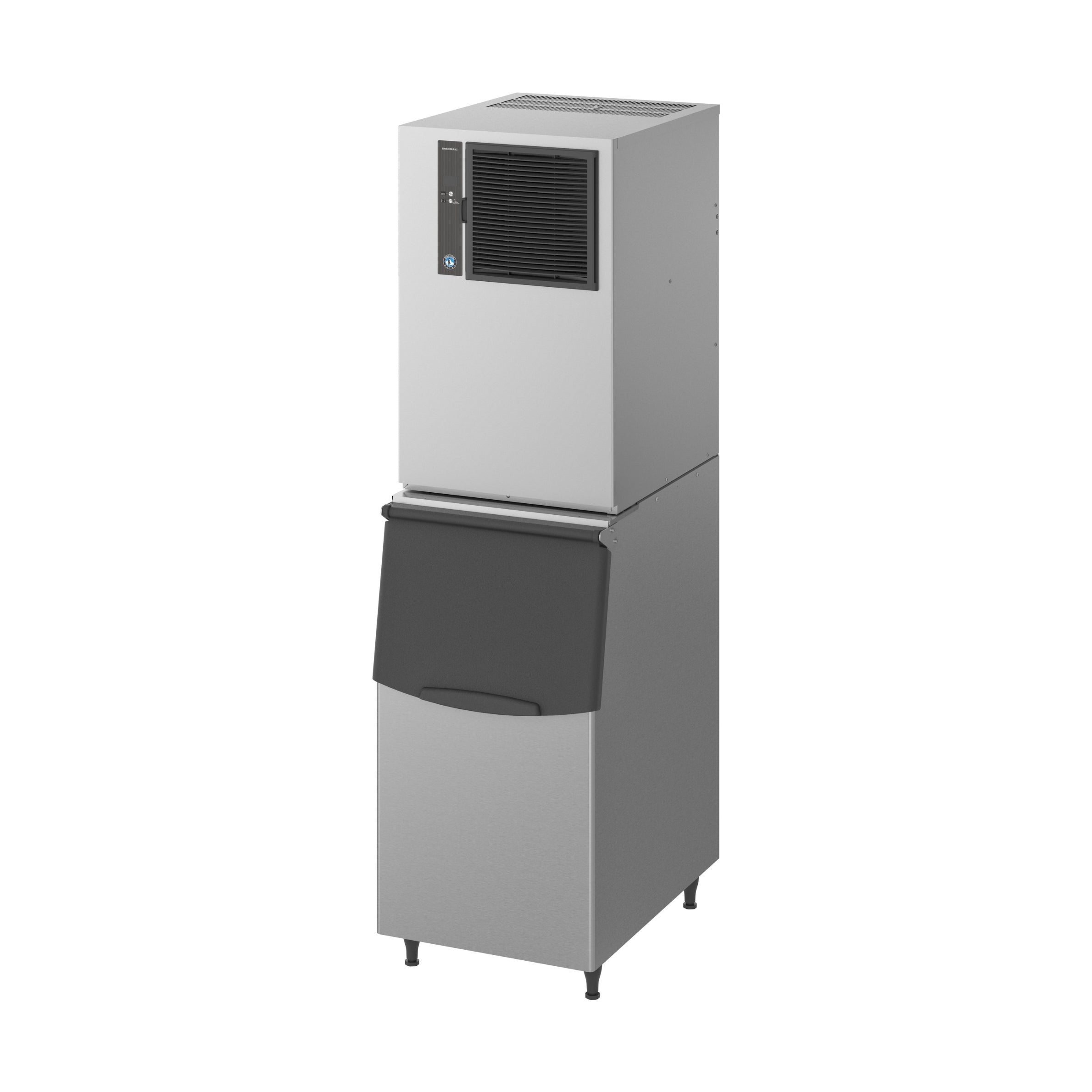

Hoshizaki Modular Cube Ice Machine

Image 1
Hurry! 19 items left!
$7027

Collect 7027 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Commercial Kitchen Store
Secure ways to pay at checkout
HIGHEST QUALITY ICE

This stack-able modular ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production


  • New intelligent control circuit dedicated to saving power and water consumption.
  • Micro computer controller controls ice making process to work at peak performance in any conditions.
  • Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
  • New 7 segment operational display panel for ease of use.
  • Unique closed cell water circuit for ultimate contamination protection.
  • Durable stainless steel exterior.
  • Easily accessible and cleanable air filters reduce costly callouts.
  • Exceptionally hard crystal clear cubes that melt slowly.
  • Auto rinse and flush cycle.
  • 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
  • Large Ice Cube Makers are specifically designed for bars, to be used in cocktails and not for general ice and especially blending purposes. Large Ice Cubes (above 22mm) cannot be blended for juices, smoothies etc

Production Capacity per 24hours Approx. 220kg @10°C Air temp; 10°C Water
Approx. 205kg @21°C Air temp; 15°C Water
Approx. 160kg @32°C Air temp; 21°C Water
Max Storage Capacity Select Bin & Kit
Freeze Cycle Time Approx. 20 Min
Ice Production Per cycle Approx. 3.2kg/140pcs
Dimensions 560mm (W) x 700mm (D) x 880mm (H)
Cooling Air
Weight Net/Gross (kg) 80 / 95
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage Running: 6.6A Rated: 6.6A Starting: 35A
Refrigerant R404A / 480g
Refrigerant Charge Ambient Temp.: 1-40°C
Operating Conditions Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6%
Double Production Capacity Achieved by stacking 2 units side by side. For
pricing please contact your Hoshizaki Sales Rep.

Product Dimensions: 560(W) x 700(D) x 880(H)mm

SKU: IM-240ANE-28

Estimated Delivery Time Frame:2-10 business days
