Included:

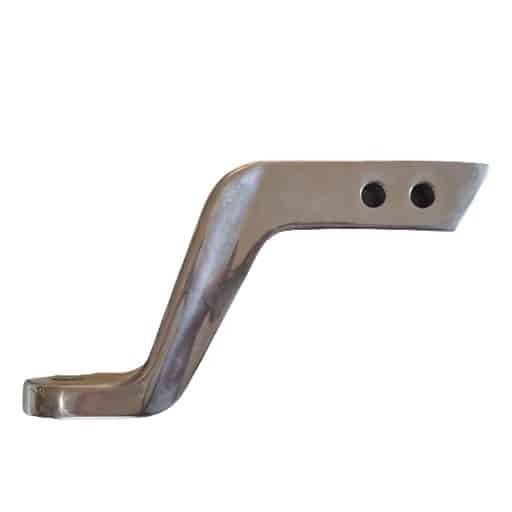

• Stinger By Black Jack Solid Aluminium Hitch 150mm Drop - HHS-150

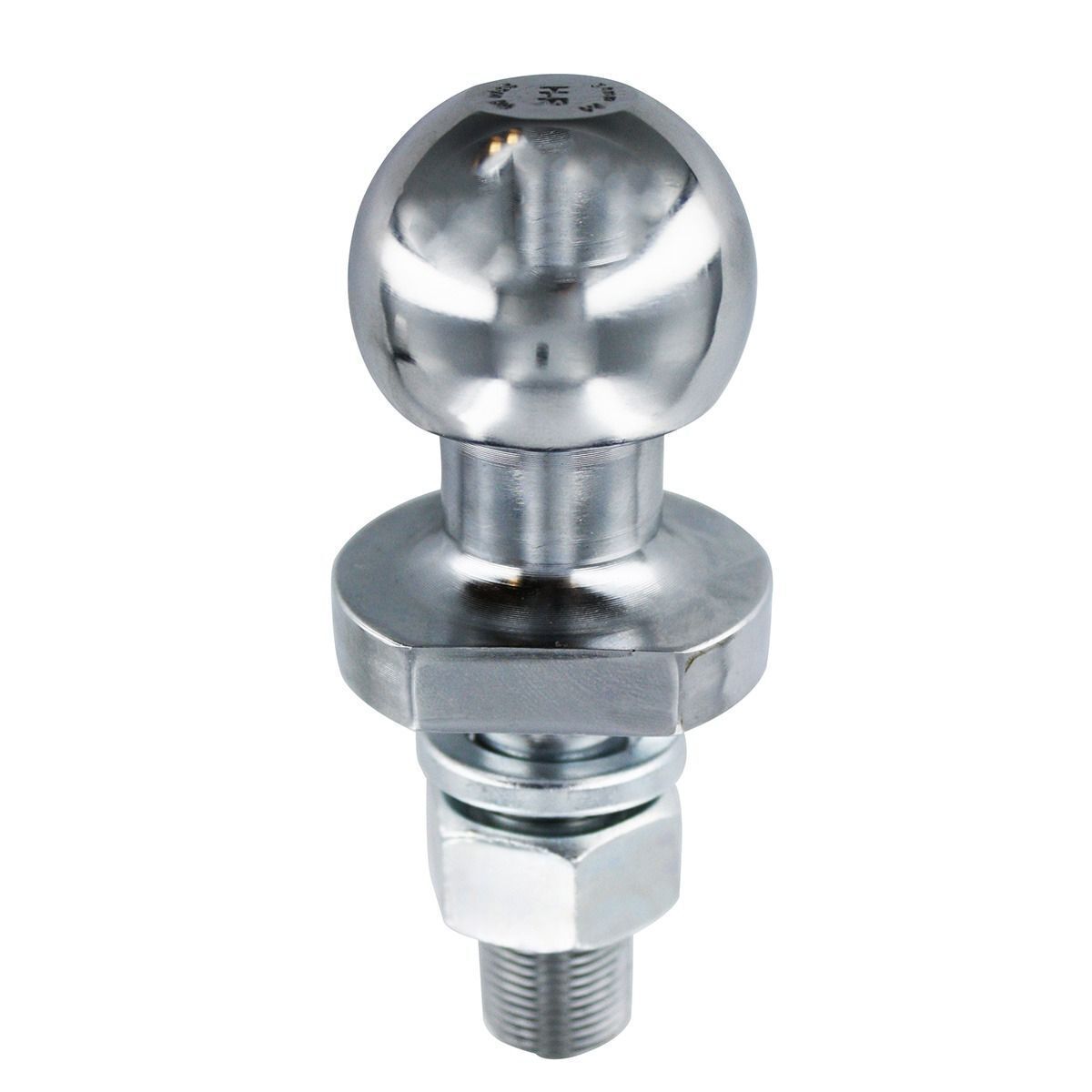

• Brutus 50 mm Tow Ball for Brutus Hitches - TBPB35-C

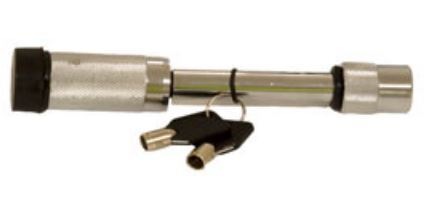

• Black Jack Stinger Locking Pin -  HH-RL-58

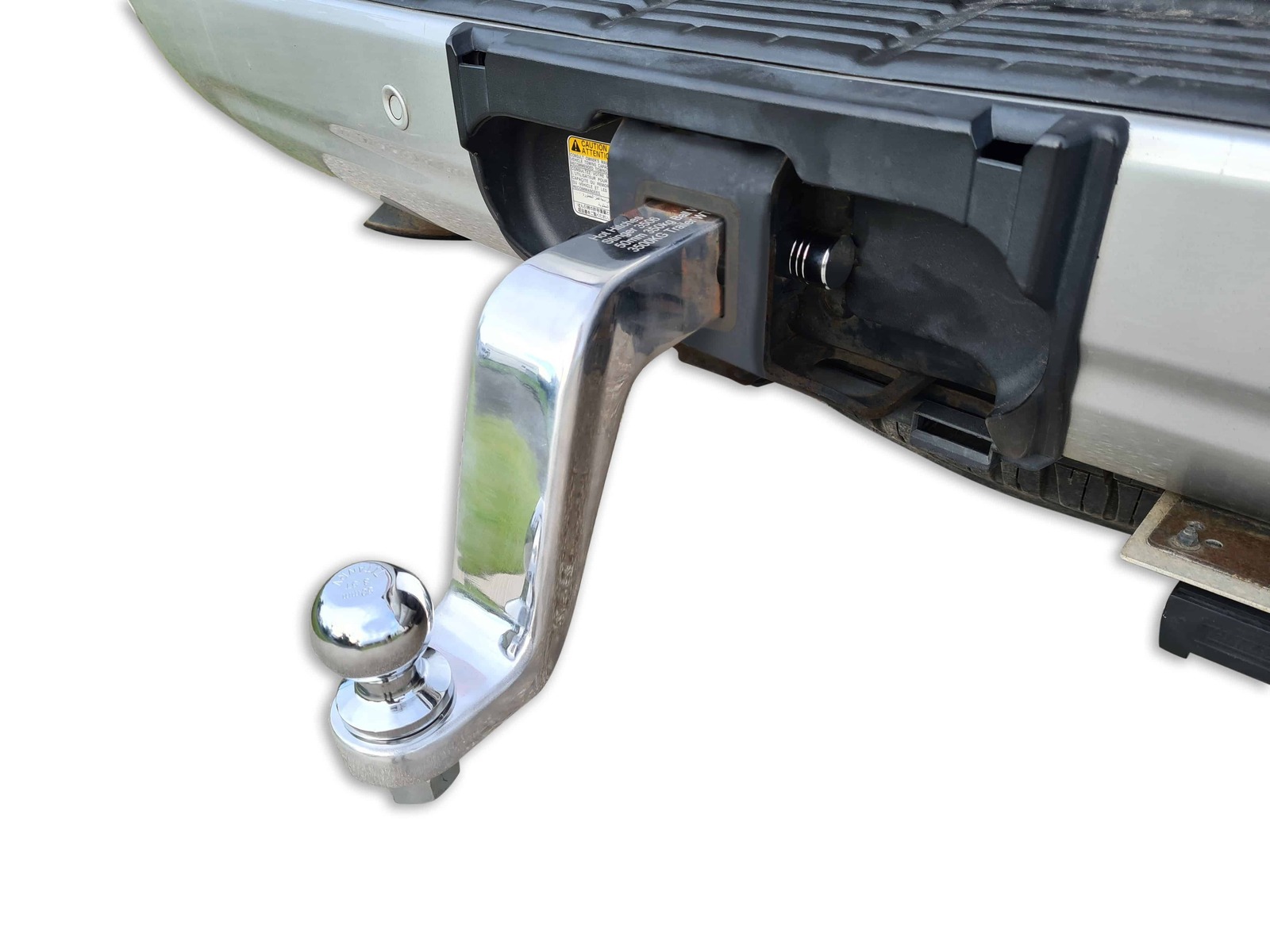

With its unique, stand-out appearance the Stinger ball mount offers boat, caravan, ATV, and utility trailer owners the highest quality and one of the best-looking ball mount hitches on the market. The Stinger is made of one solid piece of aluminium alloy with no welds, giving it all the strength and durability you need. The Stinger can be used in a drop or rise position giving you the flexibility of two position heights. Included with every Stinger is a 150mm towball and locking pin making it convenient to install.

Stinger ball mounts will never rust and are much lighter than standard steel ball mounts of similar strength. The aluminium looks great by itself, so there is no need for paint or chrome plating that will chip and peel over time. To keep the shine, you simply need to polish the hitch from time to time, restoring the high gloss surface and making your hitch look brand new.

Stinger Features:

• ADR Compliant (Australian Design Rules 62/02 – Mechanical Connections Between Vehicles) 2007
• Aluminium alloy 6061 T6 (solid bar) construction
• Available in 50mm, 100mm, 150mm drop sizes
• All Stinger sizes can be used in a drop or rise position
• Fits all 2″ standard tow bar receivers
• Couples with 2-1/2″ Reducer Sleeve for use in 2-1/2″ tow bar receivers
• 7/8” (22.2mm) ball shank hole diameter
• 8,000 lb GTWR (3,500kg)
• 800 lb tongue weight (350kg)
• No Paint – No Rust – Forever

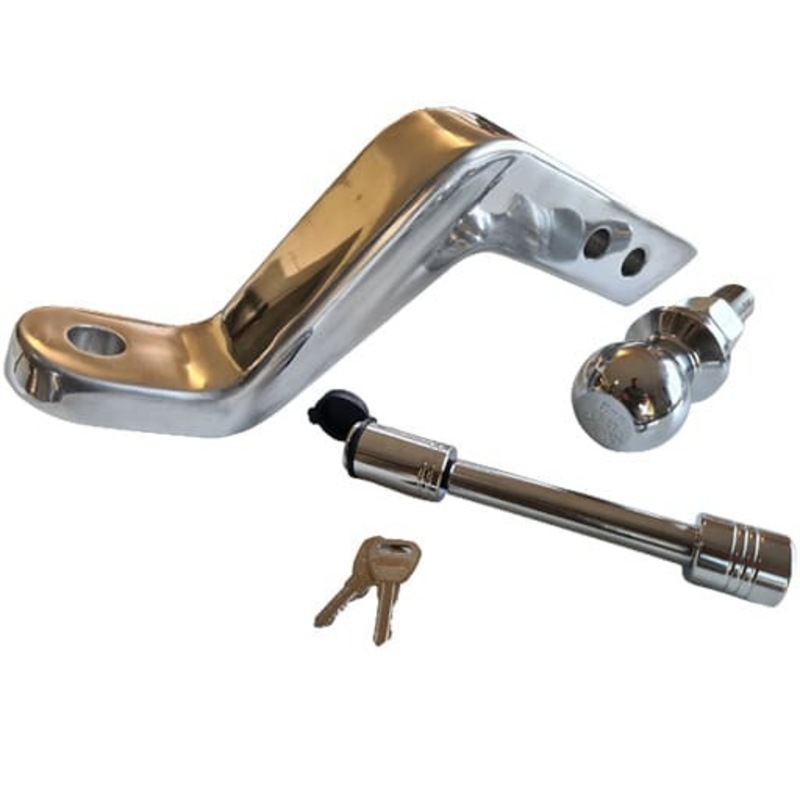

• Each kit includes: Stinger, 50mm Tow ball and Locking Pin

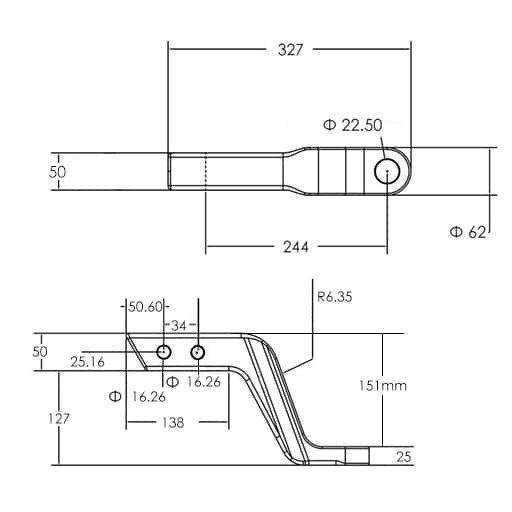

Specifications:

• Rise:  5″ / 125 mm
• Drop:  6″ / 150 mm
• Weight (Tow Ball mount only):  2.3 kgs
• Tow Ball Weight Rating:  350 kgs
• Receiver Size: 2 1\2 inch with reducer sleeve (PN HH-HRS) for American Trucks
• Finish Colour: Polished Alloy

NOTE:

• The 150mm stinger is compatible with the DO-35, but only if it is being used in the rise position.
• In a drop position, the DO-35 will contact with the front face of the hitch.
