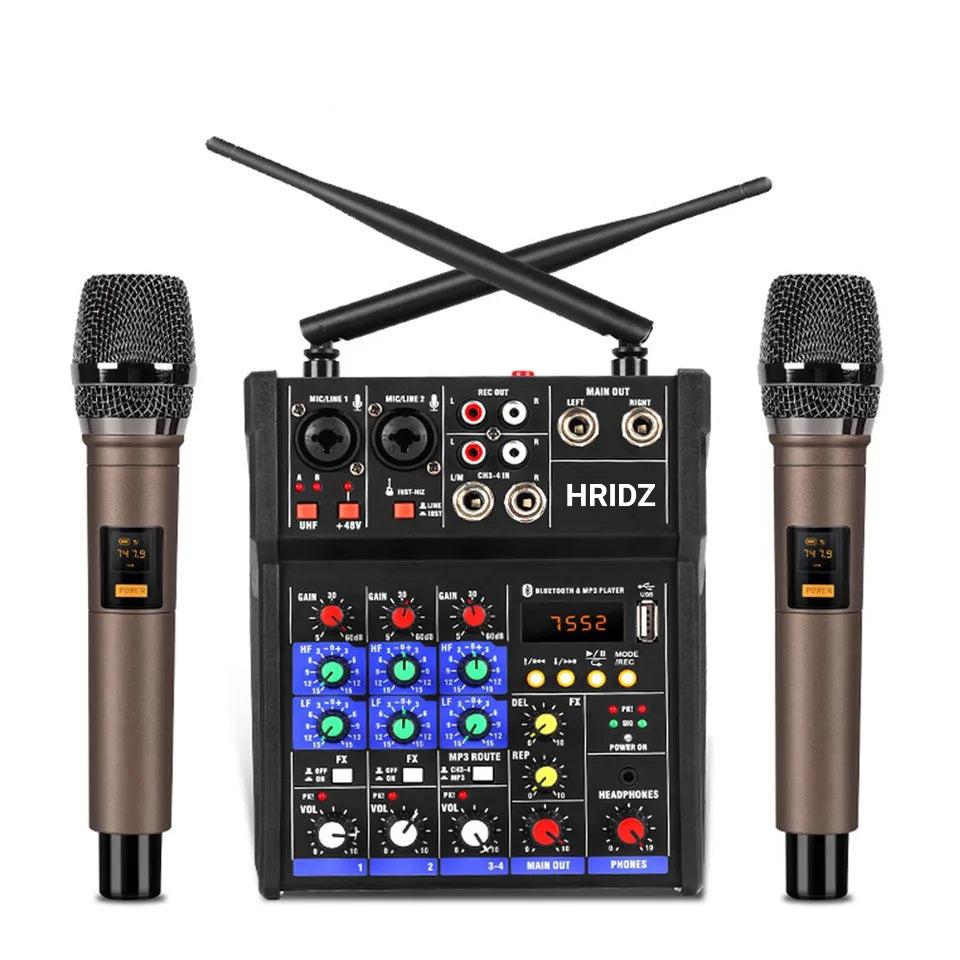

HRIDZ EMC-G04 Audio Mixer karaoke machine with UHF Wireless Microphone 4 Channel Stereo Mixer Console Bluetooth USB for DJ Karaoke PC Record

HRIDZ Stereo Audio Mixer with Built-in UHF Wireless Mics
4 Channels Mixing Console (Metal Body)

Key Features:
1. 4-Channels (2 Mono + 1 Stereo).
2. USB Power supply (DC 5V): Compatible with Computer / Power Adapter / Power Bank.
3. Built-in sound card: Direct USB Computer connection, No driver required.
4. Bluetooth connection for music transfer.
5. USB Play: Supports MP3, WAV, lossless APE, FLAC formats.
6. Each mono channel has independent +48V Phantom Power.
7. Each mono channel has an effect switch.
8. Recording capabilities via USB or PC.
9. Built-in Delay + Repeat effect.
10. Equipped with two wireless microphones and a built-in receiver.
11. Microphone Frequency: 660-690MHz

Package Contents:
- 1x HRIDZ Audio Mixer karaoke machine
- 2x Wireless Microphones
- 1x USB data cable
- 1x User manual

Additional Information:

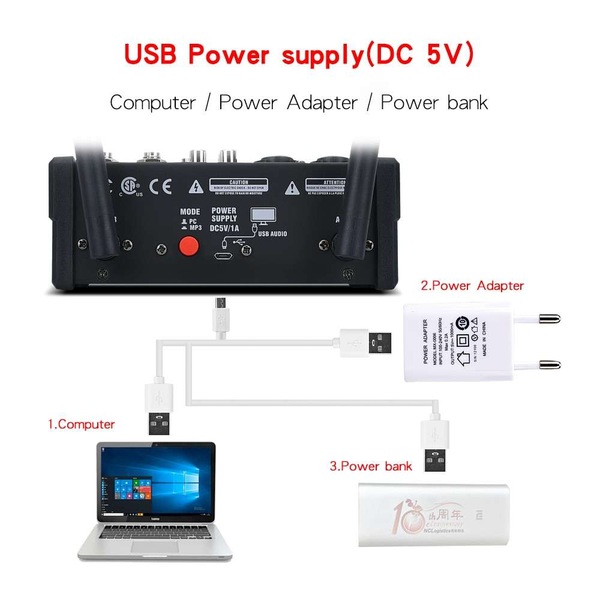

- USB Power Supply (DC 5V): Compatible with Computer/Power Adapter/Power Bank.
- PC/MP3 mode switch: Stable connection for music transfer to the mixer.
- Bluetooth connection: Stable connection for music transfer to the mixer.
- USB connection supports MP3, WAV, lossless APE, and FLAC audio format playback.
- Recording via USB.

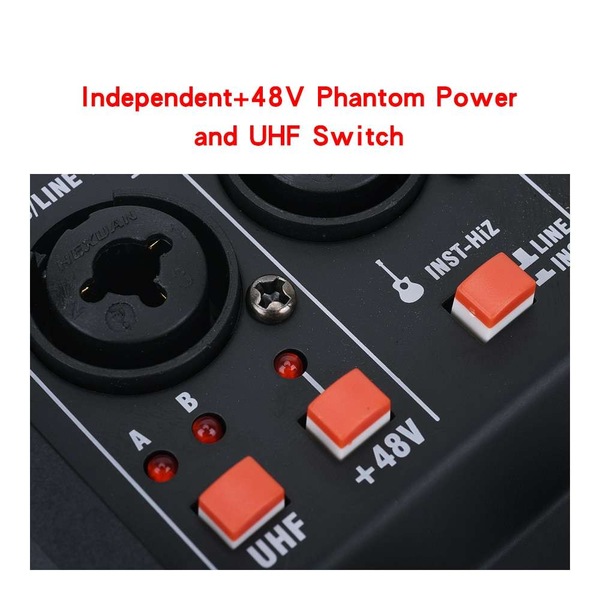

- Independent +48V Phantom Power and UHF Switch.
- Inset/Line Switch designed for impedance sound source equipment.
- DELAY and REPEAT Effect Adjustment for a three-dimensional "echo bounce" sound.
- Each channel has an independent effect switch for personalized sound control.

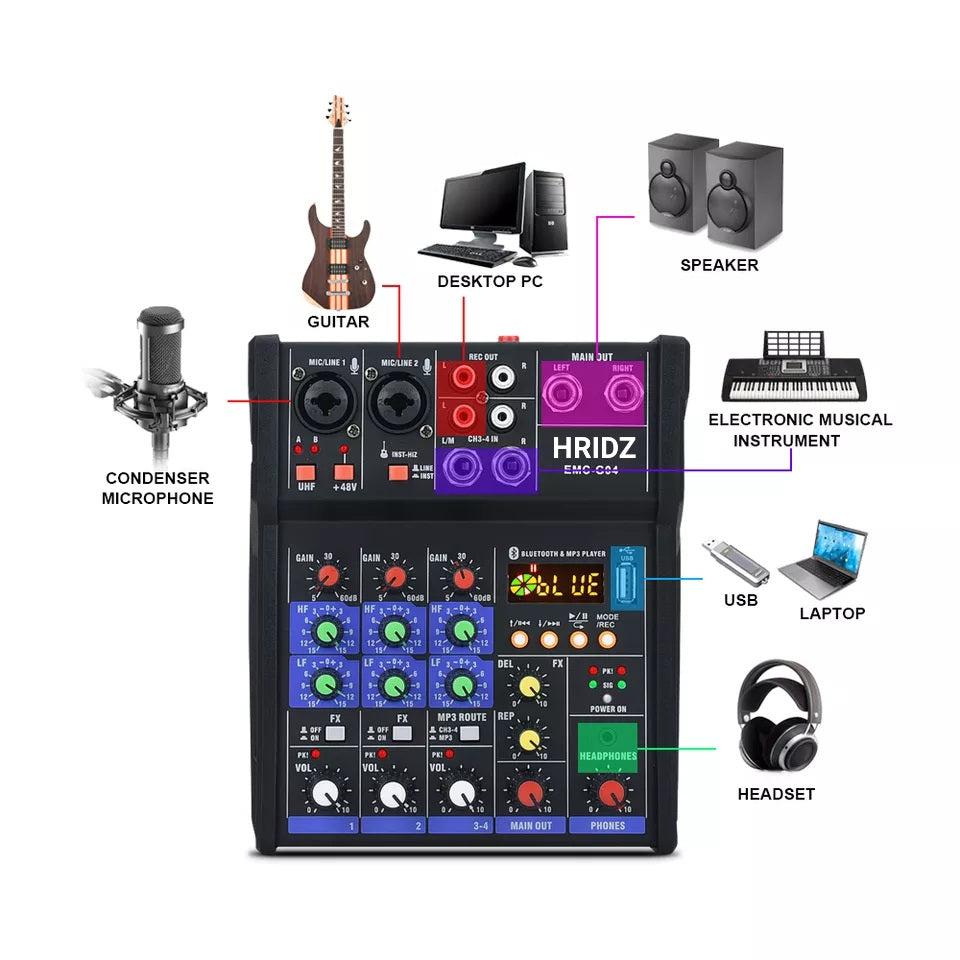

- Stereo Input: 1/4" Input and RCA Input.
- MIC/LINE: 2 Channels Mono Microphone/Audio Independent Input.
- HIGH/LOW Sound Adjustment.
- LCD Display Screen and Function Buttons.
- 3.5mm Headphone Monitor for audio monitoring.

Note: This is not an EYK G04 audio mixer.

Introduction of Function Keys:
- Wireless Transmission: Stable signal in UHF band, up to 195 feet (up to 50 meters), with 30 channels for options.
- High-quality dynamic capsule.
- Battery Compartment: Requires 21.5V AA batteries (not included).

Product Specifications:
- Width: 156mm (6.1in)
- Length: 180mm (7.0in)
- Height: 55mm (2.1in)
- Frequency Response: 20Hz~20KHz 0.5dB
- S/N Ratio: -80dB
- MAX. Outputs: 4V/MAX.
- Input/Output impedance: Microphone Frequency: 660-690 MHz, Mono: 11K, Stereo: 100K
- Parametric EQ: HI: 12KKHz 15dB, LOW: 80Hz/15dB

FAQ for HRIDZ EMC-G04 Audio Mixer Karaoke Machine with UHF Wireless Microphone

General Questions

Q: What is included in the package?
A: The package includes

•


  1x HRIDZ Audio Mixer Karaoke Machine






•


  2x Wireless Microphones






•


  1x USB Data Cable






•


  1x User Manual




Q: Is the HRIDZ EMC-G04 Audio Mixer portable?
A: Yes, the audio mixer is compact and lightweight, making it easy to carry and set up. It measures 156 mm x 180 mm x 55 mm (6.1 in x 7.0 in x 2.1 in).

Q: Can I use this mixer without a computer?
A: Yes, the mixer is versatile and can be powered using a computer, power adapter, or power bank via a USB power supply (DC 5V).

Q: What type of power supply does the mixer use?
A: The mixer operates on a USB power supply (DC 5V).

Microphone and Wireless Features

Q: How many microphones are included?
A: The package includes two UHF wireless microphones.

Q: What is the wireless microphone frequency range?
A: The microphones operate in the 660-690 MHz frequency range.

Q: How far is the wireless transmission range?
A: The microphones provide a stable UHF wireless signal up to 195 feet (approximately 50 meters).

Q: What type of batteries do the microphones require?
A: Each microphone requires 2 x 1.5V AA batteries (not included).

Audio and Connectivity

Q: How many channels does the mixer have?
A: The mixer has four channels: two mono channels and one stereo channel.

Q: Does the mixer support Bluetooth connectivity?
A: Yes, the mixer supports Bluetooth for stable music transfer.

Q: Can I record audio using this mixer?
A: Yes, the mixer has recording capabilities via USB or PC.

Q: What audio formats does the mixer's USB play support?
A: The USB playback supports MP3, WAV, lossless APE, and FLAC audio formats.

Q: Does the mixer include effects?
A: Yes, it includes built-in delay and repeat effects for creating three-dimensional echo sounds.

Technical and Performance

Q: What is the frequency response of the mixer?
A: The mixer has a frequency response of 20 Hz~20 KHz 0.5 dB.

Q: What is the signal-to-noise (S/N) ratio?
A: The S/N ratio is -80 dB.

Q: Does the mixer have phantom power?
A: Yes, each mono channel has independent +48V phantom power.

Q: Can I use this mixer to power up 110V or 220V speakers?
A: No, the +48V phantom power provided by the HRIDZ EMC-G04 Audio Mixer is not designed to power 220V speakers. Phantom power is specifically used for powering condenser microphones and other low-power audio devices that require a +48V DC power supply through their XLR connections.

For powering 220V speakers, you will need speakers with their own built-in power supply (active speakers) or an external amplifier that connects to passive speakers. The mixer can send...
