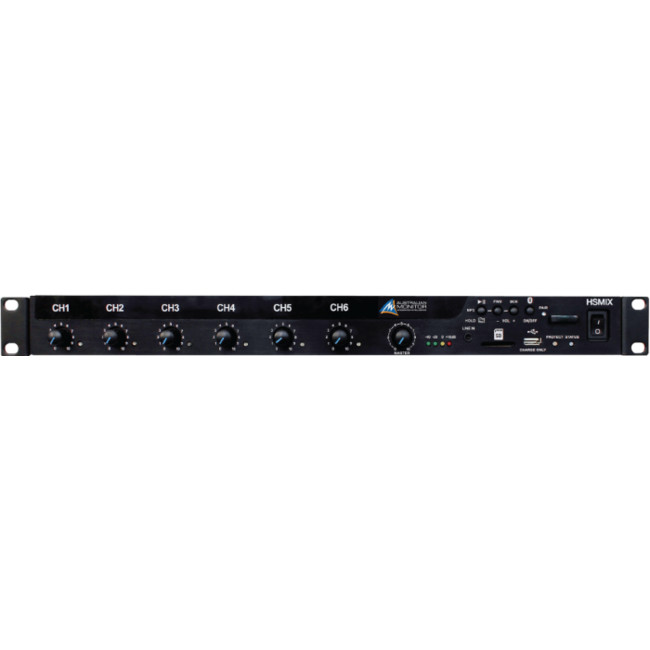

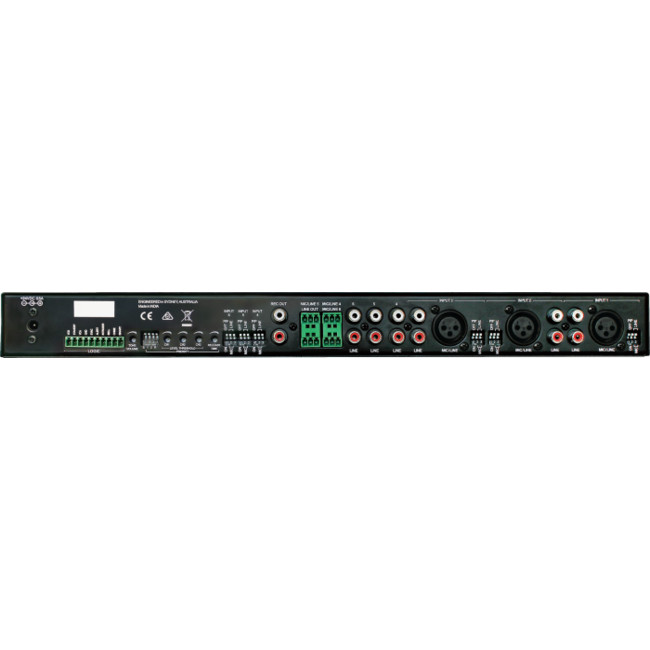

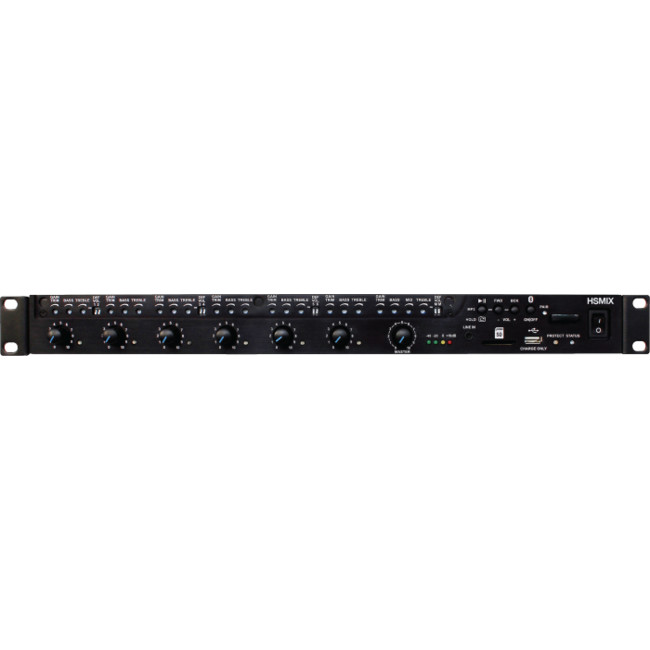

AUSTRALIAN MONITOR HSMIXV2 1Ru-9 Input Installation Mixer

Image 1
Image 2
Image 3
Hurry! 1 items left!
$982

Collect 982 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

Popular Products

Australian Monitor - HSMIXV2 9 Channel Mono Mixer with Programmable Bluetooth, MP3 Player, Tones

The HSMIXv2 is Australian Monitor's next generation mixer, delivering high quality audio in a one-rack unit package.

The HSv2 now includes an upgraded andprogrammableBluetooth v5.1 module allowing customisation of the broadcast name, PIN number and various security features. The mixer includes 7 external and 2 internal audio input channels, each channel offering individual channel volume control, equalizer and gain control. An inbuilt user customizable tone generator, MP3 player, Bluetooth®module, 3.5mm jack and USB charger are included as standard.

The HSMIXv2 has been designed to include all the features required for a vast range of installations,from the boardroom to the classroom, school hall to bar, restaurant or function space.

Key Features
  • 9 audio input channels. 6 rear & 3.5mm Jack, Bluetooth®5.1 and MP3
  • Programmable Bluetooth name, PIN and security features via Bluetooth PC Control Software
  • Priority mute control on channels 1-3, with level and time release control
  • Phantom power on microphone inputs
  • MIC or Line options on rear inputs
  • Magnetic cover for customer concealed channel gain/equalisation controls
  • Embedded tone generator for bell/alert/evac/chime/ intruder plus 11 fully customisable user tones
  • Embedded MP3 player via onboard SD card socket – supporting random, sequenced and single playback
  • Tamper-proof channel attenuation by disabling external volume controls
  • Voltage controlled input attenuation (VCA)

_

9 INPUT CHANNELS
The HS series has all the connectivity options required for a multitude of input sources.
• 6 MIC or Line level rear inputs with XLR, Euroblock and RCA connector types
• 3.5mm front panel input
• Bluetooth®audio receiver
• MP3/WAV Player
BLUETOOTH CONTROL SOFTWARE
The WPBT can be optionally programmed via the free Bluetooth PC Control Software. The following settings can be modified,

• Bluetooth broadcast name
• Bluetooth PIN
• Security features
• Allow phone call support
• Audio output mode
PRIORITY MUTING CONTROL
Priority muting allows the amplifier to duck/mute specific input channels when either talkover/messages or tones are triggered.
The priority muting has four modes,
• Channel 1 Only
• Ch1 then Ch2 then Ch3
• Ch1 and Ch2 then Ch3
• Off
The first 3 input channel levels can be individually set to trigger the muting function as well as a global setting for how long to apply the mute.
In addition, tones from the SD card can be configured to trigger the priority muting when a tone is played.
EMBEDDED TONE GENERATOR
The HS series embeds a customisable tone generator which can play 5 internal tones as well as an additional 11 custom tones from an SD card.
The internal tones can also be overwritten by placing alternative files on the SD card.
Finally, the tone generator also offers the ability to play files at specific volumes as well as trigger the priority scheme for channel muting during playback.
All tones are triggered using the rear LOGIC input connector.
EMBEDDED MP3/WAV PLAYER
The HS series includes an integrated MP3/WAV player.
Audio files can be placed from an SD card (not included) and played using the front panel controls.
Files can be played in sequential or random order depending on which audio folder is selected. Simply hold down the Play/Pause button to swap between folders to change the play mode.
MAGNETIC CONCEALMENT COVER
A magnetic cover conceals tone control, gain and volume defeat options to ensure end users do not tamper with the desired audio setup.

_

Specifications
Total Inputs 9 Frequency Response 20Hz - 20kHz
Input Channels 6 MIC or Line / Bluetooth / MP3 and AUX THD+N < 0.1%
Output Channels 1 Mono Signal to Noise Ratio > 75dB
Mounting 1RU Input Sensitivity MIC: 4.36mV / Line: 775mV
Warranty 5 years Input Voltage 100-240Vac 50-60Hz
Product Dimensions
(W x D x H)
483mm x 180mm x 44mm Dimensions
(W x D x H)
505mm x 290mm x 95mm
Net Weight 2.4 Kg Weight 3.0 Kg
GTIN EAN 9323383019867
