HV-12 300mm Rotary Table for Milling with Horizontal & Vertical Setup

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 10 items left!
$1744.99

Collect 1744 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout
Product Description

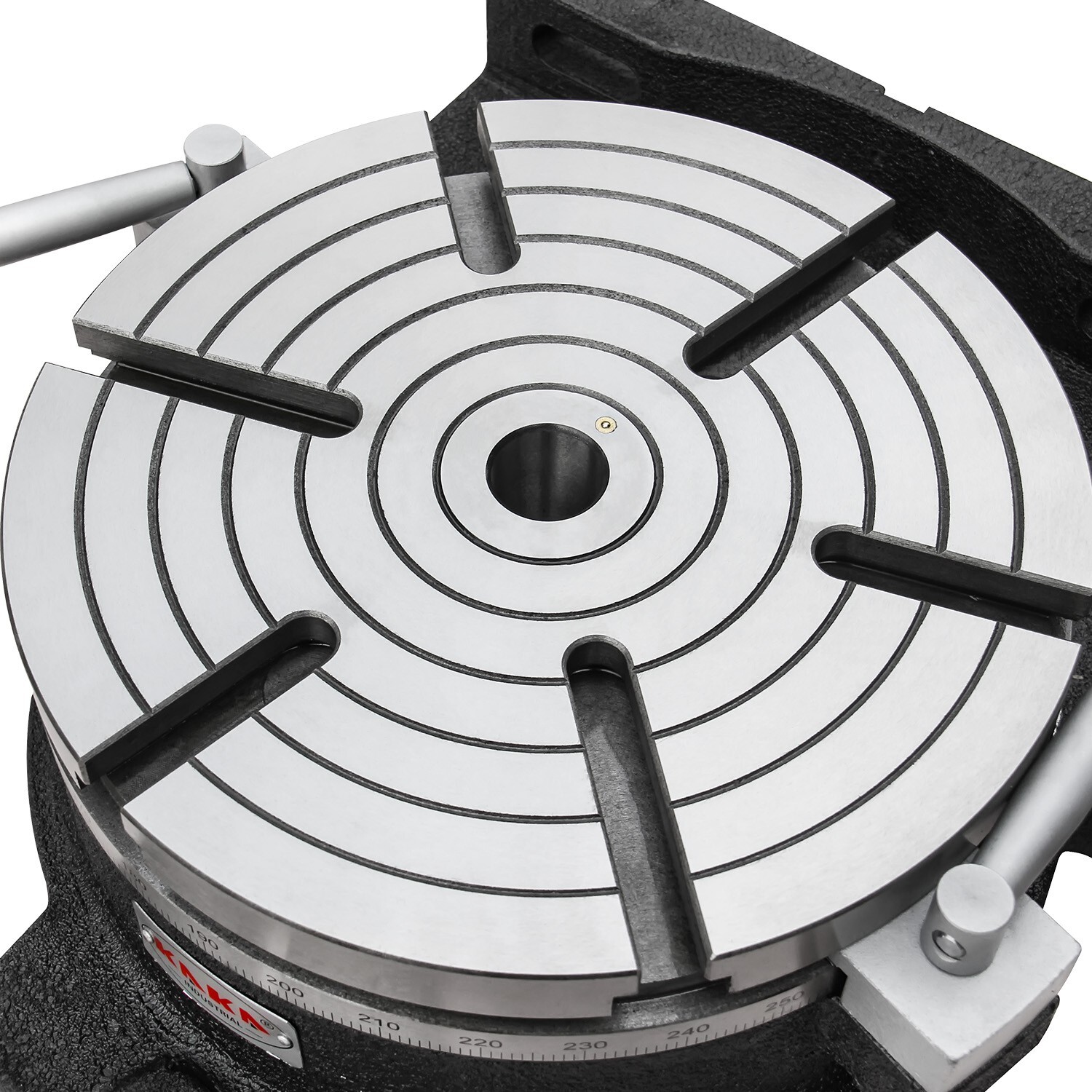

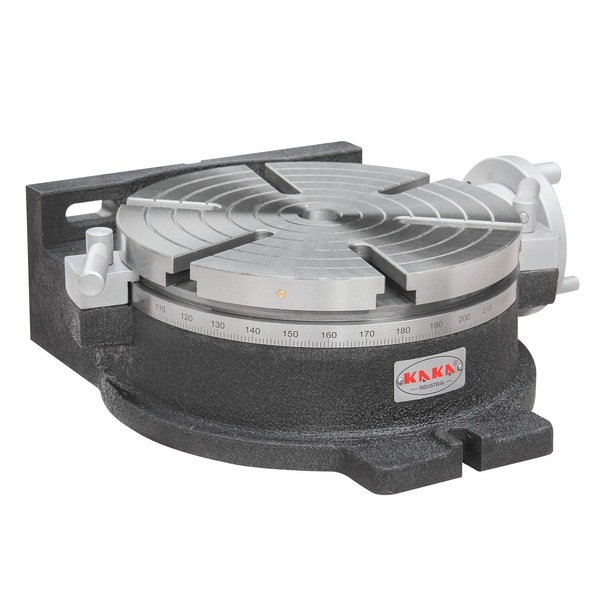

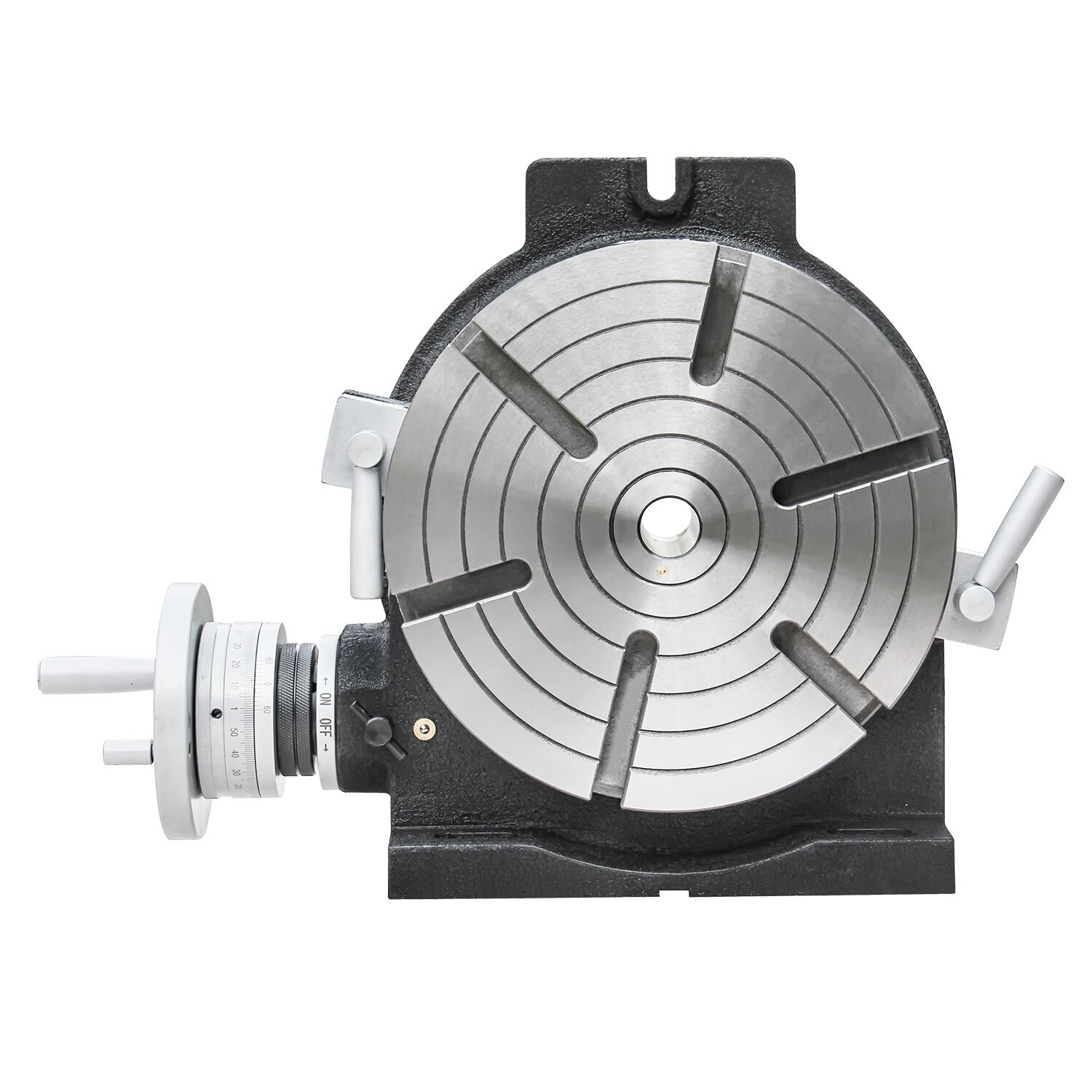

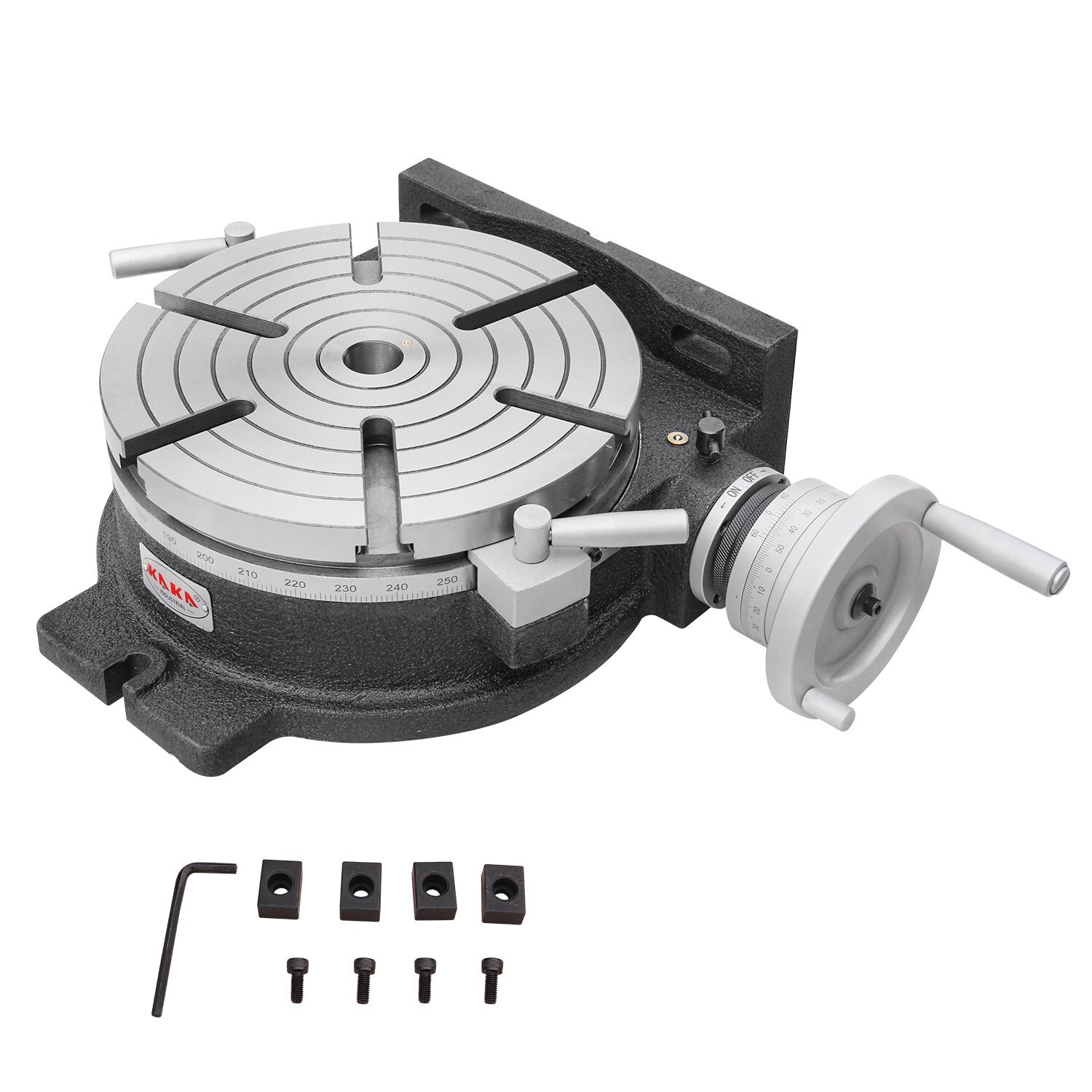

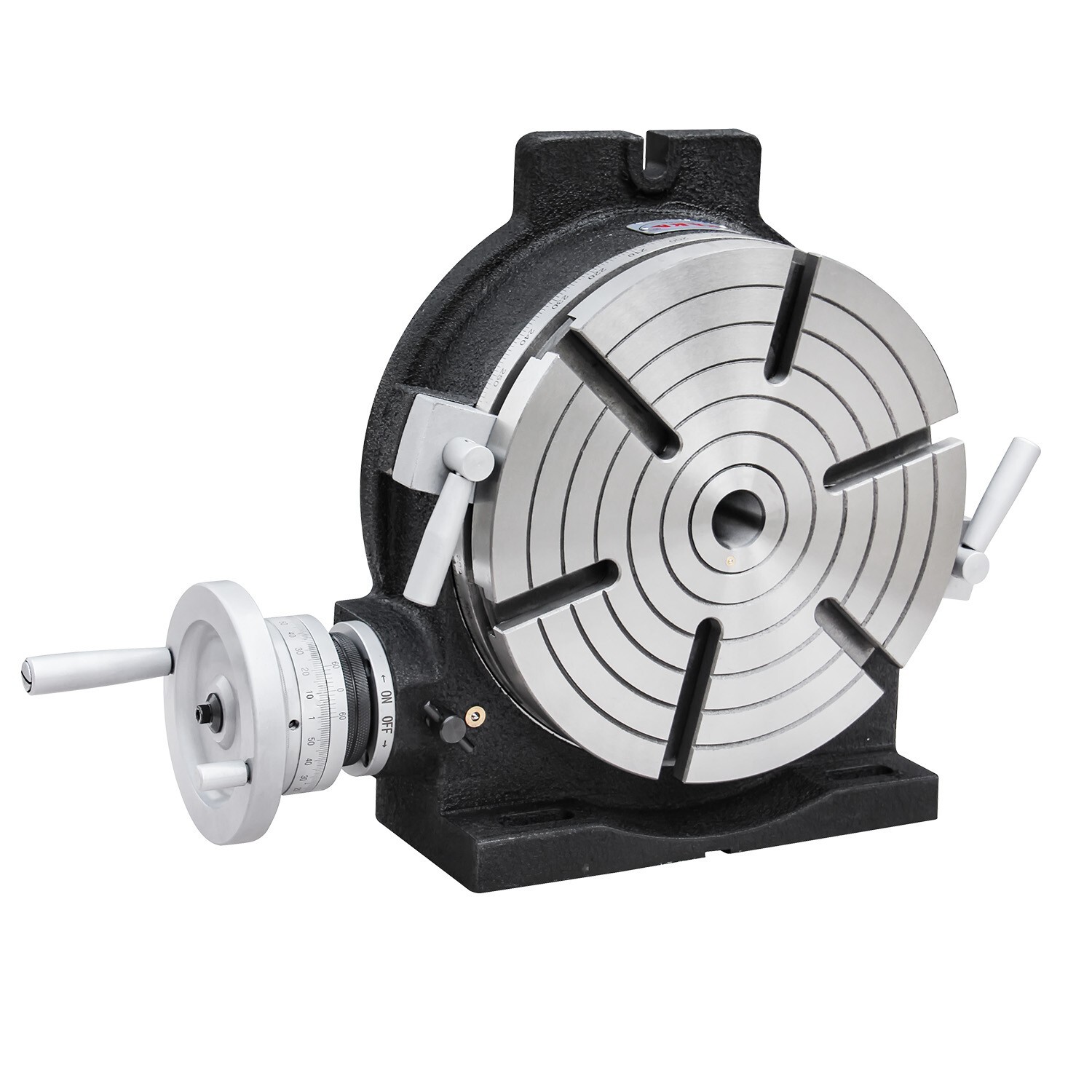

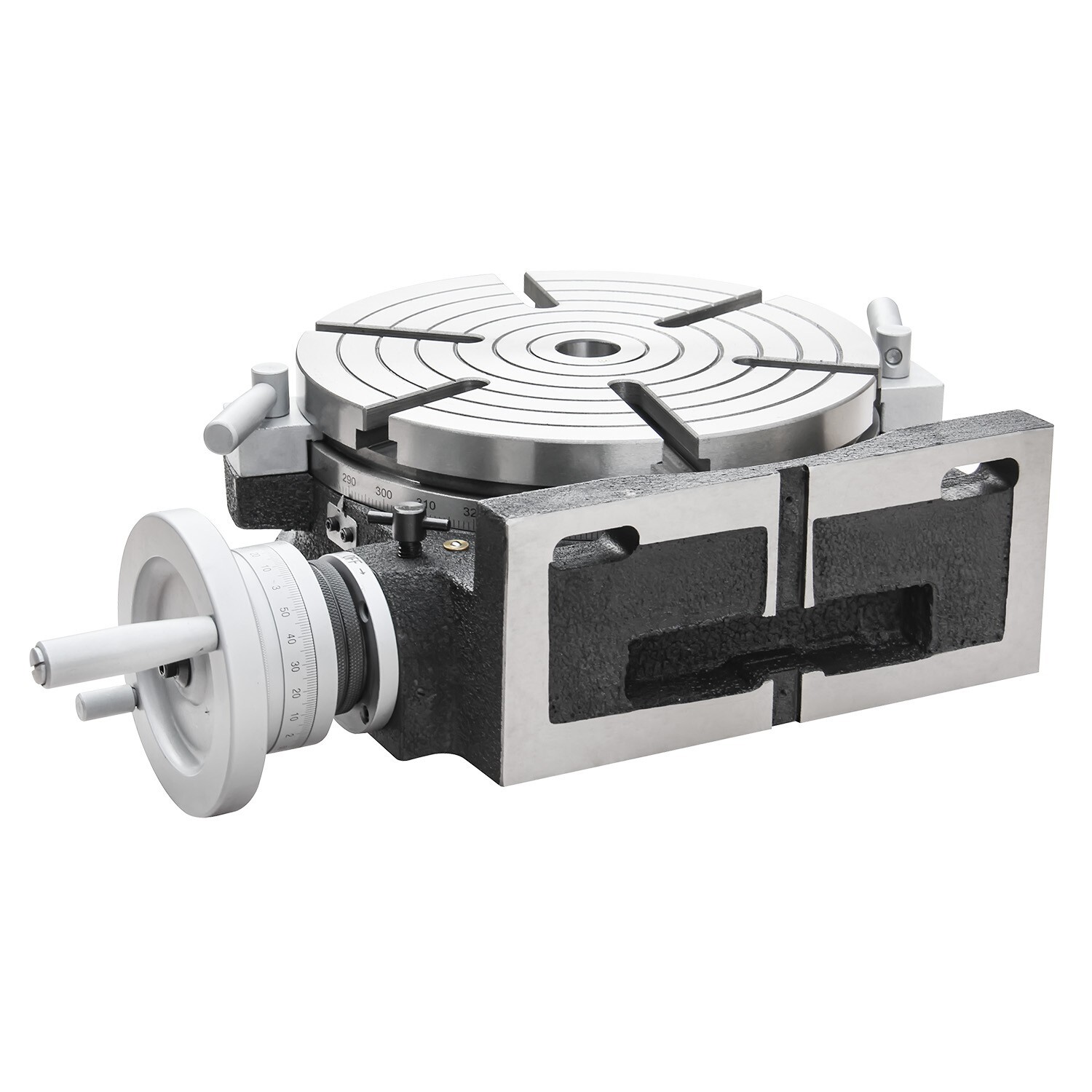

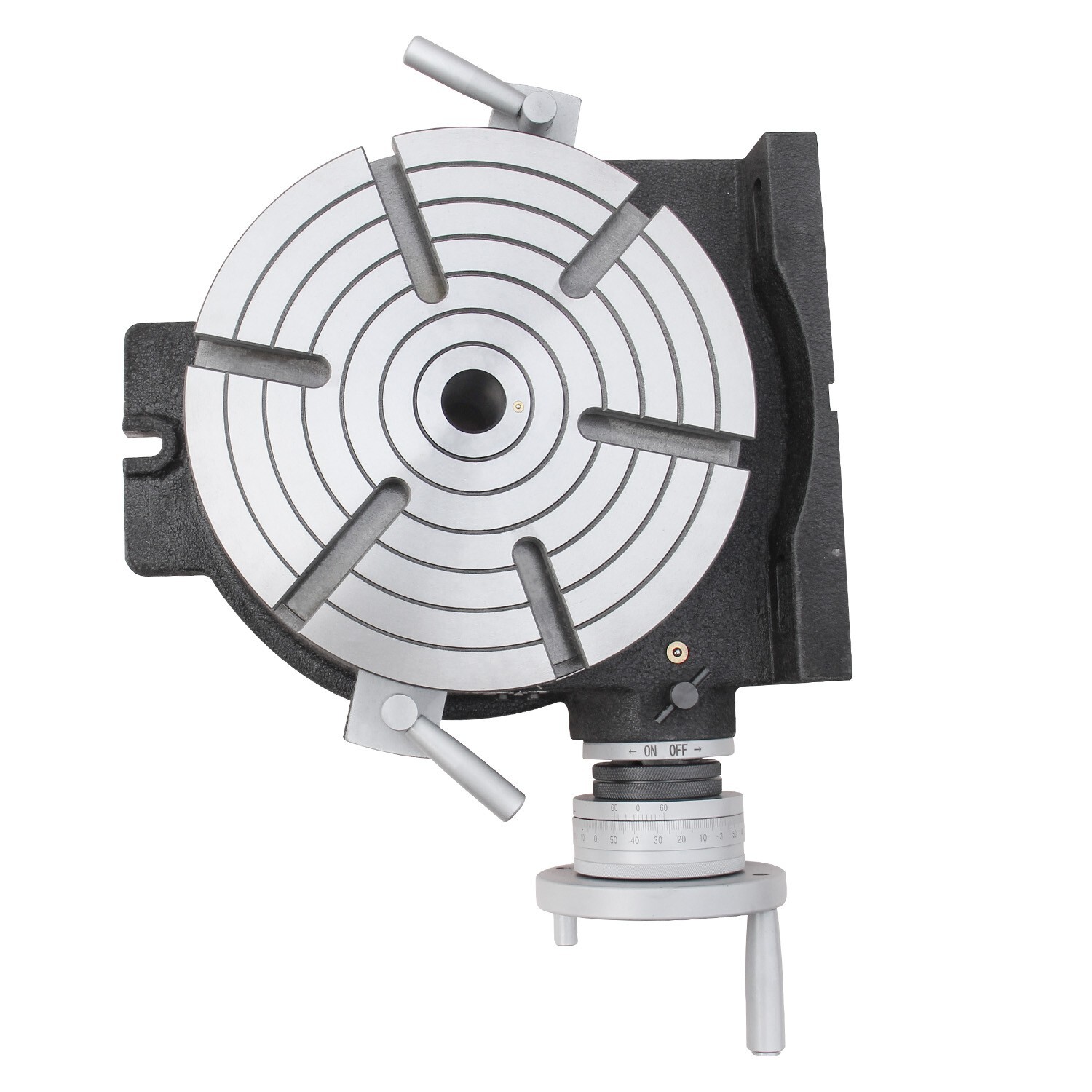

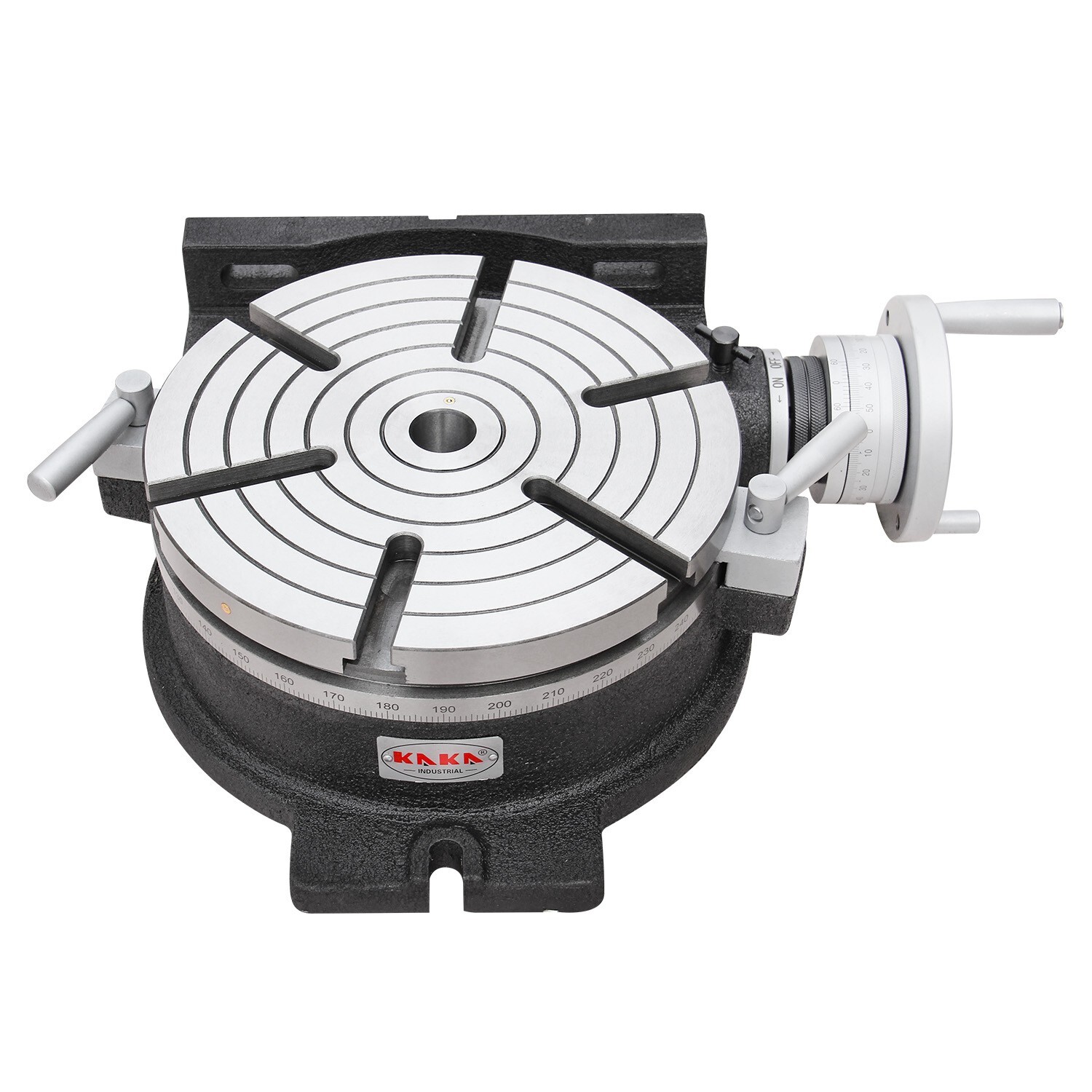

Industrial Horizontal & Vertical Rotary Table OD 300mm table, Milling Accessories

Features
  • Suitable for milling and drilling works
  • MT4 Spindle taper
  • Table made of high-quality cast iron, sturdy structure
  • Hardened and grounded worm shaft
  • 2 clamping lever for clamping of the table
  • Direct indexing via 360° scale mounted on the table
Specifications
  • SKU: 161112
  • Model: HV-12
  • Table dia.: 300 mm
  • Morse taper of the center hole: MT4
  • Height of center: 195 mm
  • Width of T slot: 14 mm
  • Adjacent angle of T slot: 60°
  • Width of the locating key: 16 mm
  • Modules of worm and worm gear: 2.5
  • Transmission ratio of the worm gear: 1:90
  • Graduation of the table: 360 °
  • Rotating angle of the table with one revolution of the worm: 4” (1‘ per graduation)
  • Min. value of vernier: 10"
  • Indexing accuracy: 60"
  • Max. loading (Table horizontal): 250 kg
  • Max. loading (Table vertical): 125 kg
  • Packing size: 51x43x21 cm
  • N.W./G.W.: 71/73 kg
