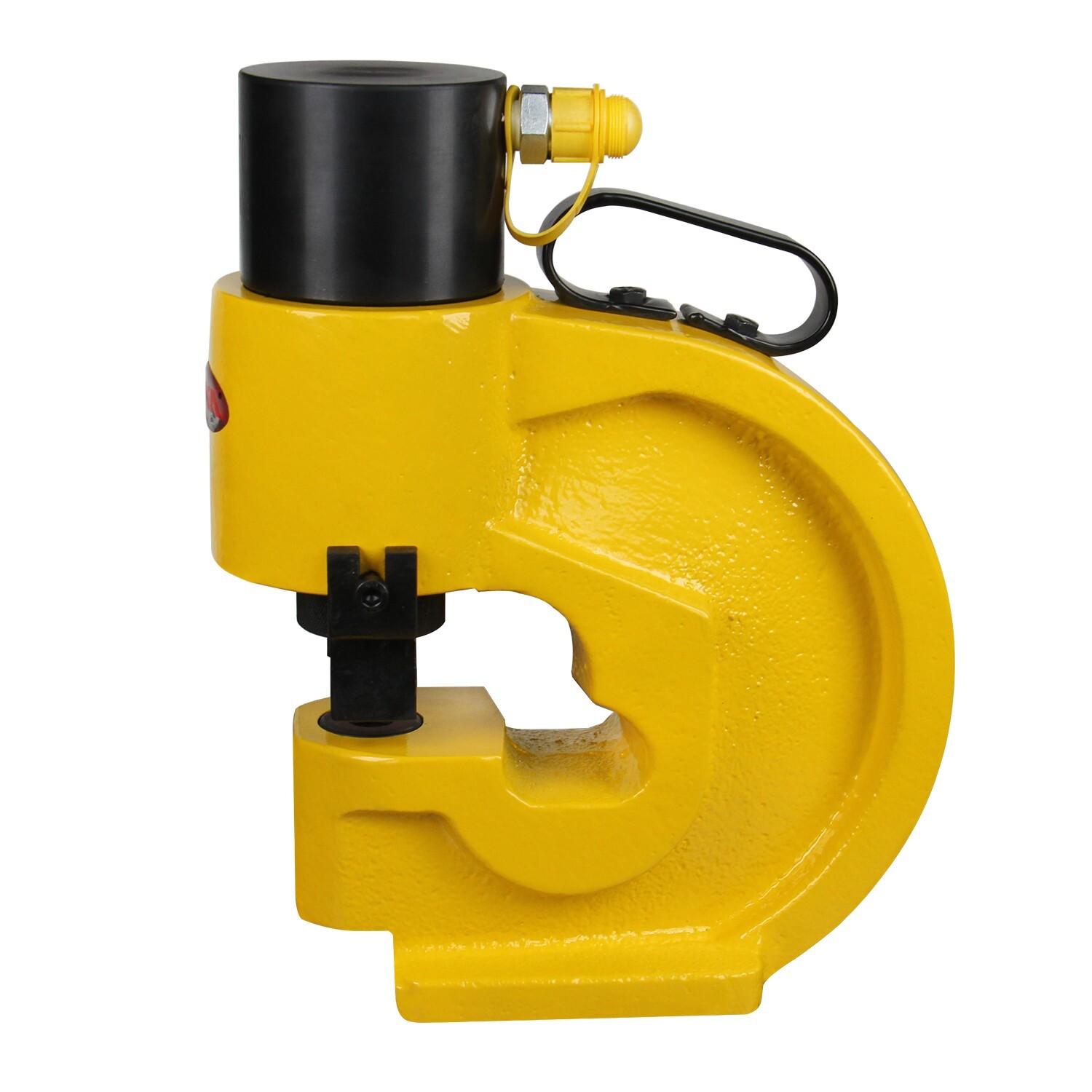

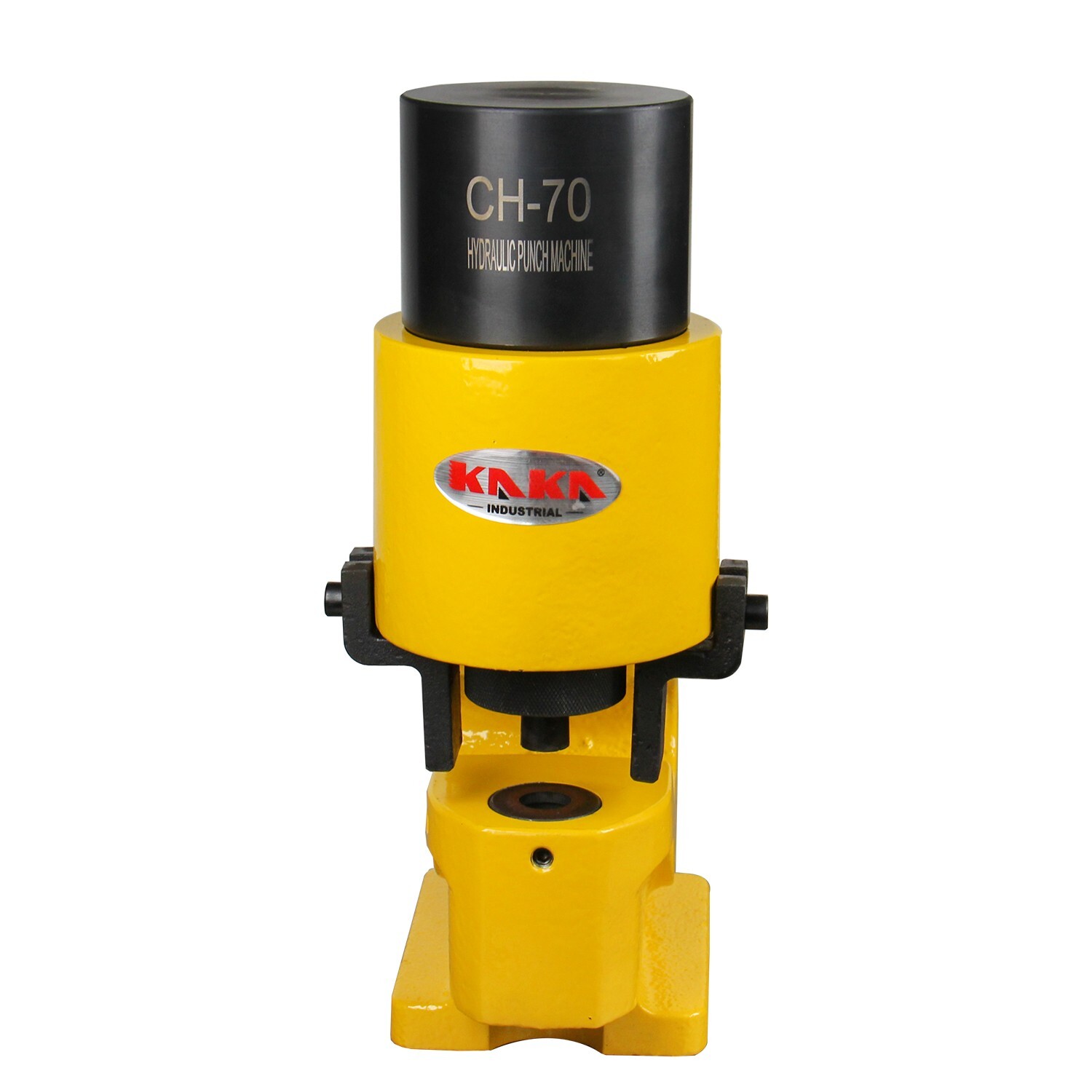

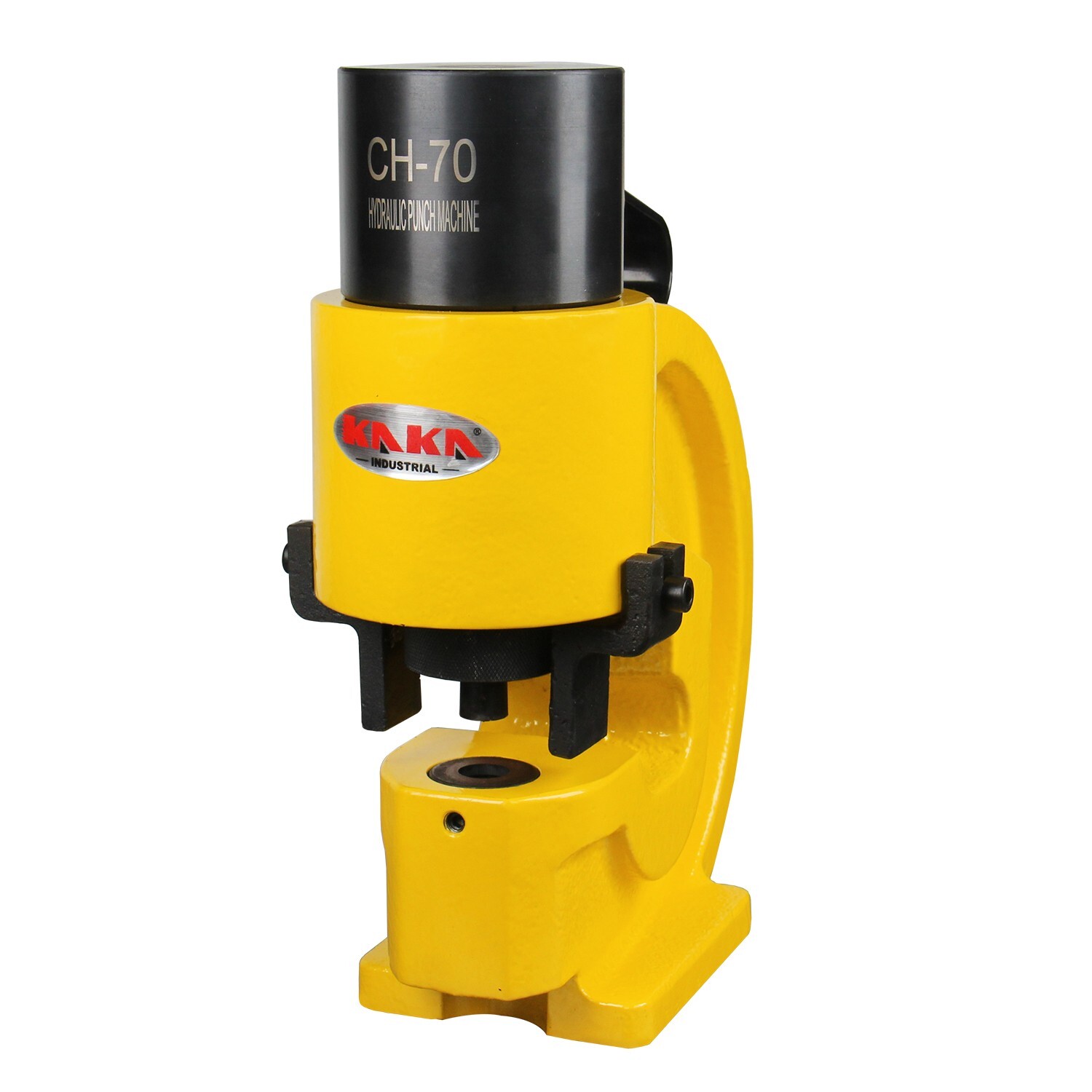

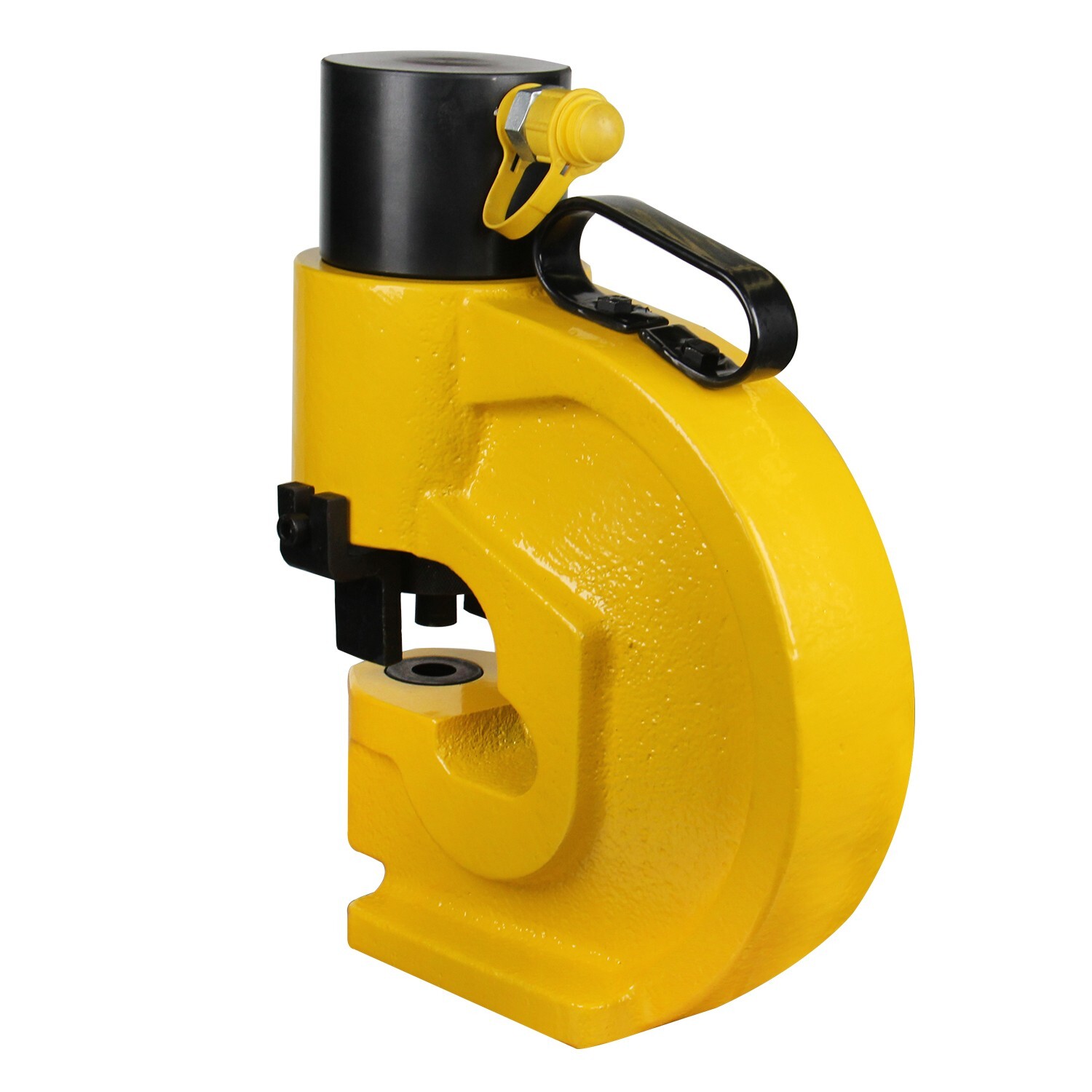

Industrial Busbar Puncher CH-70

• 35 Ton Capacity, Max. 8mm steel, 12mm copper
• Features
• C type frame body is made of high-strength alloy steel for durable and long service life
• Single acting, spring return

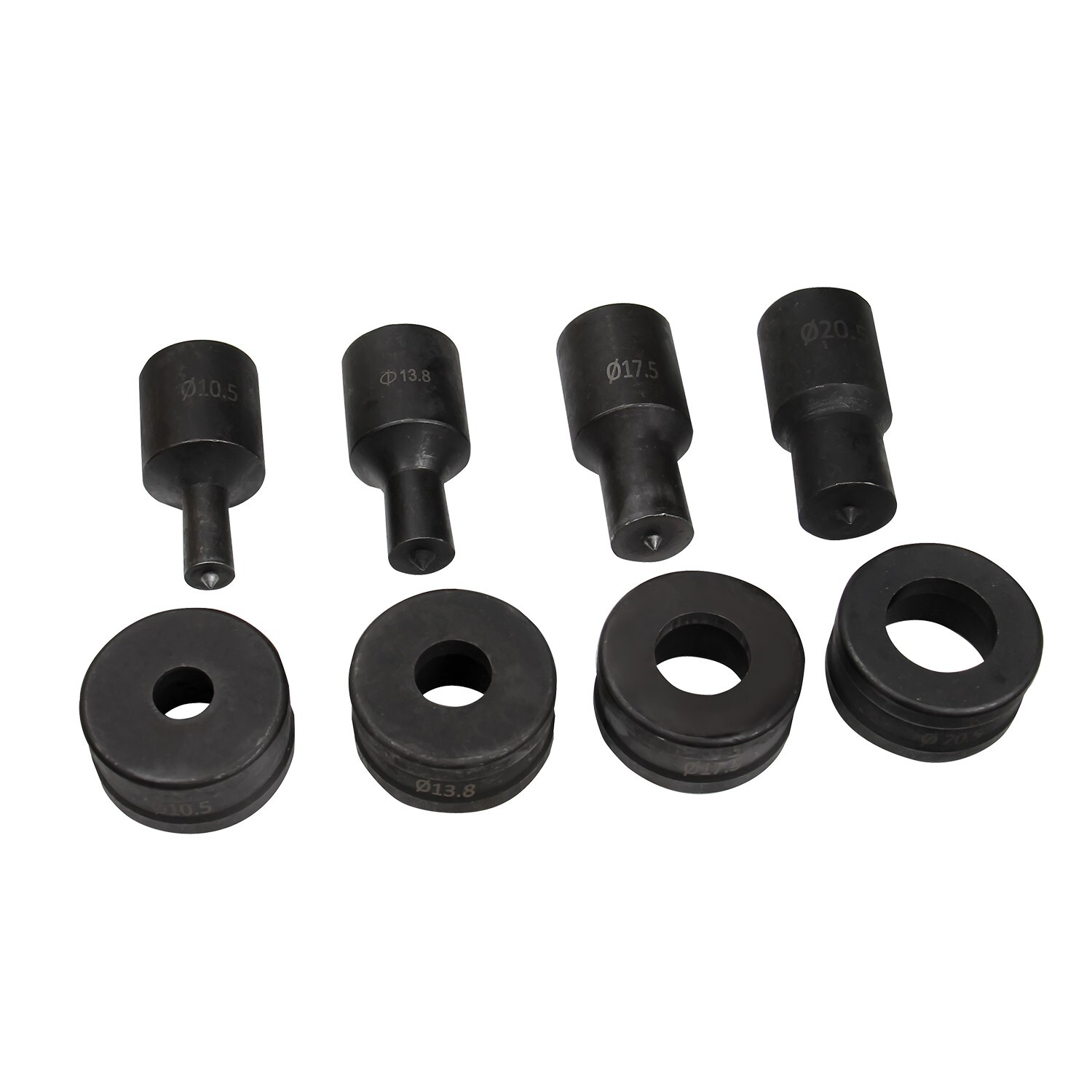

• Comes standard with 4 sets of punch & dies, 10.5, 13.5, 17.5 & 20.5mm, made of high-strength steel
• Flat and clean hole edge
• Carrying handle for easy transportation to job site

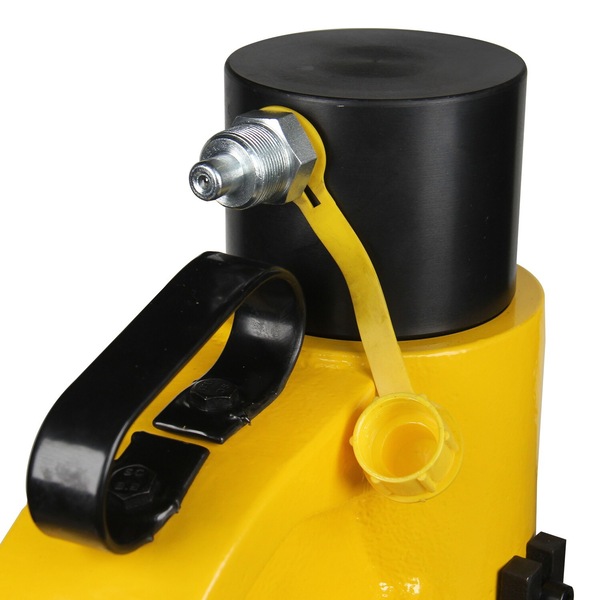

• Supplied with 3/8" male coupler and dust cap
• Operated by hydraulic pump with rated pressure 700 bar

Specifications

• SKU: 162204
• Model: CH-70
• Max. pressure: 35T
• Throat: 110 mm
• Max. thickness (steel): 8 mm
• Max. thickness (copper): 12 mm
• Punch dies OD: 10.5mm, 13.5mm, 17.5mm, 20.5mm
• Packing size: 31x19x37cm
• N.W./G.W.: 33/36 kg
