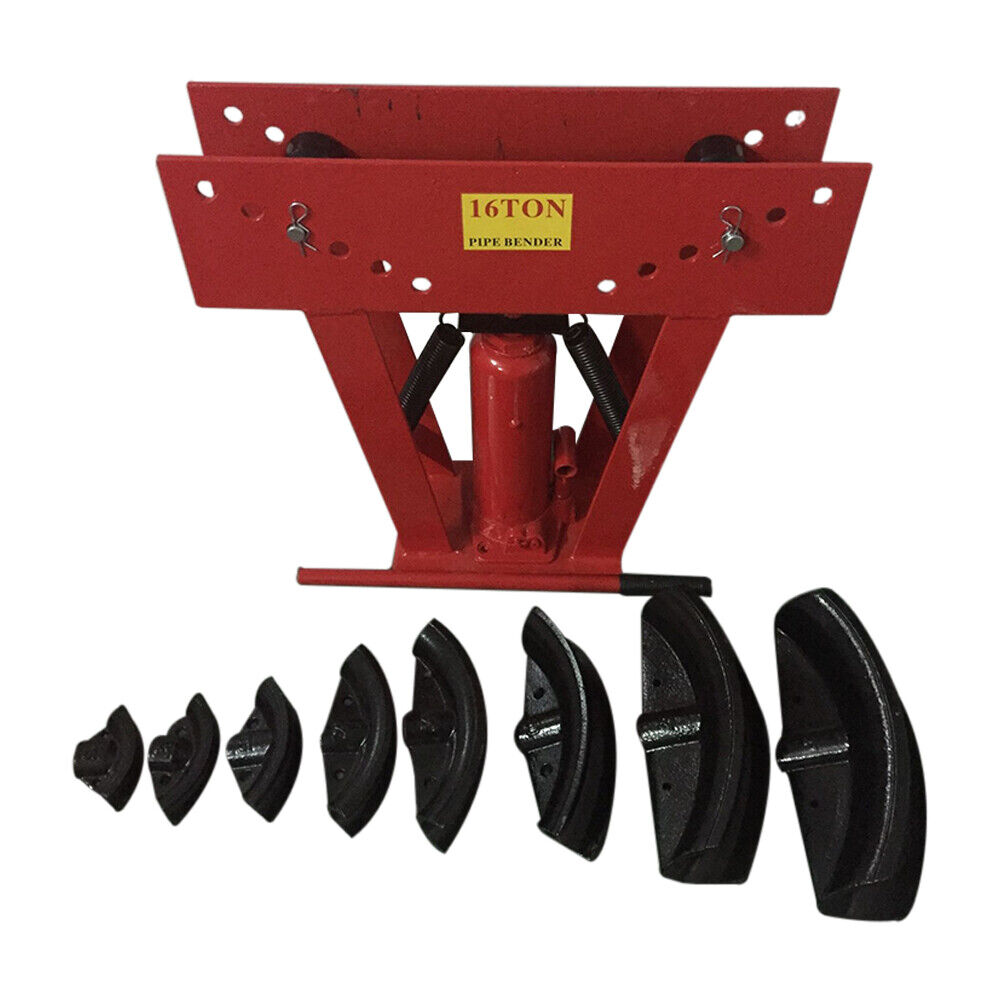

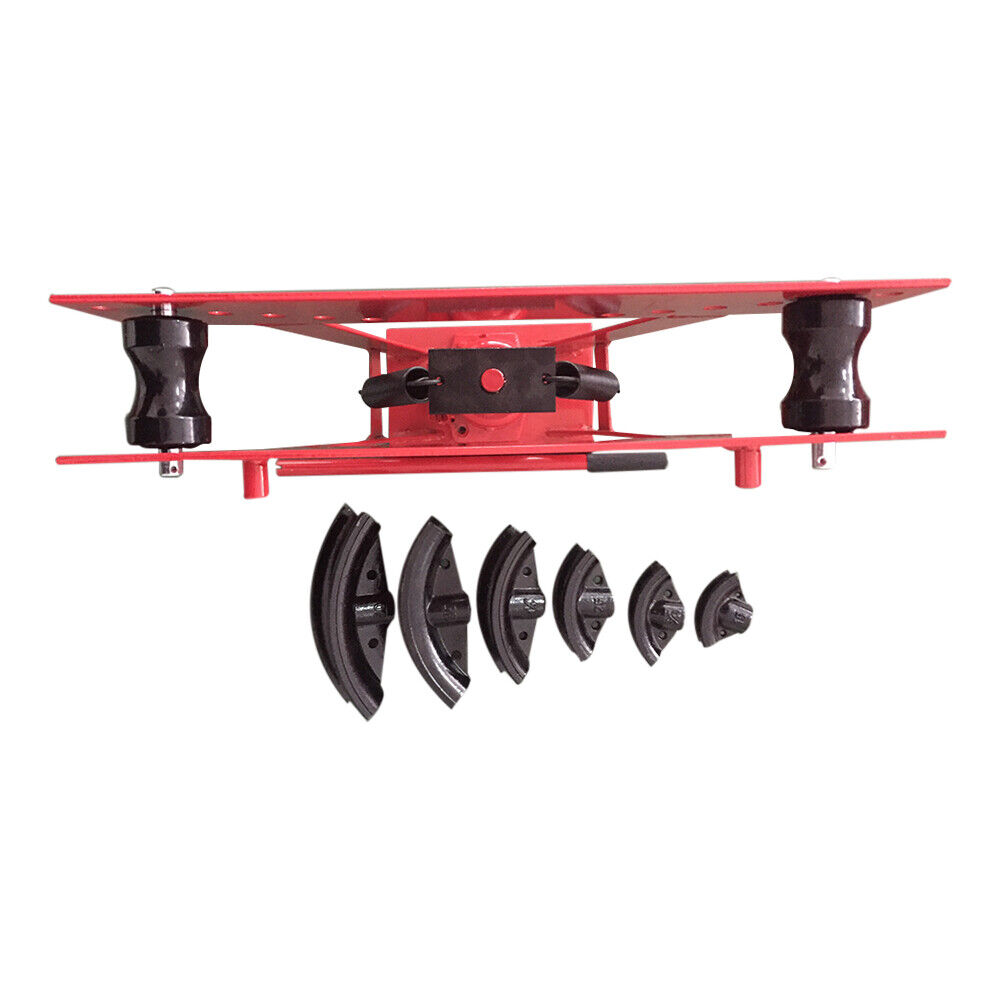

The Hydraulic Pipe Bender PIPEQ16 is made of cast iron and comes with 8 Imperial Formers ranging in size from 1/2 inch to 3 inches. A metric former set (15-75mm) is also available at an extra cost.

It is suitable for bending and forming steel and galvanised pipe. This is not designed for thin wall tubing, adding sand to thin tube may assist in bending.

• 16,000kg/ 16 Ton capacity
• Formers and frame made of cast iron
• Includes 8 imperial formers 1/2 inch - 3 inches

Minimal assembly is required

• Model: ATXPIPEQ16
• Type: Hydraulic Pipe Bender
• Capacity: 16 000 kg (16 ton)
• Formers Included: 1/2" (15mm), 3/4" (20mm), 1" (25mm), 1 1/4" (32mm), 1 1/2" (40mm), 2" (50mm), 2 1/2" (65mm), 3" (80mm)
• Maximum Former Capacity: 3"
