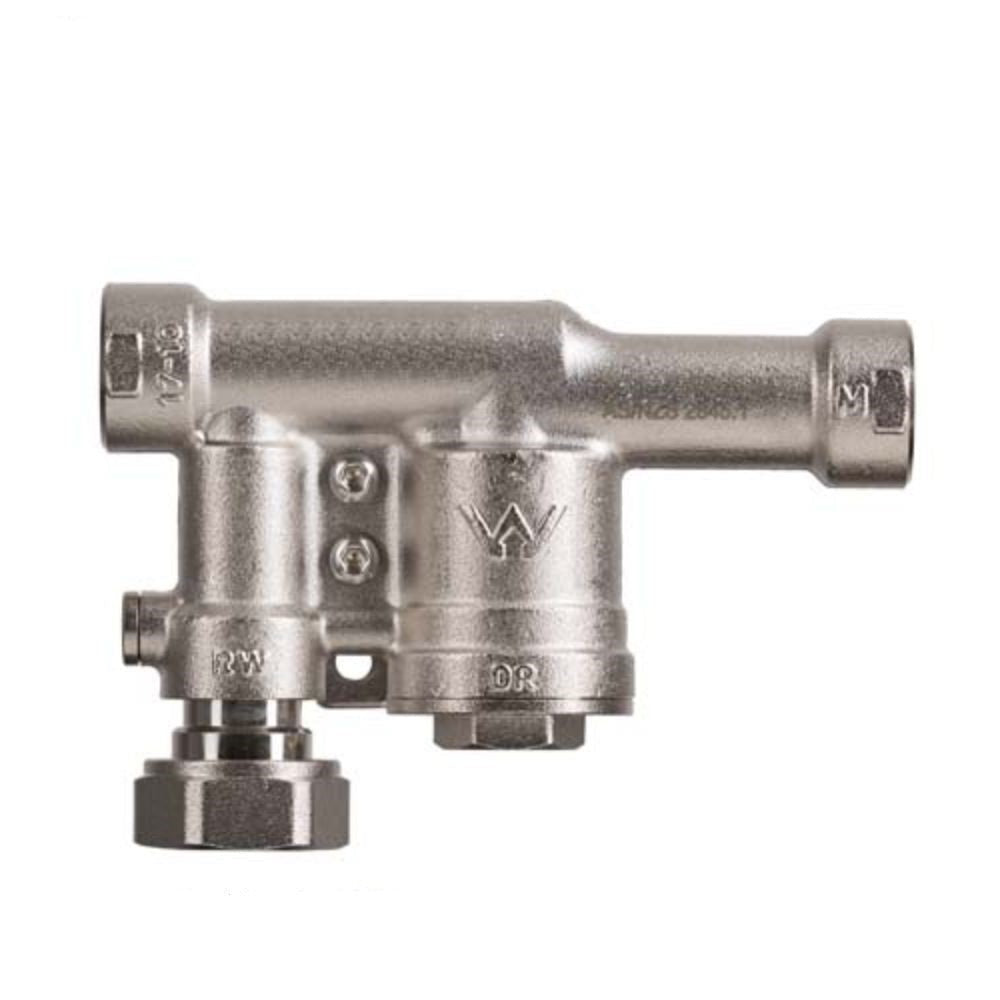

Hyjet MHR-20 S/Steel Automatic Hydraulic Rain/Mains Valve With 3 Year Warranty

From$385

Collect 385 Everyday Rewards points

Log in to MyDeal to link your card

$75.00 Australia-wide (per-item)

Sold & shipped by Sprinklerpros

Secure ways to pay at checkout

Specifications

Pump Model	MHR20	MHR20-370	MHR20-550	MHR20-750S
Include	DN20	with Hyjet HSJ370 Pressure Pump	with Hyjet HSJ550 Pressure Pump	with Hyjet HSM750-PC Submersible Pressure Pump
POWER (KW)		0.37	0.55	0.75
HP		0.5	0.75	1
MAX FLOW L/Min		55	70	115
MAX HEAD (M)		36	38	36
Voltage				240
Connection Outlet (mm)	20	20	20	25
Connection Inlet (mm)	20	25	25
Size (mm) Height		365	365	160
Size (mm) Length
Size (mm) Width	10.6	12.6	16

Applications

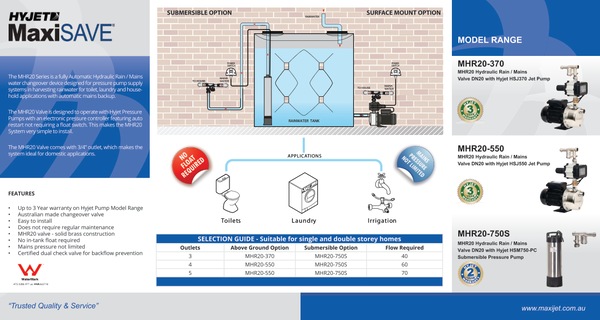

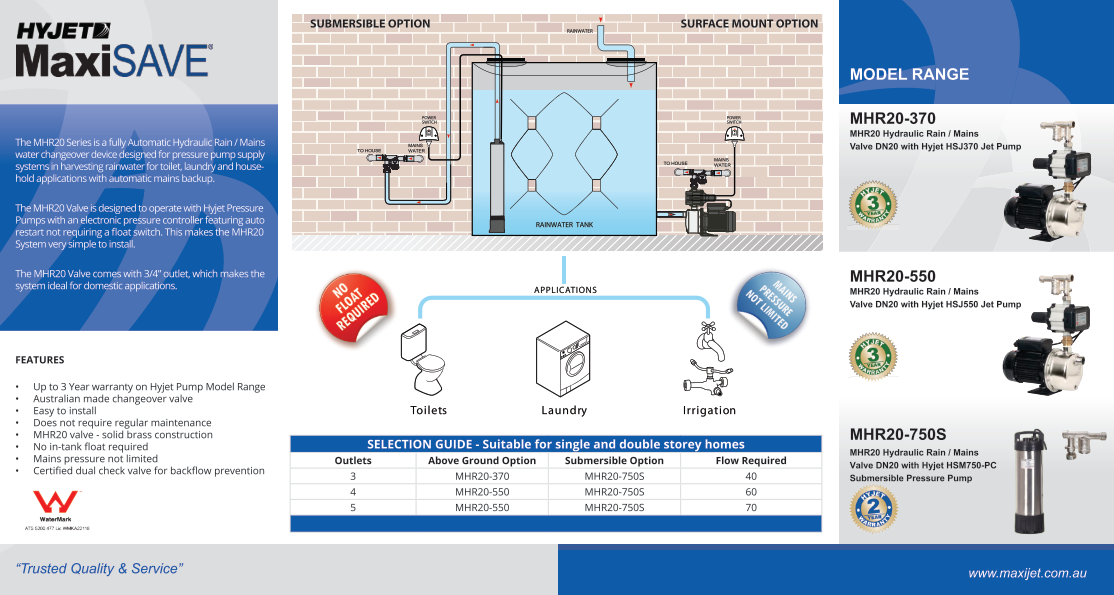

The MHR20 Series is a fully Automatic Hydraulic Rain / Mains water changeover device designed for pressure pump supply systems in harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.
The MHR20 Valve is designed to operate with an electronic pressure controller with auto restart not requiring a float switch. This design makes the MHR20 System very simple to install.

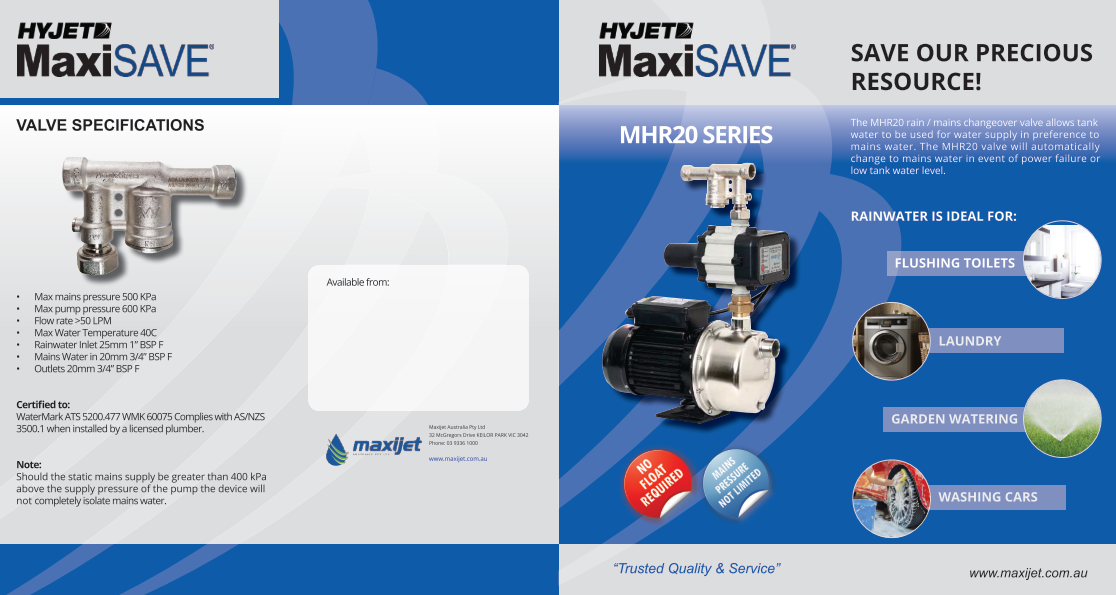

The MHR20 Valve comes with 3/4 outlet, which makes the system ideal for domestic applications. Certified to: WaterMark ATS 5200.477 WMK 60075 Complies with AS/NZS 3500.1 when installed by a licensed plumber. Note: Should the static mains supply be greater than 400 kPa above the supply pressure of the pump the device will not completely isolate mains water.

Features

Constructions

The product image shown is for illustration purpose only

Estimated Delivery Time Frame:7-14 business days

Reference ID: 12585191
