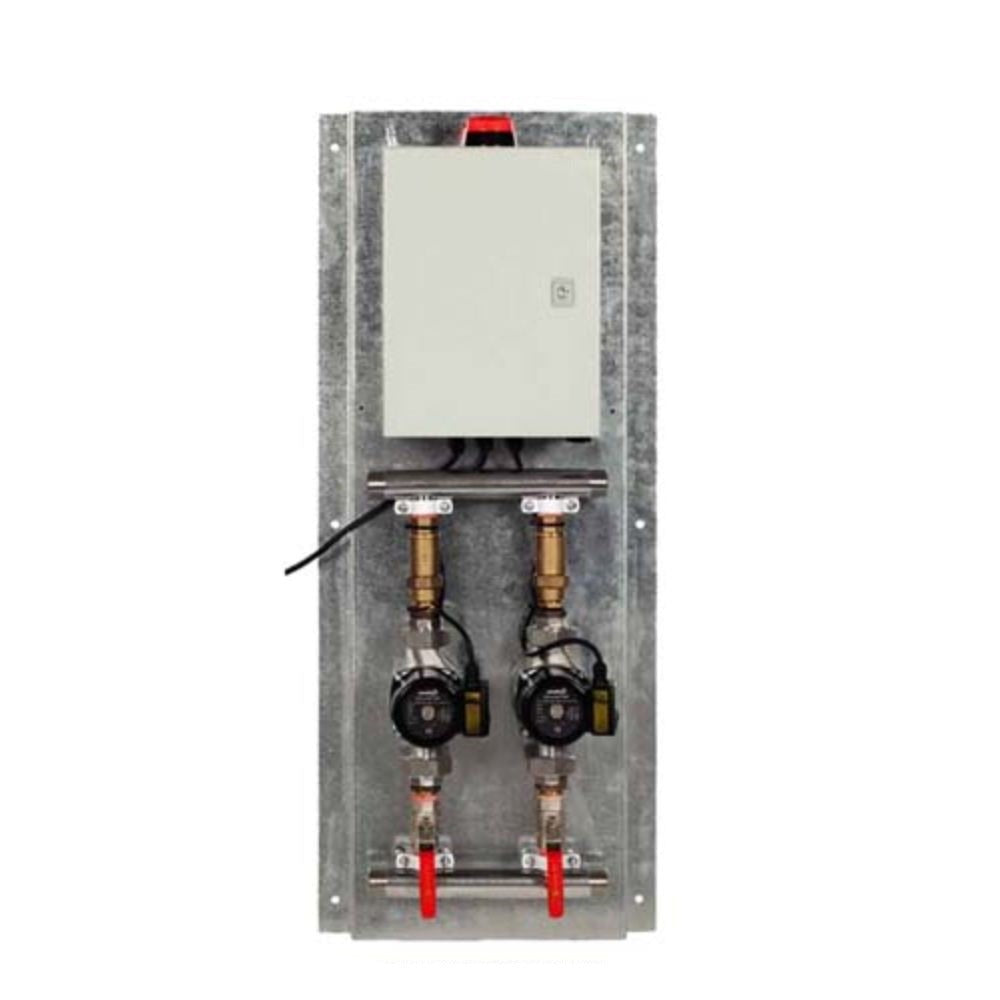

Hyjet Stainless Steel Deluxe Dual Hot Water Circulator Pump Sets

Image 1
Image 2
Image 3
Limited Stock
From$4735

Collect 4735 Everyday Rewards points

Log in to MyDeal to link your card
$75.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout
Specifications

Pump Model

DHWC2060-D

DHWC2560-D

DHWC3280-D

Include

2 x HPD20-60-150S, Deluxe HW Controller Pump Switch Incorporating BMS Output, 12hr Timer & Thermostat Controlled Input, 25mm Stainless Steel 304 Manifolds mounted on Galvanised Back Plate

2 x HPD25-60-180S, Deluxe HW Controller Pump Switch Incorporating BMS Output, 12hr Timer & Thermostat Controlled Input, 25mm Stainless Steel 304 Manifolds mounted on Galvanised Back Plate

2 x HPD32-80-180S, Deluxe HW Controller Pump Switch Incorporating BMS Output, 12hr Timer & Thermostat Controlled Input, 32mm Stainless Steel 304 Manifolds mounted on Galvanised Back Plate

POWER (KW) (HP)

0.1

0.1

0.25

MAX FLOW L/Min

58

58

166

MAX HEAD (M)

6

6

8

AMPS

0.45

0.45

1.1

Voltage

240

240

240

Connection Outlet (mm)

20

25

32

Connection Inlet (mm)

20

25

32

Size (mm) Height/Length

1200

1200

1200

Size (mm) Width

500

500

500

PHASE

Single

Single

Single

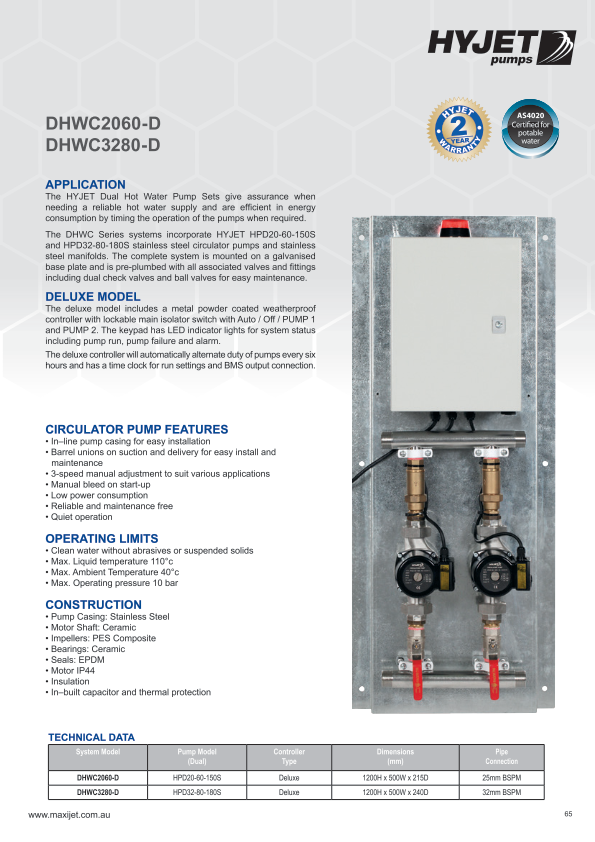

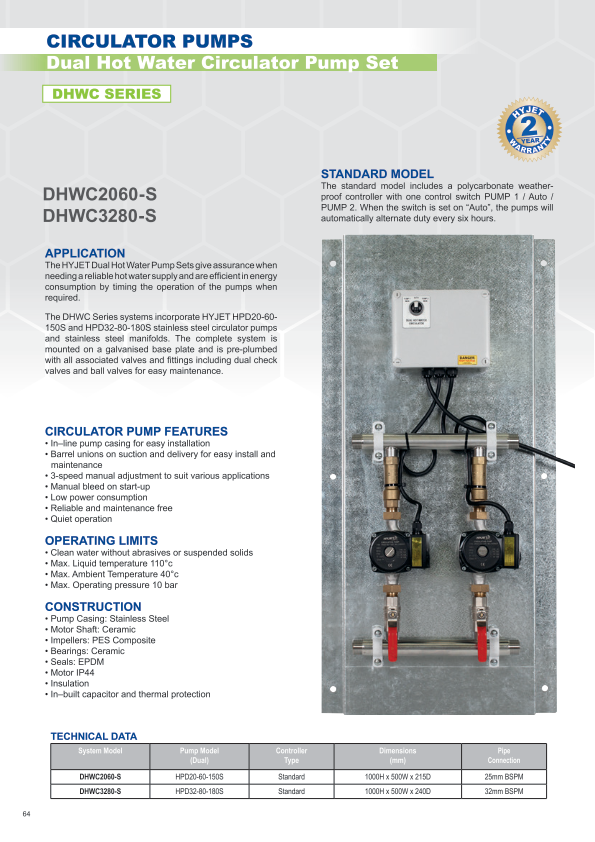

 Applications

  • The HYJET Dual Hot Water Pump Sets give assurance when
  • needing reliable hot water supply and are efficent in energy
  • consumption by timing the operation of the pumps when
  • required.
  • The DHWC Series systems incorporate HYJET HPD20-60-
  • 150S and HPD32-80-180S stainless steel circulator pumps
  • and stainless steel manifolds. The complete system is
  • mounted on a galvinised base plate and are pre-plumbed
  • with all associated valves and fittings including dual check
  • valves and ball valves for easy maintenance.

Features

  • In line pump casing for easy installation
  • Barrel unions on suction and delivery for easy install and maintenance
  • 3 speed manual adjustment to suit various applications
  • Manual bleed on start up
  • Low power consumption
  • Reliable and maintenance free
  • Quiet operation

Constructions

  • Pump Casing: Stainless Steel
  • Motor Shaft: Ceramic
  • Impellers: PES Composite
  • Bearings: Ceramic
  • Seals: EPDM
  • Motor IP44
  • Insulation
  • In built capacitor and thermal protection

The product image shown is for illustration purpose only
