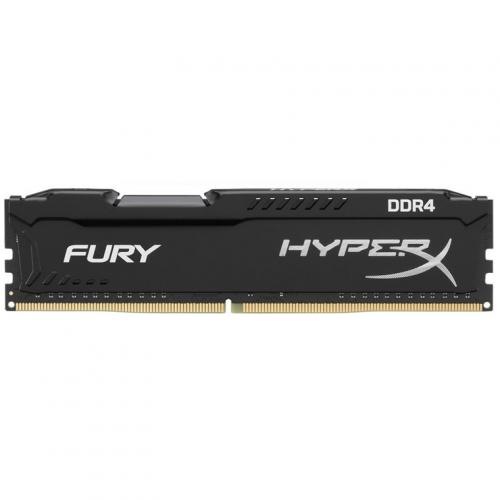

Kingston Fury 16GB DDR4 Desktop RAM - Black 1x 16GB - 2400MHz - SDRAM - PC4-19200 - 1.20V - Non-ECC - Unbuffered - 288-pin - DIMM [HX426C16FB/16]

Image 1
Shop More Products
Kingston Fury 16GB DDR4 Desktop RAM - Black 1x 16GB - 2400MHz - SDRAM - PC4-19200 - 1.20V - Non-ECC - Unbuffered - 288-pin - DIMM

HyperX HX426C16FB/16 is a 2G x 64-bit (16GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on
sixteen 1G x 8-bit FBGA components per module. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are
shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical
specifications are as follows:
- JEDEC/PnP: DDR4-2666 CL16-18-18 @1.2V
- XMP Profile #1: DDR4-2666 CL16-18-18 @1.2V
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- Height 1.340" (34.04mm), w/heatsink

CL(IDD)
16 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
29.25ns(min.)
Maximum Operating Power
TBD W*
UL Rating
94 V - 0
Operating Temperature
0degC to +85degC
Storage Temperature
-55degC to +100degC
- MPN: HX426C16FB/16

GTIN: 740617257052

Reference ID: 5615671
