Designed for tradesmen that require quality welding performance! This welder provides constant voltage, and features 4 power settings and thermal overload protection.

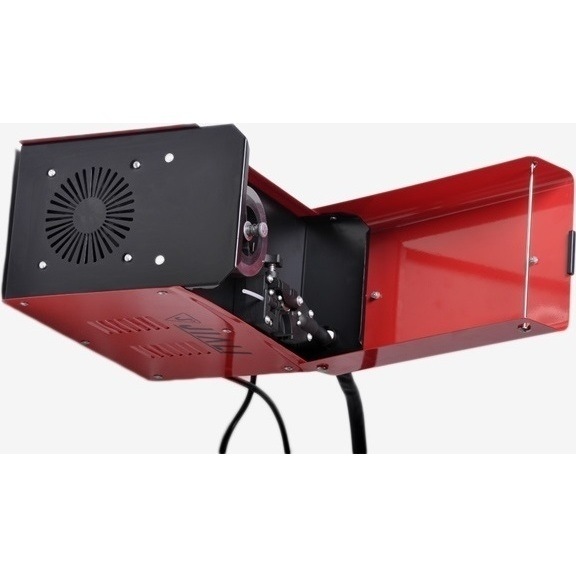

The Jiali MIG-130 is a single phase compact power source designed specifically for handymen. The operator only needs to adjust a power setting for the thickness of mild steel to be welded and he's ready to weld. One knob adjusts wire feed speed. Max output of 130 amps allows you to weld up to 3.0mm steel with flux cored wire. Built-in contactor eases use and is an excellent safety feature which makes wire electrically 'cold' until trigger is pulled. Durable feed head with quick-release drive roll tension lever provides positive feed with adjustable tension plus easy accessibility to thread new wire.
Specifications:

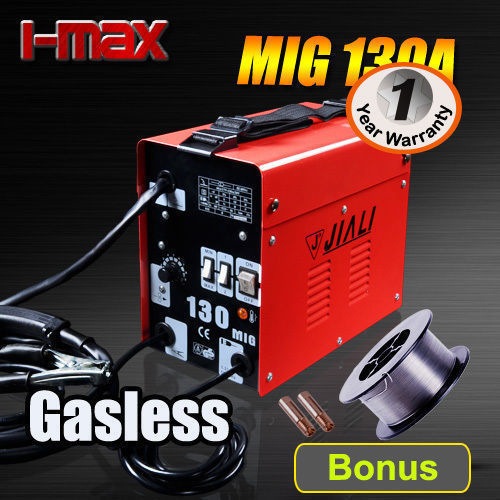

I-Max Gasless MIG Portable Steel Welder 130 Amp
MIG130 - Dual purpose gasless welding
4 Power setting
Welds 0.5-3.0mm metal thickness
Suitable for outdoor use in gasless mode
Sturdy metal case
Thermal overload protection
Protects the welder against burn-out
Short circuit protection protects unit against current overload
Self-resetting thermal overload protects power transformer to ensure reliability
Self-resetting motor protection protects wire feed system from overload, no fuses to change or circuit breaker buttons to reset
Input power: 240V 50Hz (15A Power Plug)
Welding amperage range: 40-120Amps
Wire speed: (2.4-14.4)M/min
Wire diameter capacity:
(0.6-0.9)mm Flux cord
No load voltage: 23-38V
Duty cycle: 40A at 35%, 120A at 10%
Power factor: 0.93
Dimensions: 460 (L) x 235 (W) x 385 (H) (mm)
Net weight: 17kg
Includes:
1x Smarter MIG130 welding machine

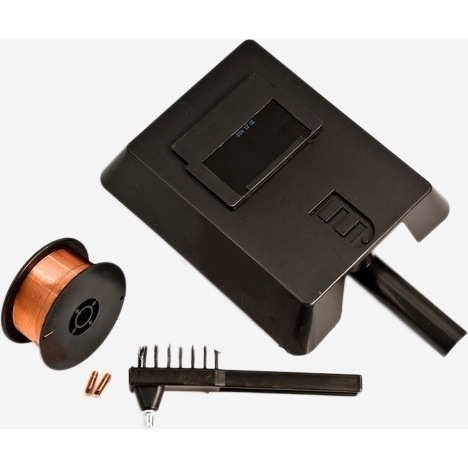

1x Roll of flux 0.8mm wire
2x Contact tips

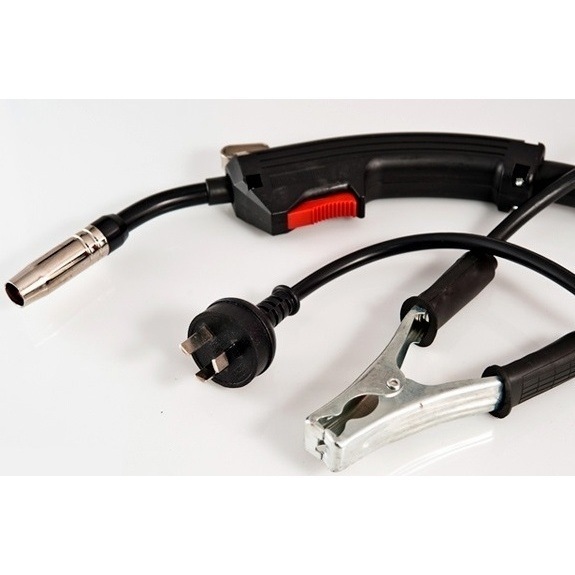

1x 1700mm Cable with clamp
1x Protective mask
1x Metal brush
1x Instruction manual
12 Month warranty
Please note: Product requires 15A power outlet
