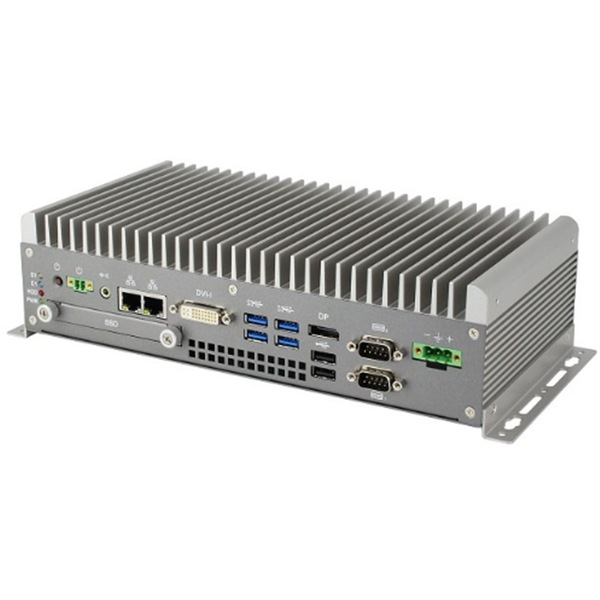

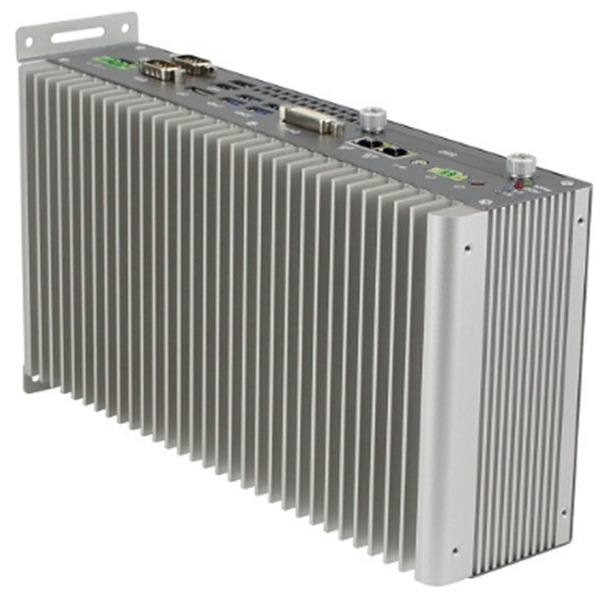

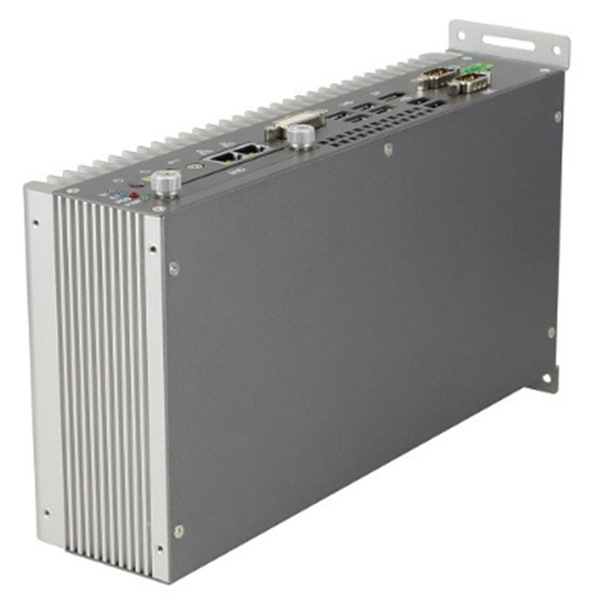

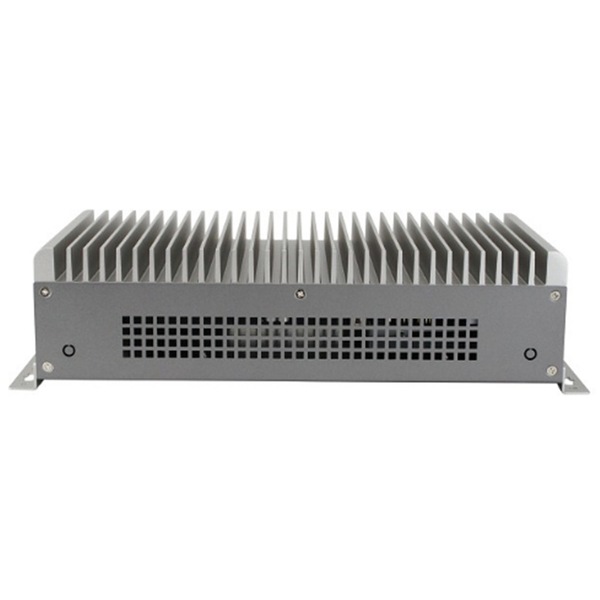

iBASE Fanless wide temp solution AMS300M i7-7700T, 16G/512GB X2, with WIFI, DVI x1, DP x1, USB x6, RJ45 x3. 180W/24V Power adaptor [ams300mplus]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Hurry! 3 items left!
$2513.56

Collect 2513 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

Popular Products

iBASE Fanless wide temp solution AMS300M i7-7700T, 16G/512GB X2, with WIFI, DVI x1, DP x1, USB x6, RJ45 x3. 180W/24V Power adaptor

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance crucial for deployment in harsh conditions and all interfaces situated on one side for easy assembly and expansion.
Built with a passive finned heat sink, the rugged AMS300 boasts of superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. It adopts wall, side and DIN-rail mounting to securely fit in space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE's owned iSMART technology that enables energy-efficient systems with various power-saving functions. AMS300 offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.

System Mainboard
MB300 with Intel® Q170 PCH
CPU Type
7th/6th Generation Intel® Core™ i7/i5/i3 Desktop processors (35W TDP)
System Speed
Up to 3.4GHz
Memory
2x DDR4-2133 SO-DIMM, Max. 32GB
Construction
Aluminum & steel
Chassis Color
Sliver
Front Panel External I/O
2x Antenna hole for WLAN module
Rear Panel External I/O
1x DVI-I + 1x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x Green PWR LED, 2x error LED by programming
1x power button
1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block type for 24V
Expansion Slots
1x Mini PCI-E socket (full-sized)
Storage/ M.2
2x 2.5'' SSD (1x internal & 1x external-accessible) +
1x mSATA socket
Mounting
Desktop or wall mounting (wall mount kit included)
Side mounting
DIN rail mounting (optional)
Weight
2.7kg
Dimensions
275mm (W) x 140mm (D) x 70mm (H)
10.83" (W) x 5.51" (D) x 2.76" (H)
Operating Temperature
-10°C to 60°C (14°F~140°F) *with air flow
-10°C to 50°C (14°F to 122°F) without air flow
Storage Temperature
-20°C to 80°C (-4°F to 176°F)
Relative Humidity
5~90% @ 45°C, (non-condensing)
Vibration
Operating: 3 grms / 5~500Hz / random operation (storage is mSATA)
Certification
CE / LVD / FCC Class B
- MPN: ams300mplus

MPN: ams300mplus
