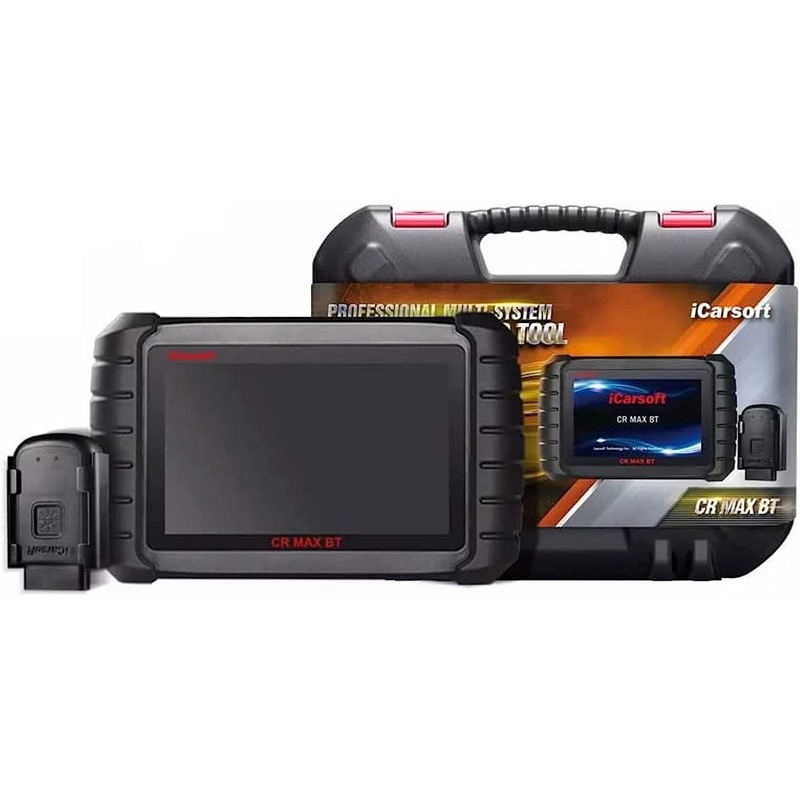

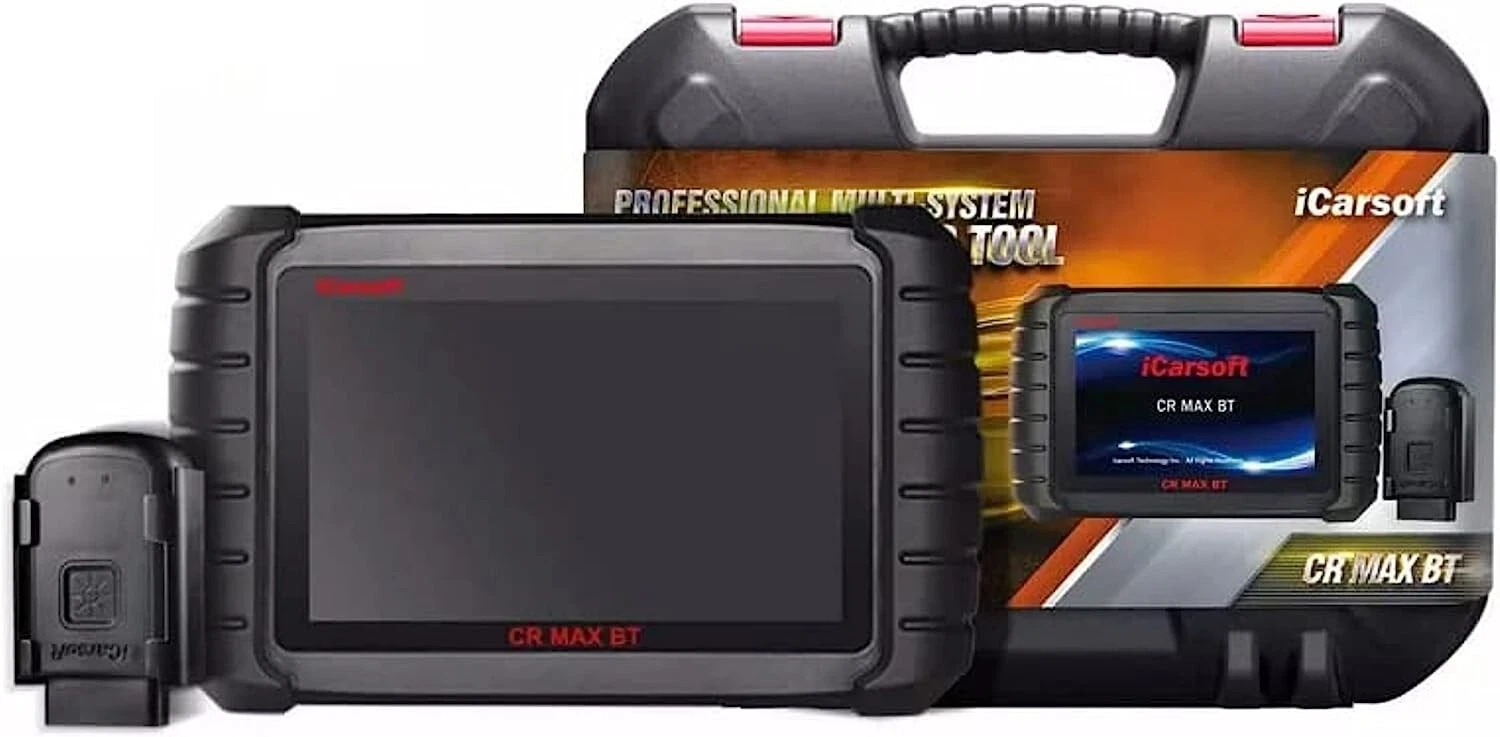

iCarsoft CR MAX BT Bluetooth FULL System ALL Makes Diagnostic Scan Tool

Discover the iCarsoft CR MAX BT, a professional-grade diagnostic tool for over 40 vehicle brands! This 7-inch Android touchscreen scanner offers full-system diagnostics, bi-directional tests, and 21 special functions, all with Bluetooth and Wi-Fi connectivity. With Auto VIN and live data graphing, it covers European, Asian, American, and Australian makes—shipped fast with a robust 5,000mAh battery!

• Comprehensive Diagnostics: Scans all systems across 40 brands.
• Special Functions: Includes Oil Reset, DPF, ABS Bleeding, and more.
• Wide Coverage: Supports 20 years of models globally.
• User-Friendly: Auto VIN, live data in text/graph, and multilingual interface.
• Advanced Features: Bi-directional tests and automatic updates.

• Reads/clears codes for all available modules: engine, ABS, SRS, transmission, and more.

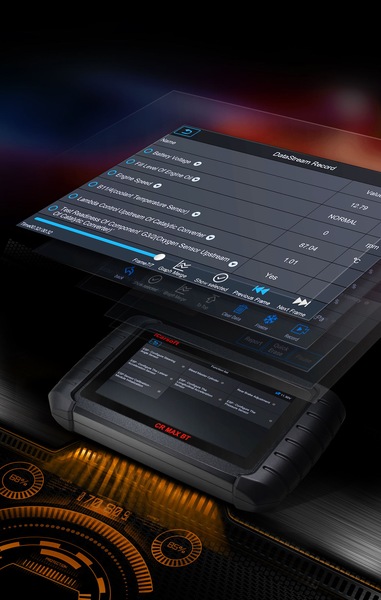

• Displays live data in text, graph, and analog formats for easy review.

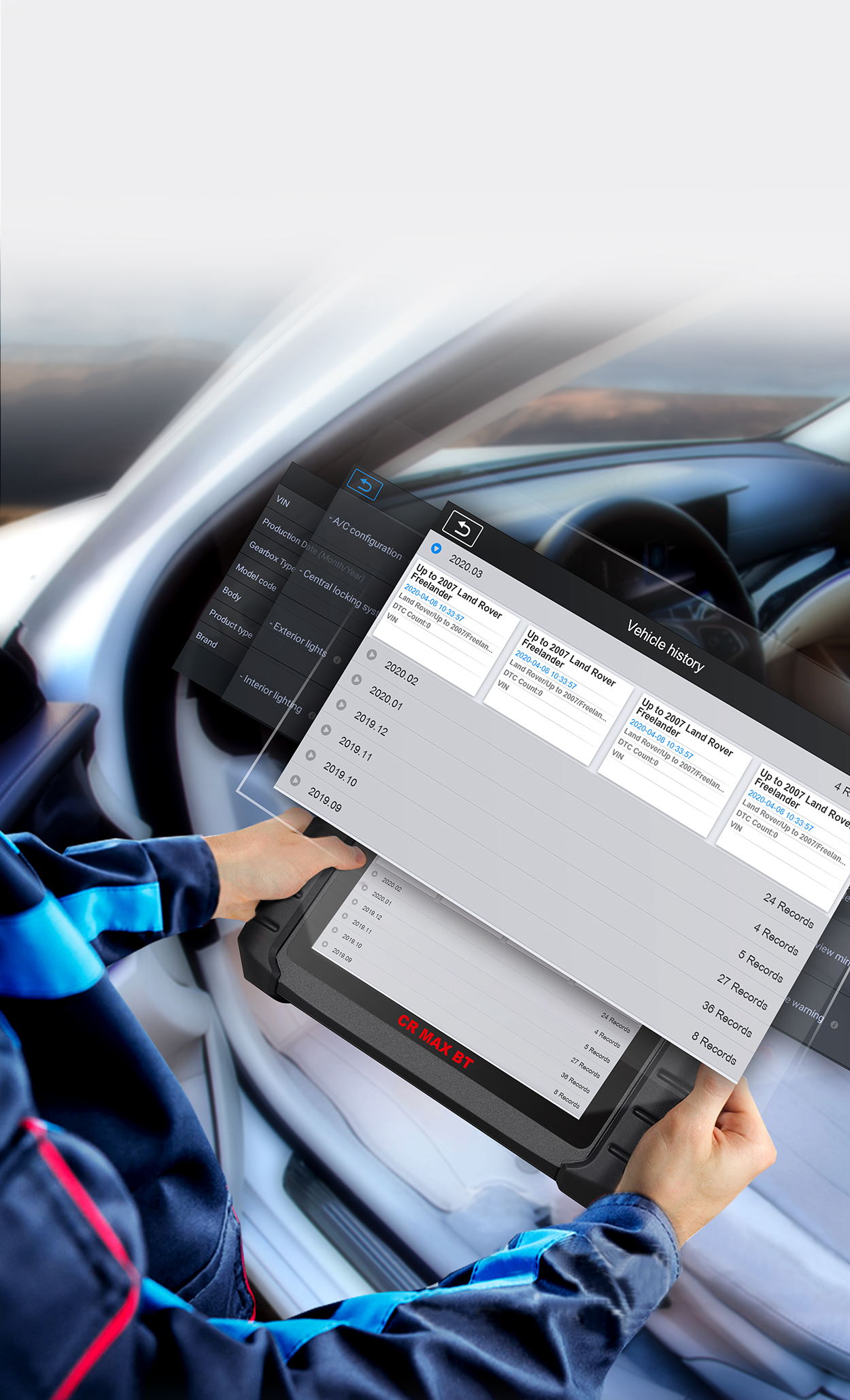

• Records vehicle test history and retains live data.

• Accesses vehicle-specific subsystems and components for active testing (e.g., fuel pump, throttle).

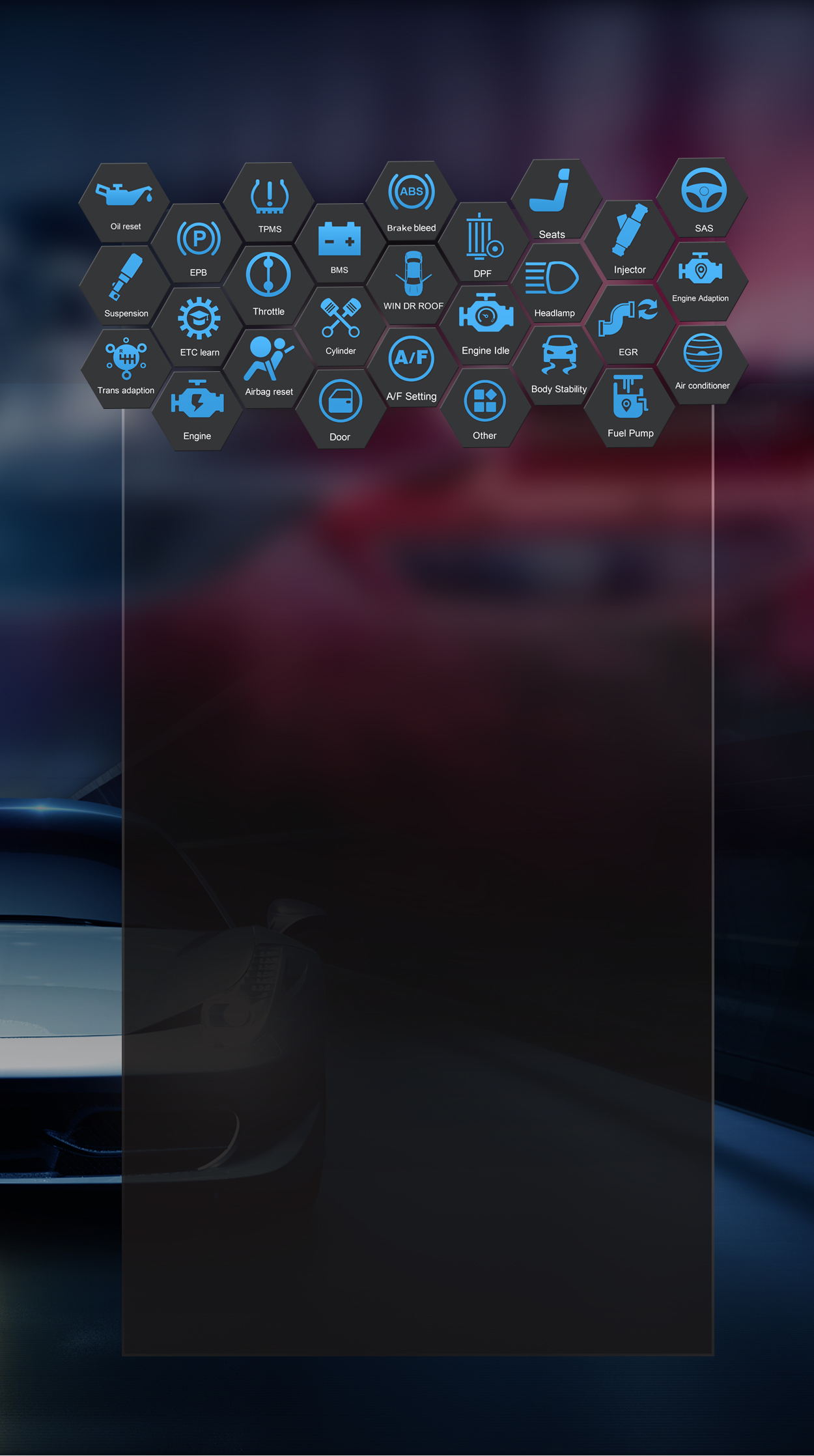

• SAS Calibration: Resets steering angle sensors.
• Oil/Service Reset: Resets service lights and intervals.
• EPB: Manages electronic parking brake replacement/initialization.
• DPF Regeneration: Clears DPF blockages and resets indicators.
• BMS: Registers new batteries to the system.
• ETC (Throttle): Relearns throttle valve settings.
• ABS Bleeding: Removes air from ABS for brake sensitivity.
• Injector Coding: Relearns injector parameters post-replacement.
• TPMS Programming: Manages tire sensor IDs and testing.
• AFS Headlamp Reset: Resets adaptive front lighting.
• Air Suspension: Resets electronic air ride systems.
• Gearbox Reset: Relearns transmission adaptive settings.
• A/C Service: Calibrates air conditioning units.
• Air Filter Learning: Adapts after filter replacement.
• Fuel Pump Activation: Tests new pumps.
  Note: Some functions may require factory access codes and vary by model.

• Read/Erase Codes, I/M Readiness, Data Stream, Freeze Frame, O2 Sensor Test, On-Board Monitoring, EVAP Test, Vehicle Info, and more.
• Supports CAN, ISO9141, KWP2000, J1850 VPW/PWM protocols.

• Automatically identifies vehicle make, model, and year for quick diagnostics.

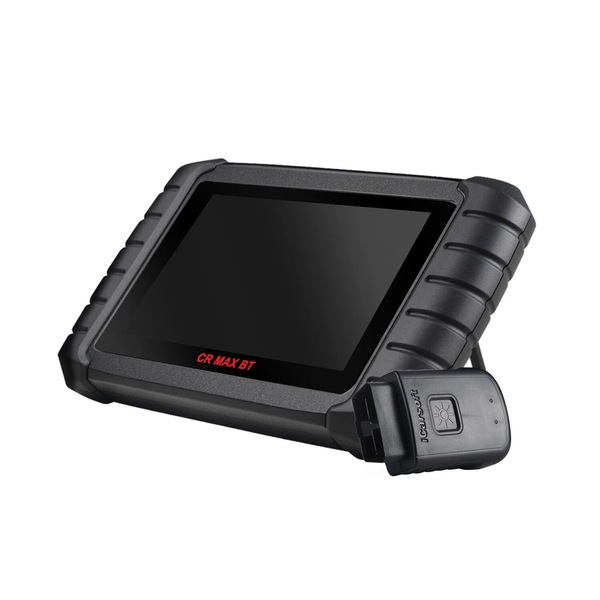

• Model: iCarsoft CR MAX BT
• OS: Android 8.1.0
• Processor: Quad-core 1.3GHz
• Memory: 16GB

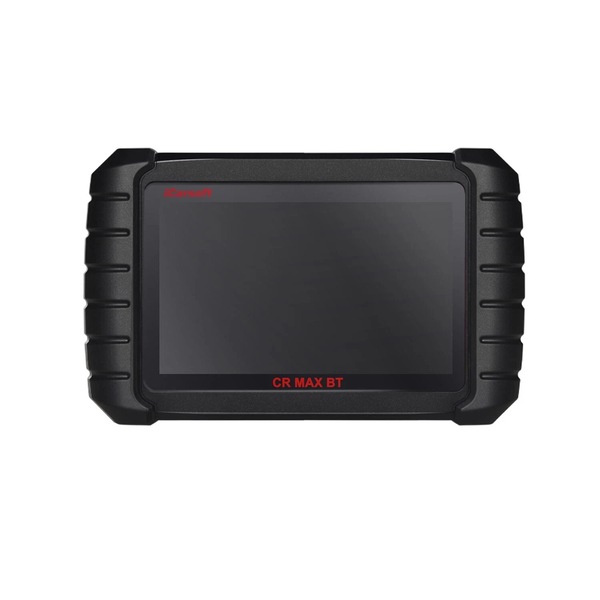

• Display: 7-inch LCD capacitive touchscreen, 1024x600 resolution
• Battery: 3.7V, 5,000mAh lithium-polymer (up to 5 hours use)
• Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Bluetooth, OBD II

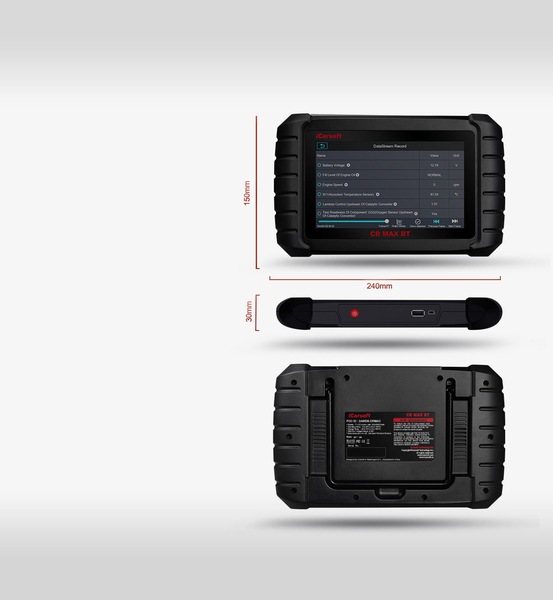

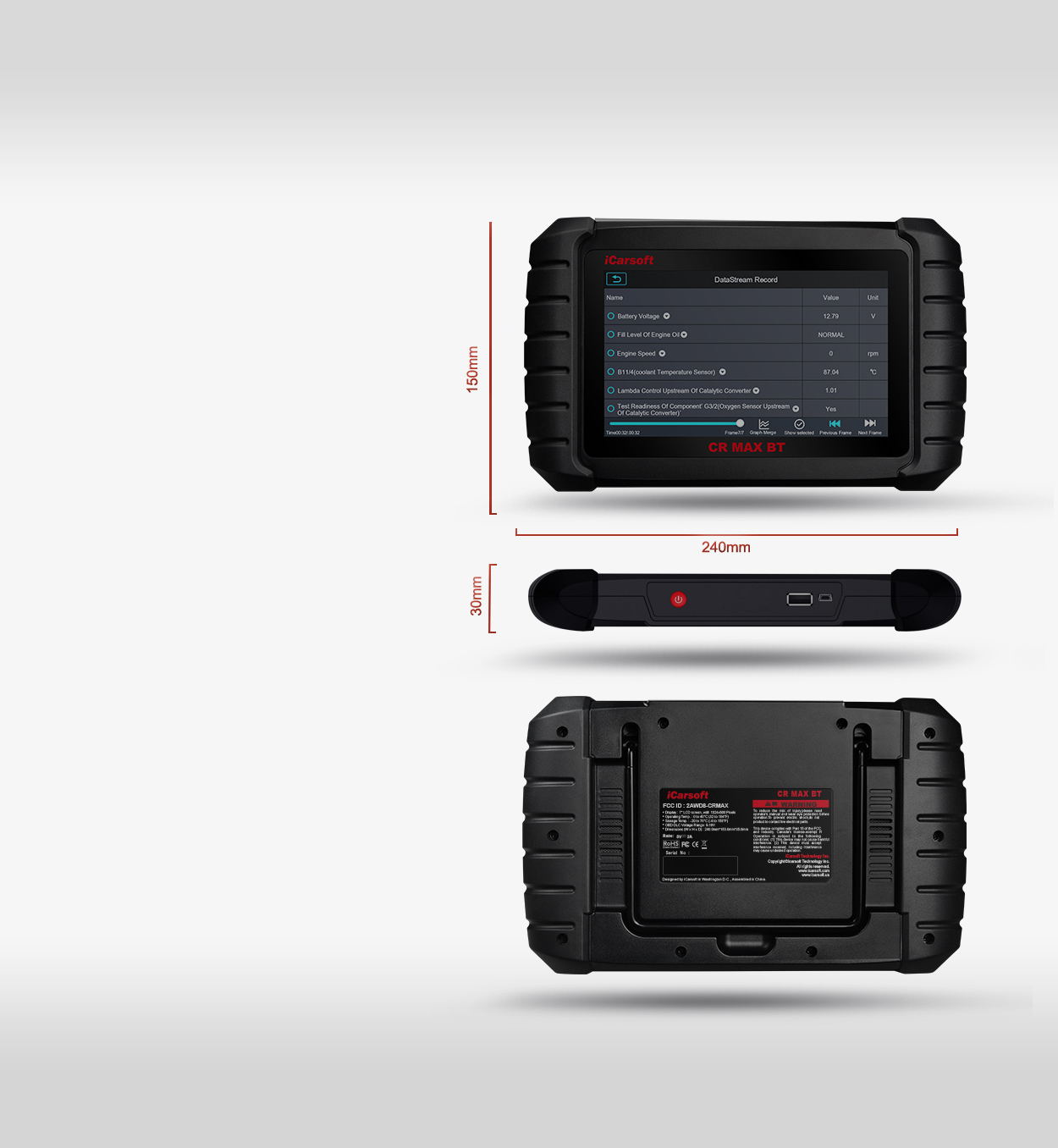

• Dimensions: 240mm (L) x 150mm (W) x 35mm (H)
• Weight: 750g
• Body Color: Black
• Audio: Buzzer and speaker
• Power: 5V/2A charger, 500mA consumption
• Operating Temp: 0°C to 40°C (32°F to 104°F)
• Storage Temp: -20°C to 70°C (-4°F to 158°F)
• Humidity: 5%-95% non-condensing
• Languages: English, German, Dutch, Spanish, French (more to be added)
• Updates: Automatic software upgrades

• European: BMW, Mini, VW, Seat, Skoda, Volvo, Porsche, Saab, EU Ford, Dacia, Renault, Fiat, Mercedes-Benz, Citroen, Jaguar, Peugeot, Audi, Opel, Land Rover, Smart, Vauxhall, Alfa-Romeo, Lancia, Bentley, Bugatti, Lamborghini, Sprinter
• Asian: Nissan, Infiniti, Toyota, Lexus, Scion, Honda, Isuzu, Hyundai, Kia, Daewoo, Mazda, Acura, Subaru, Mitsubishi, Suzuki
• American: US Ford, GM, Chrysler
• Australian: Holden, AUS Ford
• Works on:
  • 2001 OBDII-compliant petrol European vehicles
  • 2004 OBDII-compliant diesel European vehicles
  • 1996 OBDII-compliant US/Asian vehicles

• OBDII Relearn: Comprehensive coverage with onscreen procedures.
• DTC Library: Built-in lookup for fault codes.
• Freeze Frame: Captures fault conditions.
• Live Data: Graphs and records for analysis.
• Support: Online feedback and instructions included.

• Condition: Brand new, factory sealed.
• Shipping: Fast global shipping available.
• Compatibility: Covers 20 years of models; some functions may vary—contact us to confirm.

Get the iCarsoft CR MAX BT now—a versatile, multi-brand diagnostic powerhouse! Bid today or message us with questions!
