iCarsoft CR MAX Professional Multi Brand & System Car Diagnostic Tools

Image 1
Image 2
Image 3
Hurry! 10 items left!
$619

Collect 619 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Professional Multi-brand Multi-system Car Diagnostic Tool
  • Comprehensive OBD relearn coverage
  • Onscreen relearn procedure
  • Read & Clear codes for all available systems
  • Display live data in text, graph & analog
  • Auto VIN technology automatically identifies model & year information
  • Actuation Test / Bi-directory Test
  • Steering Angle Sensor (SAS) calibration
  • Oil Light/Service Reset
  • Electronic Parking Brake (EPB)
  • Diesel Particulate Filter (DPF)
  • Battery Management System (BMS)
  • Electronic Throttle Control system (ETC)
  • ABS Bleeding
  • Injector coding
  • Support TPMS programming service
  • AFS Head Lamp reset
  • Air Suspension
  • Gearbox Reset
  • Air conditioning service
  • Air Filter Self-learning process
  • Fuel Pump activation function
  • DTC library
  • Support Freeze Frame of Fault Code functions
  • Automatic software upgrade
  • Easy to feedback test questions online
  • Provides convenient instruction with customer interface
  • Multi-language: English, German, Dutch, Spanish, French





  • Recommended use - indoor
  • Operating system - android 8.1.0
  • Processor - 4nuclear 1.3 ghz
  • Memory - 16gb
  • Display - 7-inch lcd capacitive touchscreen with 1024x600 resolution

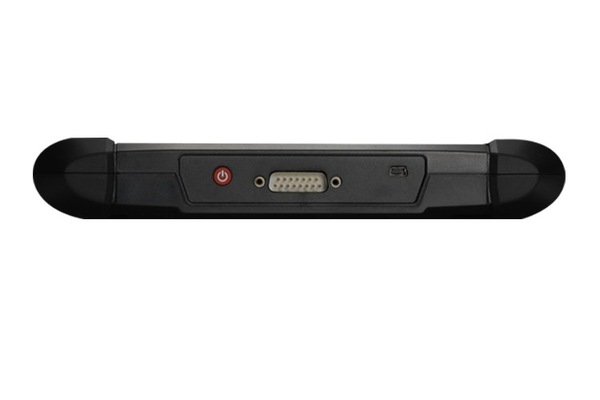

  • Connectivity - mini usb 2.0/ usb2.0/ wi-fi / bluetooth/obd ii
  • Body color - black
  • Output - buzzer & speaker
  • Power and battery - 3.7 v/5000mah lithium-polymer battery, charges via 5 vdc power supply, 0bd dlc voltage range:9-18v
  • Tested battery life - around 5 hours of continuous use
  • Battery charger - 5v/2a
  • Power consumption - 500ma(lcd on with default brightness,wi-fi on) at 3.7 v
  • Operating temp - o to 40° c (32 to 104°f)
  • Storage temp - -20 to 70° c(-4 to 158°f)
  • Operating humidity - 5%-95% non-condensing

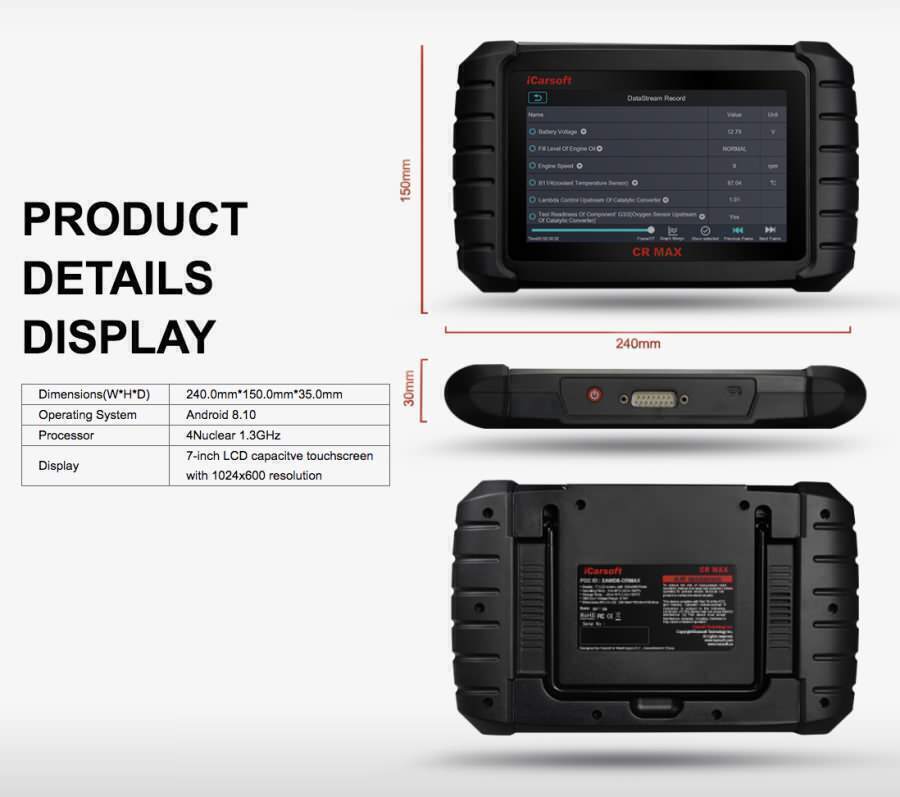

  • Dimensions(w*h*d) - 40.0mm*150.0mm*35.0mm
  • Net weight - 750g
  • Support protocols - is09141-2js014230-2,is015765,k/l-line, sae-j1850 vpw,sae-j1850pwm, is011898(highspeed,middlespeed, lowspeed and singlewire can,fault-tolerant can), sae j2610,gm uart uart echo byte protocol, honda diag-h protocol,tp2.0,tp1.6


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
Please note. This scanner works with a range of vehicle models manufactured after Jan 2006 that feature the OBD2 protocol, and very limited models manufactured between 1996-2006 that are OBD2-compliant. OBD2 compliance is dependent on the year of manufacture for any of the listed models.

Please contact us to confirm compatibility with your particular year/make/model vehicle prior to purchase, as returns cannot be accepted due to incompatibility.

GTIN: 653718178624

Estimated Delivery Time Frame:2-14 business days

Ask a Question About This Product

Reference ID: 6747842
