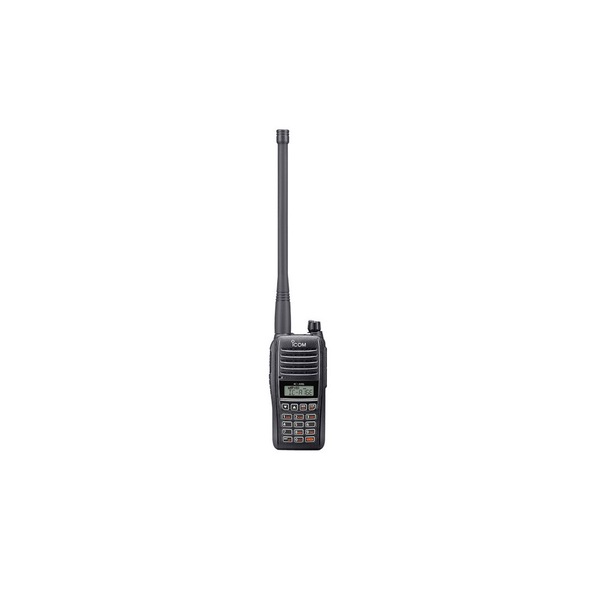

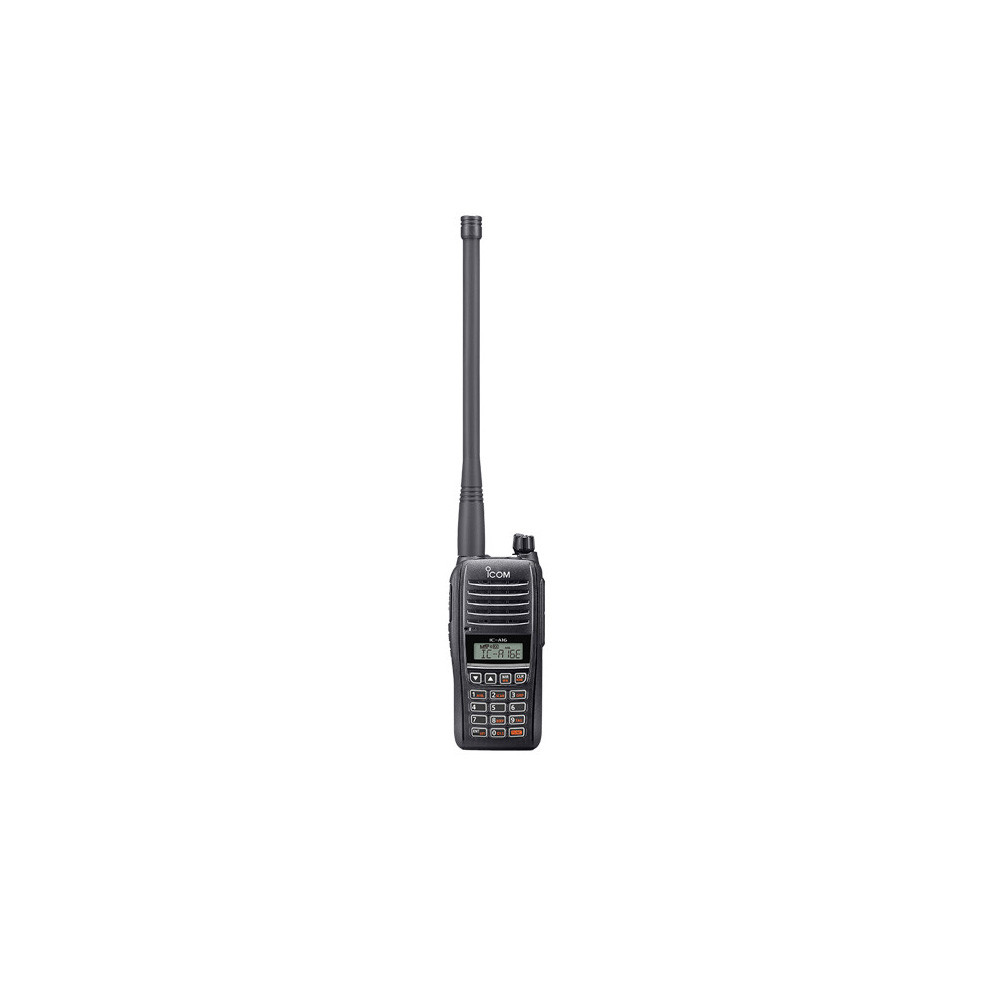

ICOM IC-A16E AIRBAND VHF HANDHELD RADIO TRANSCEIVER

Image 1
Limited Stock
$499

Collect 499 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio.


8.33 kHz and 25 kHz Channel Spacing.


1500 mW Loud Audio Provides Clear Communications.

6 W (PEP) /1.8 W (Carrier) RF Output Power.

Large Capacity Battery Pack Provides 17 hours* of Long Battery Life.


* With BP-280. Typical operation with
TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF)


Compact, Waterproof Durable Body (IP67/54 and MIL-STD-810-G).



General





















































Frequency range TX/RX : 118.000-136.992 MHz
Number of memory channels 200 channels
Channel spacing 8.33 kHz*/25 kHz (* May differ depending on the country.)
Type of emission 6K80A3E, 5K00A3E
Power supply requirement 7.2 V DC
Current drain (approximate) TX High 1.8 A
RX Stand-by 65 mA typical
Max. audio 650 mA
Antenna impedance 50 Ohm (BNC type antenna connector)
Operating temperature range -20oC to +55oC
Dimensions (WxHxD)
(Projections not included)
52.2 x 111.8 x 34.1 mm (with BP-280)
Weight (approximate) 257 g (with BP-280)

Transmitter



















Output power (at 7.2 V DC) 6.0 W (PEP), 1.8 W (carrier)
Audio harmonic distortion Less than 10% (at 85% + 3 dB modulation)
Harmonics spurious emissions Less than -36 dBm
(Except for operating frequency 1 MHz.)
Frequency stability 1 ppm

Receiver




































Intermediate frequencies

46.35 MHz (1st), 450 kHz (2nd)

Sensitivity Less than 0 dBu
(at 12 dB SINAD with CCITT)
Squelch sensitivity (Threshold) Less than 0 dBu
Spurious response More than 70 dB
Hum and noise More than 40 dB (at 90% modulation)
Audio output power INT SP 1500 mW typical
EXT SP More than 350 mW
(AM 8 Ohm 60% modulation at 10% distortion)
External speaker connector 3 conductor 3.5 (d) mm

Measurements made in accordance with EN300 676-2.




Supplied Accessories


BP-280 battery pack
BC-213 rapid charger
BC-242 AC adapter
FA-B02AR antenna
MB-133 belt clip
Hand strap
(* Not supplied, depending on the transceiver version.)

GTIN: 4909723145271
