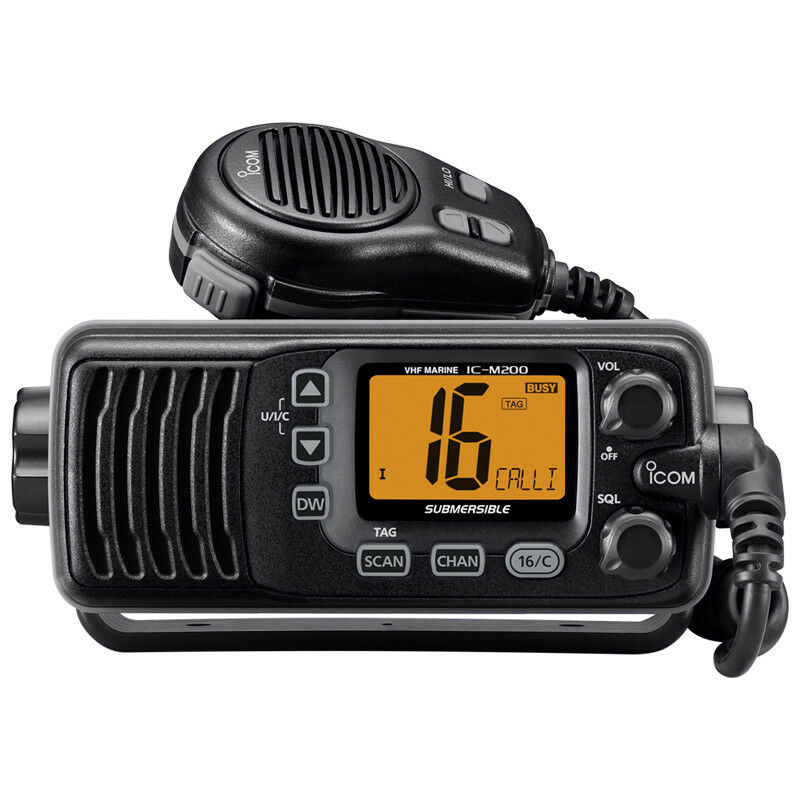

Icom IC-M200 VHF Black Marine Radio Front Mount Speaker ipx7 submersible Body

Image 1
Limited Stock
$299

Collect 299 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout


Features

Compact and IPX7 submersible body Powerful front mount speaker Class leading receiver performance Large easy-to-see LCD Dualwatch and Tri-watch function Favourite channel function AquaQuake draining feature Specifications General Frequency range Tx: 156.025-162000MHz Rx: 156.025-162.025MHz Usable channel groups: INT, USA, CAN channel Type of emission: 16K0G3E (FM) Power supply voltage: 13.8V DC nominal (11.7V-15.9V DC) Current drain Tx (at 25W output) 5.5A (Maximum) Rx (Maximum audio) 1.5A (Maximum) Operating temperature range: -20oC to +60oC Antenna impedance: 50Ohm Dimensions: (WxHxD) 153x67x133 mm Transmitter Output power 25W (High power) 1W (Low power) Modulation: Variable reactance frequency modulation Max. frequency deviation: 5kHz Frequency stability: 5ppm Spurious emissions Less than -70dBc (High power) Less than -56dBc (Low power) Adjacent channel power: More than 70dB Audio harmonic distortion: Less than 10% (at 60% dev.) Residual modulation: More than 40dB Receiver Intermediate frequency 1st: 21.7MHz 2nd: 450kHz Sensitivity: -14dBu typ. Squelch sensitivity: Less than -10dBu Adjacent channel selectivity: 75dB typical Spurious response: 75dB typical Intermodulation 75dB typical Hum and noise: More than 40dB Audio output power: 4.5W typical (at 10% distortion with a 4Ohm load)

GTIN: 4909723134626

Estimated Delivery Time Frame:2 - 15 business days

Ask a Question About This Product

Reference ID: 4200826
