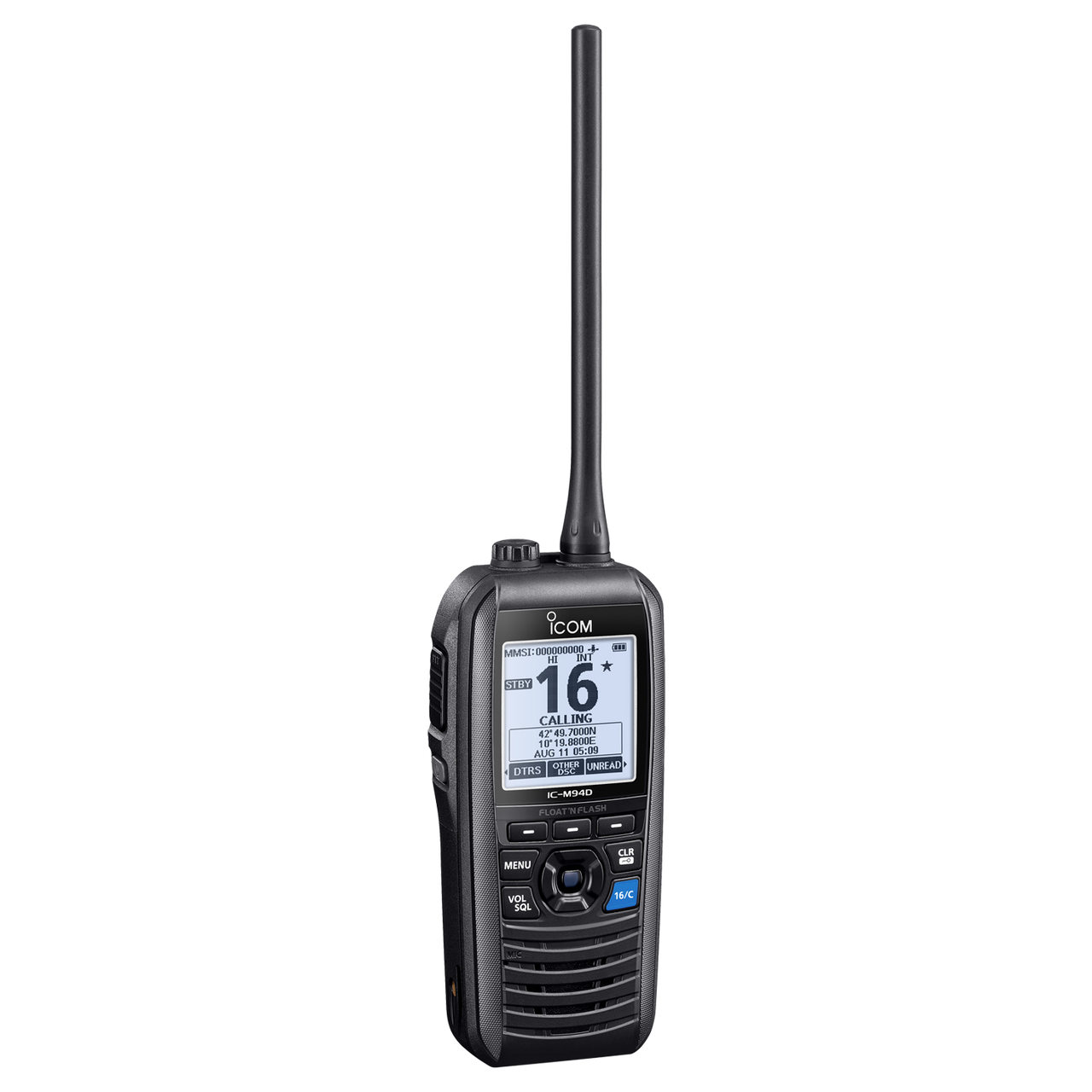

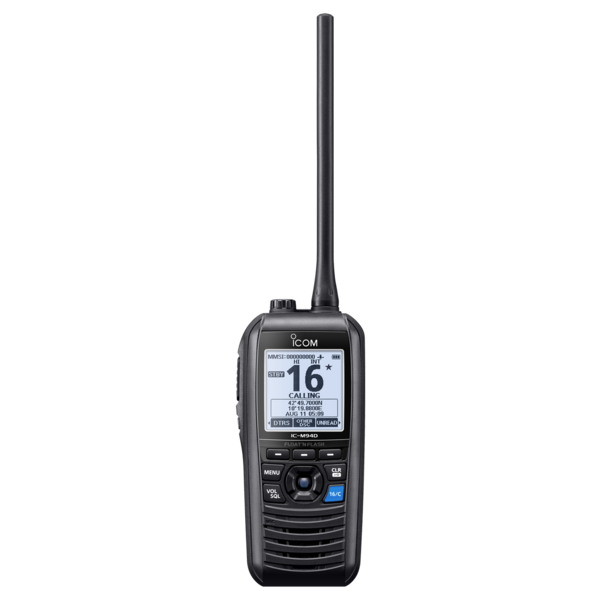

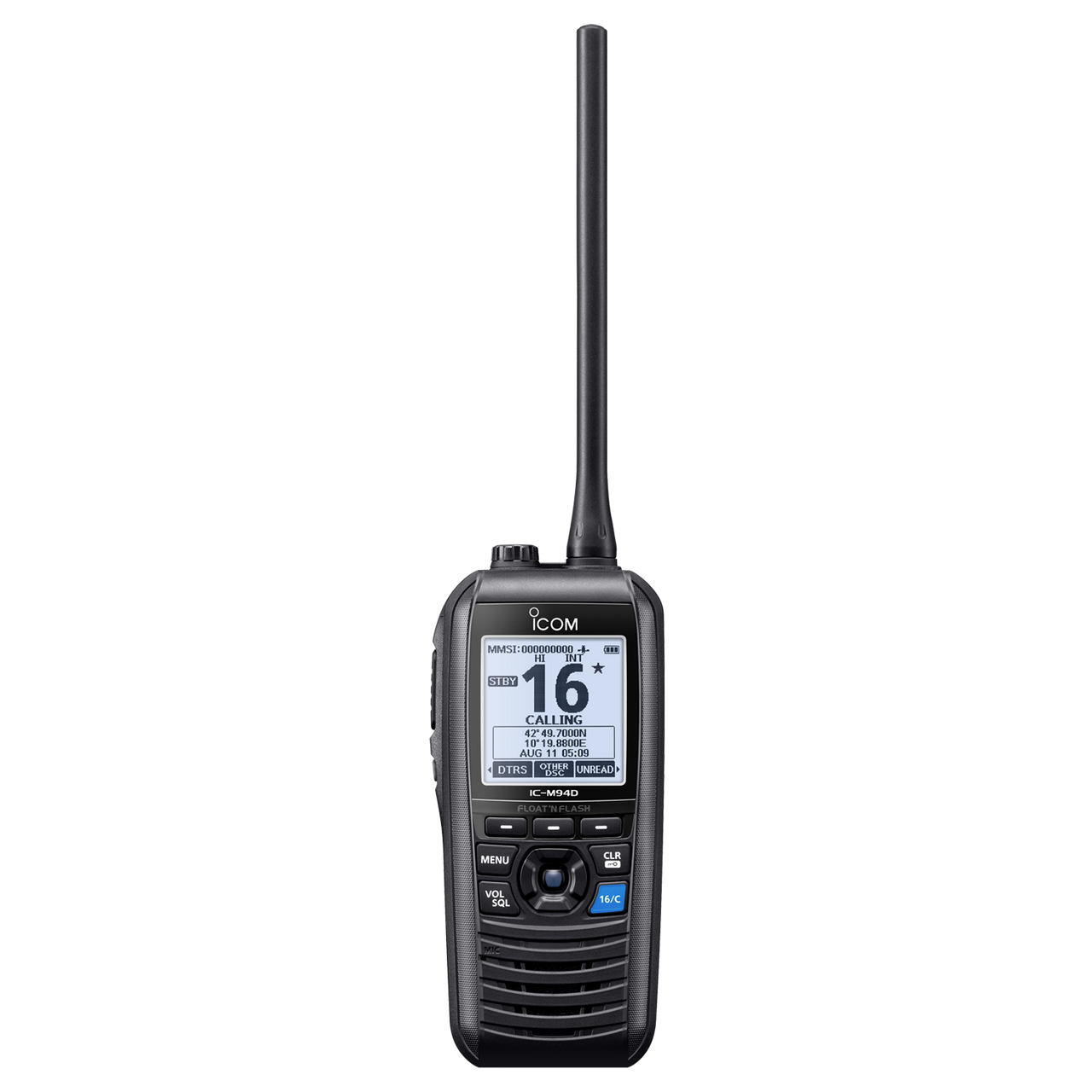

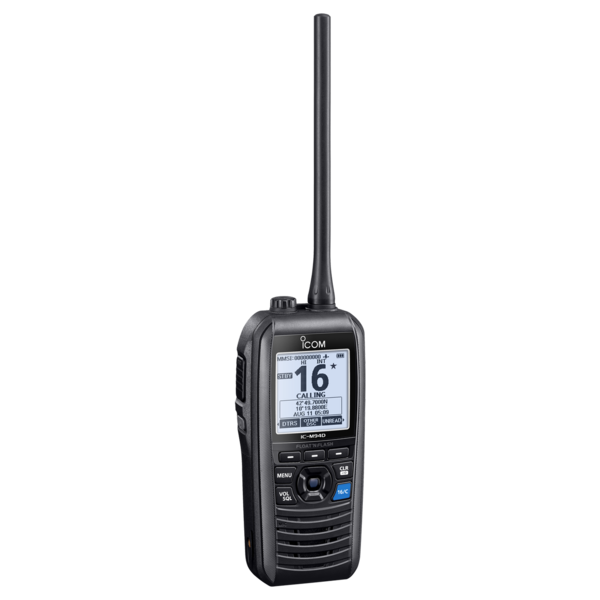

ICOM IC-M94DE VHF MARINE TRANSCEIVER WITH DSC & AIS RECEIVER

Image 1
Image 2
Image 3
Hurry! 4 items left!
$699

Collect 699 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

AIS Receiver and DSC in One Marine Handheld

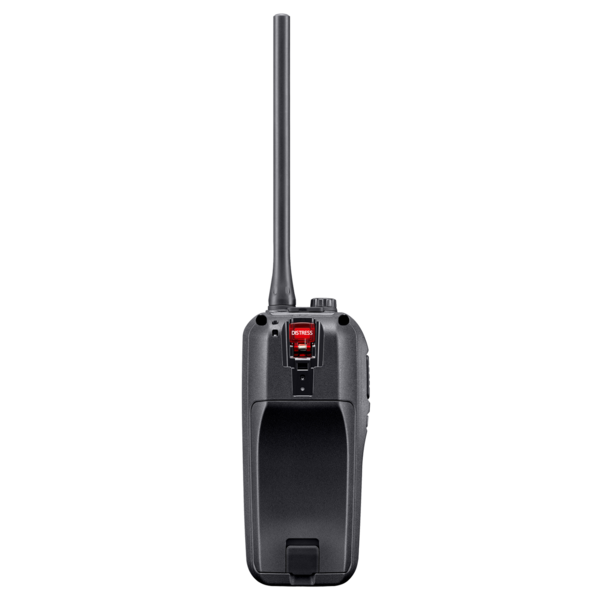

AIS receiver and DSC function add further assurance to your safety at sea. The integrated AIS receiver displays vessel traffic information on the screen. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel Distress button.







5 W RF Output Power and 10 Hours of Operating Time




The IC-M94DE's 5 Watts of transmit power provides extended communication range for the user. The supplied BP-306 high capacity 2400 mAh (typical) Li-ion battery, provides 10 hours of operating time, under normal conditions*2.



*2 Approximate, typical operation with TX: RX: Standby= 5: 5: 90 duty ratio when the Power save function is ON.





Class-Leading 1500 mW Audio Output




Icom's custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.




Simplified Navigation Function






Navigation screen





The Navigation function guides you to a specified waypoint. You can assign up to 50 favourite fishing spots or destinations as waypoints.





Float'n Flash and MOB Auto Set Functions




If the IC-M94DE falls into the water, it will float and the LCD screen, keys and rear panel Distress button will flash helping you to retrieve it. Pressing the distress button while the Float'n Flash is working will transmit the MOB distress signal.




Other Features







  • Integrated GPS receiver


  • Active noise cancelling technology


  • IPX7 waterproof (1 m depth of water for 30 minutes)


  • Dualwatch and Tri-watch functions


  • Favourite channel function


  • Supports 4-digit channels


  • AquaQuake(TM) prevents audio degradation from a water-logged speaker




General





































































































































IC-M94DE
AUS Version
Frequency range Tx 156.025-157.425 MHz
Rx 156.300-162.000 MHz
DSC 156.525 MHz
AIS (RX) 162.025 MHz
Usable channel groups INT, USA and WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
16K0GXW (AIS)
Current drain
(at 7.2 V DC)
TX (5 W/1 W output) 1400 mA/700 mA (approx.)
RX (Inter SP/Exter SP Max. audio) 700 mA/350 mA (approx.)
Operating temperature range -15oC to +55oC
Antenna impedance 50 Ohm
Dimensions (WxHxD)
(Projections not included)
60.9 x 145.8 x 43.8 mm
Weight (approximately) 357 g
(With BP-306, antenna, MB-133)




Transmitter

























































IC-M94DE
AUS Version
Output power (Hi/Low) 5 W/1 W
Max. frequency deviation 5 kHz
Frequency stability 10 ppm
Spurious emissions 0.25 uW typical




Receiver


































































IC-M94DE
AUS Version
Sensitivity (at 20 dB SINAD)
DSC receiver (at 1% BER)
AIS receiver (at 20% PER)
-6 dBu emf typical
-3 dBu emf typical
-107 dBm
Squelch sensitivity (Threshold) -6 dBu emf typical
Adjacent channel selectiv...

GTIN: 4909723157335
