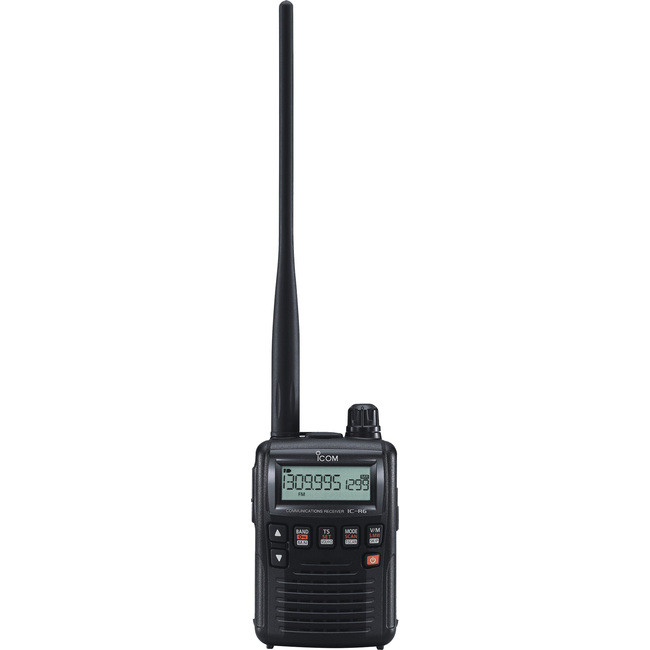

ICOM ICR6 Miniature Wideband Receiver

Image 1
Hurry! 4 items left!
$349

Collect 349 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

IC-R6 MINIATURE WIDEBAND COMMUNICATIONS RECEIVER - ICOM


AM FM & WFM RECEIVER: LISTEN TO IT ALL!


THE 100 CH/SEC WIDEBAND SIGNAL "SEARCH MACHINE"



  • Full frequency coverage (0.100 MHz to 1309.995 MHz)

  • High Speed Scan (100 Ch per Second)

  • FM WFM AM Receive Modes

  • Internal bar-antenna (For superior AM reception)

  • 1300 Memory Channels (22 Memory Banks)

  • Louder, Clearer Audio Output (BTL Circuits)

  • 15 Hours of Continuous Receive (With External Speaker)

  • VSC (Voice Squelch Control)

  • Auto Digital Squelch

  • Multiple scan functions

  • Auto Memory Write Scan (Detects & Stores Frequencies)

  • Tone (CTCSS decode) & DTCS decode

  • Required 2x AA Alkaline or Ni-MH cells

  • External DC input (for desktop use & Ni-MH charging)

  • Optional PC programming (Enter frequencies with ease)

  • 2 Year Warranty on radio


SPECIFICATIONS



  • Frequency coverage : 0.100-1309.995MHz* (* Cellular blocked in the U.S.A. version.)
    France 0.100-29.995, 50.200-51.200, 87.500-107.995, 144-146, 430-440, 1240-1300MHz

  • Mode : AM, FM, WFM

  • No. of memory channels : 1300 regular, 50 scan edges and 200 auto memory write

  • Usable temperature range :-10 C to 60 C ; 14 F to 140 F

  • Frequency stability : 1.0ppm (at 25 C)

  • Tuning steps : 5, 6.25, 8.33*, 9*, 10, 12.5, 15,20, 25, 30, 50, 100, 125, 200kHz (* Selectable depending on operating bands.)

  • Battery requirement : 2xR6 (AA) size Ni-MH or alkaline cells (not inc.)

  • External power supply : 4.5V DC rated (4.5-6.3V with BC-196SA/SD, CP-18A/E - not inc.)

  • Current drain Rated audio : 130mA typ. (Ext. SP, backlight off) (at 3.0V DC) Standby 65mA typ.

  • Power save 30mA typ. (1:4 duty)

  • Antenna impedance : 50 (SMA)

  • Dimensions (WxHxD) : 58x86x29.8 mm; (Projections not included) 29/32x33/8x13/16 in

  • Weight (approx.) : 200g; 7.1oz

GTIN: 731797036407
