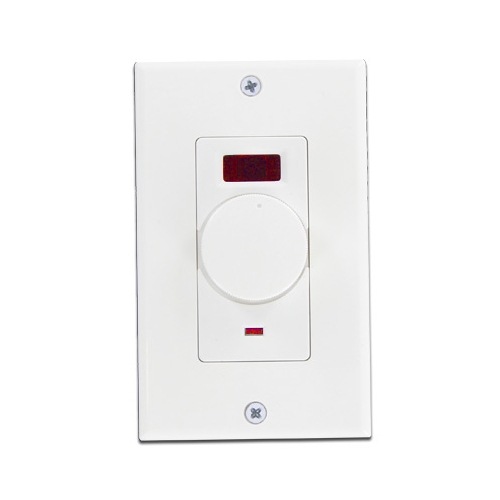

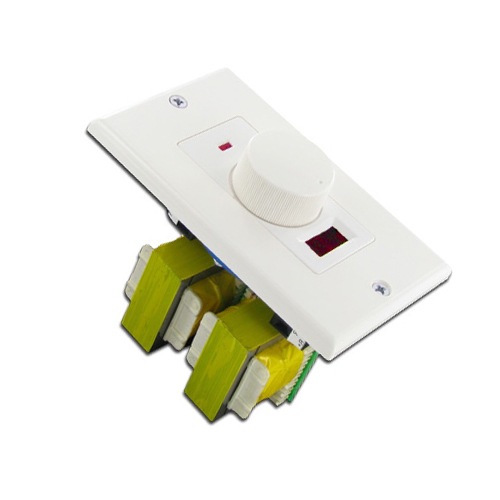

Volume Control with IR Receiver
This wall mount volume control with built-in IR receiver is designed to connect between the speaker outputs of an amplifier or receiver and a pair of speakers. It is perfect if your amplifier is in a different room to your speakers, and you don't want to go to another room just to adjust the volume.

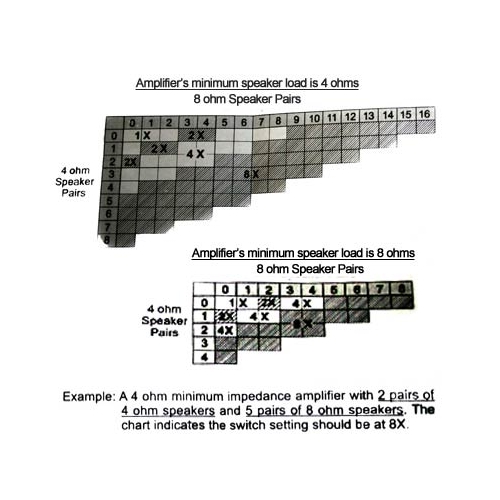

Impedance Matching
This volume control wall plate features impedance matching, so you can safely connect multiple pairs of speakers to this switch without causing any damage to your amplifier. Using the impedance matching, you can configure the wall plate to maintain then appropriate load on your amplifier.

Infrared IR Receiver / Sensor
This Wall Plate also has an infrared receiver, which can be incorporated into an Infrared IR Extender / Repeater System, to allow you to control your device from another room.

Remote Control Extender Systems
Infrared (IR) Remote Control Extender / Repeater Systems allow you to extend the path of the IR signal from your remote control. This allows you to control devices that are hidden away (ie. in a cabinet or in another room!).

Please Note:
This is only the IR Volume Control Wall Plate. It is not an entire IR system.

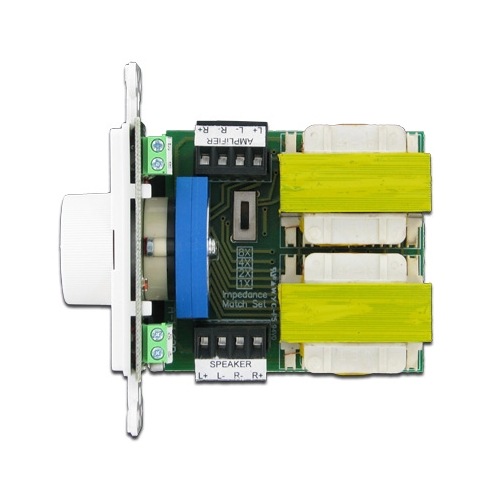

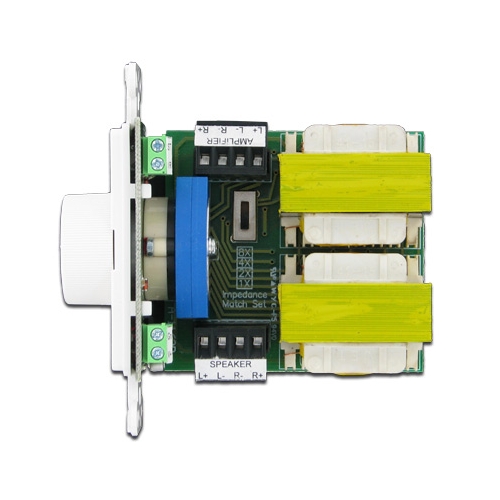

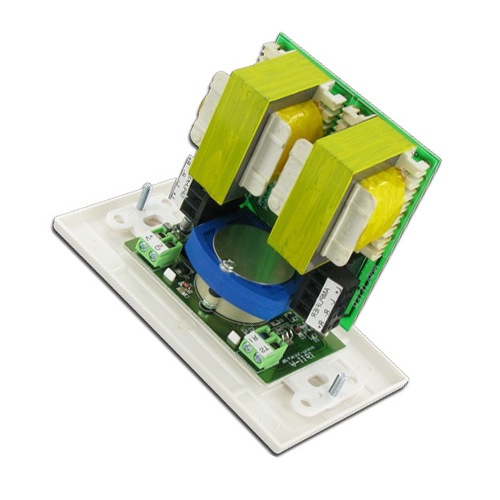

Volume Control component
- Power Handling (per channel): 100w RMS continuous / 300W Max
- Input impedance: Configurable to 1x, 2x, 4x or 8x impedance matching
- Terminals accept up to 12AWG wire
- Attenuation: 12 steps including off; total attenuation 54dB
- Frequency Response: 20Hz - 20kHz, +/- 2dB at rated power

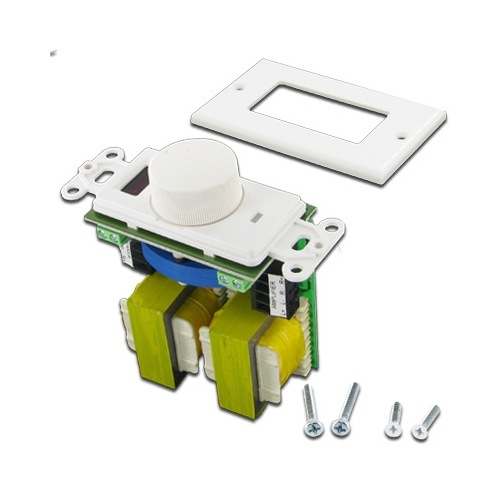

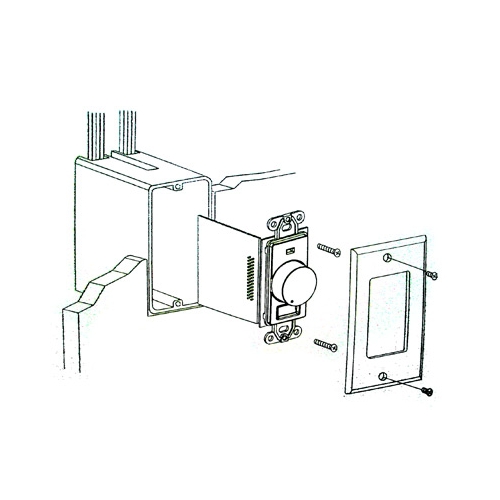

- Mounting: Fits standard single-gang electrical junction boxes
- Dimensions: 42(W) x 103(H) x 103(D) mm

Infrared Component
- Receiver Frequency: 34kHz to 40kHz
- Transmit Frequency: 38kHz
- Range: Up to 24 metres (80 ft)
