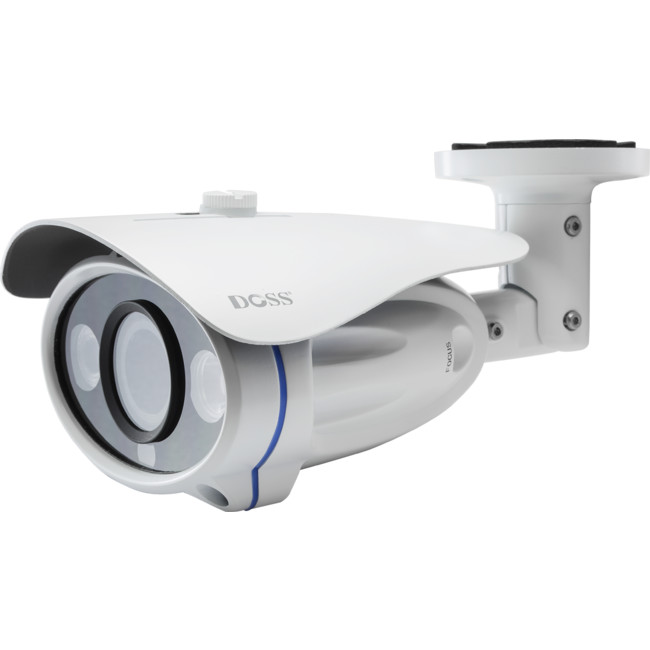

DOSS IN30AHDW2 Bullet 30M IR AHD White Camera Analog Hd2.8-12Mm 1080P Adopt Low Illumination 1/2.9"
,gravity=Center,allowExpansion)
Collect 76 Everyday Rewards points
Collect 76 Everyday Rewards points
CAMERA | _ |
Sensor | 1/2.9"SONY2.43MpixelsCMOS |
Effectivepixels | 1920*1080 |
HDAHDoutput | 1080P |
Resolution | 1280H(CVBSinput) |
Min.Illumination | 0Lux(IRON) |
SyncSystem | Internal |
Lens | 2.8-12 mmlens |
ElectronicShutter | Auto/Manual(X30~1/50000)/FLK |
S/NRate | ≥50db(AGCOFF) |
Videooutput | 1.0Vp-pcompositevideooutput,75O |
outputmodel | PAL/ NTSCadjustable |
OSDmenu | |
Whitebalance | ATW/ AWC-SET/ INDOOR/ OUTDOOR/ MANUAL/ AWB |
NR | 2DNR/ 3DNR,OFF |
Imageadjustable | Brightness,sharpness,AGC |
DWDR | AUTO/ ON/OFF |
BLC | BLC/HsbLC/OFF |
AGC | ON/OFF/AUTO (1-15) |
_ | _ |
Privacymask | OFF/ON(4zone) |
Motiondetection | OFF/ON(4zone) |
Mirror | horizontal/vertical/HVmirror |
Sens-up | OFF/ON (X30, X25, X20, X15, X10, X8, X6, X4, X2) |
Lensshadingcompensation | OFF/ ON |
DPC | Auto/Manual |
Defog | OFF/Auto(EffectiveunderB/ Wmodel) |
OSDmenu | Chinese,Englishetc12languages |
Dual-output | HDAHD/analogCVBSoptional |
General | |
Transmissiondistance | 75 - 3/ 300m, 75 - 5/ 500m |
IRdistance | 20-30m(30 x Ø5IRled) |
powersupply | DC12V ±10% |
Power(max) | 280mA ± 10mA (IRON) |
OperatingTemperature | −20°C~55°C/0%-90% |
Dimensions(mm) | 66(W)*66(H)*166(L)mm |
Weight/ PC(g) | 400g |
Expecting AHD but only getting Composite?
Our AHD cameras come out of the box configured to output Composite (CVBS) to allow installers with test monitors to quickly align the camera. Once positioned correctly, you can set the camera to AHD output using the setting shortcuts below:
GTIN: 9328202030818
Estimated Delivery Time Frame:4-8 business days
