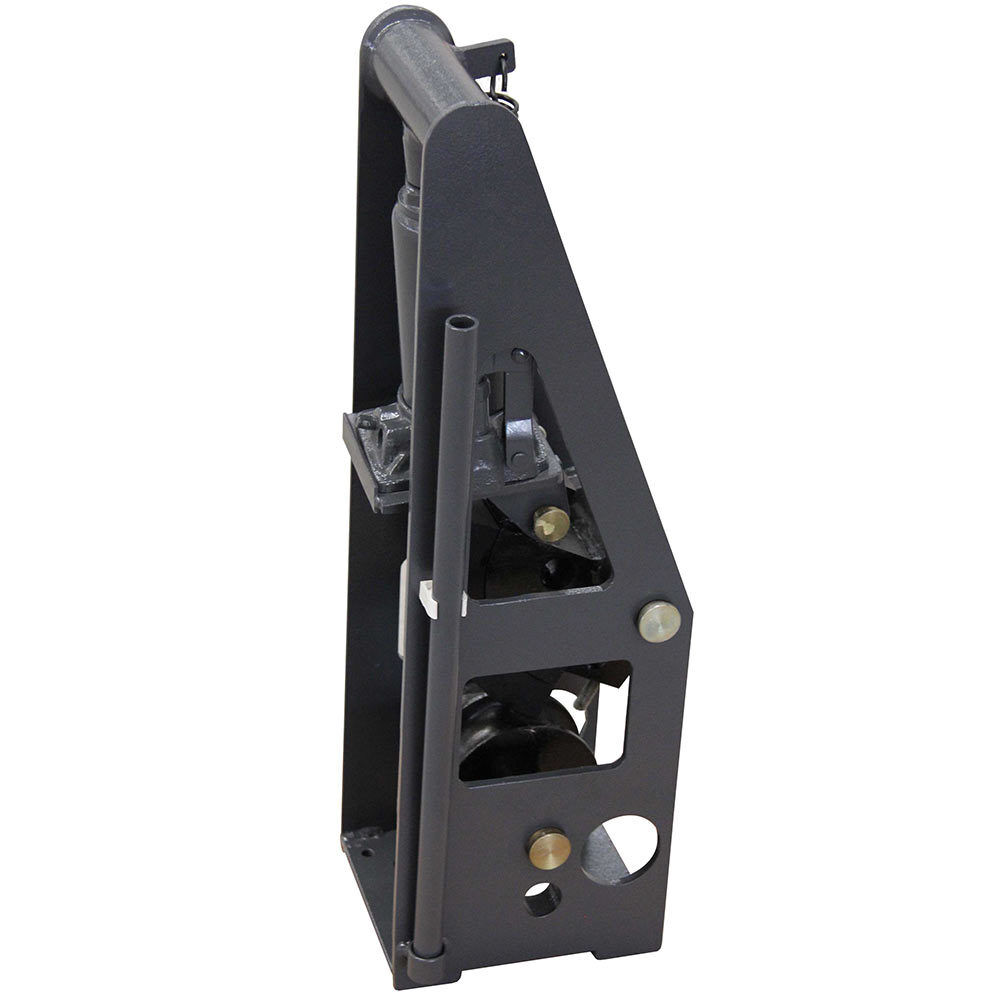

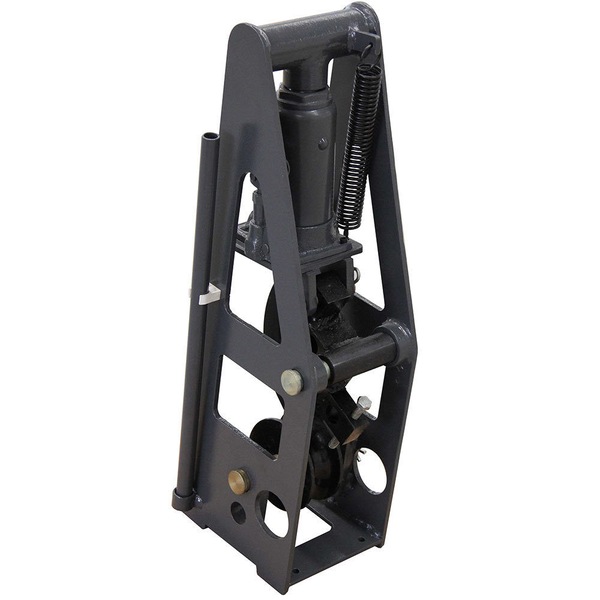

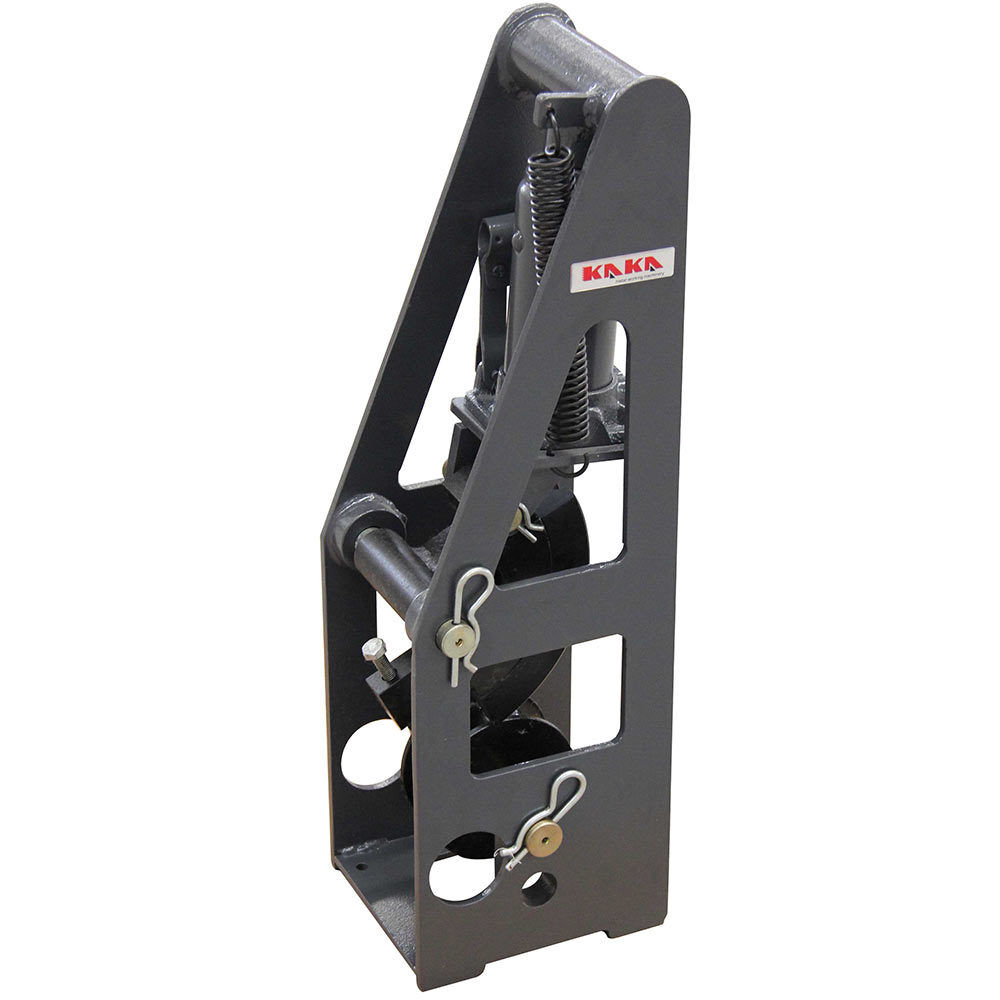

INDUSTRIAL HB-8 Heavy-Duty 8 Tons Hydraulic Metal Tubing Bender Industrial 8 ton tubing bender is designed to bend steel and chrome-molybdenum tubing in a range from 3/4” to 1-3/4”. With the cylinder, it can bender pipe easily. Stability of bending process can be achieve through the sturdy steel frame and 8 ton forming jack, making sure the safety bending process. One thing to be noted is that this bender delivers with five different dies, which are 3/4", 1", 1-1/2", 1-5/8", 1-3/4" diameter for round tubing.

• Steel frame structure

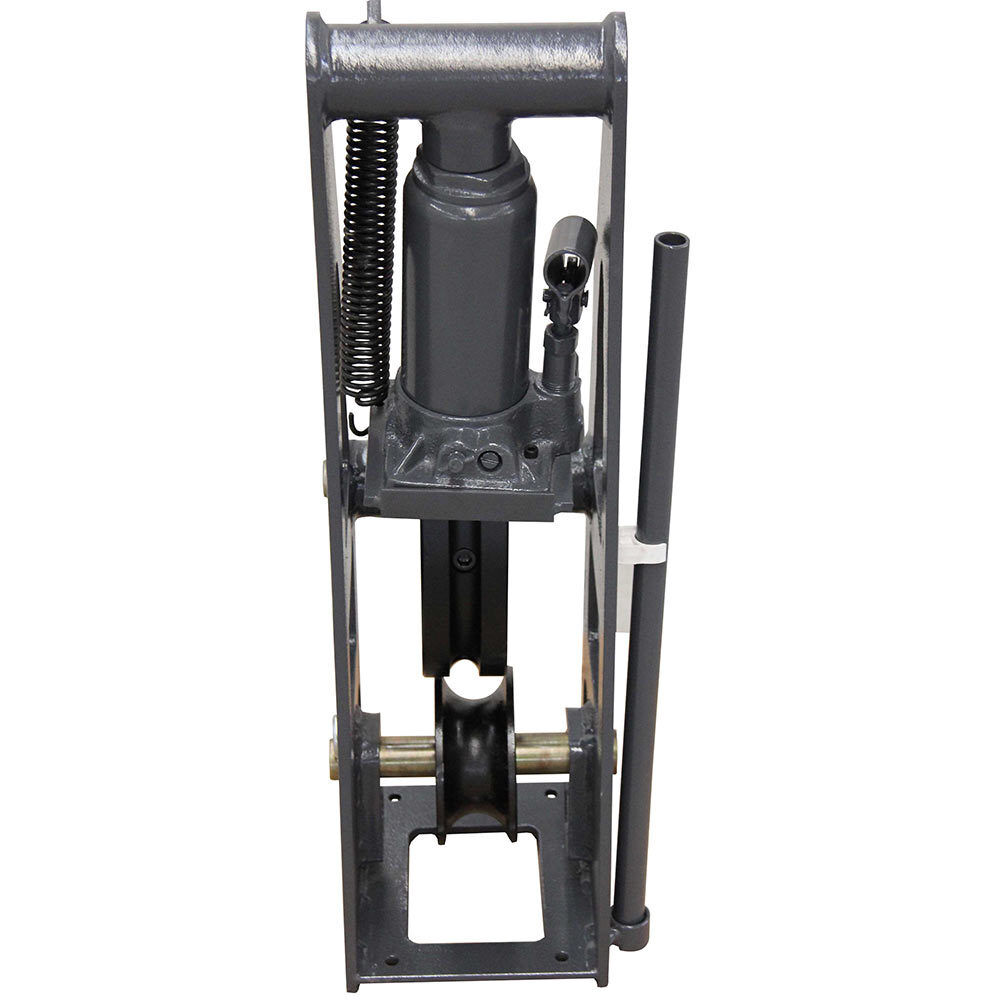

• 8 Ton forming jack

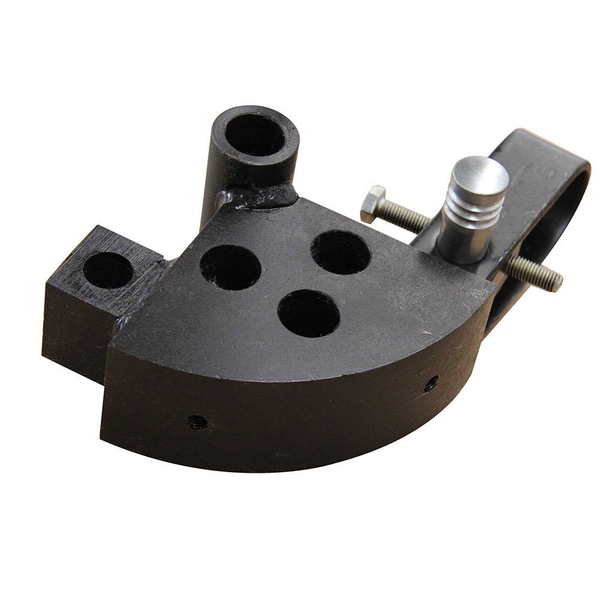

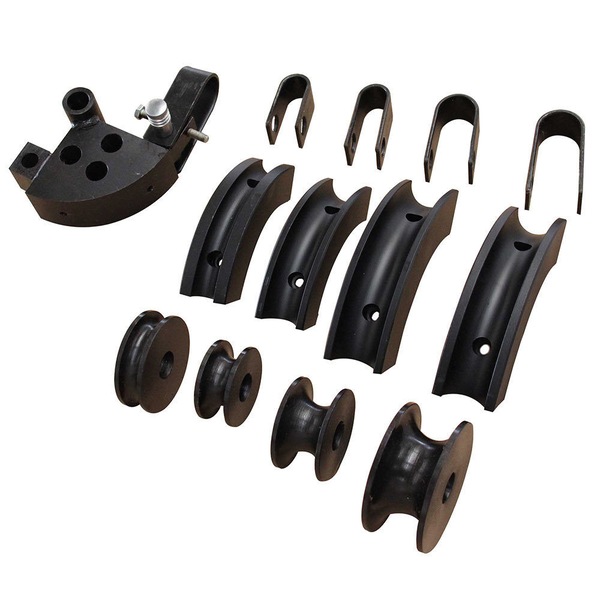

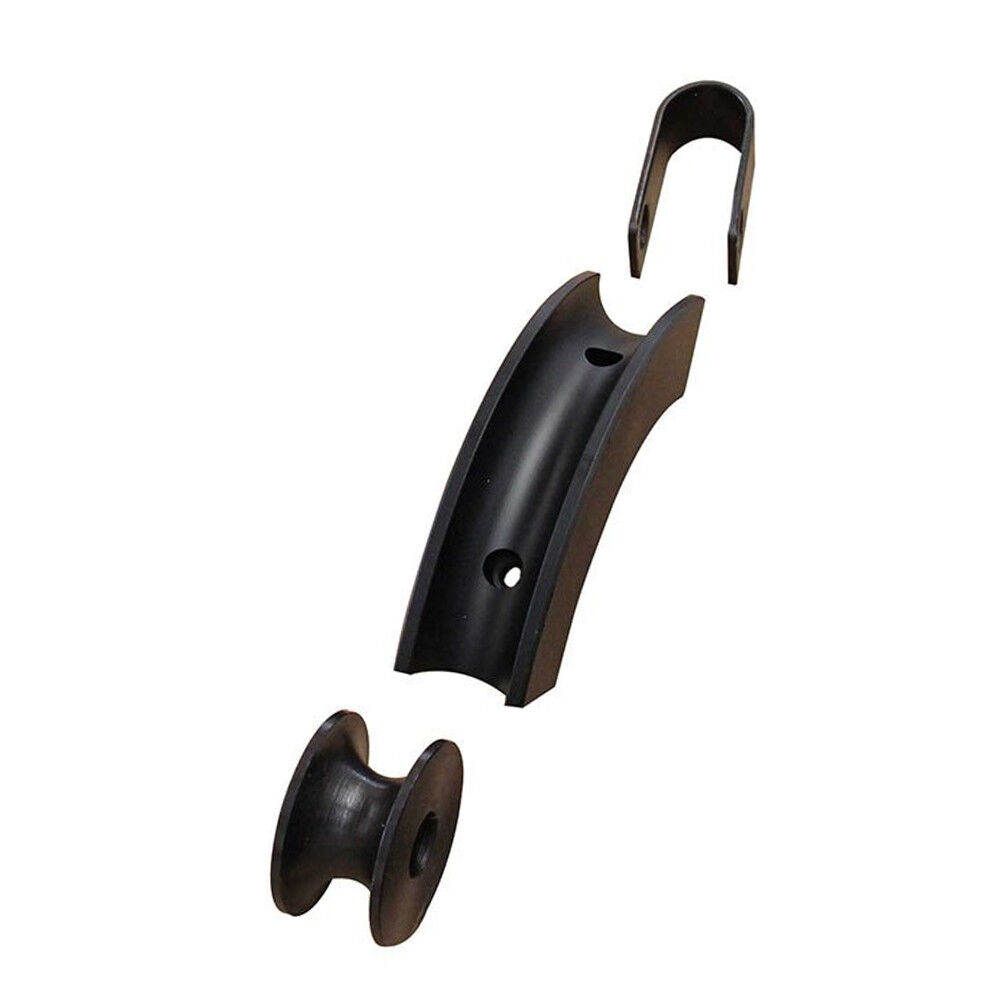

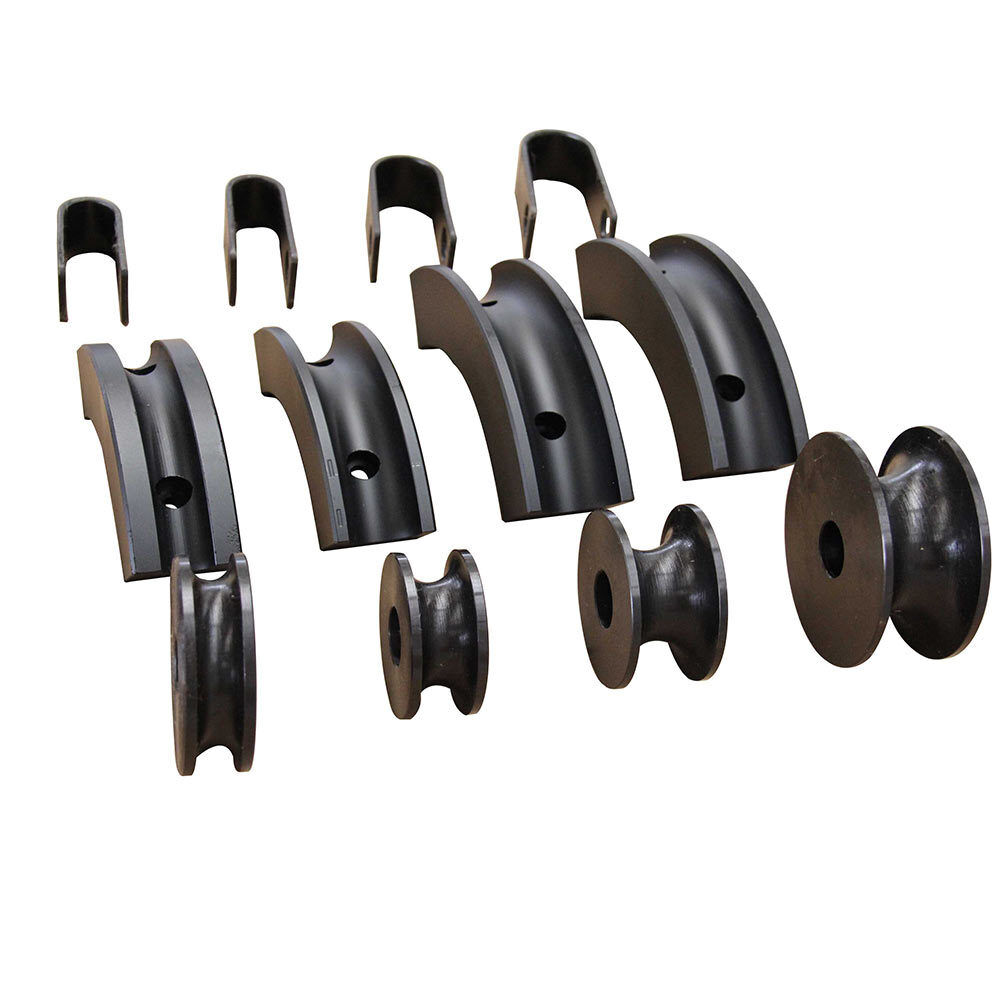

• Standard dies are 3/4", 1", 1-1/2", 1-5/8", 1-3/4"
Bending Radius for each size

Size	Bending Radius
3/4"	5-5/16"
1"	5-3/8"
1-1/2"	5-7/16"
1-5/8"	5-1/2"
1-3/4"	6-5/8"

Specifications
• Model: HB-8
• SKU: 175005
• Max. pressure: 8 Ton
• Max. ram strike: 120+60 mm
• Packing size: 74x36x30 cm
• N.W./G.W.: 46/48 kg
Chromoly Tubing (90 Degrees)

Bends up to 90 Degrees in 3/4”, 1” and 1-1/2”diameter with wall thickness up to 0.040”

Mild Steel Tubing (90 Degrees)

Bends up to 90 Degrees in 3/4” and 1” diameter with wall thickness from 0.049” to 0.090”

Chromoly Tubing (60 Degrees)

Bends up to 60 Degrees in 3/4”,1.0”, 1-1/2”, 1-5/8” and 1-3/4” diameter with wall thickness up to 0.040”

Mild Steel Tubing (60 Degrees)

Bends up to 60 Degrees in 3/4”, 1.0”, 1-1/2”, 1-5/8” and 1-3/4” diameter with wall thickness from 0.049” to 0.090”

Please note that 90° is not achievable on all tubing and is dependant upon the particular wall thickness, diameter and hardness of the tubing used.
