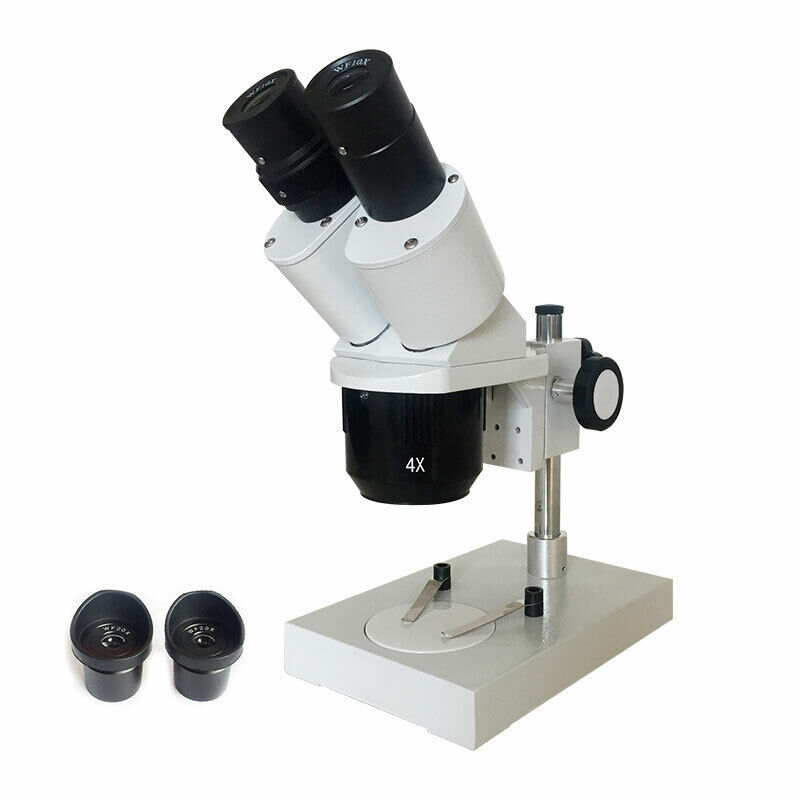

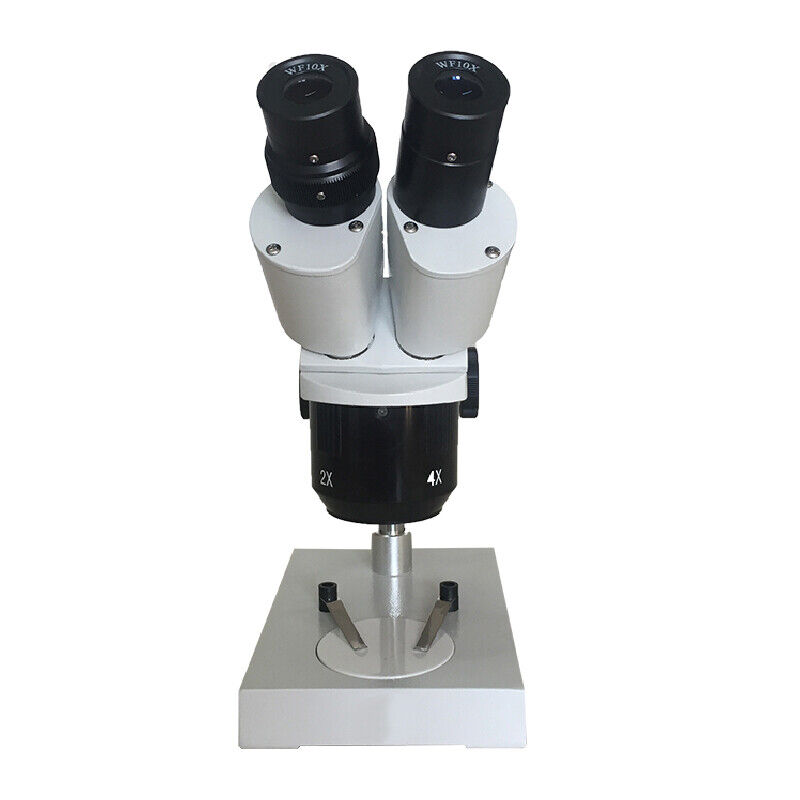

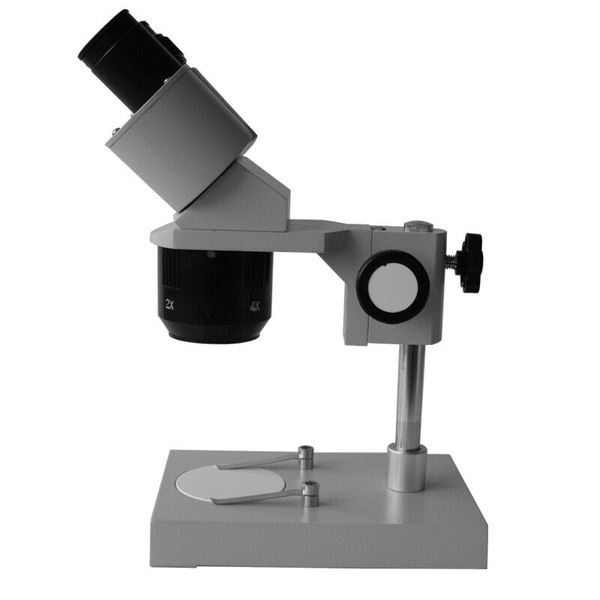

20X-40X-80X Industrial Binocular Stereo Microscope Repair Tool for Mobile Phone Clock Repairing PCB Inspection

• Model: TX-3A-A

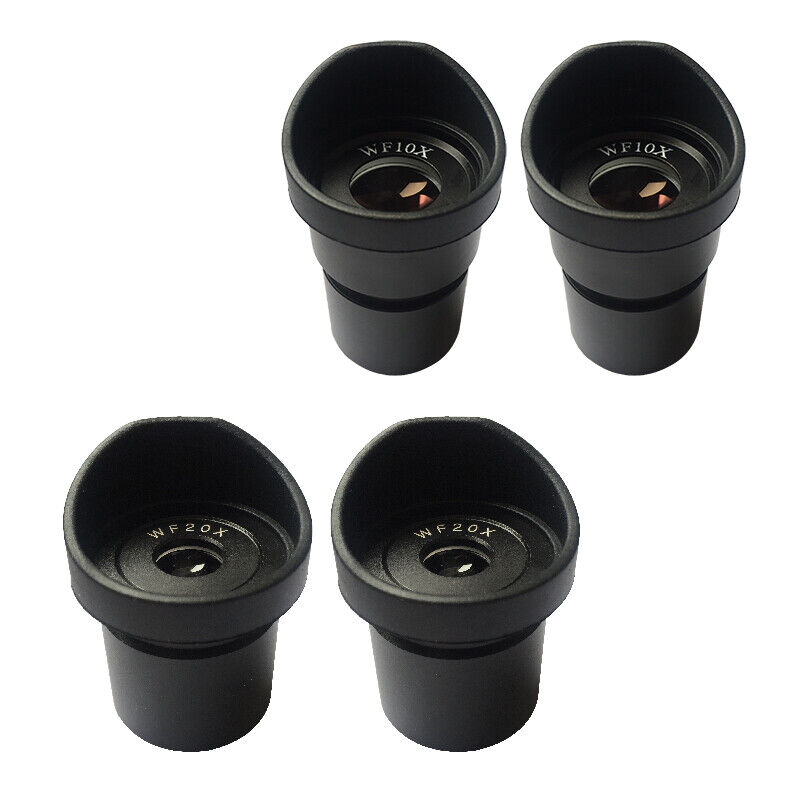

• Wide Field Eyepiece: WF10X and WF20X
• Objective: 2X and 4X
• Total Magnification: 20X, 40X and 80X
• Working Distance: 2X-81 mm (3.19"), 4X-57 mm (2.24")
• Articulated Free Binocular Head
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 55-75 mm (2.17"-2.95"), 45 degree inclined
• Stage: Ø60mm Black and White Reversible Stage Plate
• Rack and Pinion Coarse Focusing Mechanism With Slip Clutch and Tension Adjustment
• Illumination: No
• Power Supply: No
• Net Weight: 1.7kg
• Accessories: a pair of eye-cups, a pair of clips and a dust cover
• Inner packing: Foamed plastic + inner carton

Attention: Objectives of 1X and 2X, 1X and 3X, 1X and 4X, 2X and 3X, 3X and 4X are also available. Eyepiece of WF15X are also available. (Not free)
