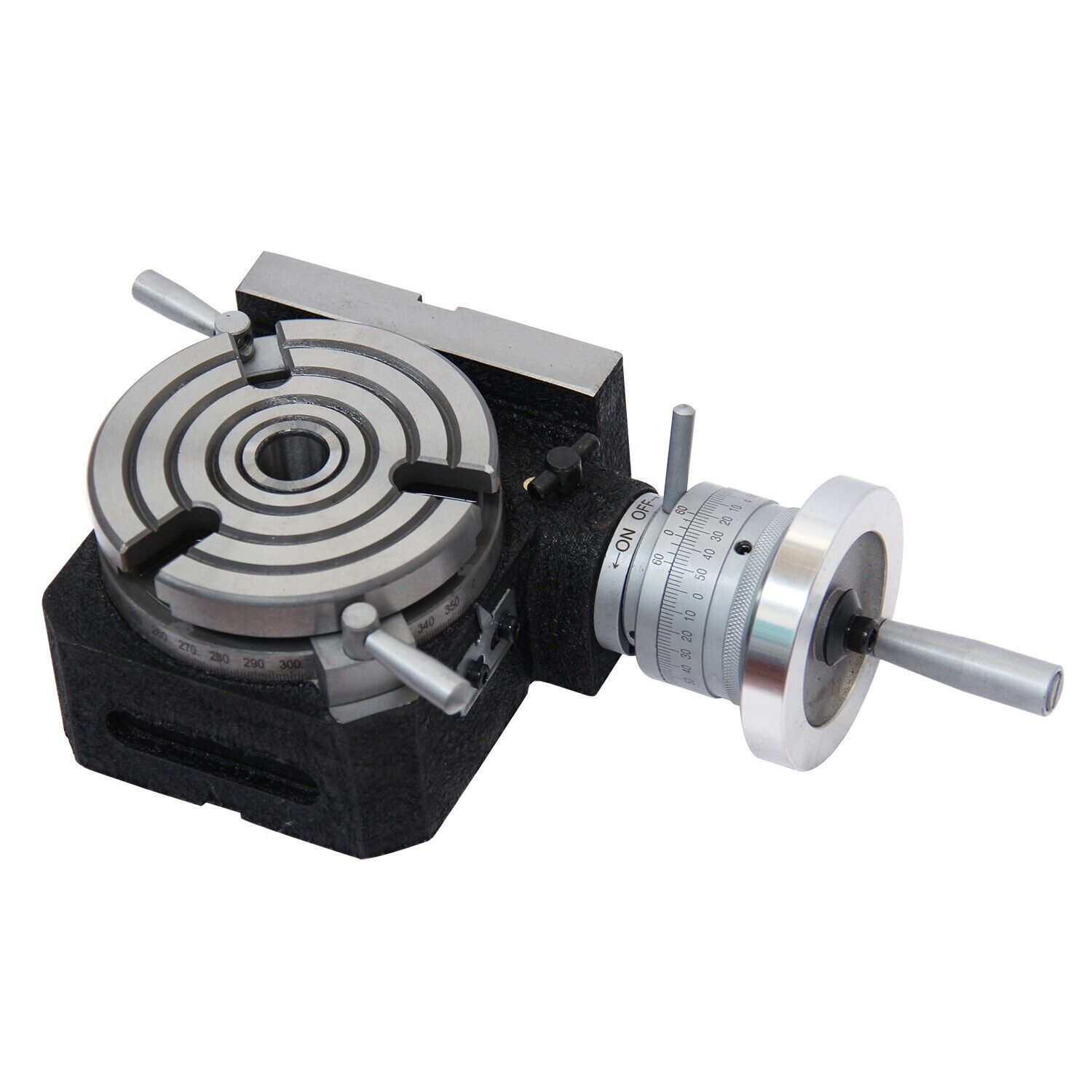

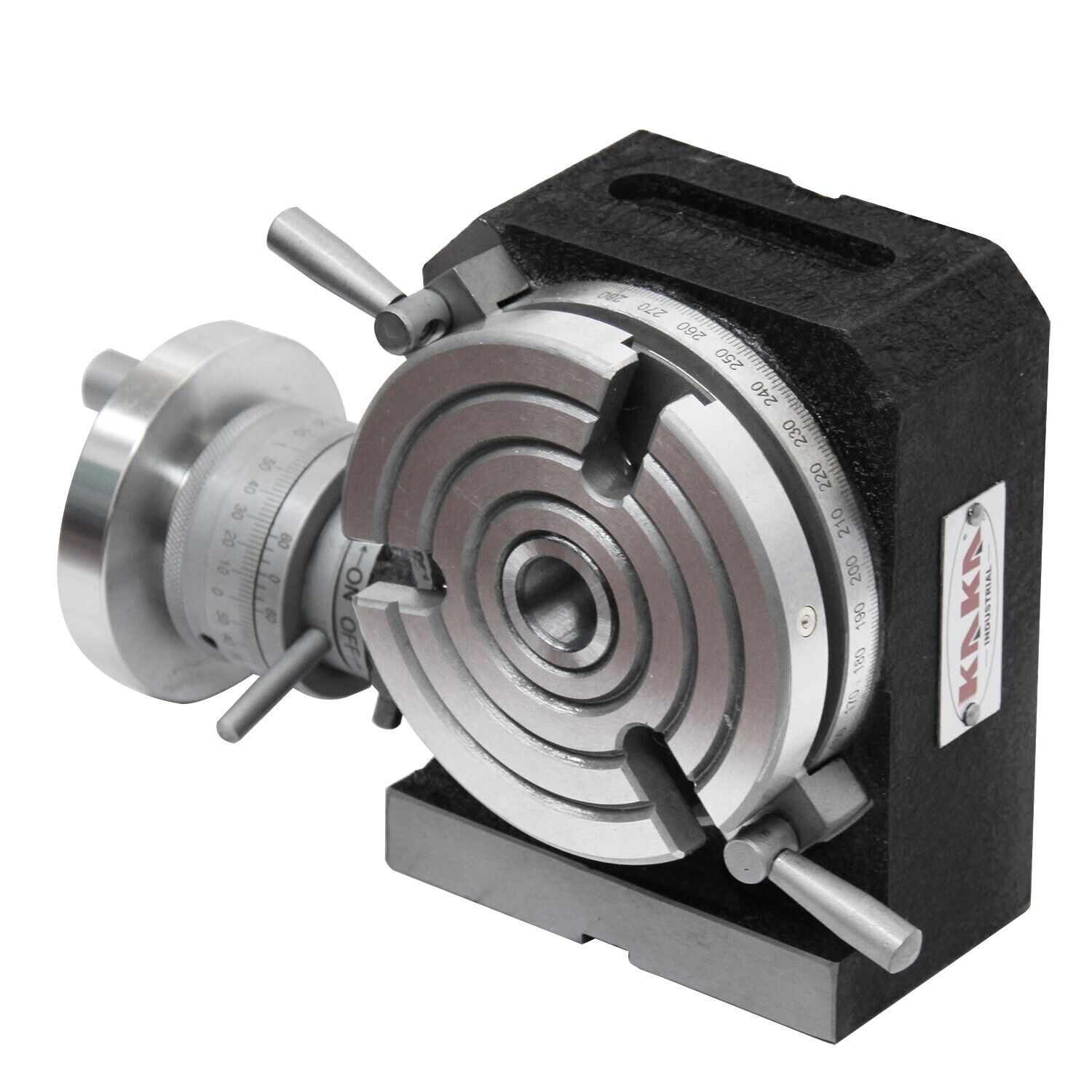

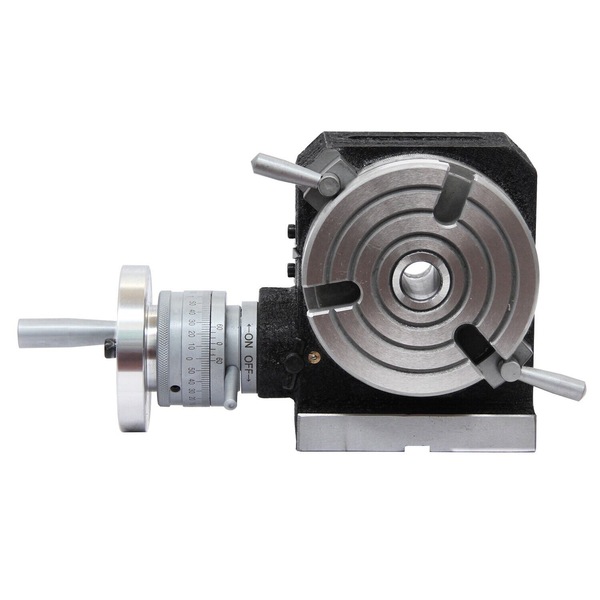

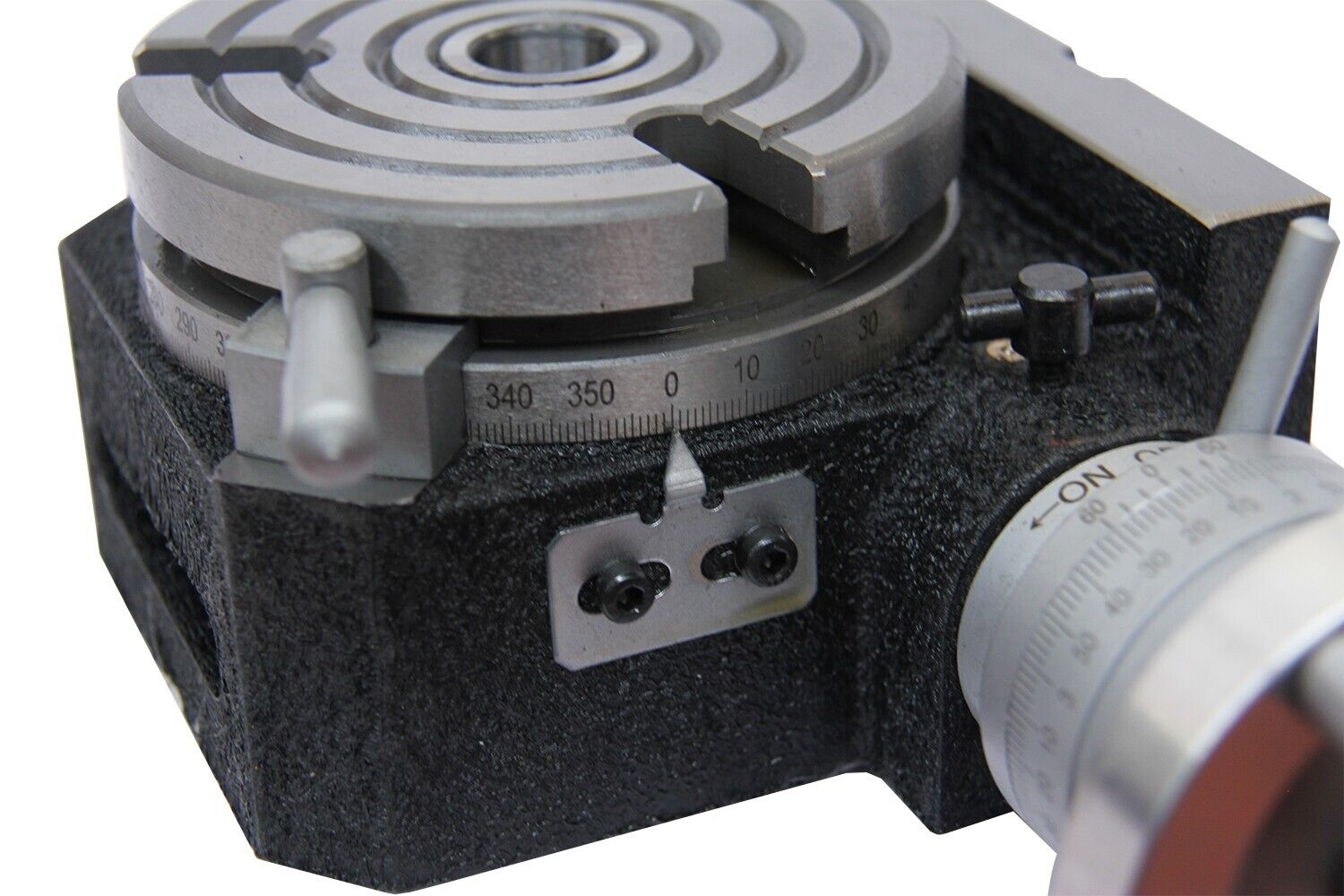

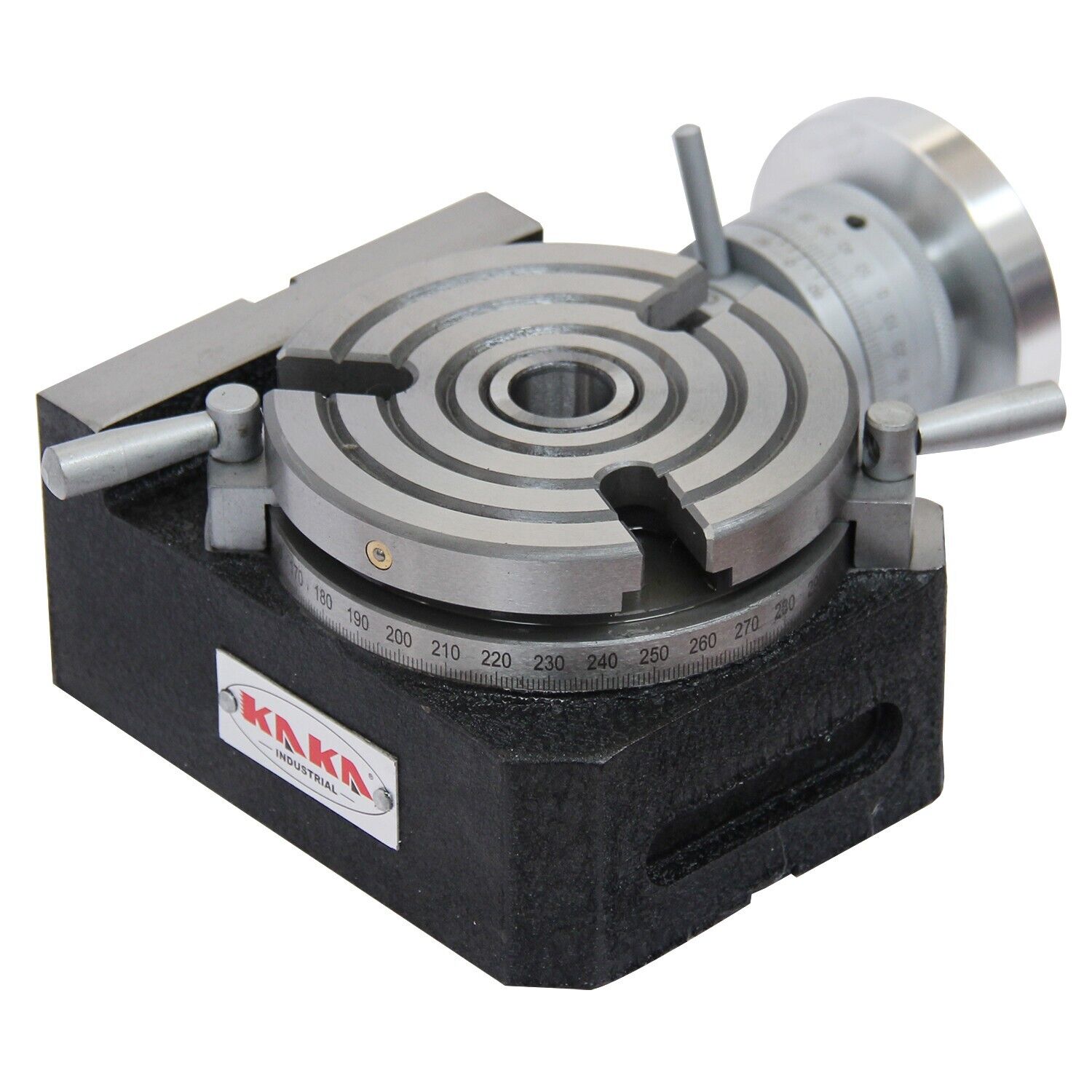

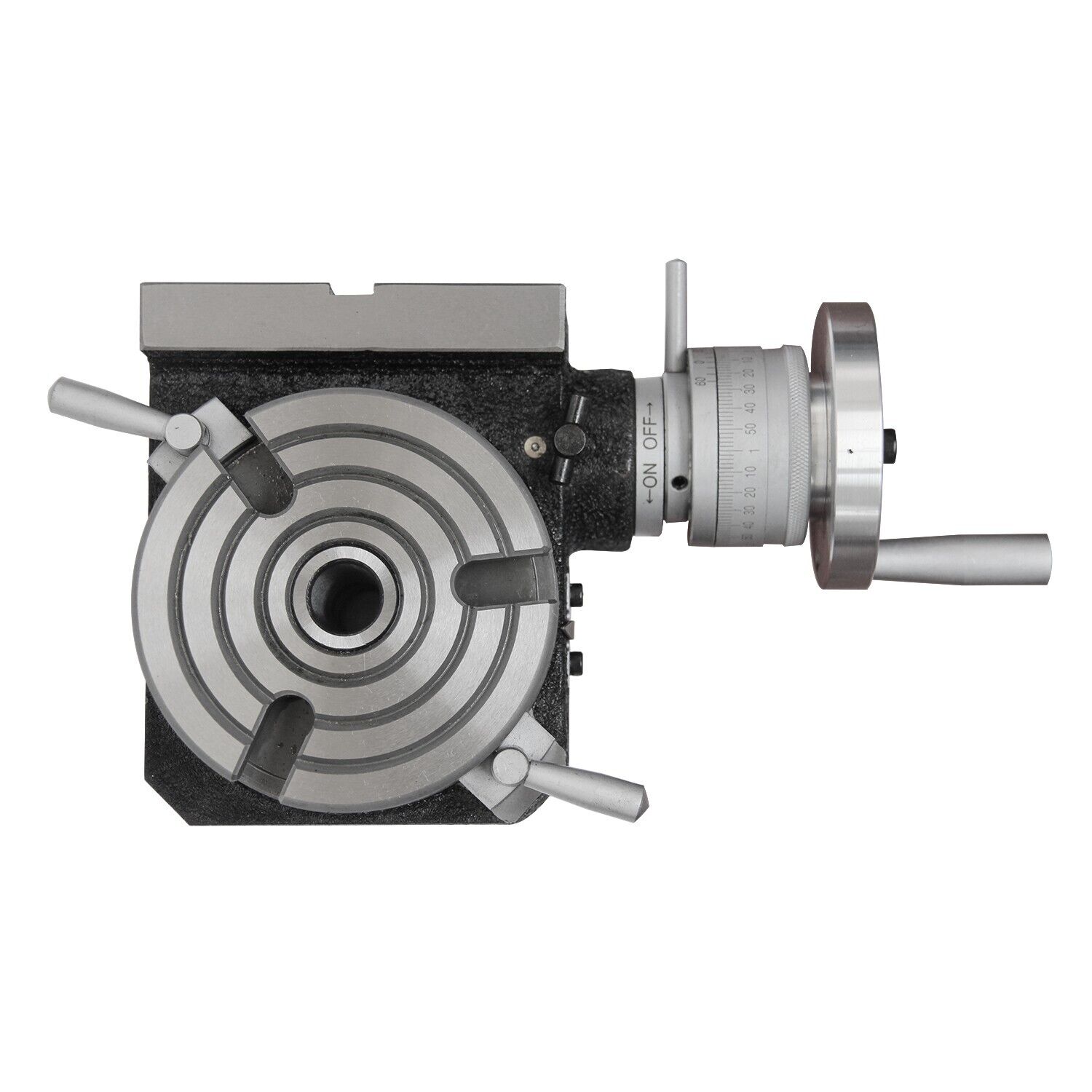

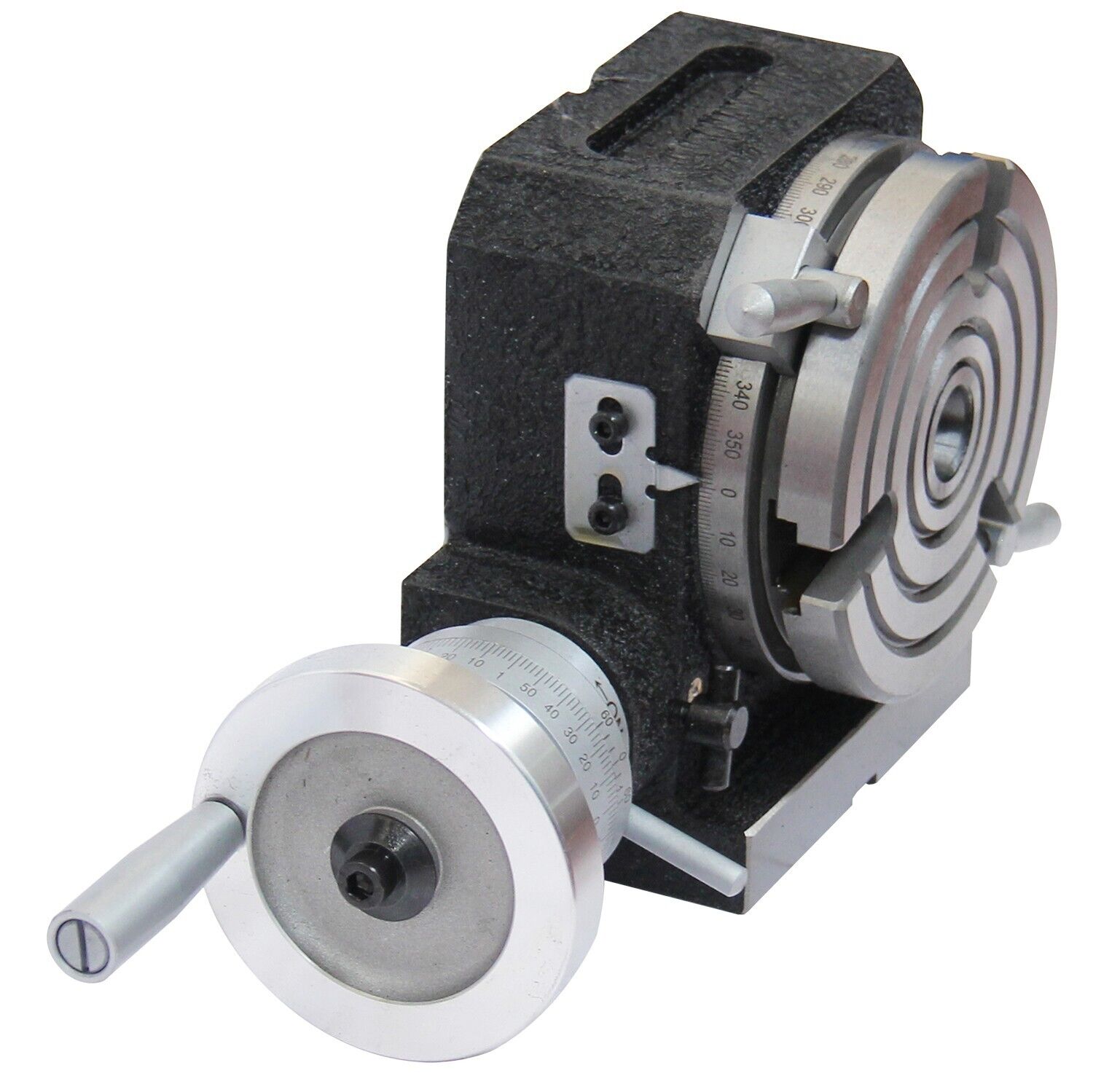

INDUSTRIAL Rotary Table HV-4 ø110mm table, high-density cast iron rotary table.

• High-density cast iron body
• Vertical and horizontal position table
• One rotation of the handle equals 5° on the collar
• Gear ratio: HV-4, 1:72, HV-6, HV-8 1:90
• Ground surface areas on the table

• Model: HV-4, HV-6, HV-8
• Item No.: 161104, 161106, 161108
• Dia. of table: 110 mm, 150 mm, 200 mm
• Morse taper: MT2, MT2, MT3
• Width of T-slot: 12 mm, 12 mm, 14 mm
• Adjacent angle of T slot: 120°, 90°, 90°
• Transmission ratio of the worm gear: 1:72, 1:90, 1:90
• Minimum value of vernier: 10", 10", 10"
• Max. loading with table horizontal: 110 kg, 110 kg, 150 kg
• Max. loading with table vertical: 110 kg, 110 kg, 75 kg
• Packing size: 19x10x12 cm, 26x24x13 cm, 38x31x18 cm
• N.W./G.W.: 7/9 kg, 13/15 kg, 31/38 kg
