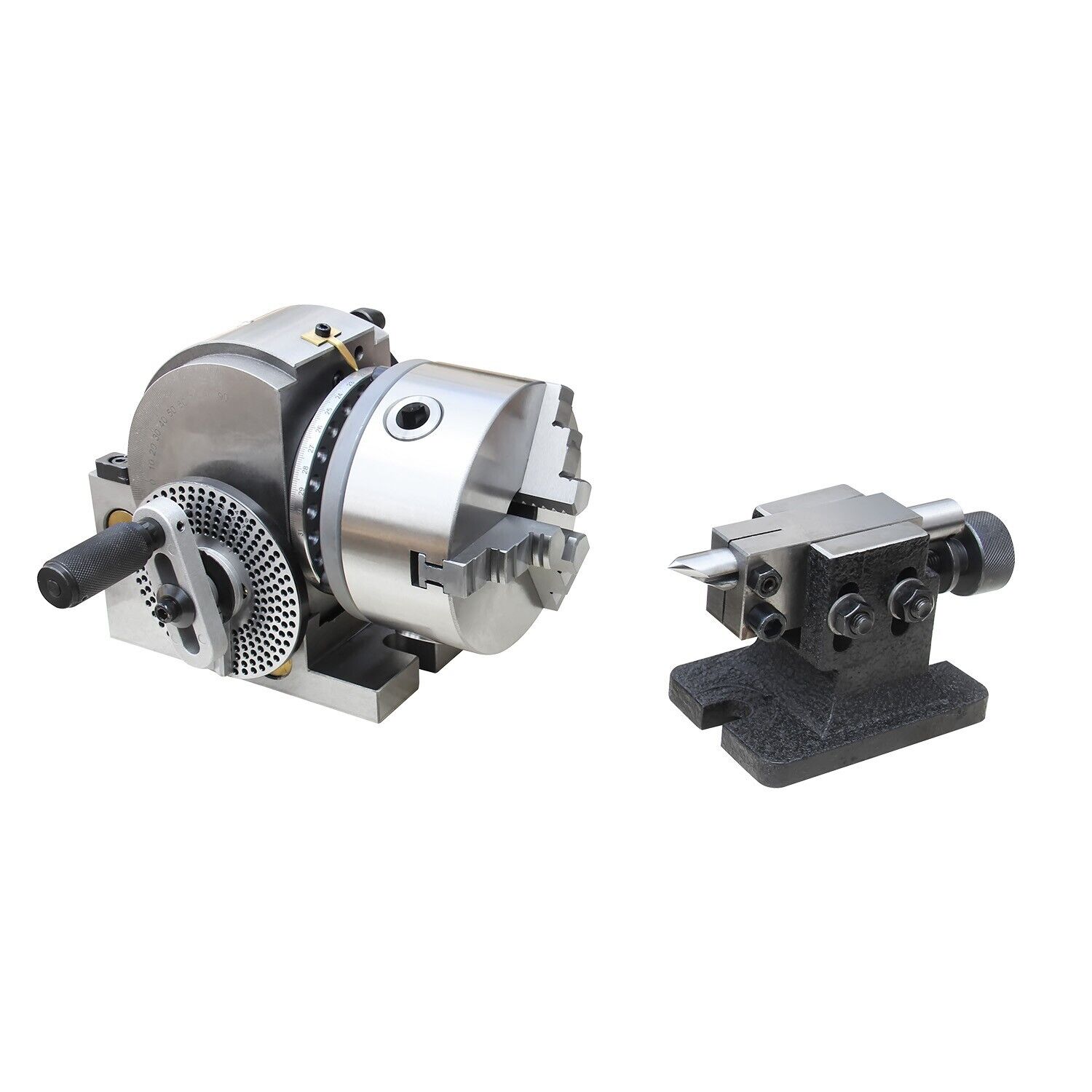

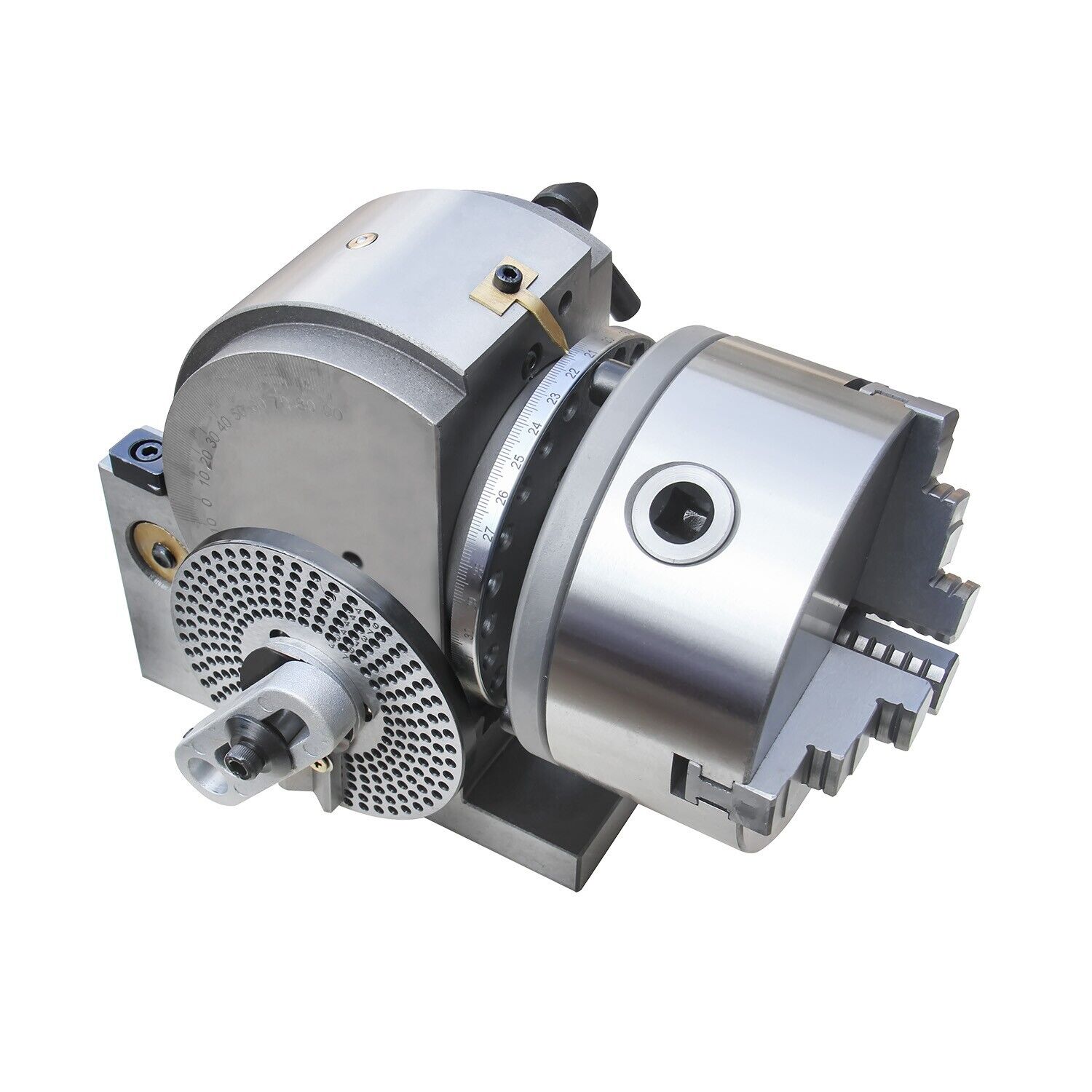

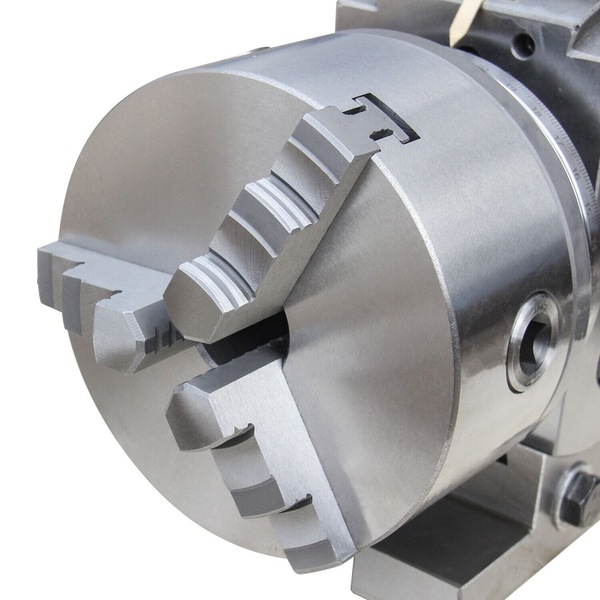

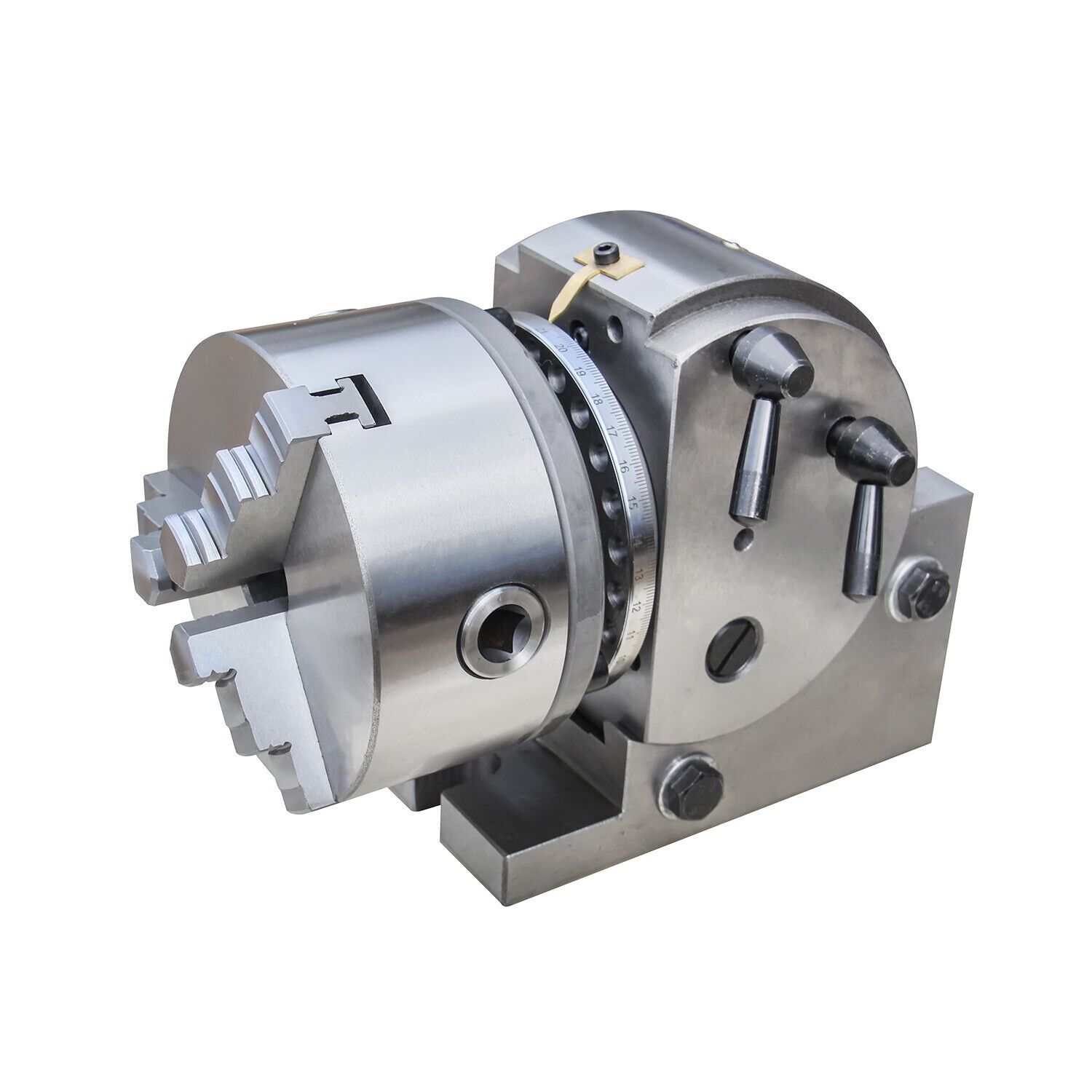

Industrial Semi-Universal dividing head with 3 jaw chuck, 100mm center height

Features
BS-0 dividing head is suitable for direct and indirect indexing
MT2 spindle taper
The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexing
Worm and worm wheel ratio 40:1
Tilt from horizontal to vertical (-10° to +90°)
Each divide from 2 to 50 and many divides from 51-380

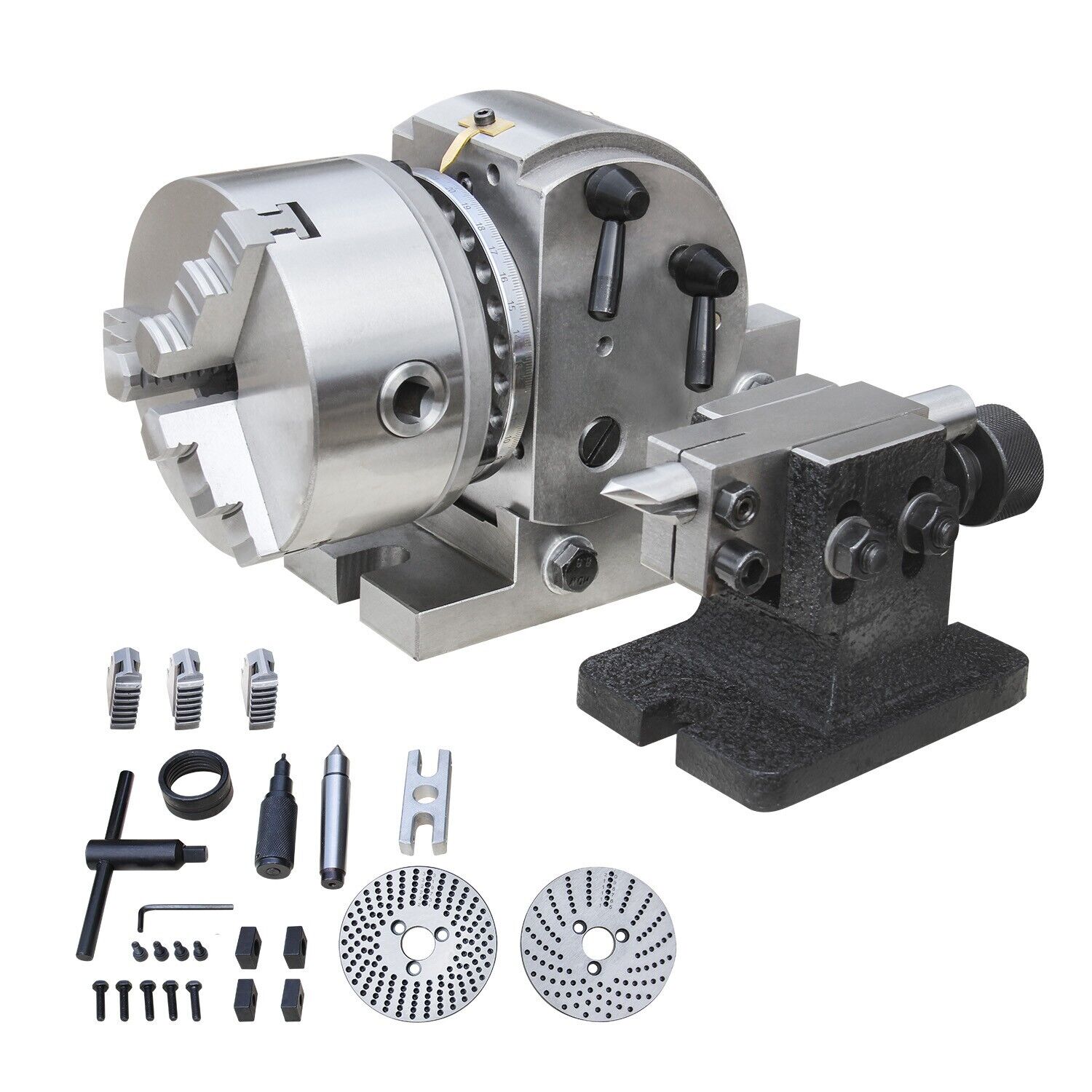

Standard Accessories

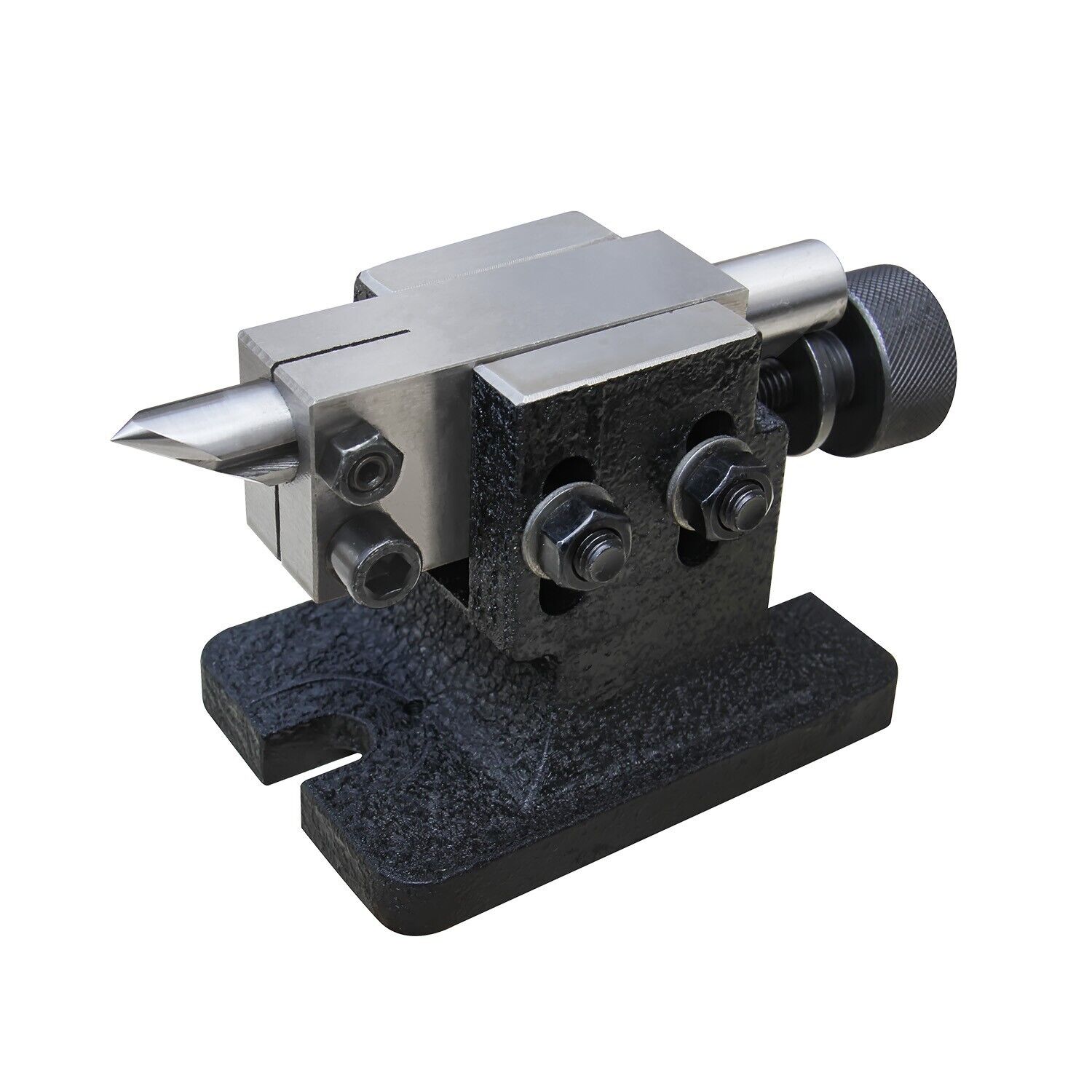

Tailstock, Dividing plate, Dead center

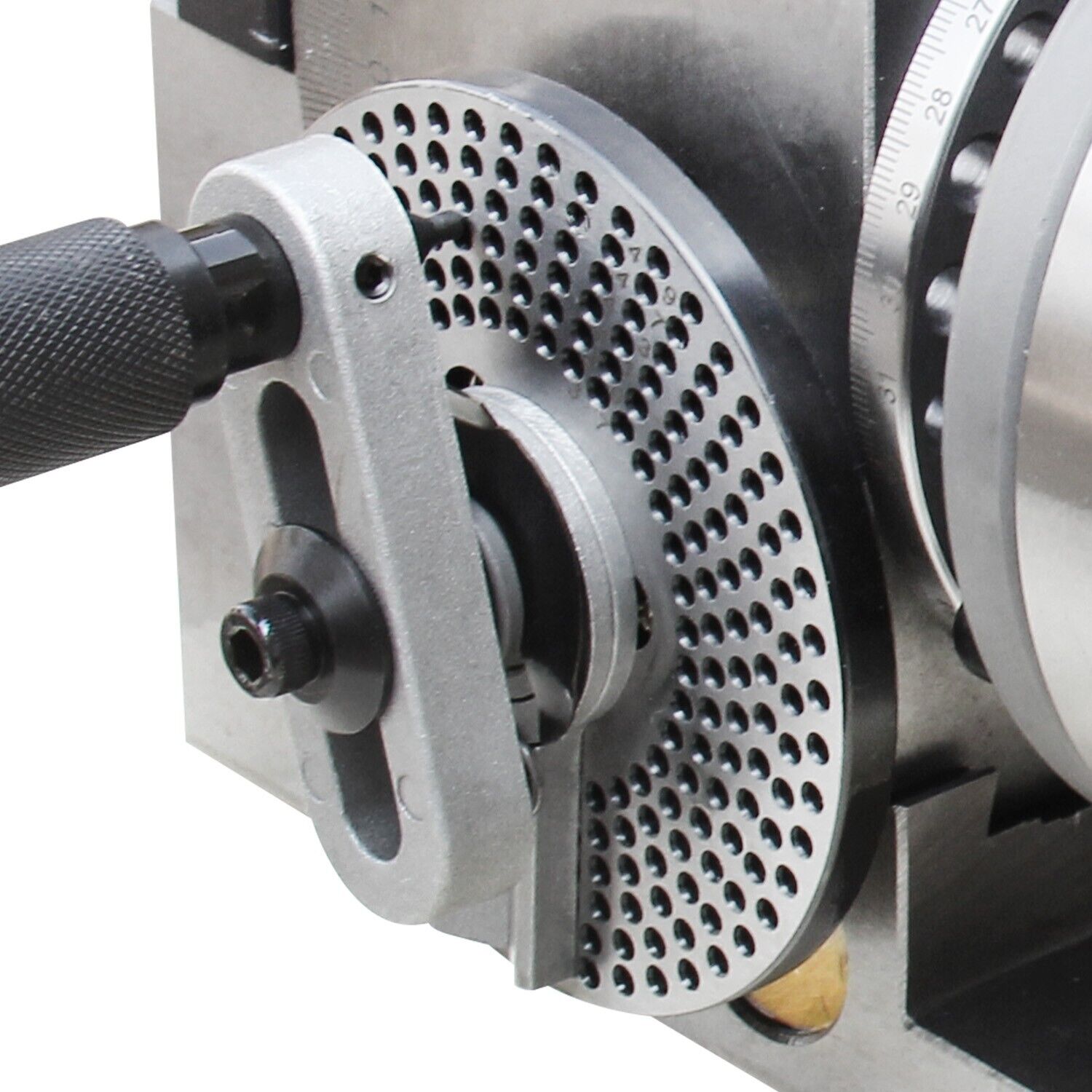

ABC dividing plate specifications
Plate A: 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm
Plate B: 21 mm, 23 mm, 27 mm, 29 mm, 31 mm, 33 mm
Plate C: 37 mm, 39 mm, 41 mm, 43 mm, 47 mm, 49 mm
