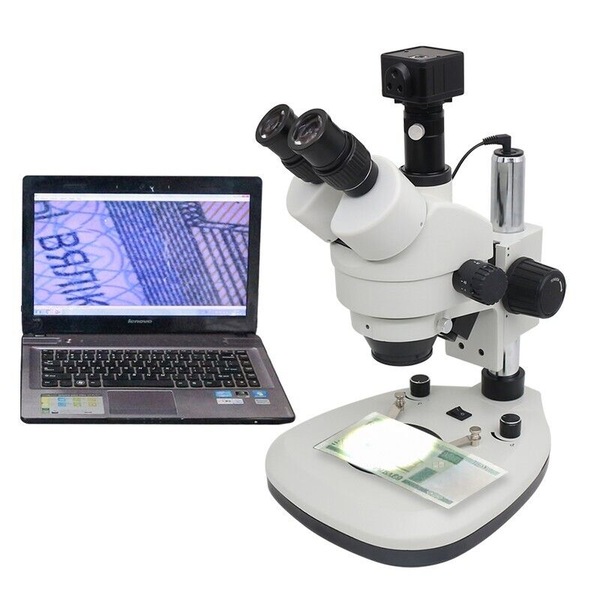

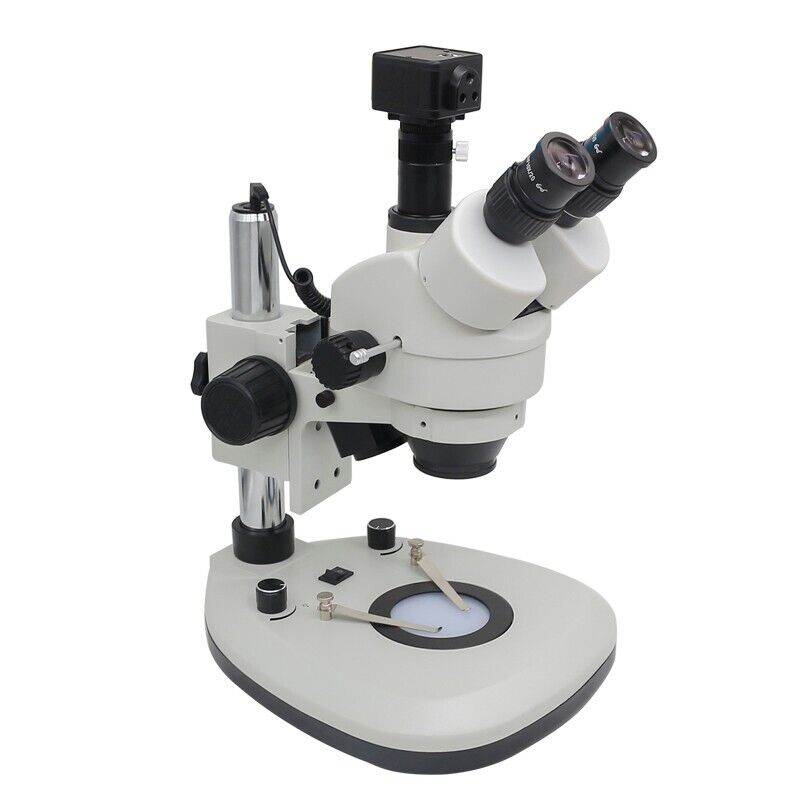

3.5X-90X Zoom Illuminated Industrial Stereo Microscope 360 Degree Rotatable Trinocular Head for PCB Inspection Mobile Phone Repair 100mm Working Distance with Top Bottom LED Light 5.0MP USB Digital Camera. This series zoom microscope adopts streamline integrated mechanical design, Easy operation, long working distance, clear resolved image, enclosure integrated. The microscope is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, PCB inspection, pressing plating and electronic component inspection.

Specification

• Model: TXB2-D4-DG
• Wide Field Eyepiece: WF10X/20mm
• Objective: 0.7X-4.5X zoom
• Auxiliary Objective: 0.5X and 2X barlow lens
• Total Magnification: 3.5X-90X zoom
• Zoom Ratio: 1: 6.4
• Working Distance: 100 mm (3.94")
• Articulated Free Trinocular Head
• Diopter Adjustment: +/-5dp

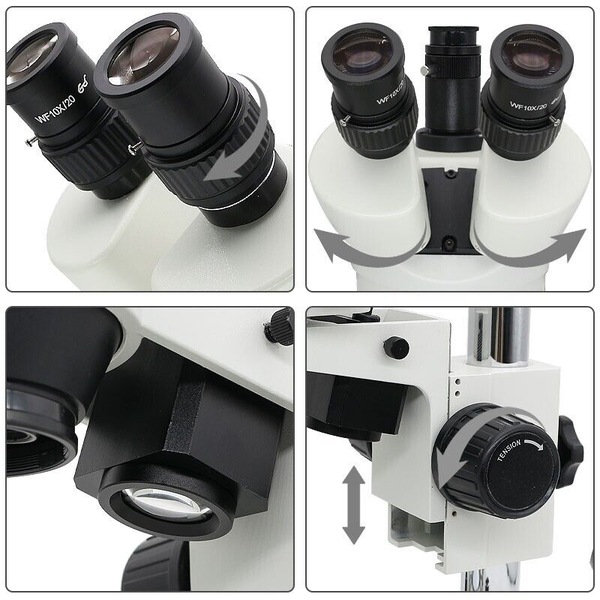

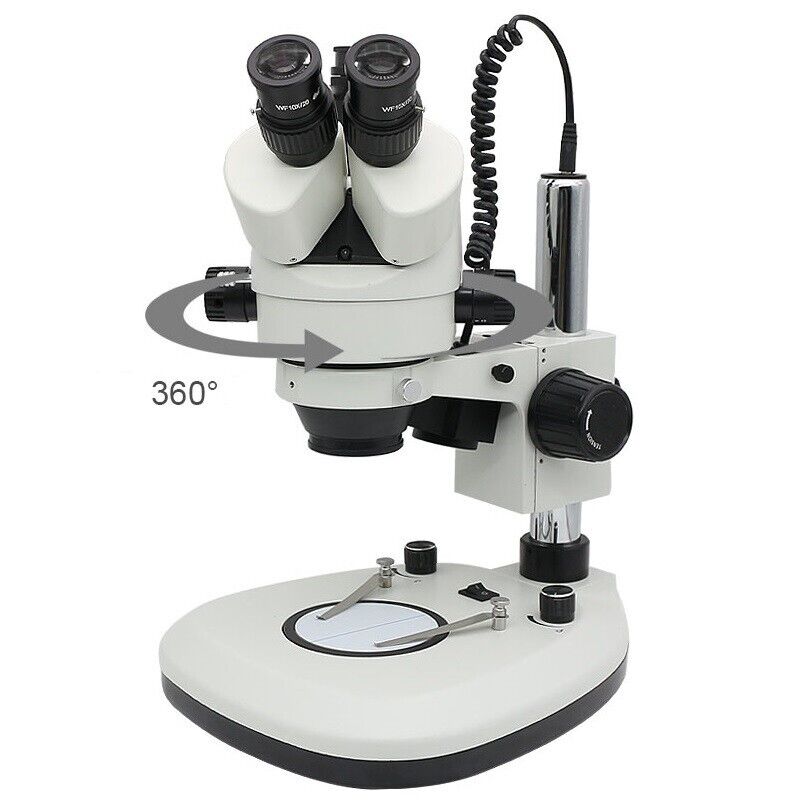

• Interpupillary Distance: 55-75 mm (2.17"-2.95"), 45 degree Inclined, 360 degree Rotatable
• Stage: Pillar sector base size 285 x 238, 95mm Frosted Glass & Black-white Reversible Stage Plate
• Rack and Pinion Coarse Focusing Adjustable Mechanism

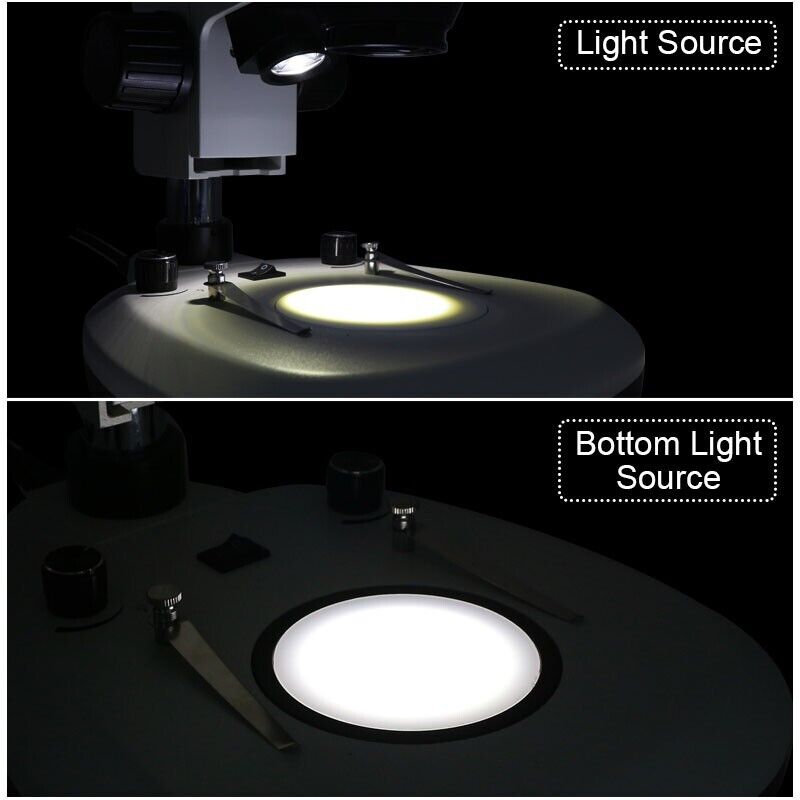

• Illumination: Top and Bottom LED Light
• Power Supply: 110V - 230V
• Net Weight: 4.4KG

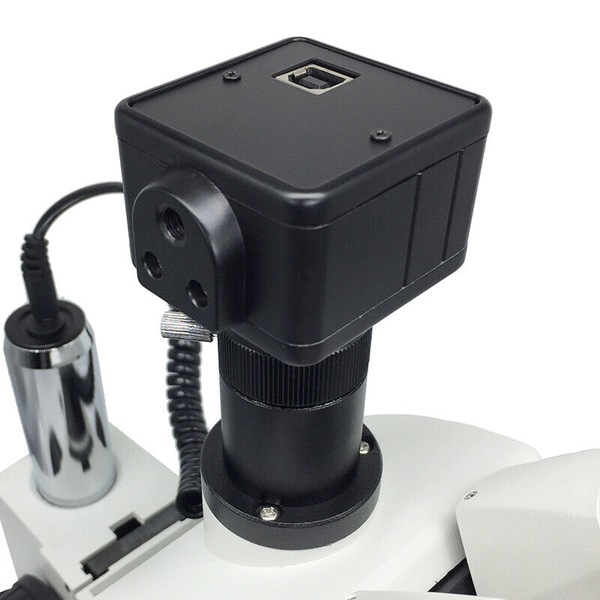

Camera Specification

• Dimension: 50X55X40.5MM
• Interface: USB2.0
• Resolution: 2592X1944
• Sensor Type: 1/2.5" true color CMOS
• Pixel Size: 2.2umX2.2um
• Frame Rate: @640X480:30FPS;   @2592X1944:10fps
• Auto White Balance: Yes
• Exposure: Manual/Auto
• Image Format: JPG/BMP/PNG/GIF
• Video Format: AVI
• Operating System: win8 / win7(32bits&64bits) / Vista / XP/ Windows
• Supported: Capture software, driver
• Software: Capture software, driver
• Tube size: C Port

Package Including

• One Stereo Microscope
• One Pair of WF10X Eyepiece
• One Pair of Eye-Cups
• One 0.5X Barlow Lens
• One 2X Barlow Lens
• One User's Manual for the Microscope
• One 5.0MP USB2.0 Digital Camera
• One USB Cable
• One CD with Driver, Software and User's Instructions

Attention

Because of the different Standard of every country, please message the voltage and the model of plug specification when purchase! Thank you! If plug in stock doesn't meet you demand, a adapter will be provided freely. Eyepiece of WF15X, WF20X are also available. (Not free)
