Insulation Resistance Meter Digital Megger Ohmmeter Handheld Insulation M6L8

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Limited Stock
$72.99

Collect 72 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Take 10% Off Purchases Over $100
Exclusive to Emutree Group Pty Ltd products only. Expires 11.59pm 11/07/2025. Excludes Shipping.
Sold & shipped by Emutree Group Pty Ltd
Secure ways to pay at checkout

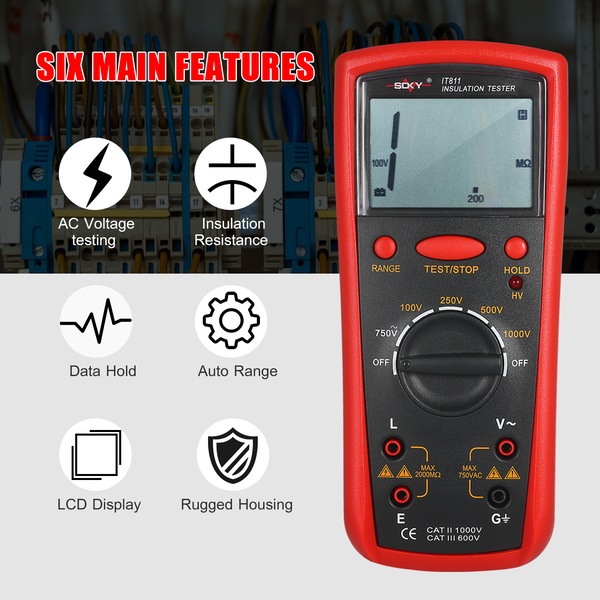

Function: Auto the range when measuring resistance; data hold feature; low battery reminder and high voltage indicator.

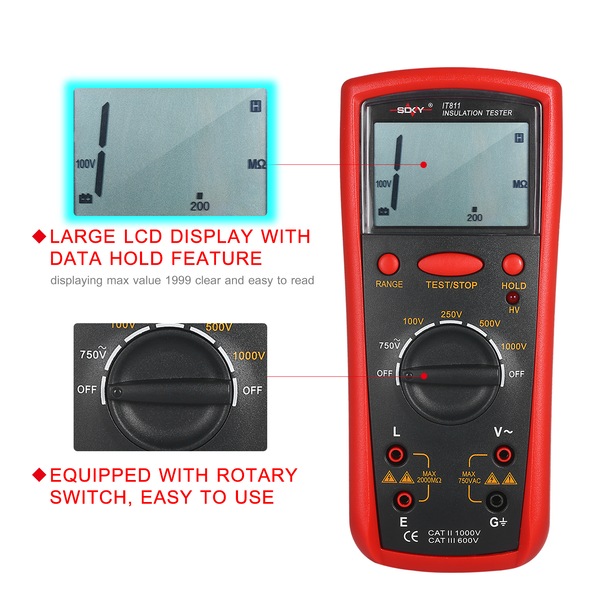

Large LCD Display: Equipped with a 3 1/2 digits big LCD display with max value 1999, easy to read.

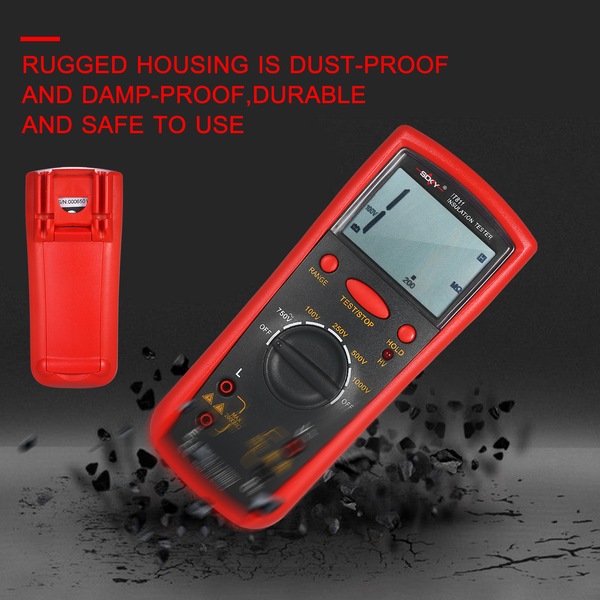

Safe to Use: Rugged housing is dust-proof and damp-proof; b load ty with output short-circuit t about 1.0mA; protective circuit prevents damage from voltage shock.

User-Friendly: Turn the rotary to select voltage; comes with test leads, alligator clips, and a kickstand on the back.

Wide Application: This tester can be applied in all kinds of electric equipment and insulation materials such as transformer, electromotor, cable, , appliance, etc.

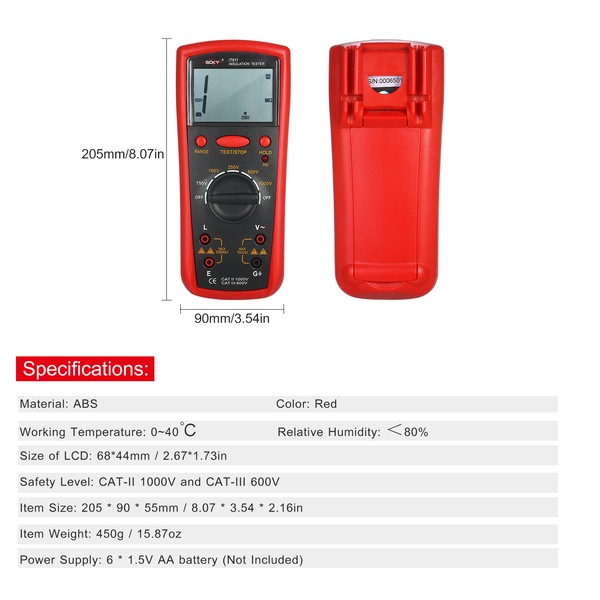

Specifications:

Material: ABS

Color: Red

Size of LCD: 68*44mm / 2.67*1.73in

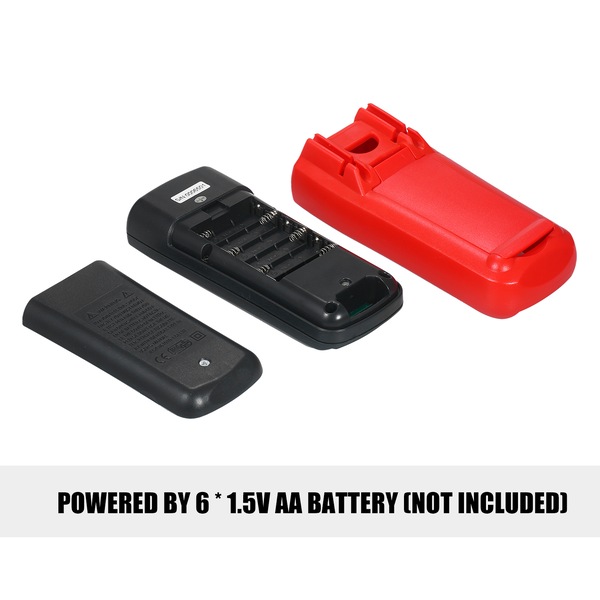

Power Supply: 6 * 1.5V AA battery (Not Included)

Working Temperature: 0~40��

Relative Humidity: ��80%

Level: CAT-II 1000V and CAT-III 600V

Item Size: 205 * 90 * 55mm / 8.07 * 3.54 * 2.16in

Item Weight: 450g / 15.87oz

Package Weight: 774g / 27.3oz

Package Size: 23.2 * 16.2 * 7cm / 9.13 * 6.37 * 2.75in



Technique Index:

Test rated voltage: 100V, 250V, 500V, 1000V

Output voltage: 90%~110% of the test rated voltage

Resistance

  Measurement range: 0.1MΩ~2000MΩ

  Resolution: 0.01 MΩ

  Accuracy:

  0.1 MΩ ~ 200 MΩ: ±(3% of the reading + 5 significant digits)

  200 MΩ ~ 2000MΩ: ±(5% of the reading + 5 significant digits)

AC voltage

  Measurement range: 1V ~ 750V

  Resolution: 1V

  Accuracy: ±(2% of the reading + 5 significant digits)

Frequency Response: 40Hz ~ 400Hz



Packing List:

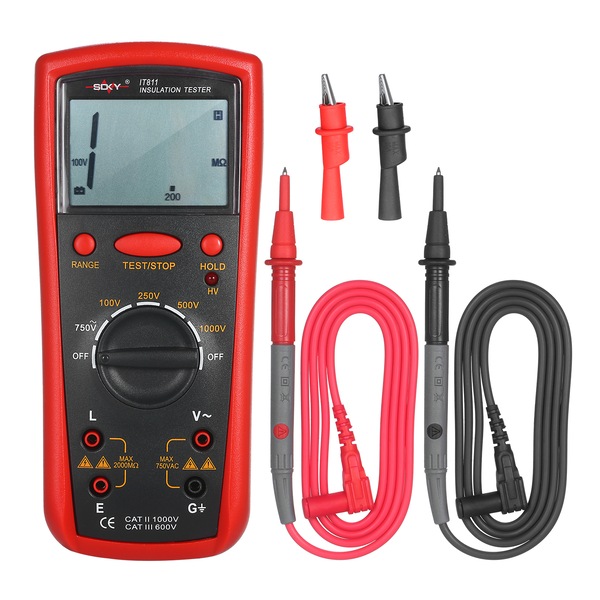

1 * Insulation Tester

1 * Storage Bag

1 * Test Leads(pair)

1 * Probe Clips(pair)

1 * User Manual (English)


GTIN: 777816549831
