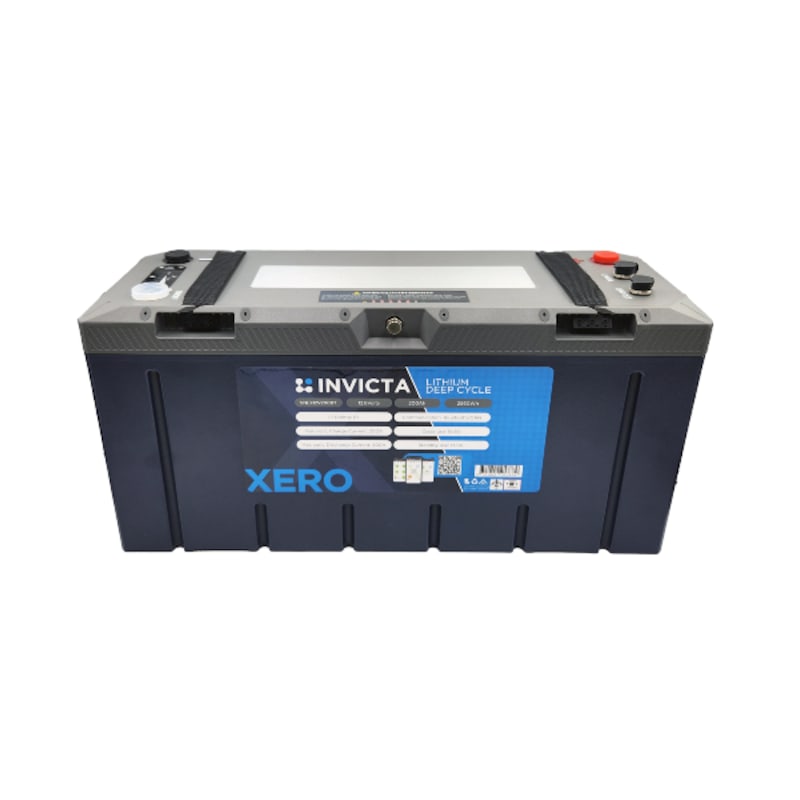

Invicta Xero, the latest addition to Invicta, is an advanced lithium battery designed to meet the increasing demands of emerging applications and safety requirements in recreational and industrial industries. The Invicta Xero range includes significant upgrades while still utilising tried-and-tested technology that users trust day in and day out.

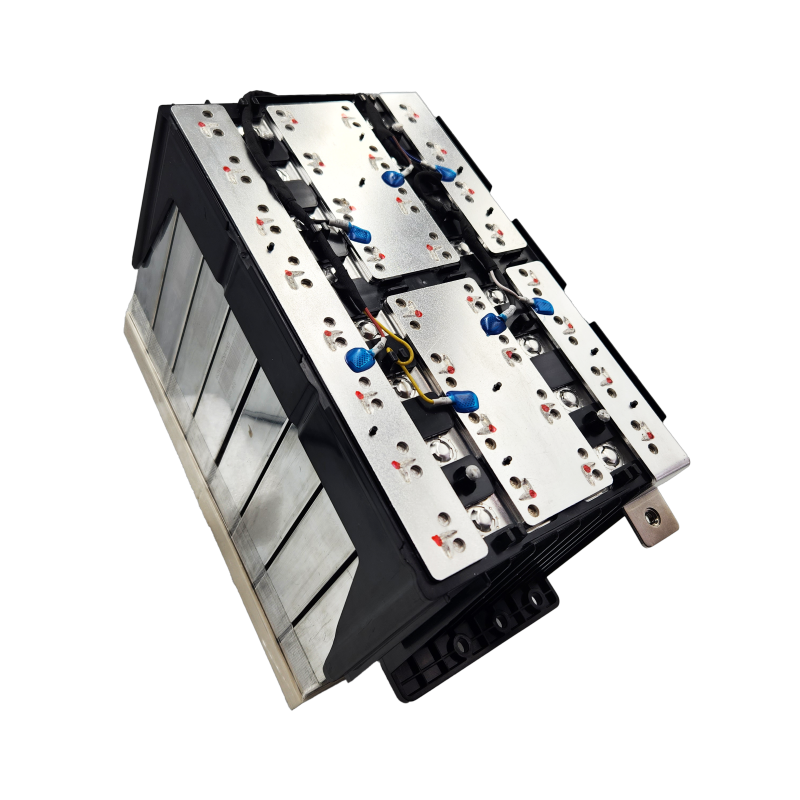

Upgrades include an improved IP rating, high-performance BMS, overall construction, and communication methods via CAN bus and Bluetooth connections. The battery continues to use Invicta’s ever-popular prismatic cells and is backed by a market-leading 7-year full replacement warranty and national customer support.

The Invicta Xero 12V range has been specifically designed for replacement of similar size Lead acid batteries. The Xero range uses all the benefits of Lithium Iron Phosphate (LiFePO4) technology and pushes the limits in communication posibilites, power, safety and security with its advanced battery technology.

Features & Benefits

• Large number of cycles >3000 (100% DoD). Up to 10 times cycle life of SLA lowering your total cost of ownership

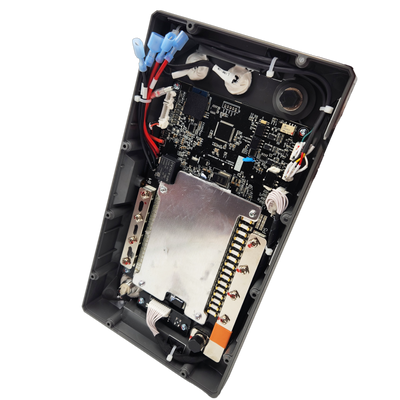

• Safe and stable chemistry & Integrated BMS. The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety
• More communication possibilites with Bluetooth and open CAN bus, this makes connecting devices even easier.
• High energy density (less than half of the weight of SLA). Lowering total weight of application
• Sealed from the Australian elements. IP67 rated
• More power and customisation with the ability to connect 4 in series, or 16 in parallel, or upto 4 in series and 4 in parallel.

Specification:

• Nominal Voltage:12.8v
• Nominal Capacity (250C, 0.33C): 200Ah
• Terminal: M8
• Length (mm): 485 ± 2mm
• Width (mm): 172 ± 2mm
• Height (mm)/Terminal Height: 231/247 ± 2mm
• Weight: 23.0kg
• Max Charge Voltage: 14.5 ± 0.1V
• Standby: 13.8 ± 0.1V
• Cut off Voltage: 11V
• Max. Discharge Current: 200A
• Max. Pulse Discharge Current (3 Sec): 800A
• Max. Charge Current: 200A
• Cycle Life (100% DoD): > 3000
• Operating Temp: Charge 0 - 60C | Discharge -20 - 55C
• Short Circuit Release: Load Release
• Max. Series / Parallel Configuration: 4S/16P/4S+4P
• Communication Bluetooth and CAN/RS485
• Certification: IEC62619
• IP Rating: 67
